beluga::BaseRegularGrid< Derived, NDim > Class Template Reference

Regularly spaced N dimensional grid base type. More...

#include <regular_grid.hpp>

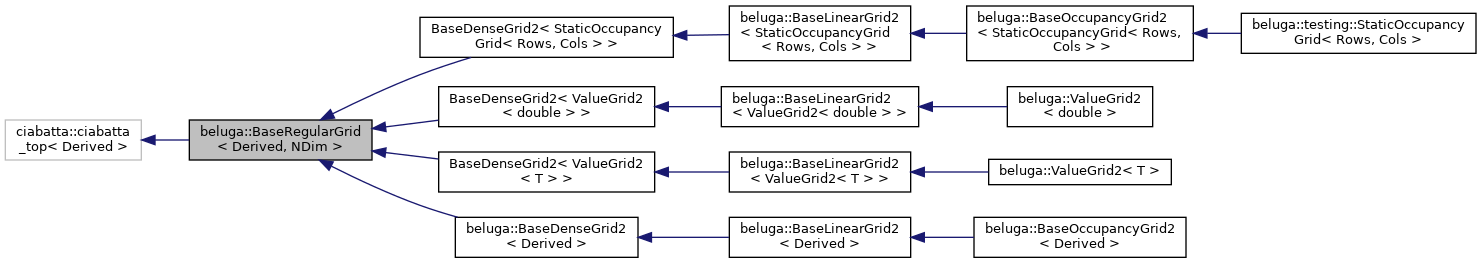

Inheritance diagram for beluga::BaseRegularGrid< Derived, NDim >:

Public Member Functions
Eigen::Vector< int, NDim >	cell_near (const Eigen::Vector< double, NDim > &p) const
	Compute nearest grid cell coordinates given plane coordinates. More...
Eigen::Vector< double, NDim >	coordinates_at (const Eigen::Vector< int, NDim > &pi) const
	Compute plane coordinates given grid cell coordinates. More...
template<class Range >
auto	coordinates_for (Range &&cells) const
	Compute plane coordinates given a range of cell coordinates. More...

Detailed Description

template<typename Derived, int NDim>
class beluga::BaseRegularGrid< Derived, NDim >

Regularly spaced N dimensional grid base type.

When instantiated, it satisfies Beluga named requirements: RegularGrid.

Template Parameters

Derived	Concrete regular grid type. It must define Derived::resolution(), as described in Beluga named requirements: RegularGrid.
NDim	Dimension of the grid.

Definition at line 65 of file regular_grid.hpp.

Member Function Documentation

cell_near()

template<typename Derived , int NDim>

Eigen::Vector<int, NDim> beluga::BaseRegularGrid< Derived, NDim >::cell_near ( const Eigen::Vector< double, NDim > &  p ) const

inline

Compute nearest grid cell coordinates given plane coordinates.

Note this is a surjective function.

Parameters

p	Plane coordinates.

Returns

Grid cell coordinates.

Definition at line 74 of file regular_grid.hpp.

coordinates_at()

template<typename Derived , int NDim>

Eigen::Vector<double, NDim> beluga::BaseRegularGrid< Derived, NDim >::coordinates_at ( const Eigen::Vector< int, NDim > &  pi ) const

inline

Compute plane coordinates given grid cell coordinates.

Note this is an injective function.

Parameters

pi	Grid cell coordinates.

Returns

Plane coordinates of the cell centroid.

Definition at line 86 of file regular_grid.hpp.

coordinates_for()

template<typename Derived , int NDim>

template<class Range >

auto beluga::BaseRegularGrid< Derived, NDim >::coordinates_for ( Range &&  cells ) const

inline

Compute plane coordinates given a range of cell coordinates.

Parameters

cells

Range of grid cell identifiers.

Returns

Range of plane coordinates.

Definition at line 96 of file regular_grid.hpp.

---

The documentation for this class was generated from the following file:

• regular_grid.hpp
