utils/cmsis/same70/include/component/mcan.h File Reference

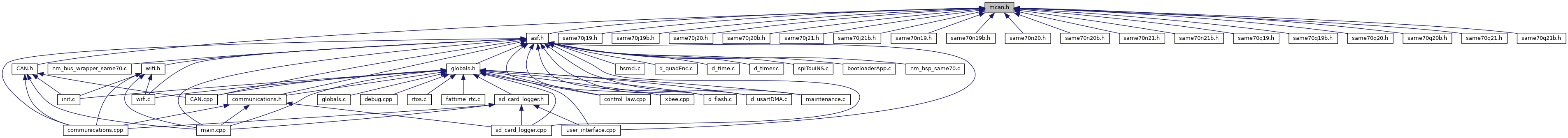

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  Mcan
 Mcan hardware registers. More...


Macros

#define MCAN_BTP_BRP(value)   ((MCAN_BTP_BRP_Msk & ((value) << MCAN_BTP_BRP_Pos)))

#define MCAN_BTP_BRP_Msk   (0x3ffu << MCAN_BTP_BRP_Pos)
 (MCAN_BTP) Baud Rate Prescaler More...

#define MCAN_BTP_BRP_Pos   16

#define MCAN_BTP_SJW(value)   ((MCAN_BTP_SJW_Msk & ((value) << MCAN_BTP_SJW_Pos)))

#define MCAN_BTP_SJW_Msk   (0xfu << MCAN_BTP_SJW_Pos)
 (MCAN_BTP) (Re) Synchronization Jump Width More...

#define MCAN_BTP_SJW_Pos   0

#define MCAN_BTP_TSEG1(value)   ((MCAN_BTP_TSEG1_Msk & ((value) << MCAN_BTP_TSEG1_Pos)))

#define MCAN_BTP_TSEG1_Msk   (0x3fu << MCAN_BTP_TSEG1_Pos)
 (MCAN_BTP) Time Segment Before Sample Point More...

#define MCAN_BTP_TSEG1_Pos   8

#define MCAN_BTP_TSEG2(value)   ((MCAN_BTP_TSEG2_Msk & ((value) << MCAN_BTP_TSEG2_Pos)))

#define MCAN_BTP_TSEG2_Msk   (0xfu << MCAN_BTP_TSEG2_Pos)
 (MCAN_BTP) Time Segment After Sample Point More...

#define MCAN_BTP_TSEG2_Pos   4

#define MCAN_CCCR_ASM   (0x1u << 2)
 (MCAN_CCCR) Restricted Operation Mode (read/write, write protection against '1') More...

#define MCAN_CCCR_ASM_NORMAL   (0x0u << 2)
 (MCAN_CCCR) Normal CAN operation. More...

#define MCAN_CCCR_ASM_RESTRICTED   (0x1u << 2)
 (MCAN_CCCR) Restricted operation mode active. More...

#define MCAN_CCCR_BRSE   (0x1u << 9)
 (MCAN_CCCR) Bit Rate Switching Enable (read/write, write protection) More...

#define MCAN_CCCR_BRSE_DISABLED   (0x0u << 9)
 (MCAN_CCCR) Bit rate switching for transmissions disabled. More...

#define MCAN_CCCR_BRSE_ENABLED   (0x1u << 9)
 (MCAN_CCCR) Bit rate switching for transmissions enabled. More...

#define MCAN_CCCR_CCE   (0x1u << 1)
 (MCAN_CCCR) Configuration Change Enable (read/write, write protection) More...

#define MCAN_CCCR_CCE_CONFIGURABLE   (0x1u << 1)
 (MCAN_CCCR) The processor has write access to the protected configuration registers (while MCAN_CCCR.INIT = '1'). More...

#define MCAN_CCCR_CCE_PROTECTED   (0x0u << 1)
 (MCAN_CCCR) The processor has no write access to the protected configuration registers. More...

#define MCAN_CCCR_CME(value)   ((MCAN_CCCR_CME_Msk & ((value) << MCAN_CCCR_CME_Pos)))

#define MCAN_CCCR_CME_FD   (0x1u << 8)
 (MCAN_CCCR) CAN FD operation enabled More...

#define MCAN_CCCR_CME_ISO11898_1   (0x0u << 8)
 (MCAN_CCCR) CAN operation according to ISO11898-1 enabled More...

#define MCAN_CCCR_CME_Msk   (0x3u << MCAN_CCCR_CME_Pos)
 (MCAN_CCCR) CAN Mode Enable (read/write, write protection) More...

#define MCAN_CCCR_CME_Pos   8

#define MCAN_CCCR_CMR(value)   ((MCAN_CCCR_CMR_Msk & ((value) << MCAN_CCCR_CMR_Pos)))

#define MCAN_CCCR_CMR_FD   (0x1u << 10)
 (MCAN_CCCR) Request CAN FD operation More...

#define MCAN_CCCR_CMR_FD_BITRATE_SWITCH   (0x2u << 10)
 (MCAN_CCCR) Request CAN FD operation with bit rate switching More...

#define MCAN_CCCR_CMR_ISO11898_1   (0x3u << 10)
 (MCAN_CCCR) Request CAN operation according ISO11898-1 More...

#define MCAN_CCCR_CMR_Msk   (0x3u << MCAN_CCCR_CMR_Pos)
 (MCAN_CCCR) CAN Mode Request (read/write) More...

#define MCAN_CCCR_CMR_NO_CHANGE   (0x0u << 10)
 (MCAN_CCCR) No mode change More...

#define MCAN_CCCR_CMR_Pos   10

#define MCAN_CCCR_CSA   (0x1u << 3)
 (MCAN_CCCR) Clock Stop Acknowledge (read-only) More...

#define MCAN_CCCR_CSR   (0x1u << 4)
 (MCAN_CCCR) Clock Stop Request (read/write) More...

#define MCAN_CCCR_CSR_CLOCK_STOP   (0x1u << 4)
 (MCAN_CCCR) Clock stop requested. When clock stop is requested, first INIT and then CSA will be set after all pend-ing transfer requests have been completed and the CAN bus reached idle. More...

#define MCAN_CCCR_CSR_NO_CLOCK_STOP   (0x0u << 4)
 (MCAN_CCCR) No clock stop is requested. More...

#define MCAN_CCCR_DAR   (0x1u << 6)
 (MCAN_CCCR) Disable Automatic Retransmission (read/write, write protection) More...

#define MCAN_CCCR_DAR_AUTO_RETX   (0x0u << 6)
 (MCAN_CCCR) Automatic retransmission of messages not transmitted successfully enabled. More...

#define MCAN_CCCR_DAR_NO_AUTO_RETX   (0x1u << 6)
 (MCAN_CCCR) Automatic retransmission disabled. More...

#define MCAN_CCCR_EFBI   (0x1u << 13)
 (MCAN_CCCR) Edge Filtering during Bus Integration (read/write, write protection) More...

#define MCAN_CCCR_FDBS   (0x1u << 13)
 (MCAN_CCCR) CAN FD Bit Rate Switching (read-only) More...

#define MCAN_CCCR_FDO   (0x1u << 12)
 (MCAN_CCCR) CAN FD Operation (read-only) More...

#define MCAN_CCCR_FDOE   (0x1u << 8)
 (MCAN_CCCR) CAN FD Operation Enable (read/write, write protection) More...

#define MCAN_CCCR_FDOE_DISABLED   (0x0u << 8)
 (MCAN_CCCR) FD operation disabled. More...

#define MCAN_CCCR_FDOE_ENABLED   (0x1u << 8)
 (MCAN_CCCR) FD operation enabled. More...

#define MCAN_CCCR_INIT   (0x1u << 0)
 (MCAN_CCCR) Initialization (read/write) More...

#define MCAN_CCCR_INIT_DISABLED   (0x0u << 0)
 (MCAN_CCCR) Normal operation. More...

#define MCAN_CCCR_INIT_ENABLED   (0x1u << 0)
 (MCAN_CCCR) Initialization is started. More...

#define MCAN_CCCR_MON   (0x1u << 5)
 (MCAN_CCCR) Bus Monitoring Mode (read/write, write protection against '1') More...

#define MCAN_CCCR_MON_DISABLED   (0x0u << 5)
 (MCAN_CCCR) Bus Monitoring mode is disabled. More...

#define MCAN_CCCR_MON_ENABLED   (0x1u << 5)
 (MCAN_CCCR) Bus Monitoring mode is enabled. More...

#define MCAN_CCCR_NISO   (0x1u << 15)
 (MCAN_CCCR) Non-ISO Operation More...

#define MCAN_CCCR_PXHD   (0x1u << 12)
 (MCAN_CCCR) Protocol Exception Event Handling (read/write, write protection) More...

#define MCAN_CCCR_TEST   (0x1u << 7)
 (MCAN_CCCR) Test Mode Enable (read/write, write protection against '1') More...

#define MCAN_CCCR_TEST_DISABLED   (0x0u << 7)
 (MCAN_CCCR) Normal operation, MCAN_TEST register holds reset values. More...

#define MCAN_CCCR_TEST_ENABLED   (0x1u << 7)
 (MCAN_CCCR) Test mode, write access to MCAN_TEST register enabled. More...

#define MCAN_CCCR_TXP   (0x1u << 14)
 (MCAN_CCCR) Transmit Pause (read/write, write protection) More...

#define MCAN_CREL_DAY_Msk   (0xffu << MCAN_CREL_DAY_Pos)
 (MCAN_CREL) Timestamp Day More...

#define MCAN_CREL_DAY_Pos   0

#define MCAN_CREL_MON_Msk   (0xffu << MCAN_CREL_MON_Pos)
 (MCAN_CREL) Timestamp Month More...

#define MCAN_CREL_MON_Pos   8

#define MCAN_CREL_REL_Msk   (0xfu << MCAN_CREL_REL_Pos)
 (MCAN_CREL) Core Release More...

#define MCAN_CREL_REL_Pos   28

#define MCAN_CREL_STEP_Msk   (0xfu << MCAN_CREL_STEP_Pos)
 (MCAN_CREL) Step of Core Release More...

#define MCAN_CREL_STEP_Pos   24

#define MCAN_CREL_SUBSTEP_Msk   (0xfu << MCAN_CREL_SUBSTEP_Pos)
 (MCAN_CREL) Sub-step of Core Release More...

#define MCAN_CREL_SUBSTEP_Pos   20

#define MCAN_CREL_YEAR_Msk   (0xfu << MCAN_CREL_YEAR_Pos)
 (MCAN_CREL) Timestamp Year More...

#define MCAN_CREL_YEAR_Pos   16

#define MCAN_CUST_CSV(value)   ((MCAN_CUST_CSV_Msk & ((value) << MCAN_CUST_CSV_Pos)))

#define MCAN_CUST_CSV_Msk   (0xffffffffu << MCAN_CUST_CSV_Pos)
 (MCAN_CUST) Customer-specific Value More...

#define MCAN_CUST_CSV_Pos   0

#define MCAN_DBTP_DBRP(value)   ((MCAN_DBTP_DBRP_Msk & ((value) << MCAN_DBTP_DBRP_Pos)))

#define MCAN_DBTP_DBRP_Msk   (0x1fu << MCAN_DBTP_DBRP_Pos)
 (MCAN_DBTP) Data Bit Rate Prescaler More...

#define MCAN_DBTP_DBRP_Pos   16

#define MCAN_DBTP_DSJW(value)   ((MCAN_DBTP_DSJW_Msk & ((value) << MCAN_DBTP_DSJW_Pos)))

#define MCAN_DBTP_DSJW_Msk   (0x7u << MCAN_DBTP_DSJW_Pos)
 (MCAN_DBTP) Data (Re) Synchronization Jump Width More...

#define MCAN_DBTP_DSJW_Pos   0

#define MCAN_DBTP_DTSEG1(value)   ((MCAN_DBTP_DTSEG1_Msk & ((value) << MCAN_DBTP_DTSEG1_Pos)))

#define MCAN_DBTP_DTSEG1_Msk   (0x1fu << MCAN_DBTP_DTSEG1_Pos)
 (MCAN_DBTP) Data Time Segment Before Sample Point More...

#define MCAN_DBTP_DTSEG1_Pos   8

#define MCAN_DBTP_DTSEG2(value)   ((MCAN_DBTP_DTSEG2_Msk & ((value) << MCAN_DBTP_DTSEG2_Pos)))

#define MCAN_DBTP_DTSEG2_Msk   (0xfu << MCAN_DBTP_DTSEG2_Pos)
 (MCAN_DBTP) Data Time Segment After Sample Point More...

#define MCAN_DBTP_DTSEG2_Pos   4

#define MCAN_DBTP_TDC   (0x1u << 23)
 (MCAN_DBTP) Transmitter Delay Compensation More...

#define MCAN_DBTP_TDC_DISABLED   (0x0u << 23)
 (MCAN_DBTP) Transmitter Delay Compensation disabled. More...

#define MCAN_DBTP_TDC_ENABLED   (0x1u << 23)
 (MCAN_DBTP) Transmitter Delay Compensation enabled. More...

#define MCAN_ECR_CEL_Msk   (0xffu << MCAN_ECR_CEL_Pos)
 (MCAN_ECR) CAN Error Logging (cleared on read) More...

#define MCAN_ECR_CEL_Pos   16

#define MCAN_ECR_REC_Msk   (0x7fu << MCAN_ECR_REC_Pos)
 (MCAN_ECR) Receive Error Counter More...

#define MCAN_ECR_REC_Pos   8

#define MCAN_ECR_RP   (0x1u << 15)
 (MCAN_ECR) Receive Error Passive More...

#define MCAN_ECR_TEC_Msk   (0xffu << MCAN_ECR_TEC_Pos)
 (MCAN_ECR) Transmit Error Counter More...

#define MCAN_ECR_TEC_Pos   0

#define MCAN_ENDN_ETV_Msk   (0xffffffffu << MCAN_ENDN_ETV_Pos)
 (MCAN_ENDN) Endianness Test Value More...

#define MCAN_ENDN_ETV_Pos   0

#define MCAN_FBTP_FBRP(value)   ((MCAN_FBTP_FBRP_Msk & ((value) << MCAN_FBTP_FBRP_Pos)))

#define MCAN_FBTP_FBRP_Msk   (0x1fu << MCAN_FBTP_FBRP_Pos)
 (MCAN_FBTP) Fast Baud Rate Prescaler More...

#define MCAN_FBTP_FBRP_Pos   16

#define MCAN_FBTP_FSJW(value)   ((MCAN_FBTP_FSJW_Msk & ((value) << MCAN_FBTP_FSJW_Pos)))

#define MCAN_FBTP_FSJW_Msk   (0x3u << MCAN_FBTP_FSJW_Pos)
 (MCAN_FBTP) Fast (Re) Synchronization Jump Width More...

#define MCAN_FBTP_FSJW_Pos   0

#define MCAN_FBTP_FTSEG1(value)   ((MCAN_FBTP_FTSEG1_Msk & ((value) << MCAN_FBTP_FTSEG1_Pos)))

#define MCAN_FBTP_FTSEG1_Msk   (0xfu << MCAN_FBTP_FTSEG1_Pos)
 (MCAN_FBTP) Fast Time Segment Before Sample Point More...

#define MCAN_FBTP_FTSEG1_Pos   8

#define MCAN_FBTP_FTSEG2(value)   ((MCAN_FBTP_FTSEG2_Msk & ((value) << MCAN_FBTP_FTSEG2_Pos)))

#define MCAN_FBTP_FTSEG2_Msk   (0x7u << MCAN_FBTP_FTSEG2_Pos)
 (MCAN_FBTP) Fast Time Segment After Sample Point More...

#define MCAN_FBTP_FTSEG2_Pos   4

#define MCAN_FBTP_TDC   (0x1u << 23)
 (MCAN_FBTP) Transceiver Delay Compensation More...

#define MCAN_FBTP_TDC_DISABLED   (0x0u << 23)
 (MCAN_FBTP) Transceiver Delay Compensation disabled. More...

#define MCAN_FBTP_TDC_ENABLED   (0x1u << 23)
 (MCAN_FBTP) Transceiver Delay Compensation enabled. More...

#define MCAN_FBTP_TDCO(value)   ((MCAN_FBTP_TDCO_Msk & ((value) << MCAN_FBTP_TDCO_Pos)))

#define MCAN_FBTP_TDCO_Msk   (0x1fu << MCAN_FBTP_TDCO_Pos)
 (MCAN_FBTP) Transce iver Delay Compensation Offset More...

#define MCAN_FBTP_TDCO_Pos   24

#define MCAN_GFC_ANFE(value)   ((MCAN_GFC_ANFE_Msk & ((value) << MCAN_GFC_ANFE_Pos)))

#define MCAN_GFC_ANFE_Msk   (0x3u << MCAN_GFC_ANFE_Pos)
 (MCAN_GFC) Accept Non-matching Frames Extended More...

#define MCAN_GFC_ANFE_Pos   2

#define MCAN_GFC_ANFE_RX_FIFO_0   (0x0u << 2)
 (MCAN_GFC) Message stored in Receive FIFO 0 More...

#define MCAN_GFC_ANFE_RX_FIFO_1   (0x1u << 2)
 (MCAN_GFC) Message stored in Receive FIFO 1 More...

#define MCAN_GFC_ANFS(value)   ((MCAN_GFC_ANFS_Msk & ((value) << MCAN_GFC_ANFS_Pos)))

#define MCAN_GFC_ANFS_Msk   (0x3u << MCAN_GFC_ANFS_Pos)
 (MCAN_GFC) Accept Non-matching Frames Standard More...

#define MCAN_GFC_ANFS_Pos   4

#define MCAN_GFC_ANFS_RX_FIFO_0   (0x0u << 4)
 (MCAN_GFC) Message stored in Receive FIFO 0 More...

#define MCAN_GFC_ANFS_RX_FIFO_1   (0x1u << 4)
 (MCAN_GFC) Message stored in Receive FIFO 1 More...

#define MCAN_GFC_RRFE   (0x1u << 0)
 (MCAN_GFC) Reject Remote Frames Extended More...

#define MCAN_GFC_RRFE_FILTER   (0x0u << 0)
 (MCAN_GFC) Filter remote frames with 29-bit extended IDs. More...

#define MCAN_GFC_RRFE_REJECT   (0x1u << 0)
 (MCAN_GFC) Reject all remote frames with 29-bit extended IDs. More...

#define MCAN_GFC_RRFS   (0x1u << 1)
 (MCAN_GFC) Reject Remote Frames Standard More...

#define MCAN_GFC_RRFS_FILTER   (0x0u << 1)
 (MCAN_GFC) Filter remote frames with 11-bit standard IDs. More...

#define MCAN_GFC_RRFS_REJECT   (0x1u << 1)
 (MCAN_GFC) Reject all remote frames with 11-bit standard IDs. More...

#define MCAN_HPMS_BIDX_Msk   (0x3fu << MCAN_HPMS_BIDX_Pos)
 (MCAN_HPMS) Buffer Index More...

#define MCAN_HPMS_BIDX_Pos   0

#define MCAN_HPMS_FIDX_Msk   (0x7fu << MCAN_HPMS_FIDX_Pos)
 (MCAN_HPMS) Filter Index More...

#define MCAN_HPMS_FIDX_Pos   8

#define MCAN_HPMS_FLST   (0x1u << 15)
 (MCAN_HPMS) Filter List More...

#define MCAN_HPMS_MSI_FIFO_0   (0x2u << 6)
 (MCAN_HPMS) Message stored in FIFO 0. More...

#define MCAN_HPMS_MSI_FIFO_1   (0x3u << 6)
 (MCAN_HPMS) Message stored in FIFO 1. More...

#define MCAN_HPMS_MSI_LOST   (0x1u << 6)
 (MCAN_HPMS) FIFO message lost. More...

#define MCAN_HPMS_MSI_Msk   (0x3u << MCAN_HPMS_MSI_Pos)
 (MCAN_HPMS) Message Storage Indicator More...

#define MCAN_HPMS_MSI_NO_FIFO_SEL   (0x0u << 6)
 (MCAN_HPMS) No FIFO selected. More...

#define MCAN_HPMS_MSI_Pos   6

#define MCAN_IE_ACKEE   (0x1u << 29)
 (MCAN_IE) Acknowledge Error Interrupt Enable More...

#define MCAN_IE_ARAE   (0x1u << 29)
 (MCAN_IE) Access to Reserved Address Enable More...

#define MCAN_IE_BEE   (0x1u << 28)
 (MCAN_IE) Bit Error Interrupt Enable More...

#define MCAN_IE_BOE   (0x1u << 25)
 (MCAN_IE) Bus_Off Status Interrupt Enable More...

#define MCAN_IE_CRCEE   (0x1u << 27)
 (MCAN_IE) CRC Error Interrupt Enable More...

#define MCAN_IE_DRXE   (0x1u << 19)
 (MCAN_IE) Message stored to Dedicated Receive Buffer Interrupt Enable More...

#define MCAN_IE_ELOE   (0x1u << 22)
 (MCAN_IE) Error Logging Overflow Interrupt Enable More...

#define MCAN_IE_EPE   (0x1u << 23)
 (MCAN_IE) Error Passive Interrupt Enable More...

#define MCAN_IE_EWE   (0x1u << 24)
 (MCAN_IE) Warning Status Interrupt Enable More...

#define MCAN_IE_FOEE   (0x1u << 30)
 (MCAN_IE) Format Error Interrupt Enable More...

#define MCAN_IE_HPME   (0x1u << 8)
 (MCAN_IE) High Priority Message Interrupt Enable More...

#define MCAN_IE_MRAFE   (0x1u << 17)
 (MCAN_IE) Message RAM Access Failure Interrupt Enable More...

#define MCAN_IE_PEAE   (0x1u << 27)
 (MCAN_IE) Protocol Error in Arbitration Phase Enable More...

#define MCAN_IE_PEDE   (0x1u << 28)
 (MCAN_IE) Protocol Error in Data Phase Enable More...

#define MCAN_IE_RF0FE   (0x1u << 2)
 (MCAN_IE) Receive FIFO 0 Full Interrupt Enable More...

#define MCAN_IE_RF0LE   (0x1u << 3)
 (MCAN_IE) Receive FIFO 0 Message Lost Interrupt Enable More...

#define MCAN_IE_RF0NE   (0x1u << 0)
 (MCAN_IE) Receive FIFO 0 New Message Interrupt Enable More...

#define MCAN_IE_RF0WE   (0x1u << 1)
 (MCAN_IE) Receive FIFO 0 Watermark Reached Interrupt Enable More...

#define MCAN_IE_RF1FE   (0x1u << 6)
 (MCAN_IE) Receive FIFO 1 Full Interrupt Enable More...

#define MCAN_IE_RF1LE   (0x1u << 7)
 (MCAN_IE) Receive FIFO 1 Message Lost Interrupt Enable More...

#define MCAN_IE_RF1NE   (0x1u << 4)
 (MCAN_IE) Receive FIFO 1 New Message Interrupt Enable More...

#define MCAN_IE_RF1WE   (0x1u << 5)
 (MCAN_IE) Receive FIFO 1 Watermark Reached Interrupt Enable More...

#define MCAN_IE_STEE   (0x1u << 31)
 (MCAN_IE) Stuff Error Interrupt Enable More...

#define MCAN_IE_TCE   (0x1u << 9)
 (MCAN_IE) Transmission Completed Interrupt Enable More...

#define MCAN_IE_TCFE   (0x1u << 10)
 (MCAN_IE) Transmission Cancellation Finished Interrupt Enable More...

#define MCAN_IE_TEFFE   (0x1u << 14)
 (MCAN_IE) Tx Event FIFO Full Interrupt Enable More...

#define MCAN_IE_TEFLE   (0x1u << 15)
 (MCAN_IE) Tx Event FIFO Event Lost Interrupt Enable More...

#define MCAN_IE_TEFNE   (0x1u << 12)
 (MCAN_IE) Tx Event FIFO New Entry Interrupt Enable More...

#define MCAN_IE_TEFWE   (0x1u << 13)
 (MCAN_IE) Tx Event FIFO Watermark Reached Interrupt Enable More...

#define MCAN_IE_TFEE   (0x1u << 11)
 (MCAN_IE) Tx FIFO Empty Interrupt Enable More...

#define MCAN_IE_TOOE   (0x1u << 18)
 (MCAN_IE) Timeout Occurred Interrupt Enable More...

#define MCAN_IE_TSWE   (0x1u << 16)
 (MCAN_IE) Timestamp Wraparound Interrupt Enable More...

#define MCAN_IE_WDIE   (0x1u << 26)
 (MCAN_IE) Watchdog Interrupt Enable More...

#define MCAN_ILE_EINT0   (0x1u << 0)
 (MCAN_ILE) Enable Interrupt Line 0 More...

#define MCAN_ILE_EINT1   (0x1u << 1)
 (MCAN_ILE) Enable Interrupt Line 1 More...

#define MCAN_ILS_ACKEL   (0x1u << 29)
 (MCAN_ILS) Acknowledge Error Interrupt Line More...

#define MCAN_ILS_ARAL   (0x1u << 29)
 (MCAN_ILS) Access to Reserved Address Line More...

#define MCAN_ILS_BEL   (0x1u << 28)
 (MCAN_ILS) Bit Error Interrupt Line More...

#define MCAN_ILS_BOL   (0x1u << 25)
 (MCAN_ILS) Bus_Off Status Interrupt Line More...

#define MCAN_ILS_CRCEL   (0x1u << 27)
 (MCAN_ILS) CRC Error Interrupt Line More...

#define MCAN_ILS_DRXL   (0x1u << 19)
 (MCAN_ILS) Message stored to Dedicated Receive Buffer Interrupt Line More...

#define MCAN_ILS_ELOL   (0x1u << 22)
 (MCAN_ILS) Error Logging Overflow Interrupt Line More...

#define MCAN_ILS_EPL   (0x1u << 23)
 (MCAN_ILS) Error Passive Interrupt Line More...

#define MCAN_ILS_EWL   (0x1u << 24)
 (MCAN_ILS) Warning Status Interrupt Line More...

#define MCAN_ILS_FOEL   (0x1u << 30)
 (MCAN_ILS) Format Error Interrupt Line More...

#define MCAN_ILS_HPML   (0x1u << 8)
 (MCAN_ILS) High Priority Message Interrupt Line More...

#define MCAN_ILS_MRAFL   (0x1u << 17)
 (MCAN_ILS) Message RAM Access Failure Interrupt Line More...

#define MCAN_ILS_PEAL   (0x1u << 27)
 (MCAN_ILS) Protocol Error in Arbitration Phase Line More...

#define MCAN_ILS_PEDL   (0x1u << 28)
 (MCAN_ILS) Protocol Error in Data Phase Line More...

#define MCAN_ILS_RF0FL   (0x1u << 2)
 (MCAN_ILS) Receive FIFO 0 Full Interrupt Line More...

#define MCAN_ILS_RF0LL   (0x1u << 3)
 (MCAN_ILS) Receive FIFO 0 Message Lost Interrupt Line More...

#define MCAN_ILS_RF0NL   (0x1u << 0)
 (MCAN_ILS) Receive FIFO 0 New Message Interrupt Line More...

#define MCAN_ILS_RF0WL   (0x1u << 1)
 (MCAN_ILS) Receive FIFO 0 Watermark Reached Interrupt Line More...

#define MCAN_ILS_RF1FL   (0x1u << 6)
 (MCAN_ILS) Receive FIFO 1 Full Interrupt Line More...

#define MCAN_ILS_RF1LL   (0x1u << 7)
 (MCAN_ILS) Receive FIFO 1 Message Lost Interrupt Line More...

#define MCAN_ILS_RF1NL   (0x1u << 4)
 (MCAN_ILS) Receive FIFO 1 New Message Interrupt Line More...

#define MCAN_ILS_RF1WL   (0x1u << 5)
 (MCAN_ILS) Receive FIFO 1 Watermark Reached Interrupt Line More...

#define MCAN_ILS_STEL   (0x1u << 31)
 (MCAN_ILS) Stuff Error Interrupt Line More...

#define MCAN_ILS_TCFL   (0x1u << 10)
 (MCAN_ILS) Transmission Cancellation Finished Interrupt Line More...

#define MCAN_ILS_TCL   (0x1u << 9)
 (MCAN_ILS) Transmission Completed Interrupt Line More...

#define MCAN_ILS_TEFFL   (0x1u << 14)
 (MCAN_ILS) Tx Event FIFO Full Interrupt Line More...

#define MCAN_ILS_TEFLL   (0x1u << 15)
 (MCAN_ILS) Tx Event FIFO Event Lost Interrupt Line More...

#define MCAN_ILS_TEFNL   (0x1u << 12)
 (MCAN_ILS) Tx Event FIFO New Entry Interrupt Line More...

#define MCAN_ILS_TEFWL   (0x1u << 13)
 (MCAN_ILS) Tx Event FIFO Watermark Reached Interrupt Line More...

#define MCAN_ILS_TFEL   (0x1u << 11)
 (MCAN_ILS) Tx FIFO Empty Interrupt Line More...

#define MCAN_ILS_TOOL   (0x1u << 18)
 (MCAN_ILS) Timeout Occurred Interrupt Line More...

#define MCAN_ILS_TSWL   (0x1u << 16)
 (MCAN_ILS) Timestamp Wraparound Interrupt Line More...

#define MCAN_ILS_WDIL   (0x1u << 26)
 (MCAN_ILS) Watchdog Interrupt Line More...

#define MCAN_IR_ACKE   (0x1u << 29)
 (MCAN_IR) Acknowledge Error More...

#define MCAN_IR_ARA   (0x1u << 29)
 (MCAN_IR) Access to Reserved Address More...

#define MCAN_IR_BE   (0x1u << 28)
 (MCAN_IR) Bit Error More...

#define MCAN_IR_BO   (0x1u << 25)
 (MCAN_IR) Bus_Off Status More...

#define MCAN_IR_CRCE   (0x1u << 27)
 (MCAN_IR) CRC Error More...

#define MCAN_IR_DRX   (0x1u << 19)
 (MCAN_IR) Message stored to Dedicated Receive Buffer More...

#define MCAN_IR_ELO   (0x1u << 22)
 (MCAN_IR) Error Logging Overflow More...

#define MCAN_IR_EP   (0x1u << 23)
 (MCAN_IR) Error Passive More...

#define MCAN_IR_EW   (0x1u << 24)
 (MCAN_IR) Warning Status More...

#define MCAN_IR_FOE   (0x1u << 30)
 (MCAN_IR) Format Error More...

#define MCAN_IR_HPM   (0x1u << 8)
 (MCAN_IR) High Priority Message More...

#define MCAN_IR_MRAF   (0x1u << 17)
 (MCAN_IR) Message RAM Access Failure More...

#define MCAN_IR_PEA   (0x1u << 27)
 (MCAN_IR) Protocol Error in Arbitration Phase More...

#define MCAN_IR_PED   (0x1u << 28)
 (MCAN_IR) Protocol Error in Data Phase More...

#define MCAN_IR_RF0F   (0x1u << 2)
 (MCAN_IR) Receive FIFO 0 Full More...

#define MCAN_IR_RF0L   (0x1u << 3)
 (MCAN_IR) Receive FIFO 0 Message Lost More...

#define MCAN_IR_RF0N   (0x1u << 0)
 (MCAN_IR) Receive FIFO 0 New Message More...

#define MCAN_IR_RF0W   (0x1u << 1)
 (MCAN_IR) Receive FIFO 0 Watermark Reached More...

#define MCAN_IR_RF1F   (0x1u << 6)
 (MCAN_IR) Receive FIFO 1 Full More...

#define MCAN_IR_RF1L   (0x1u << 7)
 (MCAN_IR) Receive FIFO 1 Message Lost More...

#define MCAN_IR_RF1N   (0x1u << 4)
 (MCAN_IR) Receive FIFO 1 New Message More...

#define MCAN_IR_RF1W   (0x1u << 5)
 (MCAN_IR) Receive FIFO 1 Watermark Reached More...

#define MCAN_IR_STE   (0x1u << 31)
 (MCAN_IR) Stuff Error More...

#define MCAN_IR_TC   (0x1u << 9)
 (MCAN_IR) Transmission Completed More...

#define MCAN_IR_TCF   (0x1u << 10)
 (MCAN_IR) Transmission Cancellation Finished More...

#define MCAN_IR_TEFF   (0x1u << 14)
 (MCAN_IR) Tx Event FIFO Full More...

#define MCAN_IR_TEFL   (0x1u << 15)
 (MCAN_IR) Tx Event FIFO Element Lost More...

#define MCAN_IR_TEFN   (0x1u << 12)
 (MCAN_IR) Tx Event FIFO New Entry More...

#define MCAN_IR_TEFW   (0x1u << 13)
 (MCAN_IR) Tx Event FIFO Watermark Reached More...

#define MCAN_IR_TFE   (0x1u << 11)
 (MCAN_IR) Tx FIFO Empty More...

#define MCAN_IR_TOO   (0x1u << 18)
 (MCAN_IR) Timeout Occurred More...

#define MCAN_IR_TSW   (0x1u << 16)
 (MCAN_IR) Timestamp Wraparound More...

#define MCAN_IR_WDI   (0x1u << 26)
 (MCAN_IR) Watchdog Interrupt More...

#define MCAN_NBTP_NBRP(value)   ((MCAN_NBTP_NBRP_Msk & ((value) << MCAN_NBTP_NBRP_Pos)))

#define MCAN_NBTP_NBRP_Msk   (0x1ffu << MCAN_NBTP_NBRP_Pos)
 (MCAN_NBTP) Nominal Bit Rate Prescaler More...

#define MCAN_NBTP_NBRP_Pos   16

#define MCAN_NBTP_NSJW(value)   ((MCAN_NBTP_NSJW_Msk & ((value) << MCAN_NBTP_NSJW_Pos)))

#define MCAN_NBTP_NSJW_Msk   (0x7fu << MCAN_NBTP_NSJW_Pos)
 (MCAN_NBTP) Nominal (Re) Synchronization Jump Width More...

#define MCAN_NBTP_NSJW_Pos   25

#define MCAN_NBTP_NTSEG1(value)   ((MCAN_NBTP_NTSEG1_Msk & ((value) << MCAN_NBTP_NTSEG1_Pos)))

#define MCAN_NBTP_NTSEG1_Msk   (0xffu << MCAN_NBTP_NTSEG1_Pos)
 (MCAN_NBTP) Nominal Time Segment Before Sample Point More...

#define MCAN_NBTP_NTSEG1_Pos   8

#define MCAN_NBTP_NTSEG2(value)   ((MCAN_NBTP_NTSEG2_Msk & ((value) << MCAN_NBTP_NTSEG2_Pos)))

#define MCAN_NBTP_NTSEG2_Msk   (0x7fu << MCAN_NBTP_NTSEG2_Pos)
 (MCAN_NBTP) Nominal Time Segment After Sample Point More...

#define MCAN_NBTP_NTSEG2_Pos   0

#define MCAN_NDAT1_ND0   (0x1u << 0)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND1   (0x1u << 1)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND10   (0x1u << 10)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND11   (0x1u << 11)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND12   (0x1u << 12)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND13   (0x1u << 13)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND14   (0x1u << 14)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND15   (0x1u << 15)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND16   (0x1u << 16)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND17   (0x1u << 17)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND18   (0x1u << 18)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND19   (0x1u << 19)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND2   (0x1u << 2)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND20   (0x1u << 20)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND21   (0x1u << 21)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND22   (0x1u << 22)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND23   (0x1u << 23)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND24   (0x1u << 24)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND25   (0x1u << 25)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND26   (0x1u << 26)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND27   (0x1u << 27)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND28   (0x1u << 28)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND29   (0x1u << 29)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND3   (0x1u << 3)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND30   (0x1u << 30)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND31   (0x1u << 31)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND4   (0x1u << 4)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND5   (0x1u << 5)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND6   (0x1u << 6)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND7   (0x1u << 7)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND8   (0x1u << 8)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT1_ND9   (0x1u << 9)
 (MCAN_NDAT1) New Data More...

#define MCAN_NDAT2_ND32   (0x1u << 0)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND33   (0x1u << 1)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND34   (0x1u << 2)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND35   (0x1u << 3)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND36   (0x1u << 4)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND37   (0x1u << 5)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND38   (0x1u << 6)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND39   (0x1u << 7)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND40   (0x1u << 8)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND41   (0x1u << 9)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND42   (0x1u << 10)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND43   (0x1u << 11)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND44   (0x1u << 12)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND45   (0x1u << 13)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND46   (0x1u << 14)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND47   (0x1u << 15)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND48   (0x1u << 16)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND49   (0x1u << 17)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND50   (0x1u << 18)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND51   (0x1u << 19)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND52   (0x1u << 20)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND53   (0x1u << 21)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND54   (0x1u << 22)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND55   (0x1u << 23)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND56   (0x1u << 24)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND57   (0x1u << 25)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND58   (0x1u << 26)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND59   (0x1u << 27)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND60   (0x1u << 28)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND61   (0x1u << 29)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND62   (0x1u << 30)
 (MCAN_NDAT2) New Data More...

#define MCAN_NDAT2_ND63   (0x1u << 31)
 (MCAN_NDAT2) New Data More...

#define MCAN_PSR_ACT_IDLE   (0x1u << 3)
 (MCAN_PSR) Node is neither receiver nor transmitter More...

#define MCAN_PSR_ACT_Msk   (0x3u << MCAN_PSR_ACT_Pos)
 (MCAN_PSR) Activity More...

#define MCAN_PSR_ACT_Pos   3

#define MCAN_PSR_ACT_RECEIVER   (0x2u << 3)
 (MCAN_PSR) Node is operating as receiver More...

#define MCAN_PSR_ACT_SYNCHRONIZING   (0x0u << 3)
 (MCAN_PSR) Node is synchronizing on CAN communication More...

#define MCAN_PSR_ACT_TRANSMITTER   (0x3u << 3)
 (MCAN_PSR) Node is operating as transmitter More...

#define MCAN_PSR_BO   (0x1u << 7)
 (MCAN_PSR) Bus_Off Status More...

#define MCAN_PSR_DLEC_Msk   (0x7u << MCAN_PSR_DLEC_Pos)
 (MCAN_PSR) Data Phase Last Error Code (set to 111 on read) More...

#define MCAN_PSR_DLEC_Pos   8

#define MCAN_PSR_EP   (0x1u << 5)
 (MCAN_PSR) Error Passive More...

#define MCAN_PSR_EW   (0x1u << 6)
 (MCAN_PSR) Warning Status More...

#define MCAN_PSR_FLEC_Msk   (0x7u << MCAN_PSR_FLEC_Pos)
 (MCAN_PSR) Fast Last Error Code (set to 111 on read) More...

#define MCAN_PSR_FLEC_Pos   8

#define MCAN_PSR_LEC_ACK_ERROR   (0x3u << 0)
 (MCAN_PSR) The message transmitted by the MCAN was not acknowledged by another node. More...

#define MCAN_PSR_LEC_BIT0_ERROR   (0x5u << 0)
 (MCAN_PSR) During the transmission of a message (or acknowledge bit, or active error flag, or overload flag), the device wanted to send a dominant level (data or identifier bit logical value '0'), but the monitored bus value was recessive. During Bus_Off recovery this status is set each time a sequence of 11 recessive bits has been monitored. This enables the processor to monitor the proceeding of the Bus_Off recovery sequence (indicating the bus is not stuck at dominant or continuously disturbed). More...

#define MCAN_PSR_LEC_BIT1_ERROR   (0x4u << 0)
 (MCAN_PSR) During the transmission of a message (with the exception of the arbitration field), the device wanted to send a recessive level (bit of logical value '1'), but the monitored bus value was dominant. More...

#define MCAN_PSR_LEC_CRC_ERROR   (0x6u << 0)
 (MCAN_PSR) The CRC check sum of a received message was incorrect. The CRC of an incoming message does not match with the CRC calculated from the received data. More...

#define MCAN_PSR_LEC_FORM_ERROR   (0x2u << 0)
 (MCAN_PSR) A fixed format part of a received frame has the wrong format. More...

#define MCAN_PSR_LEC_Msk   (0x7u << MCAN_PSR_LEC_Pos)
 (MCAN_PSR) Last Error Code (set to 111 on read) More...

#define MCAN_PSR_LEC_NO_CHANGE   (0x7u << 0)
 (MCAN_PSR) Any read access to the Protocol Status Register re-initializes the LEC to '7'. When the LEC shows the value '7', no CAN bus event was detected since the last processor read access to the Protocol Status Register. More...

#define MCAN_PSR_LEC_NO_ERROR   (0x0u << 0)
 (MCAN_PSR) No error occurred since LEC has been reset by successful reception or transmission. More...

#define MCAN_PSR_LEC_Pos   0

#define MCAN_PSR_LEC_STUFF_ERROR   (0x1u << 0)
 (MCAN_PSR) More than 5 equal bits in a sequence have occurred in a part of a received meSsage where this is not allowed. More...

#define MCAN_PSR_PXE   (0x1u << 14)
 (MCAN_PSR) Protocol Exception Event (cleared on read) More...

#define MCAN_PSR_RBRS   (0x1u << 12)
 (MCAN_PSR) BRS Flag of Last Received CAN FD Message (cleared on read) More...

#define MCAN_PSR_REDL   (0x1u << 13)
 (MCAN_PSR) Received a CAN FD Message (cleared on read) More...

#define MCAN_PSR_RESI   (0x1u << 11)
 (MCAN_PSR) ESI Flag of Last Received CAN FD Message (cleared on read) More...

#define MCAN_PSR_RFDF   (0x1u << 13)
 (MCAN_PSR) Received a CAN FD Message (cleared on read) More...

#define MCAN_PSR_TDCV_Msk   (0x7fu << MCAN_PSR_TDCV_Pos)
 (MCAN_PSR) Transmitter Delay Compensation Value More...

#define MCAN_PSR_TDCV_Pos   16

#define MCAN_RWD_WDC(value)   ((MCAN_RWD_WDC_Msk & ((value) << MCAN_RWD_WDC_Pos)))

#define MCAN_RWD_WDC_Msk   (0xffu << MCAN_RWD_WDC_Pos)
 (MCAN_RWD) Watchdog Configuration (read/write) More...

#define MCAN_RWD_WDC_Pos   0

#define MCAN_RWD_WDV(value)   ((MCAN_RWD_WDV_Msk & ((value) << MCAN_RWD_WDV_Pos)))

#define MCAN_RWD_WDV_Msk   (0xffu << MCAN_RWD_WDV_Pos)
 (MCAN_RWD) Watchdog Value (read-only) More...

#define MCAN_RWD_WDV_Pos   8

#define MCAN_RXBC_RBSA(value)   ((MCAN_RXBC_RBSA_Msk & ((value) << MCAN_RXBC_RBSA_Pos)))

#define MCAN_RXBC_RBSA_Msk   (0x3fffu << MCAN_RXBC_RBSA_Pos)
 (MCAN_RXBC) Receive Buffer Start Address More...

#define MCAN_RXBC_RBSA_Pos   2

#define MCAN_RXESC_F0DS(value)   ((MCAN_RXESC_F0DS_Msk & ((value) << MCAN_RXESC_F0DS_Pos)))

#define MCAN_RXESC_F0DS_12_BYTE   (0x1u << 0)
 (MCAN_RXESC) 12-byte data field More...

#define MCAN_RXESC_F0DS_16_BYTE   (0x2u << 0)
 (MCAN_RXESC) 16-byte data field More...

#define MCAN_RXESC_F0DS_20_BYTE   (0x3u << 0)
 (MCAN_RXESC) 20-byte data field More...

#define MCAN_RXESC_F0DS_24_BYTE   (0x4u << 0)
 (MCAN_RXESC) 24-byte data field More...

#define MCAN_RXESC_F0DS_32_BYTE   (0x5u << 0)
 (MCAN_RXESC) 32-byte data field More...

#define MCAN_RXESC_F0DS_48_BYTE   (0x6u << 0)
 (MCAN_RXESC) 48-byte data field More...

#define MCAN_RXESC_F0DS_64_BYTE   (0x7u << 0)
 (MCAN_RXESC) 64-byte data field More...

#define MCAN_RXESC_F0DS_8_BYTE   (0x0u << 0)
 (MCAN_RXESC) 8-byte data field More...

#define MCAN_RXESC_F0DS_Msk   (0x7u << MCAN_RXESC_F0DS_Pos)
 (MCAN_RXESC) Receive FIFO 0 Data Field Size More...

#define MCAN_RXESC_F0DS_Pos   0

#define MCAN_RXESC_F1DS(value)   ((MCAN_RXESC_F1DS_Msk & ((value) << MCAN_RXESC_F1DS_Pos)))

#define MCAN_RXESC_F1DS_12_BYTE   (0x1u << 4)
 (MCAN_RXESC) 12-byte data field More...

#define MCAN_RXESC_F1DS_16_BYTE   (0x2u << 4)
 (MCAN_RXESC) 16-byte data field More...

#define MCAN_RXESC_F1DS_20_BYTE   (0x3u << 4)
 (MCAN_RXESC) 20-byte data field More...

#define MCAN_RXESC_F1DS_24_BYTE   (0x4u << 4)
 (MCAN_RXESC) 24-byte data field More...

#define MCAN_RXESC_F1DS_32_BYTE   (0x5u << 4)
 (MCAN_RXESC) 32-byte data field More...

#define MCAN_RXESC_F1DS_48_BYTE   (0x6u << 4)
 (MCAN_RXESC) 48-byte data field More...

#define MCAN_RXESC_F1DS_64_BYTE   (0x7u << 4)
 (MCAN_RXESC) 64-byte data field More...

#define MCAN_RXESC_F1DS_8_BYTE   (0x0u << 4)
 (MCAN_RXESC) 8-byte data field More...

#define MCAN_RXESC_F1DS_Msk   (0x7u << MCAN_RXESC_F1DS_Pos)
 (MCAN_RXESC) Receive FIFO 1 Data Field Size More...

#define MCAN_RXESC_F1DS_Pos   4

#define MCAN_RXESC_RBDS(value)   ((MCAN_RXESC_RBDS_Msk & ((value) << MCAN_RXESC_RBDS_Pos)))

#define MCAN_RXESC_RBDS_12_BYTE   (0x1u << 8)
 (MCAN_RXESC) 12-byte data field More...

#define MCAN_RXESC_RBDS_16_BYTE   (0x2u << 8)
 (MCAN_RXESC) 16-byte data field More...

#define MCAN_RXESC_RBDS_20_BYTE   (0x3u << 8)
 (MCAN_RXESC) 20-byte data field More...

#define MCAN_RXESC_RBDS_24_BYTE   (0x4u << 8)
 (MCAN_RXESC) 24-byte data field More...

#define MCAN_RXESC_RBDS_32_BYTE   (0x5u << 8)
 (MCAN_RXESC) 32-byte data field More...

#define MCAN_RXESC_RBDS_48_BYTE   (0x6u << 8)
 (MCAN_RXESC) 48-byte data field More...

#define MCAN_RXESC_RBDS_64_BYTE   (0x7u << 8)
 (MCAN_RXESC) 64-byte data field More...

#define MCAN_RXESC_RBDS_8_BYTE   (0x0u << 8)
 (MCAN_RXESC) 8-byte data field More...

#define MCAN_RXESC_RBDS_Msk   (0x7u << MCAN_RXESC_RBDS_Pos)
 (MCAN_RXESC) Receive Buffer Data Field Size More...

#define MCAN_RXESC_RBDS_Pos   8

#define MCAN_RXF0A_F0AI(value)   ((MCAN_RXF0A_F0AI_Msk & ((value) << MCAN_RXF0A_F0AI_Pos)))

#define MCAN_RXF0A_F0AI_Msk   (0x3fu << MCAN_RXF0A_F0AI_Pos)
 (MCAN_RXF0A) Receive FIFO 0 Acknowledge Index More...

#define MCAN_RXF0A_F0AI_Pos   0

#define MCAN_RXF0C_F0OM   (0x1u << 31)
 (MCAN_RXF0C) FIFO 0 Operation Mode More...

#define MCAN_RXF0C_F0S(value)   ((MCAN_RXF0C_F0S_Msk & ((value) << MCAN_RXF0C_F0S_Pos)))

#define MCAN_RXF0C_F0S_Msk   (0x7fu << MCAN_RXF0C_F0S_Pos)
 (MCAN_RXF0C) Receive FIFO 0 Start Address More...

#define MCAN_RXF0C_F0S_Pos   16

#define MCAN_RXF0C_F0SA(value)   ((MCAN_RXF0C_F0SA_Msk & ((value) << MCAN_RXF0C_F0SA_Pos)))

#define MCAN_RXF0C_F0SA_Msk   (0x3fffu << MCAN_RXF0C_F0SA_Pos)
 (MCAN_RXF0C) Receive FIFO 0 Start Address More...

#define MCAN_RXF0C_F0SA_Pos   2

#define MCAN_RXF0C_F0WM(value)   ((MCAN_RXF0C_F0WM_Msk & ((value) << MCAN_RXF0C_F0WM_Pos)))

#define MCAN_RXF0C_F0WM_Msk   (0x7fu << MCAN_RXF0C_F0WM_Pos)
 (MCAN_RXF0C) Receive FIFO 0 Watermark More...

#define MCAN_RXF0C_F0WM_Pos   24

#define MCAN_RXF0S_F0F   (0x1u << 24)
 (MCAN_RXF0S) Receive FIFO 0 Fill Level More...

#define MCAN_RXF0S_F0FL_Msk   (0x7fu << MCAN_RXF0S_F0FL_Pos)
 (MCAN_RXF0S) Receive FIFO 0 Fill Level More...

#define MCAN_RXF0S_F0FL_Pos   0

#define MCAN_RXF0S_F0GI_Msk   (0x3fu << MCAN_RXF0S_F0GI_Pos)
 (MCAN_RXF0S) Receive FIFO 0 Get Index More...

#define MCAN_RXF0S_F0GI_Pos   8

#define MCAN_RXF0S_F0PI_Msk   (0x3fu << MCAN_RXF0S_F0PI_Pos)
 (MCAN_RXF0S) Receive FIFO 0 Put Index More...

#define MCAN_RXF0S_F0PI_Pos   16

#define MCAN_RXF0S_RF0L   (0x1u << 25)
 (MCAN_RXF0S) Receive FIFO 0 Message Lost More...

#define MCAN_RXF1A_F1AI(value)   ((MCAN_RXF1A_F1AI_Msk & ((value) << MCAN_RXF1A_F1AI_Pos)))

#define MCAN_RXF1A_F1AI_Msk   (0x3fu << MCAN_RXF1A_F1AI_Pos)
 (MCAN_RXF1A) Receive FIFO 1 Acknowledge Index More...

#define MCAN_RXF1A_F1AI_Pos   0

#define MCAN_RXF1C_F1OM   (0x1u << 31)
 (MCAN_RXF1C) FIFO 1 Operation Mode More...

#define MCAN_RXF1C_F1S(value)   ((MCAN_RXF1C_F1S_Msk & ((value) << MCAN_RXF1C_F1S_Pos)))

#define MCAN_RXF1C_F1S_Msk   (0x7fu << MCAN_RXF1C_F1S_Pos)
 (MCAN_RXF1C) Receive FIFO 1 Start Address More...

#define MCAN_RXF1C_F1S_Pos   16

#define MCAN_RXF1C_F1SA(value)   ((MCAN_RXF1C_F1SA_Msk & ((value) << MCAN_RXF1C_F1SA_Pos)))

#define MCAN_RXF1C_F1SA_Msk   (0x3fffu << MCAN_RXF1C_F1SA_Pos)
 (MCAN_RXF1C) Receive FIFO 1 Start Address More...

#define MCAN_RXF1C_F1SA_Pos   2

#define MCAN_RXF1C_F1WM(value)   ((MCAN_RXF1C_F1WM_Msk & ((value) << MCAN_RXF1C_F1WM_Pos)))

#define MCAN_RXF1C_F1WM_Msk   (0x7fu << MCAN_RXF1C_F1WM_Pos)
 (MCAN_RXF1C) Receive FIFO 1 Watermark More...

#define MCAN_RXF1C_F1WM_Pos   24

#define MCAN_RXF1S_DMS_IDLE   (0x0u << 30)
 (MCAN_RXF1S) Idle state, wait for reception of debug messages, DMA request is cleared. More...

#define MCAN_RXF1S_DMS_MSG_A   (0x1u << 30)
 (MCAN_RXF1S) Debug message A received. More...

#define MCAN_RXF1S_DMS_MSG_AB   (0x2u << 30)
 (MCAN_RXF1S) Debug messages A, B received. More...

#define MCAN_RXF1S_DMS_MSG_ABC   (0x3u << 30)
 (MCAN_RXF1S) Debug messages A, B, C received, DMA request is set. More...

#define MCAN_RXF1S_DMS_Msk   (0x3u << MCAN_RXF1S_DMS_Pos)
 (MCAN_RXF1S) Debug Message Status More...

#define MCAN_RXF1S_DMS_Pos   30

#define MCAN_RXF1S_F1F   (0x1u << 24)
 (MCAN_RXF1S) Receive FIFO 1 Fill Level More...

#define MCAN_RXF1S_F1FL_Msk   (0x7fu << MCAN_RXF1S_F1FL_Pos)
 (MCAN_RXF1S) Receive FIFO 1 Fill Level More...

#define MCAN_RXF1S_F1FL_Pos   0

#define MCAN_RXF1S_F1GI_Msk   (0x3fu << MCAN_RXF1S_F1GI_Pos)
 (MCAN_RXF1S) Receive FIFO 1 Get Index More...

#define MCAN_RXF1S_F1GI_Pos   8

#define MCAN_RXF1S_F1PI_Msk   (0x3fu << MCAN_RXF1S_F1PI_Pos)
 (MCAN_RXF1S) Receive FIFO 1 Put Index More...

#define MCAN_RXF1S_F1PI_Pos   16

#define MCAN_RXF1S_RF1L   (0x1u << 25)
 (MCAN_RXF1S) Receive FIFO 1 Message Lost More...

#define MCAN_SIDFC_FLSSA(value)   ((MCAN_SIDFC_FLSSA_Msk & ((value) << MCAN_SIDFC_FLSSA_Pos)))

#define MCAN_SIDFC_FLSSA_Msk   (0x3fffu << MCAN_SIDFC_FLSSA_Pos)
 (MCAN_SIDFC) Filter List Standard Start Address More...

#define MCAN_SIDFC_FLSSA_Pos   2

#define MCAN_SIDFC_LSS(value)   ((MCAN_SIDFC_LSS_Msk & ((value) << MCAN_SIDFC_LSS_Pos)))

#define MCAN_SIDFC_LSS_Msk   (0xffu << MCAN_SIDFC_LSS_Pos)
 (MCAN_SIDFC) List Size Standard More...

#define MCAN_SIDFC_LSS_Pos   16

#define MCAN_TDCR_TDCF(value)   ((MCAN_TDCR_TDCF_Msk & ((value) << MCAN_TDCR_TDCF_Pos)))

#define MCAN_TDCR_TDCF_Msk   (0x7fu << MCAN_TDCR_TDCF_Pos)
 (MCAN_TDCR) Transmitter Delay Compensation Filter More...

#define MCAN_TDCR_TDCF_Pos   0

#define MCAN_TDCR_TDCO(value)   ((MCAN_TDCR_TDCO_Msk & ((value) << MCAN_TDCR_TDCO_Pos)))

#define MCAN_TDCR_TDCO_Msk   (0x7fu << MCAN_TDCR_TDCO_Pos)
 (MCAN_TDCR) Transmitter Delay Compensation Offset More...

#define MCAN_TDCR_TDCO_Pos   8

#define MCAN_TEST_LBCK   (0x1u << 4)
 (MCAN_TEST) Loop Back Mode (read/write) More...

#define MCAN_TEST_LBCK_DISABLED   (0x0u << 4)
 (MCAN_TEST) Reset value. Loop Back mode is disabled. More...

#define MCAN_TEST_LBCK_ENABLED   (0x1u << 4)
 (MCAN_TEST) Loop Back mode is enabled (see Section 6.1.9). More...

#define MCAN_TEST_RX   (0x1u << 7)
 (MCAN_TEST) Receive Pin (read-only) More...

#define MCAN_TEST_TDCV(value)   ((MCAN_TEST_TDCV_Msk & ((value) << MCAN_TEST_TDCV_Pos)))

#define MCAN_TEST_TDCV_Msk   (0x3fu << MCAN_TEST_TDCV_Pos)
 (MCAN_TEST) Transceiver Delay Compensation Value (read-only) More...

#define MCAN_TEST_TDCV_Pos   8

#define MCAN_TEST_TX(value)   ((MCAN_TEST_TX_Msk & ((value) << MCAN_TEST_TX_Pos)))

#define MCAN_TEST_TX_DOMINANT   (0x2u << 5)
 (MCAN_TEST) Dominant ('0') level at pin CANTX. More...

#define MCAN_TEST_TX_Msk   (0x3u << MCAN_TEST_TX_Pos)
 (MCAN_TEST) Control of Transmit Pin (read/write) More...

#define MCAN_TEST_TX_Pos   5

#define MCAN_TEST_TX_RECESSIVE   (0x3u << 5)
 (MCAN_TEST) Recessive ('1') at pin CANTX. More...

#define MCAN_TEST_TX_RESET   (0x0u << 5)
 (MCAN_TEST) Reset value, CANTX controlled by the CAN Core, updated at the end of the CAN bit time. More...

#define MCAN_TEST_TX_SAMPLE_POINT_MONITORING   (0x1u << 5)
 (MCAN_TEST) Sample Point can be monitored at pin CANTX. More...

#define MCAN_TOCC_ETOC   (0x1u << 0)
 (MCAN_TOCC) Enable Timeout Counter More...

#define MCAN_TOCC_ETOC_NO_TIMEOUT   (0x0u << 0)
 (MCAN_TOCC) Timeout Counter disabled. More...

#define MCAN_TOCC_ETOC_TOS_CONTROLLED   (0x1u << 0)
 (MCAN_TOCC) Timeout Counter enabled. More...

#define MCAN_TOCC_TOP(value)   ((MCAN_TOCC_TOP_Msk & ((value) << MCAN_TOCC_TOP_Pos)))

#define MCAN_TOCC_TOP_Msk   (0xffffu << MCAN_TOCC_TOP_Pos)
 (MCAN_TOCC) Timeout Period More...

#define MCAN_TOCC_TOP_Pos   16

#define MCAN_TOCC_TOS(value)   ((MCAN_TOCC_TOS_Msk & ((value) << MCAN_TOCC_TOS_Pos)))

#define MCAN_TOCC_TOS_CONTINUOUS   (0x0u << 1)
 (MCAN_TOCC) Continuous operation More...

#define MCAN_TOCC_TOS_Msk   (0x3u << MCAN_TOCC_TOS_Pos)
 (MCAN_TOCC) Timeout Select More...

#define MCAN_TOCC_TOS_Pos   1

#define MCAN_TOCC_TOS_RX0_EV_TIMEOUT   (0x2u << 1)
 (MCAN_TOCC) Timeout controlled by Receive FIFO 0 More...

#define MCAN_TOCC_TOS_RX1_EV_TIMEOUT   (0x3u << 1)
 (MCAN_TOCC) Timeout controlled by Receive FIFO 1 More...

#define MCAN_TOCC_TOS_TX_EV_TIMEOUT   (0x1u << 1)
 (MCAN_TOCC) Timeout controlled by Tx Event FIFO More...

#define MCAN_TOCV_TOC(value)   ((MCAN_TOCV_TOC_Msk & ((value) << MCAN_TOCV_TOC_Pos)))

#define MCAN_TOCV_TOC_Msk   (0xffffu << MCAN_TOCV_TOC_Pos)
 (MCAN_TOCV) Timeout Counter (cleared on write) More...

#define MCAN_TOCV_TOC_Pos   0

#define MCAN_TSCC_TCP(value)   ((MCAN_TSCC_TCP_Msk & ((value) << MCAN_TSCC_TCP_Pos)))

#define MCAN_TSCC_TCP_Msk   (0xfu << MCAN_TSCC_TCP_Pos)
 (MCAN_TSCC) Timestamp Counter Prescaler More...

#define MCAN_TSCC_TCP_Pos   16

#define MCAN_TSCC_TSS(value)   ((MCAN_TSCC_TSS_Msk & ((value) << MCAN_TSCC_TSS_Pos)))

#define MCAN_TSCC_TSS_ALWAYS_0   (0x0u << 0)
 (MCAN_TSCC) Timestamp counter value always 0x0000 More...

#define MCAN_TSCC_TSS_EXT_TIMESTAMP   (0x2u << 0)
 (MCAN_TSCC) External timestamp counter value used More...

#define MCAN_TSCC_TSS_Msk   (0x3u << MCAN_TSCC_TSS_Pos)
 (MCAN_TSCC) Timestamp Select More...

#define MCAN_TSCC_TSS_Pos   0

#define MCAN_TSCC_TSS_TCP_INC   (0x1u << 0)
 (MCAN_TSCC) Timestamp counter value incremented according to TCP More...

#define MCAN_TSCV_TSC(value)   ((MCAN_TSCV_TSC_Msk & ((value) << MCAN_TSCV_TSC_Pos)))

#define MCAN_TSCV_TSC_Msk   (0xffffu << MCAN_TSCV_TSC_Pos)
 (MCAN_TSCV) Timestamp Counter (cleared on write) More...

#define MCAN_TSCV_TSC_Pos   0

#define MCAN_TXBAR_AR0   (0x1u << 0)
 (MCAN_TXBAR) Add Request for Transmit Buffer 0 More...

#define MCAN_TXBAR_AR1   (0x1u << 1)
 (MCAN_TXBAR) Add Request for Transmit Buffer 1 More...

#define MCAN_TXBAR_AR10   (0x1u << 10)
 (MCAN_TXBAR) Add Request for Transmit Buffer 10 More...

#define MCAN_TXBAR_AR11   (0x1u << 11)
 (MCAN_TXBAR) Add Request for Transmit Buffer 11 More...

#define MCAN_TXBAR_AR12   (0x1u << 12)
 (MCAN_TXBAR) Add Request for Transmit Buffer 12 More...

#define MCAN_TXBAR_AR13   (0x1u << 13)
 (MCAN_TXBAR) Add Request for Transmit Buffer 13 More...

#define MCAN_TXBAR_AR14   (0x1u << 14)
 (MCAN_TXBAR) Add Request for Transmit Buffer 14 More...

#define MCAN_TXBAR_AR15   (0x1u << 15)
 (MCAN_TXBAR) Add Request for Transmit Buffer 15 More...

#define MCAN_TXBAR_AR16   (0x1u << 16)
 (MCAN_TXBAR) Add Request for Transmit Buffer 16 More...

#define MCAN_TXBAR_AR17   (0x1u << 17)
 (MCAN_TXBAR) Add Request for Transmit Buffer 17 More...

#define MCAN_TXBAR_AR18   (0x1u << 18)
 (MCAN_TXBAR) Add Request for Transmit Buffer 18 More...

#define MCAN_TXBAR_AR19   (0x1u << 19)
 (MCAN_TXBAR) Add Request for Transmit Buffer 19 More...

#define MCAN_TXBAR_AR2   (0x1u << 2)
 (MCAN_TXBAR) Add Request for Transmit Buffer 2 More...

#define MCAN_TXBAR_AR20   (0x1u << 20)
 (MCAN_TXBAR) Add Request for Transmit Buffer 20 More...

#define MCAN_TXBAR_AR21   (0x1u << 21)
 (MCAN_TXBAR) Add Request for Transmit Buffer 21 More...

#define MCAN_TXBAR_AR22   (0x1u << 22)
 (MCAN_TXBAR) Add Request for Transmit Buffer 22 More...

#define MCAN_TXBAR_AR23   (0x1u << 23)
 (MCAN_TXBAR) Add Request for Transmit Buffer 23 More...

#define MCAN_TXBAR_AR24   (0x1u << 24)
 (MCAN_TXBAR) Add Request for Transmit Buffer 24 More...

#define MCAN_TXBAR_AR25   (0x1u << 25)
 (MCAN_TXBAR) Add Request for Transmit Buffer 25 More...

#define MCAN_TXBAR_AR26   (0x1u << 26)
 (MCAN_TXBAR) Add Request for Transmit Buffer 26 More...

#define MCAN_TXBAR_AR27   (0x1u << 27)
 (MCAN_TXBAR) Add Request for Transmit Buffer 27 More...

#define MCAN_TXBAR_AR28   (0x1u << 28)
 (MCAN_TXBAR) Add Request for Transmit Buffer 28 More...

#define MCAN_TXBAR_AR29   (0x1u << 29)
 (MCAN_TXBAR) Add Request for Transmit Buffer 29 More...

#define MCAN_TXBAR_AR3   (0x1u << 3)
 (MCAN_TXBAR) Add Request for Transmit Buffer 3 More...

#define MCAN_TXBAR_AR30   (0x1u << 30)
 (MCAN_TXBAR) Add Request for Transmit Buffer 30 More...

#define MCAN_TXBAR_AR31   (0x1u << 31)
 (MCAN_TXBAR) Add Request for Transmit Buffer 31 More...

#define MCAN_TXBAR_AR4   (0x1u << 4)
 (MCAN_TXBAR) Add Request for Transmit Buffer 4 More...

#define MCAN_TXBAR_AR5   (0x1u << 5)
 (MCAN_TXBAR) Add Request for Transmit Buffer 5 More...

#define MCAN_TXBAR_AR6   (0x1u << 6)
 (MCAN_TXBAR) Add Request for Transmit Buffer 6 More...

#define MCAN_TXBAR_AR7   (0x1u << 7)
 (MCAN_TXBAR) Add Request for Transmit Buffer 7 More...

#define MCAN_TXBAR_AR8   (0x1u << 8)
 (MCAN_TXBAR) Add Request for Transmit Buffer 8 More...

#define MCAN_TXBAR_AR9   (0x1u << 9)
 (MCAN_TXBAR) Add Request for Transmit Buffer 9 More...

#define MCAN_TXBC_NDTB(value)   ((MCAN_TXBC_NDTB_Msk & ((value) << MCAN_TXBC_NDTB_Pos)))

#define MCAN_TXBC_NDTB_Msk   (0x3fu << MCAN_TXBC_NDTB_Pos)
 (MCAN_TXBC) Number of Dedicated Transmit Buffers More...

#define MCAN_TXBC_NDTB_Pos   16

#define MCAN_TXBC_TBSA(value)   ((MCAN_TXBC_TBSA_Msk & ((value) << MCAN_TXBC_TBSA_Pos)))

#define MCAN_TXBC_TBSA_Msk   (0x3fffu << MCAN_TXBC_TBSA_Pos)
 (MCAN_TXBC) Tx Buffers Start Address More...

#define MCAN_TXBC_TBSA_Pos   2

#define MCAN_TXBC_TFQM   (0x1u << 30)
 (MCAN_TXBC) Tx FIFO/Queue Mode More...

#define MCAN_TXBC_TFQS(value)   ((MCAN_TXBC_TFQS_Msk & ((value) << MCAN_TXBC_TFQS_Pos)))

#define MCAN_TXBC_TFQS_Msk   (0x3fu << MCAN_TXBC_TFQS_Pos)
 (MCAN_TXBC) Transmit FIFO/Queue Size More...

#define MCAN_TXBC_TFQS_Pos   24

#define MCAN_TXBCF_CF0   (0x1u << 0)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 0 More...

#define MCAN_TXBCF_CF1   (0x1u << 1)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 1 More...

#define MCAN_TXBCF_CF10   (0x1u << 10)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 10 More...

#define MCAN_TXBCF_CF11   (0x1u << 11)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 11 More...

#define MCAN_TXBCF_CF12   (0x1u << 12)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 12 More...

#define MCAN_TXBCF_CF13   (0x1u << 13)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 13 More...

#define MCAN_TXBCF_CF14   (0x1u << 14)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 14 More...

#define MCAN_TXBCF_CF15   (0x1u << 15)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 15 More...

#define MCAN_TXBCF_CF16   (0x1u << 16)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 16 More...

#define MCAN_TXBCF_CF17   (0x1u << 17)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 17 More...

#define MCAN_TXBCF_CF18   (0x1u << 18)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 18 More...

#define MCAN_TXBCF_CF19   (0x1u << 19)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 19 More...

#define MCAN_TXBCF_CF2   (0x1u << 2)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 2 More...

#define MCAN_TXBCF_CF20   (0x1u << 20)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 20 More...

#define MCAN_TXBCF_CF21   (0x1u << 21)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 21 More...

#define MCAN_TXBCF_CF22   (0x1u << 22)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 22 More...

#define MCAN_TXBCF_CF23   (0x1u << 23)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 23 More...

#define MCAN_TXBCF_CF24   (0x1u << 24)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 24 More...

#define MCAN_TXBCF_CF25   (0x1u << 25)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 25 More...

#define MCAN_TXBCF_CF26   (0x1u << 26)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 26 More...

#define MCAN_TXBCF_CF27   (0x1u << 27)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 27 More...

#define MCAN_TXBCF_CF28   (0x1u << 28)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 28 More...

#define MCAN_TXBCF_CF29   (0x1u << 29)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 29 More...

#define MCAN_TXBCF_CF3   (0x1u << 3)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 3 More...

#define MCAN_TXBCF_CF30   (0x1u << 30)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 30 More...

#define MCAN_TXBCF_CF31   (0x1u << 31)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 31 More...

#define MCAN_TXBCF_CF4   (0x1u << 4)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 4 More...

#define MCAN_TXBCF_CF5   (0x1u << 5)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 5 More...

#define MCAN_TXBCF_CF6   (0x1u << 6)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 6 More...

#define MCAN_TXBCF_CF7   (0x1u << 7)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 7 More...

#define MCAN_TXBCF_CF8   (0x1u << 8)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 8 More...

#define MCAN_TXBCF_CF9   (0x1u << 9)
 (MCAN_TXBCF) Cancellation Finished for Transmit Buffer 9 More...

#define MCAN_TXBCIE_CFIE0   (0x1u << 0)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 0 More...

#define MCAN_TXBCIE_CFIE1   (0x1u << 1)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 1 More...

#define MCAN_TXBCIE_CFIE10   (0x1u << 10)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 10 More...

#define MCAN_TXBCIE_CFIE11   (0x1u << 11)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 11 More...

#define MCAN_TXBCIE_CFIE12   (0x1u << 12)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 12 More...

#define MCAN_TXBCIE_CFIE13   (0x1u << 13)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 13 More...

#define MCAN_TXBCIE_CFIE14   (0x1u << 14)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 14 More...

#define MCAN_TXBCIE_CFIE15   (0x1u << 15)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 15 More...

#define MCAN_TXBCIE_CFIE16   (0x1u << 16)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 16 More...

#define MCAN_TXBCIE_CFIE17   (0x1u << 17)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 17 More...

#define MCAN_TXBCIE_CFIE18   (0x1u << 18)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 18 More...

#define MCAN_TXBCIE_CFIE19   (0x1u << 19)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 19 More...

#define MCAN_TXBCIE_CFIE2   (0x1u << 2)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 2 More...

#define MCAN_TXBCIE_CFIE20   (0x1u << 20)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 20 More...

#define MCAN_TXBCIE_CFIE21   (0x1u << 21)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 21 More...

#define MCAN_TXBCIE_CFIE22   (0x1u << 22)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 22 More...

#define MCAN_TXBCIE_CFIE23   (0x1u << 23)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 23 More...

#define MCAN_TXBCIE_CFIE24   (0x1u << 24)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 24 More...

#define MCAN_TXBCIE_CFIE25   (0x1u << 25)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 25 More...

#define MCAN_TXBCIE_CFIE26   (0x1u << 26)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 26 More...

#define MCAN_TXBCIE_CFIE27   (0x1u << 27)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 27 More...

#define MCAN_TXBCIE_CFIE28   (0x1u << 28)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 28 More...

#define MCAN_TXBCIE_CFIE29   (0x1u << 29)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 29 More...

#define MCAN_TXBCIE_CFIE3   (0x1u << 3)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 3 More...

#define MCAN_TXBCIE_CFIE30   (0x1u << 30)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 30 More...

#define MCAN_TXBCIE_CFIE31   (0x1u << 31)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 31 More...

#define MCAN_TXBCIE_CFIE4   (0x1u << 4)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 4 More...

#define MCAN_TXBCIE_CFIE5   (0x1u << 5)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 5 More...

#define MCAN_TXBCIE_CFIE6   (0x1u << 6)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 6 More...

#define MCAN_TXBCIE_CFIE7   (0x1u << 7)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 7 More...

#define MCAN_TXBCIE_CFIE8   (0x1u << 8)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 8 More...

#define MCAN_TXBCIE_CFIE9   (0x1u << 9)
 (MCAN_TXBCIE) Cancellation Finished Interrupt Enable for Transmit Buffer 9 More...

#define MCAN_TXBCR_CR0   (0x1u << 0)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 0 More...

#define MCAN_TXBCR_CR1   (0x1u << 1)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 1 More...

#define MCAN_TXBCR_CR10   (0x1u << 10)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 10 More...

#define MCAN_TXBCR_CR11   (0x1u << 11)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 11 More...

#define MCAN_TXBCR_CR12   (0x1u << 12)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 12 More...

#define MCAN_TXBCR_CR13   (0x1u << 13)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 13 More...

#define MCAN_TXBCR_CR14   (0x1u << 14)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 14 More...

#define MCAN_TXBCR_CR15   (0x1u << 15)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 15 More...

#define MCAN_TXBCR_CR16   (0x1u << 16)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 16 More...

#define MCAN_TXBCR_CR17   (0x1u << 17)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 17 More...

#define MCAN_TXBCR_CR18   (0x1u << 18)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 18 More...

#define MCAN_TXBCR_CR19   (0x1u << 19)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 19 More...

#define MCAN_TXBCR_CR2   (0x1u << 2)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 2 More...

#define MCAN_TXBCR_CR20   (0x1u << 20)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 20 More...

#define MCAN_TXBCR_CR21   (0x1u << 21)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 21 More...

#define MCAN_TXBCR_CR22   (0x1u << 22)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 22 More...

#define MCAN_TXBCR_CR23   (0x1u << 23)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 23 More...

#define MCAN_TXBCR_CR24   (0x1u << 24)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 24 More...

#define MCAN_TXBCR_CR25   (0x1u << 25)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 25 More...

#define MCAN_TXBCR_CR26   (0x1u << 26)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 26 More...

#define MCAN_TXBCR_CR27   (0x1u << 27)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 27 More...

#define MCAN_TXBCR_CR28   (0x1u << 28)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 28 More...

#define MCAN_TXBCR_CR29   (0x1u << 29)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 29 More...

#define MCAN_TXBCR_CR3   (0x1u << 3)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 3 More...

#define MCAN_TXBCR_CR30   (0x1u << 30)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 30 More...

#define MCAN_TXBCR_CR31   (0x1u << 31)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 31 More...

#define MCAN_TXBCR_CR4   (0x1u << 4)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 4 More...

#define MCAN_TXBCR_CR5   (0x1u << 5)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 5 More...

#define MCAN_TXBCR_CR6   (0x1u << 6)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 6 More...

#define MCAN_TXBCR_CR7   (0x1u << 7)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 7 More...

#define MCAN_TXBCR_CR8   (0x1u << 8)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 8 More...

#define MCAN_TXBCR_CR9   (0x1u << 9)
 (MCAN_TXBCR) Cancellation Request for Transmit Buffer 9 More...

#define MCAN_TXBRP_TRP0   (0x1u << 0)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 0 More...

#define MCAN_TXBRP_TRP1   (0x1u << 1)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 1 More...

#define MCAN_TXBRP_TRP10   (0x1u << 10)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 10 More...

#define MCAN_TXBRP_TRP11   (0x1u << 11)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 11 More...

#define MCAN_TXBRP_TRP12   (0x1u << 12)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 12 More...

#define MCAN_TXBRP_TRP13   (0x1u << 13)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 13 More...

#define MCAN_TXBRP_TRP14   (0x1u << 14)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 14 More...

#define MCAN_TXBRP_TRP15   (0x1u << 15)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 15 More...

#define MCAN_TXBRP_TRP16   (0x1u << 16)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 16 More...

#define MCAN_TXBRP_TRP17   (0x1u << 17)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 17 More...

#define MCAN_TXBRP_TRP18   (0x1u << 18)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 18 More...

#define MCAN_TXBRP_TRP19   (0x1u << 19)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 19 More...

#define MCAN_TXBRP_TRP2   (0x1u << 2)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 2 More...

#define MCAN_TXBRP_TRP20   (0x1u << 20)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 20 More...

#define MCAN_TXBRP_TRP21   (0x1u << 21)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 21 More...

#define MCAN_TXBRP_TRP22   (0x1u << 22)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 22 More...

#define MCAN_TXBRP_TRP23   (0x1u << 23)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 23 More...

#define MCAN_TXBRP_TRP24   (0x1u << 24)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 24 More...

#define MCAN_TXBRP_TRP25   (0x1u << 25)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 25 More...

#define MCAN_TXBRP_TRP26   (0x1u << 26)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 26 More...

#define MCAN_TXBRP_TRP27   (0x1u << 27)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 27 More...

#define MCAN_TXBRP_TRP28   (0x1u << 28)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 28 More...

#define MCAN_TXBRP_TRP29   (0x1u << 29)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 29 More...

#define MCAN_TXBRP_TRP3   (0x1u << 3)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 3 More...

#define MCAN_TXBRP_TRP30   (0x1u << 30)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 30 More...

#define MCAN_TXBRP_TRP31   (0x1u << 31)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 31 More...

#define MCAN_TXBRP_TRP4   (0x1u << 4)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 4 More...

#define MCAN_TXBRP_TRP5   (0x1u << 5)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 5 More...

#define MCAN_TXBRP_TRP6   (0x1u << 6)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 6 More...

#define MCAN_TXBRP_TRP7   (0x1u << 7)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 7 More...

#define MCAN_TXBRP_TRP8   (0x1u << 8)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 8 More...

#define MCAN_TXBRP_TRP9   (0x1u << 9)
 (MCAN_TXBRP) Transmission Request Pending for Buffer 9 More...

#define MCAN_TXBTIE_TIE0   (0x1u << 0)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 0 More...

#define MCAN_TXBTIE_TIE1   (0x1u << 1)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 1 More...

#define MCAN_TXBTIE_TIE10   (0x1u << 10)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 10 More...

#define MCAN_TXBTIE_TIE11   (0x1u << 11)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 11 More...

#define MCAN_TXBTIE_TIE12   (0x1u << 12)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 12 More...

#define MCAN_TXBTIE_TIE13   (0x1u << 13)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 13 More...

#define MCAN_TXBTIE_TIE14   (0x1u << 14)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 14 More...

#define MCAN_TXBTIE_TIE15   (0x1u << 15)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 15 More...

#define MCAN_TXBTIE_TIE16   (0x1u << 16)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 16 More...

#define MCAN_TXBTIE_TIE17   (0x1u << 17)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 17 More...

#define MCAN_TXBTIE_TIE18   (0x1u << 18)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 18 More...

#define MCAN_TXBTIE_TIE19   (0x1u << 19)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 19 More...

#define MCAN_TXBTIE_TIE2   (0x1u << 2)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 2 More...

#define MCAN_TXBTIE_TIE20   (0x1u << 20)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 20 More...

#define MCAN_TXBTIE_TIE21   (0x1u << 21)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 21 More...

#define MCAN_TXBTIE_TIE22   (0x1u << 22)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 22 More...

#define MCAN_TXBTIE_TIE23   (0x1u << 23)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 23 More...

#define MCAN_TXBTIE_TIE24   (0x1u << 24)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 24 More...

#define MCAN_TXBTIE_TIE25   (0x1u << 25)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 25 More...

#define MCAN_TXBTIE_TIE26   (0x1u << 26)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 26 More...

#define MCAN_TXBTIE_TIE27   (0x1u << 27)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 27 More...

#define MCAN_TXBTIE_TIE28   (0x1u << 28)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 28 More...

#define MCAN_TXBTIE_TIE29   (0x1u << 29)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 29 More...

#define MCAN_TXBTIE_TIE3   (0x1u << 3)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 3 More...

#define MCAN_TXBTIE_TIE30   (0x1u << 30)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 30 More...

#define MCAN_TXBTIE_TIE31   (0x1u << 31)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 31 More...

#define MCAN_TXBTIE_TIE4   (0x1u << 4)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 4 More...

#define MCAN_TXBTIE_TIE5   (0x1u << 5)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 5 More...

#define MCAN_TXBTIE_TIE6   (0x1u << 6)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 6 More...

#define MCAN_TXBTIE_TIE7   (0x1u << 7)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 7 More...

#define MCAN_TXBTIE_TIE8   (0x1u << 8)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 8 More...

#define MCAN_TXBTIE_TIE9   (0x1u << 9)
 (MCAN_TXBTIE) Transmission Interrupt Enable for Buffer 9 More...

#define MCAN_TXBTO_TO0   (0x1u << 0)
 (MCAN_TXBTO) Transmission Occurred for Buffer 0 More...

#define MCAN_TXBTO_TO1   (0x1u << 1)
 (MCAN_TXBTO) Transmission Occurred for Buffer 1 More...

#define MCAN_TXBTO_TO10   (0x1u << 10)
 (MCAN_TXBTO) Transmission Occurred for Buffer 10 More...

#define MCAN_TXBTO_TO11   (0x1u << 11)
 (MCAN_TXBTO) Transmission Occurred for Buffer 11 More...

#define MCAN_TXBTO_TO12   (0x1u << 12)
 (MCAN_TXBTO) Transmission Occurred for Buffer 12 More...

#define MCAN_TXBTO_TO13   (0x1u << 13)
 (MCAN_TXBTO) Transmission Occurred for Buffer 13 More...

#define MCAN_TXBTO_TO14   (0x1u << 14)
 (MCAN_TXBTO) Transmission Occurred for Buffer 14 More...

#define MCAN_TXBTO_TO15   (0x1u << 15)
 (MCAN_TXBTO) Transmission Occurred for Buffer 15 More...

#define MCAN_TXBTO_TO16   (0x1u << 16)
 (MCAN_TXBTO) Transmission Occurred for Buffer 16 More...

#define MCAN_TXBTO_TO17   (0x1u << 17)
 (MCAN_TXBTO) Transmission Occurred for Buffer 17 More...

#define MCAN_TXBTO_TO18   (0x1u << 18)
 (MCAN_TXBTO) Transmission Occurred for Buffer 18 More...

#define MCAN_TXBTO_TO19   (0x1u << 19)
 (MCAN_TXBTO) Transmission Occurred for Buffer 19 More...

#define MCAN_TXBTO_TO2   (0x1u << 2)
 (MCAN_TXBTO) Transmission Occurred for Buffer 2 More...

#define MCAN_TXBTO_TO20   (0x1u << 20)
 (MCAN_TXBTO) Transmission Occurred for Buffer 20 More...

#define MCAN_TXBTO_TO21   (0x1u << 21)
 (MCAN_TXBTO) Transmission Occurred for Buffer 21 More...

#define MCAN_TXBTO_TO22   (0x1u << 22)
 (MCAN_TXBTO) Transmission Occurred for Buffer 22 More...

#define MCAN_TXBTO_TO23   (0x1u << 23)
 (MCAN_TXBTO) Transmission Occurred for Buffer 23 More...

#define MCAN_TXBTO_TO24   (0x1u << 24)
 (MCAN_TXBTO) Transmission Occurred for Buffer 24 More...

#define MCAN_TXBTO_TO25   (0x1u << 25)
 (MCAN_TXBTO) Transmission Occurred for Buffer 25 More...

#define MCAN_TXBTO_TO26   (0x1u << 26)
 (MCAN_TXBTO) Transmission Occurred for Buffer 26 More...

#define MCAN_TXBTO_TO27   (0x1u << 27)
 (MCAN_TXBTO) Transmission Occurred for Buffer 27 More...

#define MCAN_TXBTO_TO28   (0x1u << 28)
 (MCAN_TXBTO) Transmission Occurred for Buffer 28 More...

#define MCAN_TXBTO_TO29   (0x1u << 29)
 (MCAN_TXBTO) Transmission Occurred for Buffer 29 More...

#define MCAN_TXBTO_TO3   (0x1u << 3)
 (MCAN_TXBTO) Transmission Occurred for Buffer 3 More...

#define MCAN_TXBTO_TO30   (0x1u << 30)
 (MCAN_TXBTO) Transmission Occurred for Buffer 30 More...

#define MCAN_TXBTO_TO31   (0x1u << 31)
 (MCAN_TXBTO) Transmission Occurred for Buffer 31 More...

#define MCAN_TXBTO_TO4   (0x1u << 4)
 (MCAN_TXBTO) Transmission Occurred for Buffer 4 More...

#define MCAN_TXBTO_TO5   (0x1u << 5)
 (MCAN_TXBTO) Transmission Occurred for Buffer 5 More...

#define MCAN_TXBTO_TO6   (0x1u << 6)
 (MCAN_TXBTO) Transmission Occurred for Buffer 6 More...

#define MCAN_TXBTO_TO7   (0x1u << 7)
 (MCAN_TXBTO) Transmission Occurred for Buffer 7 More...

#define MCAN_TXBTO_TO8   (0x1u << 8)
 (MCAN_TXBTO) Transmission Occurred for Buffer 8 More...

#define MCAN_TXBTO_TO9   (0x1u << 9)
 (MCAN_TXBTO) Transmission Occurred for Buffer 9 More...

#define MCAN_TXEFA_EFAI(value)   ((MCAN_TXEFA_EFAI_Msk & ((value) << MCAN_TXEFA_EFAI_Pos)))

#define MCAN_TXEFA_EFAI_Msk   (0x1fu << MCAN_TXEFA_EFAI_Pos)
 (MCAN_TXEFA) Event FIFO Acknowledge Index More...

#define MCAN_TXEFA_EFAI_Pos   0

#define MCAN_TXEFC_EFS(value)   ((MCAN_TXEFC_EFS_Msk & ((value) << MCAN_TXEFC_EFS_Pos)))

#define MCAN_TXEFC_EFS_Msk   (0x3fu << MCAN_TXEFC_EFS_Pos)
 (MCAN_TXEFC) Event FIFO Size More...

#define MCAN_TXEFC_EFS_Pos   16

#define MCAN_TXEFC_EFSA(value)   ((MCAN_TXEFC_EFSA_Msk & ((value) << MCAN_TXEFC_EFSA_Pos)))

#define MCAN_TXEFC_EFSA_Msk   (0x3fffu << MCAN_TXEFC_EFSA_Pos)
 (MCAN_TXEFC) Event FIFO Start Address More...

#define MCAN_TXEFC_EFSA_Pos   2

#define MCAN_TXEFC_EFWM(value)   ((MCAN_TXEFC_EFWM_Msk & ((value) << MCAN_TXEFC_EFWM_Pos)))

#define MCAN_TXEFC_EFWM_Msk   (0x3fu << MCAN_TXEFC_EFWM_Pos)
 (MCAN_TXEFC) Event FIFO Watermark More...

#define MCAN_TXEFC_EFWM_Pos   24

#define MCAN_TXEFS_EFF   (0x1u << 24)
 (MCAN_TXEFS) Event FIFO Full More...

#define MCAN_TXEFS_EFFL_Msk   (0x3fu << MCAN_TXEFS_EFFL_Pos)
 (MCAN_TXEFS) Event FIFO Fill Level More...

#define MCAN_TXEFS_EFFL_Pos   0

#define MCAN_TXEFS_EFGI_Msk   (0x1fu << MCAN_TXEFS_EFGI_Pos)
 (MCAN_TXEFS) Event FIFO Get Index More...

#define MCAN_TXEFS_EFGI_Pos   8

#define MCAN_TXEFS_EFPI_Msk   (0x1fu << MCAN_TXEFS_EFPI_Pos)
 (MCAN_TXEFS) Event FIFO Put Index More...

#define MCAN_TXEFS_EFPI_Pos   16

#define MCAN_TXEFS_TEFL   (0x1u << 25)
 (MCAN_TXEFS) Tx Event FIFO Element Lost More...

#define MCAN_TXESC_TBDS(value)   ((MCAN_TXESC_TBDS_Msk & ((value) << MCAN_TXESC_TBDS_Pos)))

#define MCAN_TXESC_TBDS_12_BYTE   (0x1u << 0)
 (MCAN_TXESC) 12-byte data field More...

#define MCAN_TXESC_TBDS_16_BYTE   (0x2u << 0)
 (MCAN_TXESC) 16-byte data field More...

#define MCAN_TXESC_TBDS_20_BYTE   (0x3u << 0)
 (MCAN_TXESC) 20-byte data field More...

#define MCAN_TXESC_TBDS_24_BYTE   (0x4u << 0)
 (MCAN_TXESC) 24-byte data field More...

#define MCAN_TXESC_TBDS_32_BYTE   (0x5u << 0)
 (MCAN_TXESC) 32-byte data field More...

#define MCAN_TXESC_TBDS_48_BYTE   (0x6u << 0)
 (MCAN_TXESC) 48- byte data field More...

#define MCAN_TXESC_TBDS_64_BYTE   (0x7u << 0)
 (MCAN_TXESC) 64-byte data field More...

#define MCAN_TXESC_TBDS_8_BYTE   (0x0u << 0)
 (MCAN_TXESC) 8-byte data field More...

#define MCAN_TXESC_TBDS_Msk   (0x7u << MCAN_TXESC_TBDS_Pos)
 (MCAN_TXESC) Tx Buffer Data Field Size More...

#define MCAN_TXESC_TBDS_Pos   0

#define MCAN_TXFQS_TFFL_Msk   (0x3fu << MCAN_TXFQS_TFFL_Pos)
 (MCAN_TXFQS) Tx FIFO Free Level More...

#define MCAN_TXFQS_TFFL_Pos   0

#define MCAN_TXFQS_TFGI_Msk   (0x1fu << MCAN_TXFQS_TFGI_Pos)
 (MCAN_TXFQS) Tx FIFO Get Index More...

#define MCAN_TXFQS_TFGI_Pos   8

#define MCAN_TXFQS_TFQF   (0x1u << 21)
 (MCAN_TXFQS) Tx FIFO/Queue Full More...

#define MCAN_TXFQS_TFQPI_Msk   (0x1fu << MCAN_TXFQS_TFQPI_Pos)
 (MCAN_TXFQS) Tx FIFO/Queue Put Index More...

#define MCAN_TXFQS_TFQPI_Pos   16

#define MCAN_XIDAM_EIDM(value)   ((MCAN_XIDAM_EIDM_Msk & ((value) << MCAN_XIDAM_EIDM_Pos)))

#define MCAN_XIDAM_EIDM_Msk   (0x1fffffffu << MCAN_XIDAM_EIDM_Pos)
 (MCAN_XIDAM) Extended ID Mask More...

#define MCAN_XIDAM_EIDM_Pos   0

#define MCAN_XIDFC_FLESA(value)   ((MCAN_XIDFC_FLESA_Msk & ((value) << MCAN_XIDFC_FLESA_Pos)))

#define MCAN_XIDFC_FLESA_Msk   (0x3fffu << MCAN_XIDFC_FLESA_Pos)
 (MCAN_XIDFC) Filter List Extended Start Address More...

#define MCAN_XIDFC_FLESA_Pos   2

#define MCAN_XIDFC_LSE(value)   ((MCAN_XIDFC_LSE_Msk & ((value) << MCAN_XIDFC_LSE_Pos)))

#define MCAN_XIDFC_LSE_Msk   (0x7fu << MCAN_XIDFC_LSE_Pos)
 (MCAN_XIDFC) List Size Extended More...

#define MCAN_XIDFC_LSE_Pos   16


Detailed Description

Copyright (c) 2015-2018 Microchip Technology Inc. and its subsidiaries.

Definition in file utils/cmsis/same70/include/component/mcan.h.



inertial_sense_ros
Author(s):
autogenerated on Sat Sep 19 2020 03:19:06
