twihs2.h File Reference

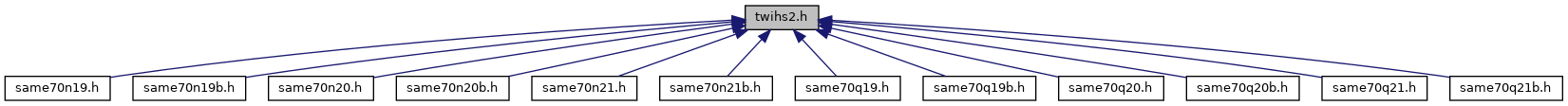

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros

#define REG_TWIHS2_CR   (*(__O uint32_t*)0x40060000U)
 (TWIHS2) Control Register More...

#define REG_TWIHS2_CWGR   (*(__IO uint32_t*)0x40060010U)
 (TWIHS2) Clock Waveform Generator Register More...

#define REG_TWIHS2_DR   (*(__I uint32_t*)0x400600D0U)
 (TWIHS2) Debug Register More...

#define REG_TWIHS2_FILTR   (*(__IO uint32_t*)0x40060044U)
 (TWIHS2) Filter Register More...

#define REG_TWIHS2_IADR   (*(__IO uint32_t*)0x4006000CU)
 (TWIHS2) Internal Address Register More...

#define REG_TWIHS2_IDR   (*(__O uint32_t*)0x40060028U)
 (TWIHS2) Interrupt Disable Register More...

#define REG_TWIHS2_IER   (*(__O uint32_t*)0x40060024U)
 (TWIHS2) Interrupt Enable Register More...

#define REG_TWIHS2_IMR   (*(__I uint32_t*)0x4006002CU)
 (TWIHS2) Interrupt Mask Register More...

#define REG_TWIHS2_MMR   (*(__IO uint32_t*)0x40060004U)
 (TWIHS2) Master Mode Register More...

#define REG_TWIHS2_RHR   (*(__I uint32_t*)0x40060030U)
 (TWIHS2) Receive Holding Register More...

#define REG_TWIHS2_SMBTR   (*(__IO uint32_t*)0x40060038U)
 (TWIHS2) SMBus Timing Register More...

#define REG_TWIHS2_SMR   (*(__IO uint32_t*)0x40060008U)
 (TWIHS2) Slave Mode Register More...

#define REG_TWIHS2_SR   (*(__I uint32_t*)0x40060020U)
 (TWIHS2) Status Register More...

#define REG_TWIHS2_SWMR   (*(__IO uint32_t*)0x4006004CU)
 (TWIHS2) SleepWalking Matching Register More...

#define REG_TWIHS2_THR   (*(__O uint32_t*)0x40060034U)
 (TWIHS2) Transmit Holding Register More...

#define REG_TWIHS2_VER   (*(__I uint32_t*)0x400600FCU)
 (TWIHS2) Version Register More...

#define REG_TWIHS2_WPMR   (*(__IO uint32_t*)0x400600E4U)
 (TWIHS2) Write Protection Mode Register More...

#define REG_TWIHS2_WPSR   (*(__I uint32_t*)0x400600E8U)
 (TWIHS2) Write Protection Status Register More...


Detailed Description

Copyright (c) 2015-2018 Microchip Technology Inc. and its subsidiaries.

Definition in file twihs2.h.

Macro Definition Documentation

◆ REG_TWIHS2_CR

#define REG_TWIHS2_CR   (*(__O uint32_t*)0x40060000U)

(TWIHS2) Control Register

Definition at line 59 of file twihs2.h.

◆ REG_TWIHS2_CWGR

#define REG_TWIHS2_CWGR   (*(__IO uint32_t*)0x40060010U)

(TWIHS2) Clock Waveform Generator Register

Definition at line 63 of file twihs2.h.

◆ REG_TWIHS2_DR

#define REG_TWIHS2_DR   (*(__I uint32_t*)0x400600D0U)

(TWIHS2) Debug Register

Definition at line 73 of file twihs2.h.

◆ REG_TWIHS2_FILTR

#define REG_TWIHS2_FILTR   (*(__IO uint32_t*)0x40060044U)

(TWIHS2) Filter Register

Definition at line 71 of file twihs2.h.

◆ REG_TWIHS2_IADR

#define REG_TWIHS2_IADR   (*(__IO uint32_t*)0x4006000CU)

(TWIHS2) Internal Address Register

Definition at line 62 of file twihs2.h.

◆ REG_TWIHS2_IDR

#define REG_TWIHS2_IDR   (*(__O uint32_t*)0x40060028U)

(TWIHS2) Interrupt Disable Register

Definition at line 66 of file twihs2.h.

◆ REG_TWIHS2_IER

#define REG_TWIHS2_IER   (*(__O uint32_t*)0x40060024U)

(TWIHS2) Interrupt Enable Register

Definition at line 65 of file twihs2.h.

◆ REG_TWIHS2_IMR

#define REG_TWIHS2_IMR   (*(__I uint32_t*)0x4006002CU)

(TWIHS2) Interrupt Mask Register

Definition at line 67 of file twihs2.h.

◆ REG_TWIHS2_MMR

#define REG_TWIHS2_MMR   (*(__IO uint32_t*)0x40060004U)

(TWIHS2) Master Mode Register

Definition at line 60 of file twihs2.h.

◆ REG_TWIHS2_RHR

#define REG_TWIHS2_RHR   (*(__I uint32_t*)0x40060030U)

(TWIHS2) Receive Holding Register

Definition at line 68 of file twihs2.h.

◆ REG_TWIHS2_SMBTR

#define REG_TWIHS2_SMBTR   (*(__IO uint32_t*)0x40060038U)

(TWIHS2) SMBus Timing Register

Definition at line 70 of file twihs2.h.

◆ REG_TWIHS2_SMR

#define REG_TWIHS2_SMR   (*(__IO uint32_t*)0x40060008U)

(TWIHS2) Slave Mode Register

Definition at line 61 of file twihs2.h.

◆ REG_TWIHS2_SR

#define REG_TWIHS2_SR   (*(__I uint32_t*)0x40060020U)

(TWIHS2) Status Register

Definition at line 64 of file twihs2.h.

◆ REG_TWIHS2_SWMR

#define REG_TWIHS2_SWMR   (*(__IO uint32_t*)0x4006004CU)

(TWIHS2) SleepWalking Matching Register

Definition at line 72 of file twihs2.h.

◆ REG_TWIHS2_THR

#define REG_TWIHS2_THR   (*(__O uint32_t*)0x40060034U)

(TWIHS2) Transmit Holding Register

Definition at line 69 of file twihs2.h.

◆ REG_TWIHS2_VER

#define REG_TWIHS2_VER   (*(__I uint32_t*)0x400600FCU)

(TWIHS2) Version Register

Definition at line 76 of file twihs2.h.

◆ REG_TWIHS2_WPMR

#define REG_TWIHS2_WPMR   (*(__IO uint32_t*)0x400600E4U)

(TWIHS2) Write Protection Mode Register

Definition at line 74 of file twihs2.h.

◆ REG_TWIHS2_WPSR

#define REG_TWIHS2_WPSR   (*(__I uint32_t*)0x400600E8U)

(TWIHS2) Write Protection Status Register

Definition at line 75 of file twihs2.h.
