libchip_compiler.h File Reference

#include <compiler.h>
#include <stddef.h>
#include <stdlib.h>
#include <stdbool.h>
#include <stdint.h>

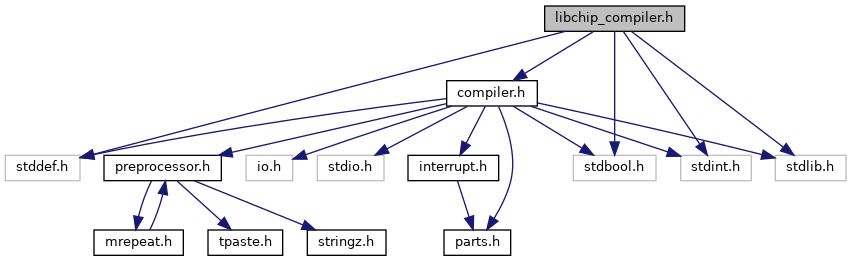

Include dependency graph for libchip_compiler.h:

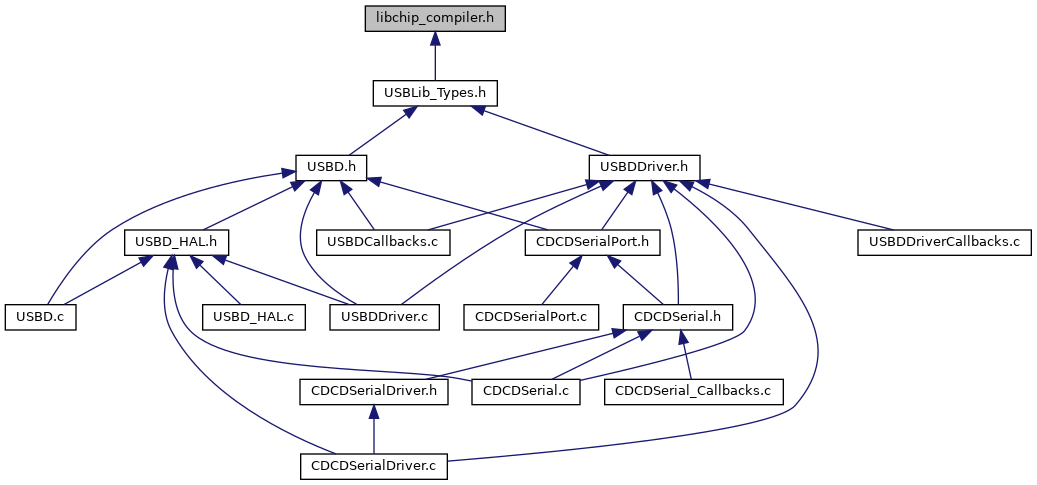

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	COMPILER_PACK_RESET()   COMPILER_PRAGMA(pack())
	Set default alignment for subsequent structure and union definitions. More...
#define	COMPILER_PACK_SET(alignment)   COMPILER_PRAGMA(pack(alignment))
	Set maximum alignment for subsequent structure and union definitions to alignment. More...
#define	COMPILER_PRAGMA(arg)   _Pragma(#arg)
	Emit the compiler pragma arg. More...
#define	UNUSED(v)   (void)(v)
	Marking v as a unused parameter or value. More...
Token Paste
Paste N preprocessing tokens together, these tokens being allowed to be #defined. May be used only within macros with the tokens passed as arguments if the tokens are #defined. For example, writing TPASTE2(U, WIDTH) within a macro #defined by UTYPE(WIDTH) and invoked as UTYPE(UL_WIDTH) with UL_WIDTH #defined as 32 is equivalent to writing U32.
#define	TPASTE2(a, b)   a##b
#define	TPASTE3(a, b, c)   a##b##c
Mathematics
Set user-defined section. Place a data object or a function in a user-defined section. Set aligned boundary. Set word-aligned boundary. The same considerations as for clz and ctz apply here but GCC does not provide built-in functions to access the assembly instructions abs, min and max and it does not produce them by itself in most cases, so two sets of macros are defined here: Abs, Min and Max to apply to constant expressions (values known at compile time); abs, min and max to apply to non-constant expressions (values unknown at compile time), abs is found in stdlib.h.
#define	min(a, b)   Min(a, b)
	Takes the minimal value of a and b. More...
#define	max(a, b)   Max(a, b)
	Takes the maximal value of a and b. More...
Interrupt Service Routine definition
#define	Enable_global_interrupt()   cpu_irq_enable()
#define	Disable_global_interrupt()   cpu_irq_disable()
#define	Is_global_interrupt_enabled()   cpu_irq_is_enabled()
Usual Constants
#define	DISABLE   0
#define	ENABLE   1
#define	DISABLED   0
#define	ENABLED   1
#define	OFF   0
#define	ON   1
#define	FALSE   0
#define	TRUE   1
#define	false   FALSE
#define	true   TRUE
#define	KO   0
#define	OK   1
#define	PASS   0
#define	FAIL   1
#define	LOW   0
#define	HIGH   1
#define	CLR   0
#define	SET   1

Macro Definition Documentation

COMPILER_PACK_RESET

#define COMPILER_PACK_RESET

(

)

COMPILER_PRAGMA(pack())

Set default alignment for subsequent structure and union definitions.

Definition at line 162 of file libchip_compiler.h.

COMPILER_PACK_SET

#define COMPILER_PACK_SET

(

alignment

)

COMPILER_PRAGMA(pack(alignment))

Set maximum alignment for subsequent structure and union definitions to alignment.

Definition at line 155 of file libchip_compiler.h.

COMPILER_PRAGMA

#define COMPILER_PRAGMA

(

arg

)

_Pragma(#arg)

Emit the compiler pragma arg.

Parameters

arg	The pragma directive as it would appear after #pragma (i.e. not stringified).

Definition at line 148 of file libchip_compiler.h.

max

#define max	(		a,
			b
	)		Max(a, b)

Takes the maximal value of a and b.

Parameters

a	Input value.
b	Input value.

Returns

Maximal value of a and b.

Note

More optimized if only used with values unknown at compile time.

Definition at line 272 of file libchip_compiler.h.

min

#define min	(		a,
			b
	)		Min(a, b)

Takes the minimal value of a and b.

Parameters

a	Input value.
b	Input value.

Returns

Minimal value of a and b.

Note

More optimized if only used with values unknown at compile time.

Definition at line 261 of file libchip_compiler.h.

TPASTE2

#define TPASTE2	(		a,
			b
	)		a##b

Definition at line 121 of file libchip_compiler.h.

TPASTE3

#define TPASTE3	(		a,
			b,
			c
	)		a##b##c

Definition at line 122 of file libchip_compiler.h.

UNUSED

#define UNUSED

(

v

)

(void)(v)

Marking v as a unused parameter or value.

Definition at line 287 of file libchip_compiler.h.
