katana_constants.h File Reference

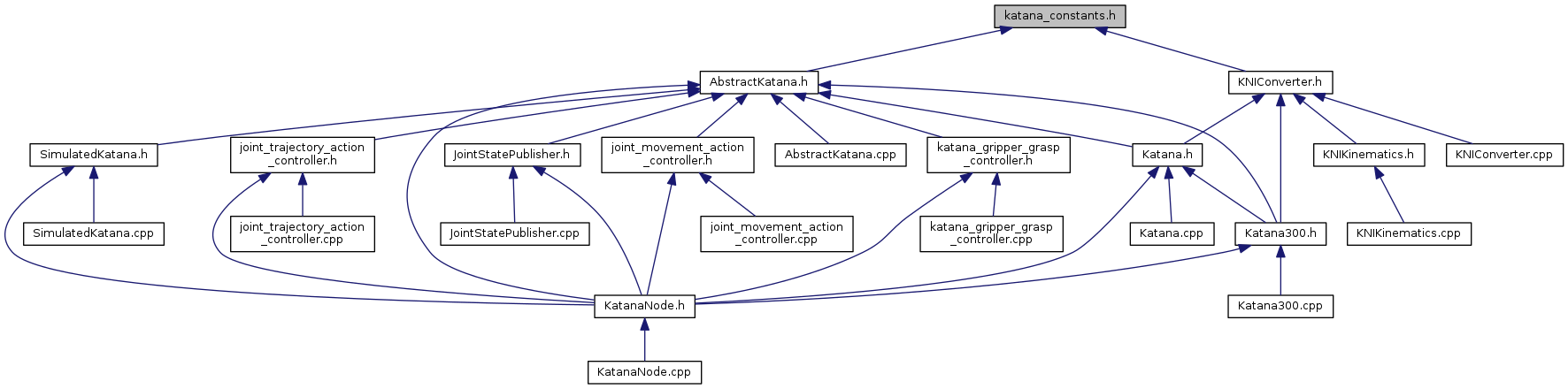

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces

 katana


Variables

static const double katana::GRIPPER_CLOSED_ANGLE = -0.44
 Constants for gripper fully open or fully closed (should be equal to the value in the urdf description) More...

const size_t katana::GRIPPER_INDEX = NUM_MOTORS - 1
 The motor index of the gripper (used in all vectors – e.g., motor_angles_) More...

static const double katana::GRIPPER_OPEN_ANGLE = 0.30
 Constants for gripper fully open or fully closed (should be equal to the value in the urdf description) More...

static const double katana::GRIPPER_OPENING_CLOSING_DURATION = 3.0
 The maximum time it takes to open or close the gripper. More...

static const double katana::KNI_GRIPPER_CLOSED_ANGLE = 0.21652991032554647
 constants for converting between the KNI gripper angle and the URDF gripper angle More...

static const double katana::KNI_GRIPPER_OPEN_ANGLE = -2.057443

static const int katana::KNI_MAX_ACCELERATION = 2
 acceleration limit = 1 or 2 [enc / (10 ms)^2] More...

static const int katana::KNI_MAX_VELOCITY = 180
 velocity limit <= 180 [enc / 10 ms] More...

static const double katana::KNI_TO_ROS_LENGTH = 0.001
 the conversion factor from KNI coordinates (in mm) to ROS coordinates (in m) More...

static const double katana::KNI_TO_ROS_TIME = 100.0
 KNI time is in 10 milliseconds (most of the time), ROS time is in seconds. More...

static const double katana::KNI_TO_URDF_GRIPPER_FACTOR

static const size_t katana::MOVE_BUFFER_SIZE = 16

const size_t katana::NUM_GRIPPER_JOINTS = 2
 The number of gripper_joints in the katana (= the two gripper finger joints) More...

const size_t katana::NUM_JOINTS = NUM_MOTORS - 1
 The number of joints in the katana (= only the 5 "real" joints) More...

const size_t katana::NUM_MOTORS = 6
 The number of motors in the katana (= all 5 "real" joints + the gripper) More...
