#include <assert.h>
#include <sys/time.h>
#include <angles/angles.h>
#include <opencv2/highgui/highgui_c.h>
#include "CRC.hpp"
#include "CV.hpp"
#include "File.hpp"
#include "FEC.hpp"
#include "Fiducials.hpp"
#include "String.hpp"
#include "Location.hpp"

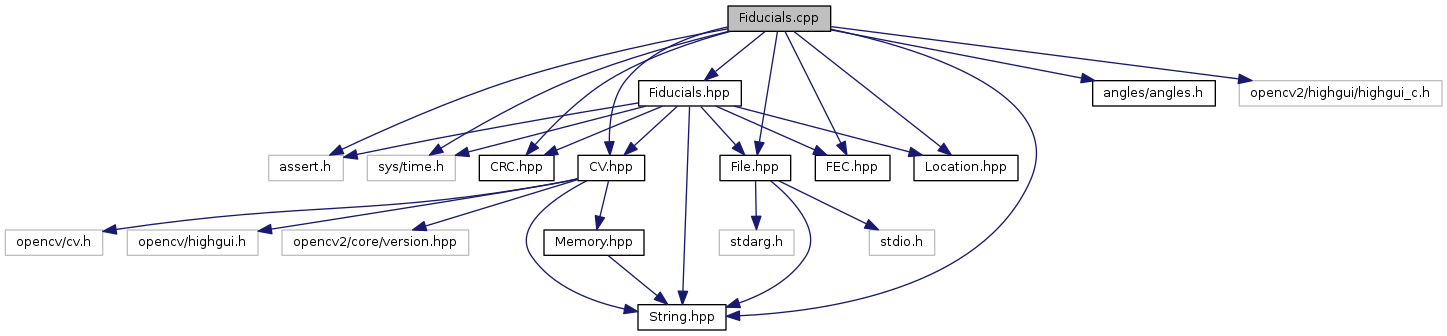

Include dependency graph for Fiducials.cpp:

Functions
void	CV_Point2D32F_Vector__corners_normalize (CV_Point2D32F_Vector corners)
	Force corners to be counter-clockwise. More...

bool	CV_Point2D32F_Vector__is_clockwise (CV_Point2D32F_Vector corners)
	Return true if corners is in a clockwise direction. More...

Fiducials	Fiducials__create (CV_Image original_image, Fiducials_Create fiducials_create)
	Create and return a Fiducials object. More...

void	Fiducials__fiducial_announce (void *announce_object, int id, int direction, double world_diagonal, double x1, double y1, double x2, double y2, double x3, double y3, double x4, double y4)
	Callback routine tthat prints out the fidicial information. More...

void	Fiducials__free (Fiducials fiducials)
	will release the storage associated with fiducials. More...

void	Fiducials__image_set (Fiducials fiducials, CV_Image image)
	Sets the original image for *fiducials. More...

void	Fiducials__image_show (Fiducials fiducials, bool show)
	Is a HighGUI interface to show the current image. More...

void	Fiducials__map_save (Fiducials fiducials)
	Force the map associated with fiducials to be saved. More...

int	Fiducials__point_sample (Fiducials fiducials, CV_Point2D32F point)
	Helper routine to sample a point from the image in fiducials. More...

int	Fiducials__points_maximum (Fiducials fiducials, CV_Point2D32F_Vector points, unsigned int start_index, unsigned int end_index)
	Return the maximum value of the points in points. More...

int	Fiducials__points_minimum (Fiducials fiducials, CV_Point2D32F_Vector points, unsigned int start_index, unsigned int end_index)
	Return the minimum value of the points in points. More...

Fiducials_Results	Fiducials__process (Fiducials fiducials)
	Process the current image associated with fiducials. More...

CV_Point2D32F_Vector	Fiducials__references_compute (Fiducials fiducials, CV_Point2D32F_Vector corners)
	Return 8 sample locations to determine if a quadralateral is worth testing for quadralateral'ness. More...

void	Fiducials__sample_points_compute (CV_Point2D32F_Vector corners, CV_Point2D32F_Vector sample_points)
	Compute the fiducial locations to sample using corners More...

Fiducials_Create	Fiducials_Create__one_and_only (void)
	Returns the one and only Fiducials_Create object. More...

Variables
static struct Fiducials_Create__Struct	fiducials_create_struct

Function Documentation

void CV_Point2D32F_Vector__corners_normalize ( CV_Point2D32F_Vector corners )

Force corners to be counter-clockwise.

Parameters

corners is the list of 4 fiducial corners.

CV_Point2D32F_Vector__corners_normalize() will force corners to be counter-clockwise. Note there is no check to ensure that corners actually has 4 values in it.

Definition at line 1223 of file Fiducials.cpp.

bool CV_Point2D32F_Vector__is_clockwise ( CV_Point2D32F_Vector corners )

Return true if corners is in a clockwise direction.

Parameters

corners is a vector of 4 fiducials corners to test.

Returns: true if the corners are clockwiase and false otherwise.

CV_Point2D32F_Vector__is_clockwise() will return true if the 4 fiducial corners in corners are clockwise and false otherwise.

Definition at line 1253 of file Fiducials.cpp.

Fiducials Fiducials__create	(	CV_Image	original_image,
		Fiducials_Create	fiducials_create
	)

Create and return a Fiducials object.

Parameters

original_image	is the image to start with.
fiducials_create	is a Fiducials_Create object that specifies the various features to enable or disable.

Fiducials__create() creates and returns a Fiducials object using the values in fiduicials_create.

Definition at line 556 of file Fiducials.cpp.

void Fiducials__fiducial_announce	(	void *	announce_object,
		int	id,
		int	direction,
		double	world_diagonal,
		double	x1,
		double	y1,
		double	x2,
		double	y2,
		double	x3,
		double	y3,
		double	x4,
		double	y4
	)

Callback routine tthat prints out the fidicial information.

Parameters

announce_object	is unused.
id	is the tag id.
direction	specifies (0-3) which of the 4 possible fiducial orientations matched.
world_diagonal	is the diagonal measured in world coordinate.
x1	is the X coordinate of corner1 in camera coordinates.
y1	is the y coordinate of corner1 in camera coordinates.
x2	is the X coordinate of corner2 in camera coordinates.
y2	is the y coordinate of corner2 in camera coordinates.
x3	is the X coordinate of corner3 in camera coordinates.
y3	is the y coordinate of corner3 in camera coordinates.
x4	is the X coordinate of corner4 in camera coordinates.
y4	is the y coordinate of corner4 in camera coordinates.

Fiducials__fiducial_announce() will announce finding a fiducial in a camera image. This callback routine is supplied as an argument to Fiducials__create().

Definition at line 410 of file Fiducials.cpp.

void Fiducials__free ( Fiducials fiducials )

will release the storage associated with fiducials.

Parameters

fiducials is the Fiducials object to release.

Fiducials__free() releases the storage associated with fiducials.

Definition at line 713 of file Fiducials.cpp.

void Fiducials__image_set	(	Fiducials	fiducials,
		CV_Image	image
	)

Sets the original image for *fiducials.

Parameters

fiducials	is the Fiducials object to use.
image	is the new image to use as the original image.

Fiducials__image_set() will set the original image for fiducials to image.

Definition at line 427 of file Fiducials.cpp.

void Fiducials__image_show	(	Fiducials	fiducials,
		bool	show
	)

Is a HighGUI interface to show the current image.

Parameters

fiducials	is the Fiducials object that contains the image.
show	is true to force the HighGUI interface to activate.

Fiducials__image_show() will cause an image to be shown with at each of the various stages of the recognition cycle. This only occurs if show is true.

The character commands are:

'/033' – Escape from program.
'+' – View next stage in processing pipeline.
'-' – View previous stage in processing pipeline.
'<' – Goto beginning of processing pipeline.
'b' – Toggle image blur.
'f' – Flip fiducials allong X axis

Definition at line 451 of file Fiducials.cpp.

void Fiducials__map_save ( Fiducials fiducials )

Force the map associated with fiducials to be saved.

Parameters

fiducials is the Fiducials object to save the map of.

Fiducials__map_save() will cause the map associated with fiducials to be saved.

Definition at line 737 of file Fiducials.cpp.

int Fiducials__point_sample	(	Fiducials	fiducials,
		CV_Point2D32F	point
	)

Helper routine to sample a point from the image in fiducials.

Parameters

fiducials	is the Fiducials object that contains the image.
point	is the point location to sample.

Returns: weighted sample value.

Fiducials__point_sample() will return a weighted sample value for point in the image associated with fiducials. The weight algorithm is controlled by the weights_index field of fiducials. The returned value is between 0 (black) to 255 (white).

Definition at line 1145 of file Fiducials.cpp.

int Fiducials__points_maximum	(	Fiducials	fiducials,
		CV_Point2D32F_Vector	points,
		unsigned int	start_index,
		unsigned int	end_index
	)

Return the maximum value of the points in points.

Parameters

fiducials	is the Fiducials object that contains the image.
points	is the vector of points to sample.
start_index	is the first index to start with.
end_index	is the last index to end with.

Returns: the maximum sampled value.

Fiducials__points_maximum() will sweep from start_index to end_index through points. Using each selected point in points}, the corresponding value in image is sampled. The minimum of the sampled point is returned.

Definition at line 1386 of file Fiducials.cpp.

int Fiducials__points_minimum	(	Fiducials	fiducials,
		CV_Point2D32F_Vector	points,
		unsigned int	start_index,
		unsigned int	end_index
	)

Return the minimum value of the points in points.

Parameters

fiducials	is the Fiducials object that contains the image.
points	is the vector of points to sample.
start_index	is the first index to start with.
end_index	is the last index to end with.

Returns: the minimum sampled value.

Fiducials__points_minimum() will sweep from start_index to end_index through points. Using each selected point in points}, the corresponding value in image is sampled. The minimum of the sampled point is returned.

Definition at line 1418 of file Fiducials.cpp.

Fiducials_Results Fiducials__process ( Fiducials fiducials )

Process the current image associated with fiducials.

Parameters

fiducials is the Fiducials object to use.

Returns: a Fiducials_Results that contains information about how the processing worked.

Fiducials__process() will process fiducials to determine the robot location.

Definition at line 748 of file Fiducials.cpp.

CV_Point2D32F_Vector Fiducials__references_compute	(	Fiducials	fiducials,
		CV_Point2D32F_Vector	corners
	)

Return 8 sample locations to determine if a quadralateral is worth testing for quadralateral'ness.

Parameters

fiducials	is the Fiducals object that contains the image.
corners	is the 4 potential fiducial corners.

Returns: a vector 8 places to test for ficial'ness.

Fiducials__references_compute() 4 corner points in corners to compute 8 reference points that are returned. The first 4 reference points will be just outside of the quadrateral formed by corners (i.e. the white bounding box) and the last 4 reference points are on the inside (i.e. the black bounding box). The returned vector is perminately allocated in fiducials, so it does not need to have it storage released.

Definition at line 1295 of file Fiducials.cpp.

void Fiducials__sample_points_compute	(	CV_Point2D32F_Vector	corners,
		CV_Point2D32F_Vector	sample_points
	)

Compute the fiducial locations to sample using corners

Parameters

corners	is the the 4 of the fiducials.
sample_points	is the 64 vector of points that are computed.

Fiducials__sample_points_compute() will use the 4 corners in corners as a quadralateral to compute an 8 by 8 grid of tag bit sample points and store the results into the the 64 preallocated CV_Point2D32F objects in sample_points. The quadralateral must be convex and in the counter-clockwise direction. Bit 0 will be closest to corners[1], bit 7 will be closest to corners[0], bit 56 closest to corners[2] and bit 63 closest to corners[3].

Definition at line 1452 of file Fiducials.cpp.

Fiducials_Create Fiducials_Create__one_and_only ( void )

Returns the one and only Fiducials_Create object.

Returns: the one and only Fiducials_Create object.

Fiducials_Create__one_and_only() will return the one and only Fiducials_Create object. This object needs to be initalized prior to calling Fiduciasl__create().

Definition at line 1572 of file Fiducials.cpp.

Variable Documentation

struct Fiducials_Create__Struct fiducials_create_struct

static

Initial value:

=
{
    (String_Const)0,
    (void *)0,
    (Fiducials_Fiducial_Announce_Routine)0,
    (String_Const)0,
}

Definition at line 1557 of file Fiducials.cpp.
