RosMsgConverter.h File Reference

Provides helper functions for converting to and from ros messages. More...

#include <trajectory_msgs/JointTrajectory.h>
#include "r2_msgs/PoseTrajectory.h"
#include <sensor_msgs/JointState.h>
#include "r2_msgs/PoseState.h"
#include "r2_msgs/JointControlDataArray.h"
#include "r2_msgs/WrenchState.h"
#include "r2_msgs/JointCommand.h"
#include "r2_msgs/ToolFrame.h"
#include <kdl/jntarrayvel.hpp>
#include <kdl/frameacc.hpp>
#include <kdl/segment.hpp>
#include <kdl/jntarrayacc.hpp>

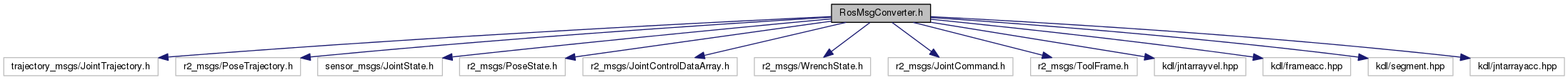

Include dependency graph for RosMsgConverter.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	RosMsgConverter::JointAcc
struct	RosMsgConverter::JointCommand
struct	RosMsgConverter::JointVel
struct	RosMsgConverter::ToolFrame
Namespaces
namespace	RosMsgConverter
Functions
void	RosMsgConverter::JointCommandToJointCommandMap (const r2_msgs::JointCommand &jointCommand, std::map< std::string, JointCommand > &jointCommandMap)
void	RosMsgConverter::JointControlDataToCoeffStateMap (const r2_msgs::JointControlDataArray &jointData, std::map< std::string, r2_msgs::JointControlCoeffState > &jointMap)
void	RosMsgConverter::JointStateToJntArray (const sensor_msgs::JointState &jointState, const std::vector< std::string > jointNames, KDL::JntArray &jointArray)
	JointStateToJntArray.
void	RosMsgConverter::JointStateToJntArrayAcc (const sensor_msgs::JointState &jointState, const std::vector< std::string > jointNames, KDL::JntArrayAcc &jointArray)
	Acc term contains effort ///.
void	RosMsgConverter::JointStateToJntArrayVel (const sensor_msgs::JointState &jointState, const std::vector< std::string > jointNames, KDL::JntArrayVel &jointArray)
	JointStateToJntArrayVel.
void	RosMsgConverter::JointStateToJntMap (const sensor_msgs::JointState &jointState, std::map< std::string, double > &jointMap)
	JointStateToJntMap creates a map of jointName and position.
void	RosMsgConverter::JointStateToJointAccMap (const sensor_msgs::JointState &jointState, std::map< std::string, JointAcc > &jointMap)
	JointStateEffortToJntMap ToJntMap creates a map of jointName and effort.
void	RosMsgConverter::JointStateToJointVelMap (const sensor_msgs::JointState &jointState, std::map< std::string, JointVel > &jointMap)
	JointStateVel ToJntMap creates a map of jointName and velocity.
void	RosMsgConverter::PoseStateToFrame (const r2_msgs::PoseState &poseState, const std::string &baseName, const std::string &tipName, KDL::Frame &frame)
	PoseStateToFrame.
void	RosMsgConverter::PoseStateToFrameAcc (const r2_msgs::PoseState &poseState, const std::string &baseName, const std::string &tipName, KDL::FrameAcc &frame)
	PoseStateToFrameAcc.
void	RosMsgConverter::PoseStateToFrameAccMap (const r2_msgs::PoseState &poseState, const std::string &base, std::map< std::string, KDL::FrameAcc > &frameaccs)
	updates a map of all the frames in poseState with their new location and orientations
void	RosMsgConverter::PoseStateToFrameMap (const r2_msgs::PoseState &poseState, const std::string &base, std::map< std::string, KDL::Frame > &frames)
	updates a map of all the frames in poseState with their new location and orientations
void	RosMsgConverter::PoseStateToFrameVel (const r2_msgs::PoseState &poseState, const std::string &baseName, const std::string &tipName, KDL::FrameVel &frame)
	PoseStateToFrameVel.
void	RosMsgConverter::PoseStateToFrameVelMap (const r2_msgs::PoseState &poseState, const std::string &base, std::map< std::string, KDL::FrameVel > &framevels)
	updates a map of all the frames in poseState with their new location and orientations
void	RosMsgConverter::ToolFrameToSegment (const r2_msgs::ToolFrame &toolFrame, std::vector< ToolFrame > &segmentList)
	creates a segment map from a toolFrame message
void	RosMsgConverter::ToolFrameToSegmentAdd (const r2_msgs::ToolFrame &toolFrame, std::vector< ToolFrame > &segmentList, std::vector< ToolFrame > &addSegmentList)
void	RosMsgConverter::ToolFrameToSegmentRemove (const r2_msgs::ToolFrame &toolFrame, std::vector< ToolFrame > &removeSegmentList)
KDL::Wrench	RosMsgConverter::wrenchMsgToWrench (const geometry_msgs::Wrench &wrenchMsg)
void	RosMsgConverter::WrenchStateToWrenchMap (const r2_msgs::WrenchState &wrenchState, std::map< std::string, KDL::Wrench > &wrenchMap)
geometry_msgs::Wrench	RosMsgConverter::wrenchToWrenchMsg (const KDL::Wrench &wrench)

---

Detailed Description

Provides helper functions for converting to and from ros messages.

Author:

Ross Taylor

Date:

Aug 31, 2012

Author:

Allison Thackston

Date:

July 13, 2013

Definition in file RosMsgConverter.h.
