OVR::Render::Node Class Reference

#include <Render_Device.h>

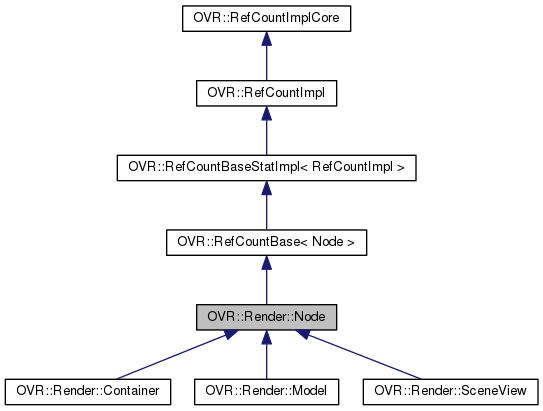

Inheritance diagram for OVR::Render::Node:

List of all members.

Public Types
enum	NodeType { Node_NonDisplay, Node_Container, Node_Model }
Public Member Functions
virtual void	ClearRenderer ()
const Matrix4f &	GetMatrix () const
const Quatf &	GetOrientation () const
const Vector3f &	GetPosition () const
virtual NodeType	GetType () const
void	Move (Vector3f p)
	Node ()
virtual void	Render (const Matrix4f &ltw, RenderDevice *ren)
void	Rotate (Quatf q)
void	SetMatrix (const Matrix4f &m)
void	SetOrientation (Quatf q)
void	SetPosition (Vector3f p)
virtual	~Node ()
Private Attributes
Matrix4f	Mat
bool	MatCurrent
Vector3f	Pos
Quatf	Rot

---

Detailed Description

Definition at line 339 of file Render_Device.h.

---

Member Enumeration Documentation

enum OVR::Render::Node::NodeType

Enumerator:

Node_NonDisplay
Node_Container
Node_Model

Definition at line 351 of file Render_Device.h.

---

Constructor & Destructor Documentation

OVR::Render::Node::Node

(

)

[inline]

Definition at line 348 of file Render_Device.h.

virtual OVR::Render::Node::~Node

(

)

[inline, virtual]

Definition at line 349 of file Render_Device.h.

---

Member Function Documentation

virtual void OVR::Render::Node::ClearRenderer

(

)

[inline, virtual]

Reimplemented in OVR::Render::Container, and OVR::Render::Model.

Definition at line 359 of file Render_Device.h.

const Matrix4f& OVR::Render::Node::GetMatrix

(

)

const [inline]

Definition at line 378 of file Render_Device.h.

const Quatf& OVR::Render::Node::GetOrientation

(

)

const [inline]

Definition at line 362 of file Render_Device.h.

const Vector3f& OVR::Render::Node::GetPosition

(

)

const [inline]

Definition at line 361 of file Render_Device.h.

virtual NodeType OVR::Render::Node::GetType

(

)

const [inline, virtual]

Reimplemented in OVR::Render::Container, and OVR::Render::Model.

Definition at line 357 of file Render_Device.h.

void OVR::Render::Node::Move

(

Vector3f

p

)

[inline]

Definition at line 366 of file Render_Device.h.

virtual void OVR::Render::Node::Render	(	const Matrix4f &	ltw,
		RenderDevice *	ren
	)		[inline, virtual]

Reimplemented in OVR::Render::Container, and OVR::Render::Model.

Definition at line 389 of file Render_Device.h.

void OVR::Render::Node::Rotate

(

Quatf

q

)

[inline]

Definition at line 367 of file Render_Device.h.

void OVR::Render::Node::SetMatrix

(

const Matrix4f &

m

)

[inline]

Definition at line 371 of file Render_Device.h.

void OVR::Render::Node::SetOrientation

(

Quatf

q

)

[inline]

Definition at line 364 of file Render_Device.h.

void OVR::Render::Node::SetPosition

(

Vector3f

p

)

[inline]

Definition at line 363 of file Render_Device.h.

---

Member Data Documentation

Matrix4f OVR::Render::Node::Mat [mutable, private]

Definition at line 344 of file Render_Device.h.

bool OVR::Render::Node::MatCurrent [mutable, private]

Definition at line 345 of file Render_Device.h.

Vector3f OVR::Render::Node::Pos [private]

Definition at line 341 of file Render_Device.h.

Quatf OVR::Render::Node::Rot [private]

Definition at line 342 of file Render_Device.h.

---

The documentation for this class was generated from the following file:

• Render_Device.h
