#include <Render_Device.h>

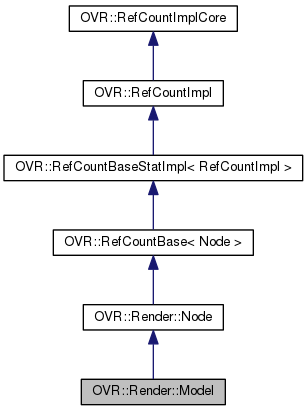

Inheritance diagram for OVR::Render::Model:

Public Member Functions
void	AddLine (UInt16 a, UInt16 b)
void	AddLine (const Vertex &a, const Vertex &b)
void	AddSolidColorBox (float x1, float y1, float z1, float x2, float y2, float z2, Color c)
void	AddTriangle (UInt16 a, UInt16 b, UInt16 c)
UInt16	AddVertex (const Vertex &v)
UInt16	AddVertex (const Vector3f &v, const Color &c, float u_=0, float v_=0)
UInt16	AddVertex (float x, float y, float z, const Color &c, float u, float v)
UInt16	AddVertex (float x, float y, float z, const Color &c, float u, float v, float nx, float ny, float nz)
UInt16	AddVertex (float x, float y, float z, const Color &c, float u1, float v1, float u2, float v2, float nx, float ny, float nz)
void	ClearRenderer ()
UInt16	GetNextVertexIndex () const
PrimitiveType	GetPrimType () const
virtual NodeType	GetType () const
bool	IsVisible () const
	Model (PrimitiveType t=Prim_Triangles)
virtual void	Render (const Matrix4f &ltw, RenderDevice *ren)
void	SetVisible (bool visible)
	~Model ()
Static Public Member Functions
static Model *	CreateAxisFaceColorBox (float x1, float x2, Color xcolor, float y1, float y2, Color ycolor, float z1, float z2, Color zcolor)
static Model *	CreateBox (Color c, Vector3f origin, Vector3f size)
static Model *	CreateCone (Color c, Vector3f origin, float height, float radius, int sides=20)
static Model *	CreateCylinder (Color c, Vector3f origin, float height, float radius, int sides=20)
static Model *	CreateGrid (Vector3f origin, Vector3f stepx, Vector3f stepy, int halfx, int halfy, int nmajor=5, Color minor=Color(64, 64, 64, 192), Color major=Color(128, 128, 128, 192))
static Model *	CreateSphere (Color c, Vector3f origin, float radius, int sides=20)
Public Attributes
Ptr< class Fill >	Fill
Ptr< Buffer >	IndexBuffer
Array< UInt16 >	Indices
bool	IsCollisionModel
PrimitiveType	Type
Ptr< Buffer >	VertexBuffer
Array< Vertex >	Vertices
bool	Visible

Detailed Description

Definition at line 434 of file Render_Device.h.

Constructor & Destructor Documentation

OVR::Render::Model::Model ( PrimitiveType t = Prim_Triangles ) [inline]

Definition at line 449 of file Render_Device.h.

OVR::Render::Model::~Model ( ) [inline]

Definition at line 450 of file Render_Device.h.

Member Function Documentation

void OVR::Render::Model::AddLine	(	UInt16	a,
		UInt16	b
	)		`[inline]`

Definition at line 489 of file Render_Device.h.

void OVR::Render::Model::AddLine	(	const Vertex &	a,
		const Vertex &	b
	)		`[inline]`

Definition at line 507 of file Render_Device.h.

void OVR::Render::Model::AddSolidColorBox	(	float	x1,
		float	y1,
		float	z1,
		float	x2,
		float	y2,
		float	z2,
		Color	c
	)

Definition at line 176 of file Render_Device.cpp.

void OVR::Render::Model::AddTriangle	(	UInt16	a,
		UInt16	b,
		UInt16	c
	)		`[inline]`

Definition at line 512 of file Render_Device.h.

UInt16 OVR::Render::Model::AddVertex ( const Vertex & v ) [inline]

Definition at line 473 of file Render_Device.h.

UInt16 OVR::Render::Model::AddVertex	(	const Vector3f &	v,
		const Color &	c,
		float	u_ = `0`,
		float	v_ = `0`
	)		`[inline]`

Definition at line 480 of file Render_Device.h.

UInt16 OVR::Render::Model::AddVertex	(	float	x,
		float	y,
		float	z,
		const Color &	c,
		float	u,
		float	v
	)		`[inline]`

Definition at line 484 of file Render_Device.h.

UInt16 OVR::Render::Model::AddVertex	(	float	x,
		float	y,
		float	z,
		const Color &	c,
		float	u,
		float	v,
		float	nx,
		float	ny,
		float	nz
	)		`[inline]`

Definition at line 495 of file Render_Device.h.

UInt16 OVR::Render::Model::AddVertex	(	float	x,
		float	y,
		float	z,
		const Color &	c,
		float	u1,
		float	v1,
		float	u2,
		float	v2,
		float	nx,
		float	ny,
		float	nz
	)		`[inline]`

Definition at line 501 of file Render_Device.h.

void OVR::Render::Model::ClearRenderer ( ) [inline, virtual]

Reimplemented from OVR::Render::Node.

Definition at line 461 of file Render_Device.h.

Model * OVR::Render::Model::CreateAxisFaceColorBox	(	float	x1,
		float	x2,
		Color	xcolor,
		float	y1,
		float	y2,
		Color	ycolor,
		float	z1,
		float	z2,
		Color	zcolor
	)		`[static]`

Definition at line 98 of file Render_Device.cpp.

Model * OVR::Render::Model::CreateBox	(	Color	c,
		Vector3f	origin,
		Vector3f	size
	)		`[static]`

Definition at line 260 of file Render_Device.cpp.

Model * OVR::Render::Model::CreateCone	(	Color	c,
		Vector3f	origin,
		float	height,
		float	radius,
		int	sides = `20`
	)		`[static]`

Definition at line 345 of file Render_Device.cpp.

Model * OVR::Render::Model::CreateCylinder	(	Color	c,
		Vector3f	origin,
		float	height,
		float	radius,
		int	sides = `20`
	)		`[static]`

Definition at line 312 of file Render_Device.cpp.

Model * OVR::Render::Model::CreateGrid	(	Vector3f	origin,
		Vector3f	stepx,
		Vector3f	stepy,
		int	halfx,
		int	halfy,
		int	nmajor = `5`,
		Color	minor = `Color(64,64,64,192)`,
		Color	major = `Color(128,128,128,192)`
	)		`[static]`
