DJI_Version.h File Reference

Drone/SDK Version definition for DJI onboardSDK library Officially Maintained. More...

#include <stdint.h>

Include dependency graph for DJI_Version.h:

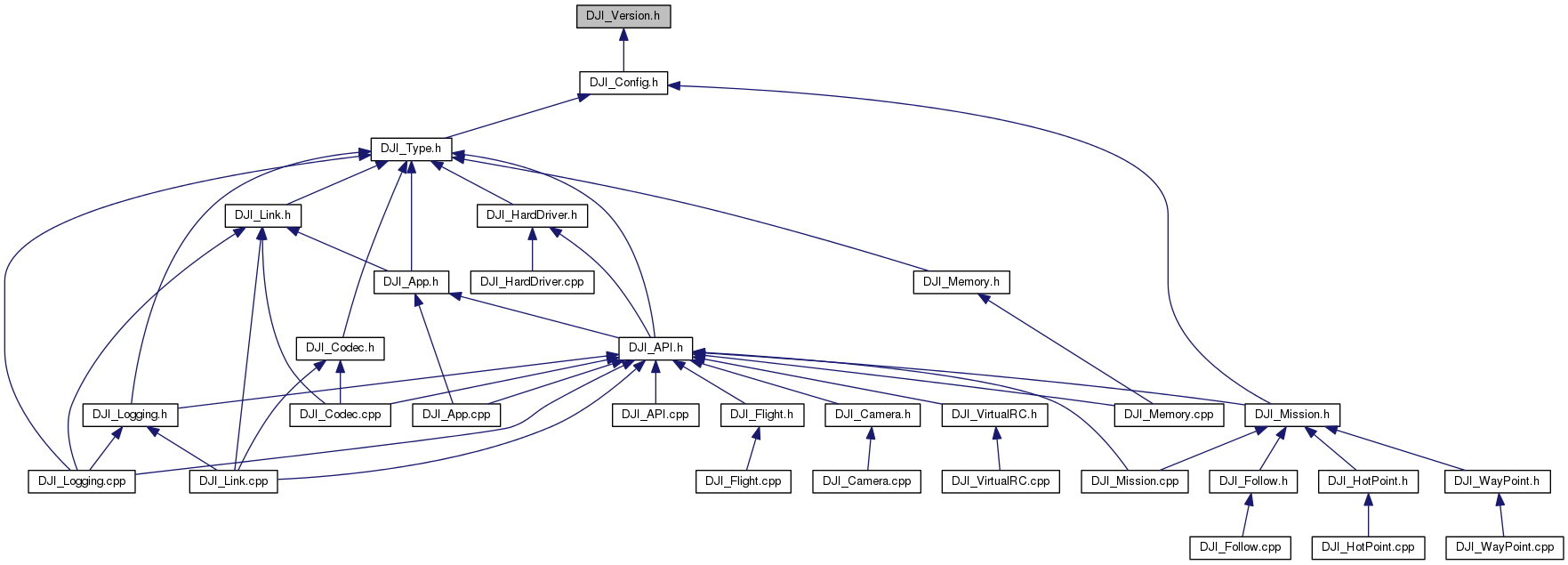

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	DJI
namespace	DJI::onboardSDK
Defines
#define	MAKE_VERSION(a, b, c, d)
Typedefs
typedef uint32_t	DJI::onboardSDK::Version
	Different version strings define SDK/Drone combination. Only the ones listed below are available.
Variables
const Version	DJI::onboardSDK::versionA3_31 = (MAKE_VERSION(3, 1, 100, 0))
const Version	DJI::onboardSDK::versionA3_32 = (MAKE_VERSION(3, 2, 0, 0))
const Version	DJI::onboardSDK::versionM100_23 = (MAKE_VERSION(2, 3, 10, 0))
const Version	DJI::onboardSDK::versionM100_31 = (MAKE_VERSION(3, 1, 10, 0))

---

Detailed Description

Drone/SDK Version definition for DJI onboardSDK library Officially Maintained.

Version:

3.1.7

Date:

Jul 01 2016

Copyright:

Copyright 2016 DJI. All rights reserved.

Definition in file DJI_Version.h.

---

Define Documentation

#define MAKE_VERSION	(		a,
			b,
			c,
			d
	)

Value:

(((a << 24) & 0xff000000) | ((b << 16) & 0x00ff0000) | ((c << 8) & 0x0000ff00) |  \
  (d & 0x000000ff))

Attention:

Do not modify any definition in this file if you are not sure what are you doing. DJI will not provide any support for changes made to this file.

Definition at line 24 of file DJI_Version.h.
