Common API file. More...

#include <wchar.h>
#include <time.h>

Include dependency graph for dn_common.h:

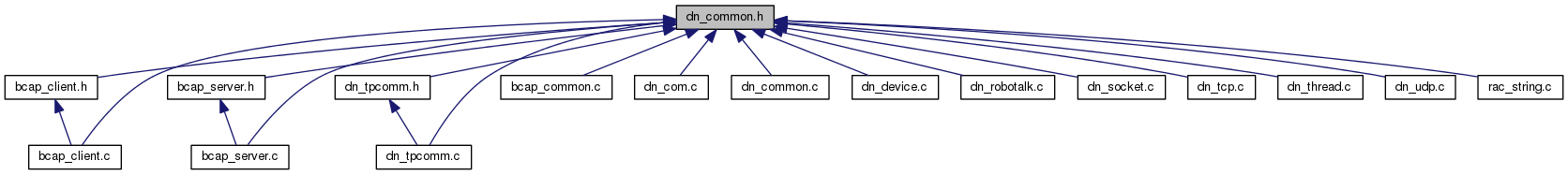

This graph shows which files directly or indirectly include this file:

Classes
struct	SAFEARRAY
	A type definition for the array. More...
struct	SAFEARRAYBOUND
	A type definition for the bound of SAFEARRAY. More...
union	tagCY
	A type definition for the signed 64bit integer. More...
struct	VARIANT
	A type definition for the multi type variable. More...
Defines
#define	_HRESULT_TYPEDEF_(_sc) ((HRESULT)_sc)
	A macro that defines a new HRESULT.
#define	DISP_E_BADINDEX _HRESULT_TYPEDEF_(0x8002000BL)
	Failed because the index is invalid.
#define	DISP_E_BADVARTYPE _HRESULT_TYPEDEF_(0x80020008L)
	Failed because bad variable type.
#define	DISP_E_OVERFLOW _HRESULT_TYPEDEF_(0x8002000AL)
	Failed because out of range.
#define	DISP_E_TYPEMISMATCH _HRESULT_TYPEDEF_(0x80020005L)
	Failed because the type mismatch.
#define	E_ACCESSDENIED _HRESULT_TYPEDEF_(0x80070005L)
	Failed because the resource is not ready.
#define	E_ALREADY_REGISTER _HRESULT_TYPEDEF_(0x80000906L)
	Failed because the packet is too much.
#define	E_FAIL _HRESULT_TYPEDEF_(0x80004005L)
	Failed because unspecified error occurs.
#define	E_HANDLE _HRESULT_TYPEDEF_(0x80070006L)
	Failed because the handle is invalid.
#define	E_INVALIDARG _HRESULT_TYPEDEF_(0x80070057L)
	Failed because some arguments are invalid.
#define	E_MAX_CONNECT _HRESULT_TYPEDEF_(0x8000090BL)
	Failed because the number of connection is too much.
#define	E_MAX_OBJECT _HRESULT_TYPEDEF_(0x80000905L)
	Failed because the packet is too much.
#define	E_NOT_CONNECTED _HRESULT_TYPEDEF_(0x80000902L)
	Failed because the connection is not established.
#define	E_NOTIMPL _HRESULT_TYPEDEF_(0x80004001L)
	Failed because the function is not implemented.
#define	E_OUTOFMEMORY _HRESULT_TYPEDEF_(0x8007000EL)
	Failed because there is no enough memory space.
#define	E_TIMEOUT _HRESULT_TYPEDEF_(0x80000900L)
	Failed because the communication timed out.
#define	E_TOO_MUCH_DATA _HRESULT_TYPEDEF_(0x80000909L)
	Failed because the packet is too much.
#define	E_UNEXPECTED _HRESULT_TYPEDEF_(0x8000FFFFL)
	Failed because unexpected error happens.
#define	FAILED(hr) ((HRESULT)hr < 0)
	A macro that returns TRUE/FALSE. If hr is less than zero, then returns TRUE.
#define	FORMAT_DATE2BSTR "%Y/%m/%d %H:%M:%S"
	A definition for the format string converting DATE to BSTR.
#define	OSERR2HRESULT(err) (((err) & 0x0000FFFF) \| 0x80910000)
	A macro that returns HREUSLT(0x8091) which means OS error.
#define	S_FALSE ((HRESULT)1L)
	Succeeded but some processes may remain.
#define	S_OK ((HRESULT)0L)
	Succeeded.
#define	SUCCEEDED(hr) ((HRESULT)hr >= 0)
	A macro that returns TRUE/FALSE. If hr is zero or more, then returns TRUE.
#define	VARIANT_FALSE ((VARIANT_BOOL) 0)
	FALSE for VARIANT.
#define	VARIANT_TRUE ((VARIANT_BOOL)-1)
	TRUE for VARIANT.
Typedefs
typedef wchar_t *	BSTR
typedef union tagCY	CY
typedef time_t	DATE
typedef struct SAFEARRAY	SAFEARRAY
typedef struct SAFEARRAYBOUND	SAFEARRAYBOUND
typedef struct VARIANT	VARIANT
typedef int16_t	VARIANT_BOOL
Enumerations
enum	VARENUM { VT_EMPTY = 0, VT_NULL = 1, VT_I2 = 2, VT_I4 = 3, VT_R4 = 4, VT_R8 = 5, VT_CY = 6, VT_DATE = 7, VT_BSTR = 8, VT_ERROR = 10, VT_BOOL = 11, VT_VARIANT = 12, VT_UI1 = 17, VT_UI2 = 18, VT_UI4 = 19, VT_I8 = 20, VT_UI8 = 21, VT_ARRAY = 0x2000 }
	Variant type. More...
Functions
_DN_EXP_COMMON uint32_t	ChangeVarType (VARIANT varSrc, uint16_t vt, void *pDest, uint32_t dwSize)
	Changes the variant to destination value with the indicated type.
_DN_EXP_COMMON wchar_t *	ConvertMultiByte2WideChar (const char *chSrc)
	Converts string to wide string.
_DN_EXP_COMMON char *	ConvertWideChar2MultiByte (const wchar_t *chSrc)
	Converts wide string to string.
_DN_EXP_COMMON HRESULT	GetOptionValue (BSTR bstrSrc, BSTR bstrKey, uint16_t vt, VARIANT *pvarDest)
	Searchs the key string from source string and sets the value to the destination variant with the indicated type.
_DN_EXP_COMMON HRESULT	SafeArrayAccessData (SAFEARRAY psa, void *ppvData)
	Accesses the SAFEARRAY and gets the pointer of array data.
_DN_EXP_COMMON SAFEARRAY *	SafeArrayCreateVector (uint16_t vt, int32_t lLbound, uint32_t cElements)
	Allocates and returns SAFEARRAY.
_DN_EXP_COMMON HRESULT	SafeArrayDestroy (SAFEARRAY *psa)
	Releases the memory of SAFEARRAY.
_DN_EXP_COMMON uint16_t	SafeArrayGetDim (SAFEARRAY *psa)
	Gets and returns the dimension of SAFEARRAY.
_DN_EXP_COMMON uint32_t	SafeArrayGetElemsize (SAFEARRAY *psa)
	Gets and returns the size of an element.
_DN_EXP_COMMON HRESULT	SafeArrayGetLBound (SAFEARRAY psa, uint16_t nDim, int32_t plLbound)
	Gets the lower bound of SAFEARRAY.
_DN_EXP_COMMON HRESULT	SafeArrayGetUBound (SAFEARRAY psa, uint16_t nDim, int32_t plUbound)
	Gets the upper bound of SAFEARRAY.
_DN_EXP_COMMON HRESULT	SafeArrayGetVartype (SAFEARRAY psa, uint16_t pvt)
	Gets the variant type of SAFEARRAY.
_DN_EXP_COMMON HRESULT	SafeArrayUnaccessData (SAFEARRAY *psa)
	Unaccesses the SAFEARRAY.
_DN_EXP_COMMON BSTR	SysAllocString (const wchar_t *sz)
	Allocates and returns BSTR.
_DN_EXP_COMMON BSTR	SysAllocStringLen (const wchar_t *pch, uint16_t cch)
	Allocates and returns BSTR.
_DN_EXP_COMMON void	SysFreeString (BSTR bstr)
	Releases the memory of BSTR.
_DN_EXP_COMMON uint16_t	SysStringLen (BSTR bstr)
	Gets and returns the number of characters of BSTR.
_DN_EXP_COMMON HRESULT	VariantChangeType (VARIANT pvargDest, VARIANT pvarSrc, uint16_t wFlags, uint16_t vt)
	Changes the source variant to destination variant with the indicated type.
_DN_EXP_COMMON void	VariantClear (VARIANT *pvarg)
	Clears the VARIANT.
_DN_EXP_COMMON HRESULT	VariantCopy (VARIANT pvargDest, const VARIANT pvargSrc)
	Copies the source variant to destination variant.
_DN_EXP_COMMON void	VariantInit (VARIANT *pvarg)
	Initializes the VARIANT.

Detailed Description

Common API file.

Defines some types, macros and functions to be compatible with Windows.

Version:: 1.2

Date:: 2014/11/06; 2015/01/20 Adds VariantCopy, VariantChangeType, ChangeVarType, and GetOptionValue functions.; 2016/09/15 Adds ConvertMultiByte2WideChar and ConvertWideChar2MultiByte functions.; 2017/01/18 Adds VT_I8 and VT_UI8.

Author:: DENSO WAVE

Software License Agreement (MIT License)

Copyright:: Copyright (c) 2015 DENSO WAVE INCORPORATED

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Definition in file dn_common.h.

Define Documentation

#define _HRESULT_TYPEDEF_ ( _sc ) ((HRESULT)_sc)

A macro that defines a new HRESULT.

Definition at line 83 of file dn_common.h.

#define DISP_E_BADINDEX _HRESULT_TYPEDEF_(0x8002000BL)

Failed because the index is invalid.

Definition at line 161 of file dn_common.h.

#define DISP_E_BADVARTYPE _HRESULT_TYPEDEF_(0x80020008L)

Failed because bad variable type.

Definition at line 149 of file dn_common.h.

#define DISP_E_OVERFLOW _HRESULT_TYPEDEF_(0x8002000AL)

Failed because out of range.

Definition at line 155 of file dn_common.h.

#define DISP_E_TYPEMISMATCH _HRESULT_TYPEDEF_(0x80020005L)

Failed because the type mismatch.

Definition at line 143 of file dn_common.h.

#define E_ACCESSDENIED _HRESULT_TYPEDEF_(0x80070005L)

Failed because the resource is not ready.

Definition at line 113 of file dn_common.h.

#define E_ALREADY_REGISTER _HRESULT_TYPEDEF_(0x80000906L)

Failed because the packet is too much.

Definition at line 187 of file dn_common.h.

#define E_FAIL _HRESULT_TYPEDEF_(0x80004005L)

Failed because unspecified error occurs.

Definition at line 107 of file dn_common.h.

#define E_HANDLE _HRESULT_TYPEDEF_(0x80070006L)

Failed because the handle is invalid.

Definition at line 119 of file dn_common.h.

#define E_INVALIDARG _HRESULT_TYPEDEF_(0x80070057L)

Failed because some arguments are invalid.

Definition at line 131 of file dn_common.h.

#define E_MAX_CONNECT _HRESULT_TYPEDEF_(0x8000090BL)

Failed because the number of connection is too much.

Definition at line 199 of file dn_common.h.

#define E_MAX_OBJECT _HRESULT_TYPEDEF_(0x80000905L)

Failed because the packet is too much.

Definition at line 181 of file dn_common.h.

#define E_NOT_CONNECTED _HRESULT_TYPEDEF_(0x80000902L)

Failed because the connection is not established.

Definition at line 175 of file dn_common.h.

#define E_NOTIMPL _HRESULT_TYPEDEF_(0x80004001L)

Failed because the function is not implemented.

Definition at line 101 of file dn_common.h.

#define E_OUTOFMEMORY _HRESULT_TYPEDEF_(0x8007000EL)

Failed because there is no enough memory space.

Definition at line 125 of file dn_common.h.

#define E_TIMEOUT _HRESULT_TYPEDEF_(0x80000900L)

Failed because the communication timed out.

Definition at line 169 of file dn_common.h.

#define E_TOO_MUCH_DATA _HRESULT_TYPEDEF_(0x80000909L)

Failed because the packet is too much.

Definition at line 193 of file dn_common.h.

#define E_UNEXPECTED _HRESULT_TYPEDEF_(0x8000FFFFL)

Failed because unexpected error happens.

Definition at line 137 of file dn_common.h.

#define FAILED ( hr ) ((HRESULT)hr < 0)

A macro that returns TRUE/FALSE. If hr is less than zero, then returns TRUE.

Definition at line 77 of file dn_common.h.

#define FORMAT_DATE2BSTR "%Y/%m/%d %H:%M:%S"

A definition for the format string converting DATE to BSTR.

Note:: You can change this parameter.

Definition at line 56 of file dn_common.h.

#define OSERR2HRESULT ( err ) (((err) & 0x0000FFFF) | 0x80910000)

A macro that returns HREUSLT(0x8091) which means OS error.

Definition at line 205 of file dn_common.h.

#define S_FALSE ((HRESULT)1L)

Succeeded but some processes may remain.

Definition at line 95 of file dn_common.h.

#define S_OK ((HRESULT)0L)

Succeeded.

Definition at line 89 of file dn_common.h.

#define SUCCEEDED ( hr ) ((HRESULT)hr >= 0)

A macro that returns TRUE/FALSE. If hr is zero or more, then returns TRUE.

Definition at line 71 of file dn_common.h.

#define VARIANT_FALSE ((VARIANT_BOOL) 0)

FALSE for VARIANT.

Definition at line 273 of file dn_common.h.

#define VARIANT_TRUE ((VARIANT_BOOL)-1)

TRUE for VARIANT.

Definition at line 267 of file dn_common.h.

Typedef Documentation

typedef wchar_t* BSTR

Definition at line 239 of file dn_common.h.

typedef union tagCY CY

typedef time_t DATE

Definition at line 259 of file dn_common.h.

typedef struct SAFEARRAY SAFEARRAY

typedef struct SAFEARRAYBOUND SAFEARRAYBOUND

typedef struct VARIANT VARIANT

typedef int16_t VARIANT_BOOL

Definition at line 261 of file dn_common.h.

Enumeration Type Documentation

enum VARENUM

Variant type.

Enumerator:

VT_EMPTY	No argument
VT_NULL	No argument
VT_I2	int16_t
VT_I4	int32_t
VT_R4	float
VT_R8	double
VT_CY	CY
VT_DATE	DATE
VT_BSTR	BSTR
VT_ERROR	ERROR
VT_BOOL	VARIANT_BOOL
VT_VARIANT	VARIANT
VT_UI1	uint8_t
VT_UI2	uint16_t
VT_UI4	uint32_t
VT_I8	int64_t
VT_UI8	uint64_t
VT_ARRAY	SAFEARRAY

Definition at line 213 of file dn_common.h.

Function Documentation

uint32_t ChangeVarType	(	VARIANT	varSrc,
		uint16_t	vt,
		void *	pDest,
		uint32_t	dwSize
	)

Changes the variant to destination value with the indicated type.

Parameters:

[in]	varSrc	The source variant.
[in]	vt	The variant type.
[out]	pDest	The pointer of the destination value.
[in]	dwSize	The maximum number of changed values.

wchar_t * ConvertMultiByte2WideChar ( const char * chSrc )

Converts string to wide string.

Parameters:

[in] chSrc The source string.

char * ConvertWideChar2MultiByte ( const wchar_t * chSrc )

Converts wide string to string.

Parameters:

[in] chSrc The source string.

HRESULT GetOptionValue	(	BSTR	bstrSrc,
		BSTR	bstrKey,
		uint16_t	vt,
		VARIANT *	pvarDest
	)

Searchs the key string from source string and sets the value to the destination variant with the indicated type.

Parameters:

[in]	bstrSrc	The source string.
[in]	bstrKey	The key string.
[in]	vt	The variant type.
[out]	pvarDest	The destination variant.

HRESULT SafeArrayAccessData	(	SAFEARRAY *	psa,
		void **	ppvData
	)

Accesses the SAFEARRAY and gets the pointer of array data.

Parameters:

[in]	psa	SAFEARRAY to be accessed.
[out]	ppvData	The gotten pointer.

Note:: This function must be called before accessing SAFEARRAY data.

Definition at line 336 of file dn_common.c.

SAFEARRAY * SafeArrayCreateVector	(	uint16_t	vt,
		int32_t	lLbound,
		uint32_t	cElements
	)

Allocates and returns SAFEARRAY.

Parameters:

[in]	vt	Variant type.
[in]	lLbound	The lower bound of array. This should be 0.
[in]	cElements	The number of elements.

Note:: If there is no enough memory space, then return NULL.

Definition at line 138 of file dn_common.c.

HRESULT SafeArrayDestroy ( SAFEARRAY * psa )

Releases the memory of SAFEARRAY.

Parameters:

[in,out] psa SAFEARRAY to be freed.

Definition at line 212 of file dn_common.c.

uint16_t SafeArrayGetDim ( SAFEARRAY * psa )

Gets and returns the dimension of SAFEARRAY.

Parameters:

[in] psa SAFEARRAY to be gotten.

Definition at line 248 of file dn_common.c.

uint32_t SafeArrayGetElemsize ( SAFEARRAY * psa )

Gets and returns the size of an element.

Parameters:

[in] psa SAFEARRAY to be gotten.

Definition at line 262 of file dn_common.c.

HRESULT SafeArrayGetLBound	(	SAFEARRAY *	psa,
		uint16_t	nDim,
		int32_t *	plLbound
	)

Gets the lower bound of SAFEARRAY.

Parameters:

[in]	psa	SAFEARRAY to be gotten.
[in]	nDim	The target dimension.
[out]	plLbound	The gotten lower bound.

Definition at line 278 of file dn_common.c.

HRESULT SafeArrayGetUBound	(	SAFEARRAY *	psa,
		uint16_t	nDim,
		int32_t *	plUbound
	)

Gets the upper bound of SAFEARRAY.

Parameters:

[in]	psa	SAFEARRAY to be gotten.
[in]	nDim	The target dimension.
[out]	plUbound	The gotten upper bound.

Definition at line 298 of file dn_common.c.

HRESULT SafeArrayGetVartype	(	SAFEARRAY *	psa,
		uint16_t *	pvt
	)

Gets the variant type of SAFEARRAY.

Parameters:

[in]	psa	SAFEARRAY to be gotten.
[out]	pvt	The gotten variant type.

Definition at line 318 of file dn_common.c.

HRESULT SafeArrayUnaccessData ( SAFEARRAY * psa )

Unaccesses the SAFEARRAY.

Parameters:

[in] psa SAFEARRAY to be unaccessed.

Note:: This function must be called after accessing SAFEARRAY data.

Definition at line 353 of file dn_common.c.

BSTR SysAllocString ( const wchar_t * sz )

Allocates and returns BSTR.

Parameters:

[in] sz Unicode string to be copied. This must be NULL terminated.

Note:: If there is no enough memory space, then return NULL.

Definition at line 61 of file dn_common.c.

BSTR SysAllocStringLen	(	const wchar_t *	pch,
		uint16_t	cch
	)

Allocates and returns BSTR.

Parameters:

[in]	pch	Unicode string to be copied. This must be NULL terminated.
[in]	cch	The number of characters to be copied.

Note:: If there is no enough memory space, then return NULL.

Definition at line 77 of file dn_common.c.

void SysFreeString ( BSTR bstr )

Releases the memory of BSTR.

Parameters:

[in,out] bstr Unicode string to be freed.

Definition at line 104 of file dn_common.c.

uint16 SysStringLen ( BSTR bstr )

Gets and returns the number of characters of BSTR.

Parameters:

[in] bstr Unicode string to be gotten. This must be NULL terminated.

Definition at line 118 of file dn_common.c.

HRESULT VariantChangeType	(	VARIANT *	pvargDest,
		VARIANT *	pvarSrc,
		uint16_t	wFlags,
		uint16_t	vt
	)

Changes the source variant to destination variant with the indicated type.

Parameters:

[out]	pvargDest	The destination variant to be changed.
[in]	pvarSrc	The source variant.
[in]	wFlags	Flags.
[in]	vt	The variant type.

Note:: This function is not sufficiently compatible with Windows.

void VariantClear ( VARIANT * pvarg )

Clears the VARIANT.

Parameters:

[in,out] pvarg VARIANT to be cleared.

Note:: This function must be called before destructing VARIANT.

Definition at line 382 of file dn_common.c.

HRESULT VariantCopy	(	VARIANT *	pvargDest,
		const VARIANT *	pvargSrc
	)

Copies the source variant to destination variant.

Parameters:

[out]	pvargDest	The destination variant to be changed.
[in]	pvarSrc	The source variant.

void VariantInit ( VARIANT * pvarg )

Initializes the VARIANT.

Parameters:

[in,out] pvarg VARIANT to be initialized.

Note:: This function must be called before accessing VARIANT.

Definition at line 368 of file dn_common.c.

Classes

Defines

Typedefs

Enumerations

Functions

Detailed Description

Define Documentation

Typedef Documentation

Enumeration Type Documentation

Function Documentation
