User own API file. More...

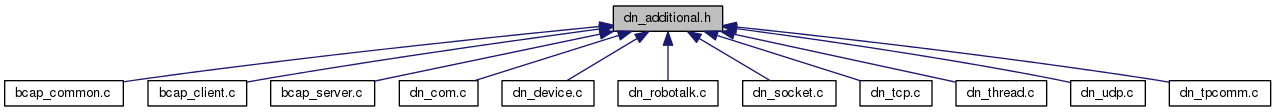

This graph shows which files directly or indirectly include this file:

Classes
struct	fd_set
struct	in_addr
struct	sockaddr
struct	sockaddr_in
struct	timeval
Defines
#define	_E_BUSY_PROC (-1)
#define	AF_INET (2) /* internetwork: UDP, TCP, etc. */
#define	begin_thread(p_thread, function, arg)
	A macro that begins thread.
#define	COM_BITS_CTS (0)
	A definition for CTS flag.
#define	dn_sleep(n)
	A macro that sleeps.
#define	DNGetLastError() (-1)
	A macro that gets last OS error.
#define	exit_thread(thread)
	A macro that ends thread.
#define	F_GETFL (3) /* Get file status flags. */
#define	F_SETFL (4) /* Set file status flags. */
#define	FD_SET(fd, fdsetp)
#define	FD_SETSIZE (64)
#define	FD_ZERO(fdsetp)
#define	INADDR_ANY ((uint32_t)0x00000000)
#define	INADDR_NONE (0xffffffff)
#define	IPPROTO_TCP (6) /* tcp */
#define	MSG_PEEK (0x02)
#define	O_NONBLOCK (04000)
#define	OSFAILED(ret) ((ret) == -1)
	A macro that returns TRUE/FALSE. If ret is OS failed, then returns TRUE.
#define	OSSUCCEEDED(ret) ((ret) == 0)
	A macro that returns TRUE/FALSE. If ret is OS succeeded, then returns TRUE.
#define	s_addr S_un.S_addr /* can be used for most tcp & ip code */
#define	s_host S_un.S_un_b.s_b2
#define	s_imp S_un.S_un_w.s_w2
#define	s_impno S_un.S_un_b.s_b4
#define	s_lh S_un.S_un_b.s_b3
#define	s_net S_un.S_un_b.s_b1
#define	SO_KEEPALIVE (0x0008) /* keep connections alive */
#define	SO_RCVTIMEO (0x1006) /* receive timeout */
#define	SO_REUSEADDR (0x0004) /* allow local address reuse */
#define	SO_SNDTIMEO (0x1005) /* send timeout */
#define	SOCK_DGRAM (2) /* datagram socket */
#define	SOCK_STREAM (1) /* stream socket */
#define	SOCKET uint16_t
#define	SOL_SOCKET (0xffff) /* options for socket level */
#define	STATUS_WAIT_0 ((uint32_t)0x00000000L)
#define	TCP_NODELAY (0x0001)
#define	THRET void
#define	THTYPE
#define	WAIT_OBJECT_0 ((STATUS_WAIT_0) + 0)
Typedefs
typedef int	COM_STATE
typedef int	EVENT
typedef struct fd_set	fd_set
typedef struct in_addr	IN_ADDR
typedef struct in_addr *	LPIN_ADDR
typedef int	MUTEX
typedef struct in_addr *	PIN_ADDR
typedef int	socklen_t
typedef int	THREAD
Functions
static int32_t	_com_clear (int sock, uint32_t timeout)
static int	_com_close (int sock)
static int	_com_get_modem_state (int sock, uint32_t *state)
static int	_com_get_state (int sock, COM_STATE *state)
static int32_t	_com_open (const void com_param, int sock)
static int	_com_recv (int sock, char buf, uint32_t len_recv, uint32_t len_recved, uint32_t timeout, void *arg)
static int	_com_send (int sock, const char buf, uint32_t len_send, uint32_t len_sended, void *arg)
static int	_com_set_state (int sock, COM_STATE *state)
static int32_t	_com_set_timeout (int sock, uint32_t timeout)
static int32_t	_create_event (EVENT *pevt, int reset_mode, int init_signal)
static int32_t	_destroy_event (EVENT *pevt)
static uint32_t	_gettimeofday_msec ()
static int32_t	_initialize_mutex (MUTEX *pmutex)
static int32_t	_lock_mutex (MUTEX *pmutex, uint32_t timeout)
static int32_t	_release_mutex (MUTEX *pmutex)
static int32_t	_reset_event (EVENT *pevt)
static int32_t	_set_event (EVENT *pevt)
static int32_t	_socket_bind (const void param, int sock)
static int	_socket_close (int sock)
static int32_t	_tcp_set_keepalive (int sock, int enable, uint32_t idle, uint32_t interval, uint32_t count)
static int32_t	_unlock_mutex (MUTEX *pmutex)
static int32_t	_wait_event (EVENT *pevt, uint32_t timeout)
static int32_t	_wait_event_multi (EVENT **pevt, uint32_t count, uint32_t timeout, int wait_all)
static SOCKET	accept (SOCKET s, struct sockaddr addr, int addrlen)
static int	bind (SOCKET s, const struct sockaddr *name, int namelen)
static int	connect (SOCKET s, const struct sockaddr *name, int namelen)
static uint32_t	htonl (uint32_t hostlong)
static uint16_t	htons (uint16_t hostshort)
static uint32_t	inet_addr (const char *addr)
static int	listen (SOCKET s, int backlog)
static int	recv (SOCKET s, char *buf, int len, int flags)
static int	recvfrom (SOCKET s, char buf, int len, int flags, struct sockaddr from, int *fromlen)
static int	select (int __nfds, fd_set __restrict __readfds, fd_set __restrict __writefds, fd_set __restrict __exceptfds, struct timeval __restrict __timeout)
static int	send (SOCKET s, const char *buf, int len, int flags)
static int	sendto (SOCKET s, const char buf, int len, int flags, const struct sockaddr to, int tolen)
static int	setsockopt (SOCKET s, int level, int optname, const char *optval, int optlen)
static int	socket (int af, int type, int protocol)

Detailed Description

User own API file.

You can define some additional APIs.

Version:: 1.0

Date:: 2014/11/06

Author:: DENSO WAVE

Software License Agreement (MIT License)

Copyright:: Copyright (c) 2015 DENSO WAVE INCORPORATED

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Definition in file dn_additional.h.

Define Documentation

#define _E_BUSY_PROC (-1)

Definition at line 64 of file dn_additional.h.

#define AF_INET (2) /* internetwork: UDP, TCP, etc. */

Definition at line 66 of file dn_additional.h.

#define begin_thread	(	p_thread,
		function,
		arg
	)

A macro that begins thread.

Parameters:

[in]	p_thread	The pointer of thread handle: THREAD.
[in]	function	The thread function.
[in]	arg	The argument of thread function.

#define COM_BITS_CTS (0)

A definition for CTS flag.

#define dn_sleep ( n )

A macro that sleeps.

Parameters:

[in] n The sleep time[ms].

#define DNGetLastError ( ) (-1)

A macro that gets last OS error.

#define exit_thread ( thread )

A macro that ends thread.

Parameters:

[in] thread The thread handle: THREAD.

#define F_GETFL (3) /* Get file status flags. */

Definition at line 81 of file dn_additional.h.

#define F_SETFL (4) /* Set file status flags. */

Definition at line 82 of file dn_additional.h.

#define FD_SET	(	fd,
		fdsetp
	)

Definition at line 51 of file dn_additional.h.

#define FD_SETSIZE (64)

Definition at line 42 of file dn_additional.h.

#define FD_ZERO ( fdsetp )

Definition at line 52 of file dn_additional.h.

#define INADDR_ANY ((uint32_t)0x00000000)

Definition at line 36 of file dn_additional.h.

#define INADDR_NONE (0xffffffff)

Definition at line 37 of file dn_additional.h.

#define IPPROTO_TCP (6) /* tcp */

Definition at line 76 of file dn_additional.h.

#define MSG_PEEK (0x02)

Definition at line 79 of file dn_additional.h.

#define O_NONBLOCK (04000)

Definition at line 83 of file dn_additional.h.

#define OSFAILED ( ret ) ((ret) == -1)

A macro that returns TRUE/FALSE. If ret is OS failed, then returns TRUE.

#define OSSUCCEEDED ( ret ) ((ret) == 0)

A macro that returns TRUE/FALSE. If ret is OS succeeded, then returns TRUE.

#define s_addr S_un.S_addr /* can be used for most tcp & ip code */

Definition at line 100 of file dn_additional.h.

#define s_host S_un.S_un_b.s_b2

Definition at line 101 of file dn_additional.h.

#define s_imp S_un.S_un_w.s_w2

Definition at line 103 of file dn_additional.h.

#define s_impno S_un.S_un_b.s_b4

Definition at line 104 of file dn_additional.h.

#define s_lh S_un.S_un_b.s_b3

Definition at line 105 of file dn_additional.h.

#define s_net S_un.S_un_b.s_b1

Definition at line 102 of file dn_additional.h.

#define SO_KEEPALIVE (0x0008) /* keep connections alive */

Definition at line 72 of file dn_additional.h.

#define SO_RCVTIMEO (0x1006) /* receive timeout */

Definition at line 74 of file dn_additional.h.

#define SO_REUSEADDR (0x0004) /* allow local address reuse */

Definition at line 71 of file dn_additional.h.

#define SO_SNDTIMEO (0x1005) /* send timeout */

Definition at line 73 of file dn_additional.h.

#define SOCK_DGRAM (2) /* datagram socket */

Definition at line 68 of file dn_additional.h.

#define SOCK_STREAM (1) /* stream socket */

Definition at line 67 of file dn_additional.h.

#define SOCKET uint16_t

Definition at line 39 of file dn_additional.h.

#define SOL_SOCKET (0xffff) /* options for socket level */

Definition at line 70 of file dn_additional.h.

#define STATUS_WAIT_0 ((uint32_t)0x00000000L)

Definition at line 134 of file dn_additional.h.

#define TCP_NODELAY (0x0001)

Definition at line 77 of file dn_additional.h.

#define THRET void

Definition at line 132 of file dn_additional.h.

#define THTYPE

Definition at line 133 of file dn_additional.h.

#define WAIT_OBJECT_0 ((STATUS_WAIT_0) + 0)

Definition at line 135 of file dn_additional.h.

Typedef Documentation

typedef int COM_STATE

Definition at line 125 of file dn_additional.h.

typedef int EVENT

Definition at line 136 of file dn_additional.h.

typedef struct fd_set fd_set

typedef struct in_addr IN_ADDR

typedef struct in_addr * LPIN_ADDR

typedef int MUTEX

Definition at line 130 of file dn_additional.h.

typedef struct in_addr * PIN_ADDR

typedef int socklen_t

Definition at line 122 of file dn_additional.h.

typedef int THREAD

Definition at line 131 of file dn_additional.h.

Function Documentation

static int32_t _com_clear	(	int	sock,
		uint32_t	timeout
	)		`[static]`

Definition at line 283 of file dn_additional.h.

static int _com_close ( int sock ) [static]

Definition at line 257 of file dn_additional.h.

static int _com_get_modem_state	(	int	sock,
		uint32_t *	state
	)		`[static]`

Definition at line 301 of file dn_additional.h.

static int _com_get_state	(	int	sock,
		COM_STATE *	state
	)		`[static]`

Definition at line 289 of file dn_additional.h.

static int32_t _com_open	(	const void *	com_param,
		int *	sock
	)		`[static]`

Definition at line 251 of file dn_additional.h.

static int _com_recv	(	int	sock,
		char *	buf,
		uint32_t	len_recv,
		uint32_t *	len_recved,
		uint32_t	timeout,
		void *	arg
	)		`[static]`

Definition at line 270 of file dn_additional.h.

static int _com_send	(	int	sock,
		const char *	buf,
		uint32_t	len_send,
		uint32_t *	len_sended,
		void *	arg
	)		`[static]`

Definition at line 263 of file dn_additional.h.

static int _com_set_state	(	int	sock,
		COM_STATE *	state
	)		`[static]`

Definition at line 295 of file dn_additional.h.

static int32_t _com_set_timeout	(	int	sock,
		uint32_t	timeout
	)		`[static]`

Definition at line 277 of file dn_additional.h.

static int32_t _create_event	(	EVENT *	pevt,
		int	reset_mode,
		int	init_signal
	)		`[static]`

Definition at line 331 of file dn_additional.h.

static int32_t _destroy_event ( EVENT * pevt ) [static]

Definition at line 337 of file dn_additional.h.

static uint32_t _gettimeofday_msec ( ) [static]

Definition at line 368 of file dn_additional.h.

static int32_t _initialize_mutex ( MUTEX * pmutex ) [static]

Definition at line 307 of file dn_additional.h.

static int32_t _lock_mutex	(	MUTEX *	pmutex,
		uint32_t	timeout
	)		`[static]`

Definition at line 319 of file dn_additional.h.

static int32_t _release_mutex ( MUTEX * pmutex ) [static]

Definition at line 313 of file dn_additional.h.

static int32_t _reset_event ( EVENT * pevt ) [static]

Definition at line 349 of file dn_additional.h.

static int32_t _set_event ( EVENT * pevt ) [static]

Definition at line 343 of file dn_additional.h.

static int32_t _socket_bind	(	const void *	param,
		int *	sock
	)		`[static]`

Definition at line 245 of file dn_additional.h.

static int _socket_close ( int sock ) [static]

Definition at line 239 of file dn_additional.h.

static int32_t _tcp_set_keepalive	(	int	sock,
		int	enable,
		uint32_t	idle,
		uint32_t	interval,
		uint32_t	count
	)		`[static]`

Definition at line 218 of file dn_additional.h.

static int32_t _unlock_mutex ( MUTEX * pmutex ) [static]

Definition at line 325 of file dn_additional.h.

static int32_t _wait_event	(	EVENT *	pevt,
		uint32_t	timeout
	)		`[static]`

Definition at line 355 of file dn_additional.h.

static int32_t _wait_event_multi	(	EVENT **	pevt,
		uint32_t	count,
		uint32_t	timeout,
		int	wait_all
	)		`[static]`

Definition at line 361 of file dn_additional.h.

static SOCKET accept	(	SOCKET	s,
		struct sockaddr *	addr,
		int *	addrlen
	)		`[static]`

Definition at line 200 of file dn_additional.h.

static int bind	(	SOCKET	s,
		const struct sockaddr *	name,
		int	namelen
	)		`[static]`

Definition at line 176 of file dn_additional.h.

static int connect	(	SOCKET	s,
		const struct sockaddr *	name,
		int	namelen
	)		`[static]`

Definition at line 188 of file dn_additional.h.

static uint32_t htonl ( uint32_t hostlong ) [static]

Definition at line 150 of file dn_additional.h.

static uint16_t htons ( uint16_t hostshort ) [static]

Definition at line 144 of file dn_additional.h.

static uint32_t inet_addr ( const char * addr ) [static]

Definition at line 156 of file dn_additional.h.

static int listen	(	SOCKET	s,
		int	backlog
	)		`[static]`

Definition at line 194 of file dn_additional.h.

static int recv	(	SOCKET	s,
		char *	buf,
		int	len,
		int	flags
	)		`[static]`

Definition at line 212 of file dn_additional.h.

static int recvfrom	(	SOCKET	s,
		char *	buf,
		int	len,
		int	flags,
		struct sockaddr *	from,
		int *	fromlen
	)		`[static]`

Definition at line 232 of file dn_additional.h.

static int select	(	int	__nfds,
		fd_set *__restrict	__readfds,
		fd_set *__restrict	__writefds,
		fd_set *__restrict	__exceptfds,
		struct timeval *__restrict	__timeout
	)		`[static]`

Definition at line 162 of file dn_additional.h.

static int send	(	SOCKET	s,
		const char *	buf,
		int	len,
		int	flags
	)		`[static]`

Definition at line 206 of file dn_additional.h.

static int sendto	(	SOCKET	s,
		const char *	buf,
		int	len,
		int	flags,
		const struct sockaddr *	to,
		int	tolen
	)		`[static]`

Definition at line 225 of file dn_additional.h.

static int setsockopt	(	SOCKET	s,
		int	level,
		int	optname,
		const char *	optval,
		int	optlen
	)		`[static]`

Definition at line 182 of file dn_additional.h.

static int socket	(	int	af,
		int	type,
		int	protocol
	)		`[static]`

Definition at line 170 of file dn_additional.h.

Classes

Defines

Typedefs

Functions

Detailed Description

Define Documentation

Typedef Documentation

Function Documentation
