Transponder class providing commands for all ISO 14443-4 compliant Transponders. More...

#include <FedmIscTagHandler_ISO14443_4.h>

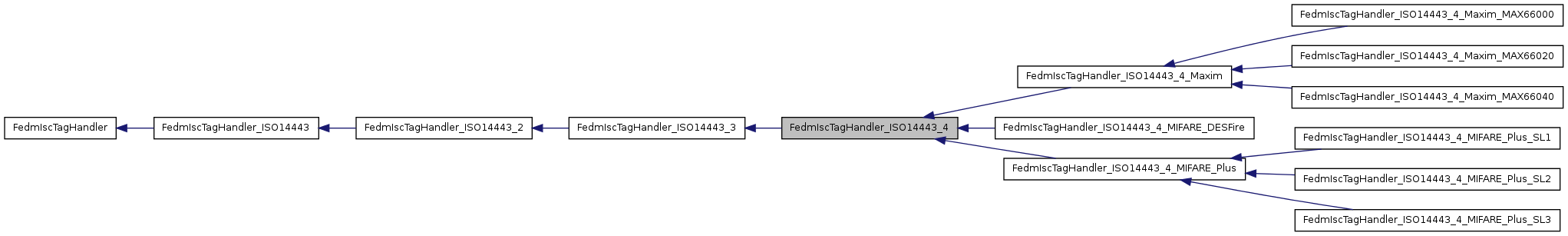

Inheritance diagram for FedmIscTagHandler_ISO14443_4:

Public Member Functions
int	Apdu (unsigned char pucRequestData, unsigned int iRequestLen, unsigned char pucResponseData, unsigned int uiResponseBufferLen, unsigned int &uiResponseLen)
	[0xB2][0xBE] : T=CL APDU for synchronous call
int	Apdu (unsigned char pucRequestData, unsigned int iRequestLen, void pAny, void(cbFct)(void , int, int, int))
	[0xB2][0xBE] : T=CL APDU for asynchronous call
int	Deselect ()
	[0xB2][0xBE] : T=CL Deselect command
int	EnableCID (bool bEnable)
	Enable CID usage.
int	EnableNAD (bool bEnable)
	Enable CID usage.
unsigned char	GetCID ()
	Get CID, actually in use.
unsigned char	GetLastISOErrorCode ()
	Return of additional, Transponder specific error code.
unsigned char	GetNAD ()
	Get NAD, actually in use.
int	GetResponseData (unsigned char *pucResponseData, unsigned int uiResponseBufferLen, unsigned int &uiResponseLen)
	Returns the responded APDU.
int	GetTransponderInfo (unsigned char &ucFSCI, unsigned char &ucFWI, unsigned char &ucDSI, unsigned char &ucDRI, unsigned char &ucNADSupport, unsigned char &ucCIDSupport)
	[0xB2][0x2B] : Get Transponder Info command
virtual void	Init ()
	Initialization method.
bool	IsCIDEnabled ()
	Query, if CID usage is enabled.
bool	IsNADEnabled ()
	Query, if NAD usage is enabled.
int	Ping ()
	[0xB2][0xBE] : T=CL Ping command
void	SetCID (unsigned char ucCID)
	Set CID for next use, if enabled.
void	SetNAD (unsigned char ucNAD)
	Set NAD for next use, if enabled.
Static Public Member Functions
static void	ApduCallback (void *pAny, int iApduHnd, int iError, int iDataLength)
Protected Member Functions
	FedmIscTagHandler_ISO14443_4 (FEDM_ISCReader pReader, FEDM_ISOTabItem pTabItem)
	FedmIscTagHandler_ISO14443_4 (FEDM_ISCReader pReader, unsigned int uiTagHandlerType, FEDM_ISOTabItem pTabItem)
virtual	~FedmIscTagHandler_ISO14443_4 ()
Protected Attributes
bool	m_bUseCID
bool	m_bUseNAD
void(*	m_cbFct )(void *, int, int, int)
int	m_iFetclHnd
void *	m_pAny
unsigned char	m_ucCID
unsigned char	m_ucISO14443ErrorCode
unsigned char	m_ucNAD
unsigned char	m_ucRequestData [FEDM_ISO14443_4_APDU_BUFFER_SIZE]
unsigned char	m_ucResponseData [FEDM_ISO14443_4_APDU_BUFFER_SIZE]
unsigned int	m_uiResponseLen
Friends
class	FEDM_ISCReader
class	FEDM_ISCReaderModule
class	FEDM_ISOTabItem

Detailed Description

Transponder class providing commands for all ISO 14443-4 compliant Transponders.

Description
High-level class for easy-to-use Transponder specific communication. See OBID::FEDM::Core::ITagGroup for additional information.

Note:: Programmers should be familiar with the ISO 14443 and ISO/IEC 7816 standards

Definition at line 69 of file FedmIscTagHandler_ISO14443_4.h.

Constructor & Destructor Documentation

FedmIscTagHandler_ISO14443_4::FedmIscTagHandler_ISO14443_4	(	FEDM_ISCReader *	pReader,
		FEDM_ISOTabItem *	pTabItem
	)		`[protected]`

Definition at line 58 of file FedmIscTagHandler_ISO14443_4.cpp.

FedmIscTagHandler_ISO14443_4::FedmIscTagHandler_ISO14443_4	(	FEDM_ISCReader *	pReader,
		unsigned int	uiTagHandlerType,
		FEDM_ISOTabItem *	pTabItem
	)		`[protected]`

Definition at line 90 of file FedmIscTagHandler_ISO14443_4.cpp.

FedmIscTagHandler_ISO14443_4::~FedmIscTagHandler_ISO14443_4 ( ) [protected, virtual]

Definition at line 123 of file FedmIscTagHandler_ISO14443_4.cpp.

Member Function Documentation

int FedmIscTagHandler_ISO14443_4::Apdu	(	unsigned char *	pucRequestData,
		unsigned int	iRequestLen,
		unsigned char *	pucResponseData,
		unsigned int	uiResponseBufferLen,
		unsigned int &	uiResponseLen
	)

[0xB2][0xBE] : T=CL APDU for synchronous call

Parameters:

[in]	pucRequestData	Pointer to array with request APDU
[in]	iRequestLen	Length (number of bytes) of request APDU
[out]	pucResponseData	Pointer to array for responded APDU
[in]	uiResponseBufferLen	Buffer size for responded APDU
[out]	uiResponseLen	Length (number of bytes) of responded APDU

Returns:

0 if OK
< 0 [error code](OBID::FEDM::Core::Error)
> 0 status byte of the responded protocol, if the Reader signals a problem. See Reader's System Manual for the full list with all status bytes.

Description
See Reader's System Manual for detailed information about the command and the method parameters
The structure of an APDU is defined by ISO/IEC 7816-4.

Note:: An APDU exchange can be a long term function call. The necessary timeout for the communication port is adapted internally and set to the previous value when the method returns. If an application cannot wait such a long time, use the overloaded APDU(unsigned char*,unsigned int,void*,void (*)(void*,int,int,int)) method for asynchronous execution.

Definition at line 311 of file FedmIscTagHandler_ISO14443_4.cpp.

int FedmIscTagHandler_ISO14443_4::Apdu	(	unsigned char *	pucRequestData,
		unsigned int	iRequestLen,
		void *	pAny,
		void()(void , int, int, int)	cbFct
	)

[0xB2][0xBE] : T=CL APDU for asynchronous call

Parameters:

[in]	pucRequestData	Pointer to array with request APDU
[in]	iRequestLen	Length (number of bytes) of request APDU
[in]	pAny	Pointer to anything, which is reflected as the first parameter in the callback function
[in]	cbFct	function to be called, if APDU is received or an error must be notified

Returns:

0 if OK
< 0 [error code](OBID::FEDM::Core::Error)
> 0 status byte of the responded protocol, if the Reader signals a problem. See Reader's System Manual for the full list with all status bytes.

Description
See Reader's System Manual for detailed information about the command and the method parameters.
The structure of an APDU is defined by ISO/IEC 7816-4.
The responded APDU must be requested with the method GetResponseData() inside the callback function, if the 3rd parameter iError is 0.

Definition at line 380 of file FedmIscTagHandler_ISO14443_4.cpp.

void FedmIscTagHandler_ISO14443_4::ApduCallback	(	void *	pAny,
		int	iApduHnd,
		int	iError,
		int	iDataLength
	)		`[static]`

Definition at line 565 of file FedmIscTagHandler_ISO14443_4.cpp.

int FedmIscTagHandler_ISO14443_4::Deselect ( )

[0xB2][0xBE] : T=CL Deselect command

Returns:

0 if OK
< 0 [error code](OBID::FEDM::Core::Error)
> 0 status byte of the responded protocol, if the Reader signals a problem. See Reader's System Manual for the full list with all status bytes.

Description
See Reader's System Manual for detailed information about the command

Definition at line 477 of file FedmIscTagHandler_ISO14443_4.cpp.

int FedmIscTagHandler_ISO14443_4::EnableCID ( bool bEnable )

Enable CID usage.

Returns:

0 if OK
< 0 [error code](OBID::FEDM::Core::Error)

Description

Definition at line 154 of file FedmIscTagHandler_ISO14443_4.cpp.

int FedmIscTagHandler_ISO14443_4::EnableNAD ( bool bEnable )

Enable CID usage.

Returns:

0 if OK
< 0 [error code](OBID::FEDM::Core::Error)

Description

Definition at line 191 of file FedmIscTagHandler_ISO14443_4.cpp.

unsigned char FedmIscTagHandler_ISO14443_4::GetCID ( )

Get CID, actually in use.

Returns:: CID

Description

Definition at line 175 of file FedmIscTagHandler_ISO14443_4.cpp.

unsigned char FedmIscTagHandler_ISO14443_4::GetLastISOErrorCode ( )

Return of additional, Transponder specific error code.

Returns:: Error code

Description

Reimplemented from FedmIscTagHandler.

Definition at line 144 of file FedmIscTagHandler_ISO14443_4.cpp.

unsigned char FedmIscTagHandler_ISO14443_4::GetNAD ( )

Get NAD, actually in use.

Returns:: NAD

Description

Definition at line 212 of file FedmIscTagHandler_ISO14443_4.cpp.

int FedmIscTagHandler_ISO14443_4::GetResponseData	(	unsigned char *	pucResponseData,
		unsigned int	uiResponseBufferLen,
		unsigned int &	uiResponseLen
	)

Returns the responded APDU.

Parameters:

[out]	pucResponseData	Pointer to array for responded APDU
[in]	uiResponseBufferLen	Buffer size for responded APDU
[out]	uiResponseLen	Length (number of bytes) of responded APDU

Returns:

0 if OK
< 0 [error code](OBID::FEDM::Core::Error)

Description
The structure of an APDU is defined by ISO/IEC 7816-4.

Definition at line 530 of file FedmIscTagHandler_ISO14443_4.cpp.

int FedmIscTagHandler_ISO14443_4::GetTransponderInfo	(	unsigned char &	ucFSCI,
		unsigned char &	ucFWI,
		unsigned char &	ucDSI,
		unsigned char &	ucDRI,
		unsigned char &	ucNADSupport,
		unsigned char &	ucCIDSupport
	)

[0xB2][0x2B] : Get Transponder Info command

Parameters:

[out]	ucFSCI
[out]	ucFWI
[out]	ucDSI
[out]	ucDRI
[out]	ucNADSupport
[out]	ucCIDSupport

Returns:

0 if OK
< 0 [error code](OBID::FEDM::Core::Error)
> 0 status byte of the responded protocol, if the Reader signals a problem. See Reader's System Manual for the full list with all status bytes.

Description
See Reader's System Manual for detailed information about the command and the method parameters.

Definition at line 244 of file FedmIscTagHandler_ISO14443_4.cpp.

void FedmIscTagHandler_ISO14443_4::Init ( ) [virtual]

Initialization method.

Description
Clears all data members

Reimplemented from FedmIscTagHandler.

Reimplemented in FedmIscTagHandler_ISO14443_4_MIFARE_DESFire, and FedmIscTagHandler_ISO14443_4_MIFARE_Plus.

Definition at line 130 of file FedmIscTagHandler_ISO14443_4.cpp.

bool FedmIscTagHandler_ISO14443_4::IsCIDEnabled ( )

Query, if CID usage is enabled.

Returns:: true, if CID is enabled

Description

Definition at line 180 of file FedmIscTagHandler_ISO14443_4.cpp.

bool FedmIscTagHandler_ISO14443_4::IsNADEnabled ( )

Query, if NAD usage is enabled.

Returns:: true, if NAD is enabled

Description

Definition at line 217 of file FedmIscTagHandler_ISO14443_4.cpp.

int FedmIscTagHandler_ISO14443_4::Ping ( )

[0xB2][0xBE] : T=CL Ping command

Returns:

0 if OK
< 0 [error code](OBID::FEDM::Core::Error)
> 0 status byte of the responded protocol, if the Reader signals a problem. See Reader's System Manual for the full list with all status bytes.

Description
See Reader's System Manual for detailed information about the command

Definition at line 438 of file FedmIscTagHandler_ISO14443_4.cpp.

void FedmIscTagHandler_ISO14443_4::SetCID ( unsigned char ucCID )

Set CID for next use, if enabled.

Description

Definition at line 149 of file FedmIscTagHandler_ISO14443_4.cpp.

void FedmIscTagHandler_ISO14443_4::SetNAD ( unsigned char ucNAD )

Set NAD for next use, if enabled.

Description

Definition at line 186 of file FedmIscTagHandler_ISO14443_4.cpp.
