Transponder class providing basic commands for all Transponders. More...

#include <FedmIscTagHandler.h>

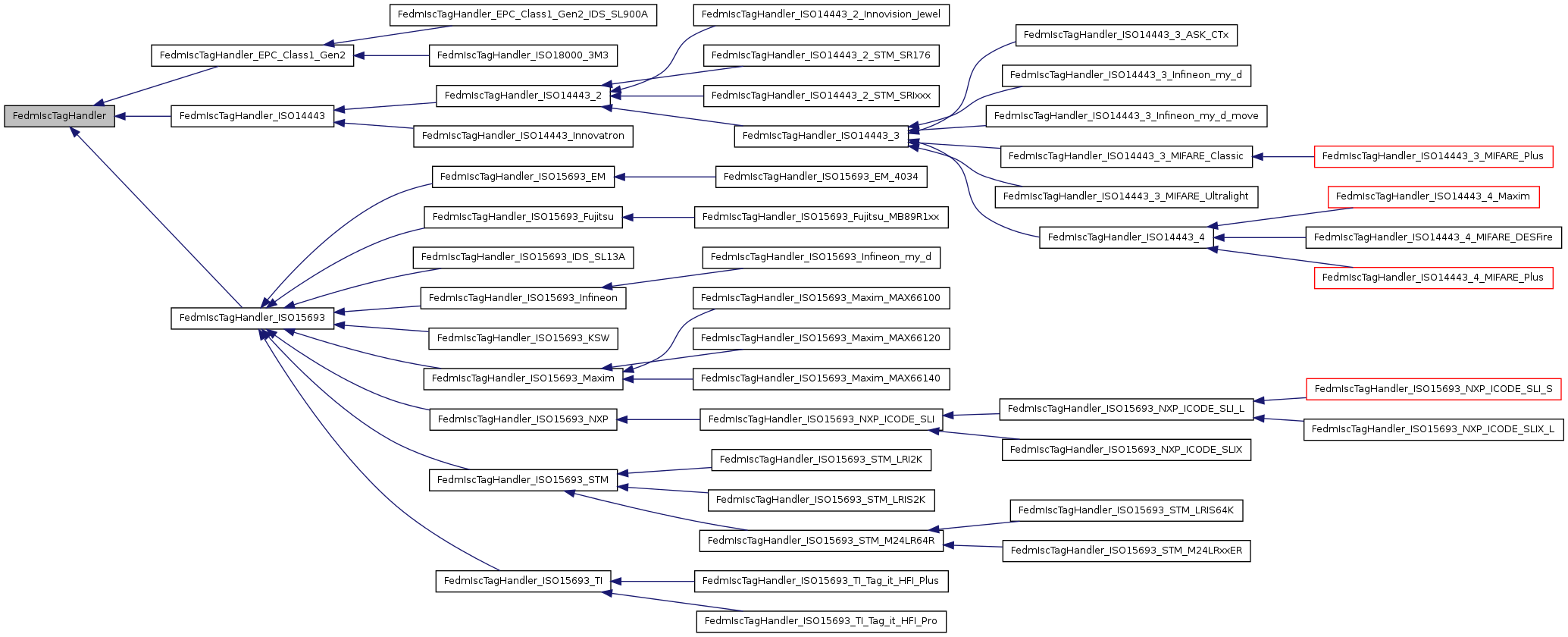

Inheritance diagram for FedmIscTagHandler:

Public Member Functions
_FEDM_ISC_CORE_EXT_CLASS void	EnableNonAddressedMode (bool bEnable)
	Switch into non-addressed status (only for internal use)
_FEDM_ISC_CORE_EXT_CLASS unsigned int	GetErrorDBAddress ()
	Return of Transponder address after an error.
_FEDM_ISC_CORE_EXT_CLASS unsigned char	GetLastISOErrorCode ()
	Return of additional, Transponder specific error code.
_FEDM_ISC_CORE_EXT_CLASS int	GetRSSI (unsigned char ucNumber, unsigned char ucStatus, unsigned char *ucRSSI)
	Return of Received Signal Strength Indication (RSSI) value.
_FEDM_ISC_CORE_EXT_CLASS unsigned int	GetTagDriverType ()
	Return of Transponder Driver Type Number.
_FEDM_ISC_CORE_EXT_CLASS unsigned int	GetTagHandlerType ()
	Return of TagHandler Type Number.
_FEDM_ISC_CORE_EXT_CLASS const char *	GetTagName ()
	Return of TagHandler Type Number.
_FEDM_ISC_CORE_EXT_CLASS const char *	GetUID ()
	Return of Unified Identified (UID)
virtual _FEDM_ISC_CORE_EXT_CLASS void	Init ()
	Initialization method.
_FEDM_ISC_CORE_EXT_CLASS bool	IsNonAddressedModeEnabled ()
	Request of non-addressed status.
virtual _FEDM_ISC_CORE_EXT_CLASS int	ReadMultipleBlocks (unsigned int uiFirstDataBlock, unsigned int uiNoOfDataBlocks, unsigned int &uiBlockSize, unsigned char *pucData)
	Basic [0xB0][0x23] Read Multiple Blocks command.
_FEDM_ISC_CORE_EXT_CLASS virtual int	ReadMultipleBlocks (unsigned int uiFirstDataBlock, unsigned int uiNoOfDataBlocks, unsigned int &uiBlockSize, unsigned char pucSecurityStatus, unsigned char pucData)
	Basic [0xB0][0x23] Read Multiple Blocks command with additional security status.
_FEDM_ISC_CORE_EXT_CLASS virtual int	WriteMultipleBlocks (unsigned int uiFirstDataBlock, unsigned int uiNoOfDataBlocks, unsigned int uiBlockSize, unsigned char *pucData)
	Basic [0xB0][0x24] Write Multiple Blocks command.
Static Public Attributes
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_BASIC = 1
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_EPC_CLASS1_GEN2 = 10
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_EPC_CLASS1_GEN2_IDS_SL900A = 11
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO14443 = 20
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO14443_2 = 30
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO14443_2_INNOVISION_JEWEL = 31
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO14443_2_STM_SR176 = 32
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO14443_2_STM_SRIxxx = 33
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO14443_3 = 40
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO14443_3_ASK_CTX = 47
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO14443_3_INFINEON_MY_D = 41
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO14443_3_INFINEON_MY_D_MOVE = 42
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO14443_3_MIFARE_CLASSIC = 43
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO14443_3_MIFARE_PLUS_SL1 = 45
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO14443_3_MIFARE_PLUS_SL2 = 46
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO14443_3_MIFARE_ULTRALIGHT = 44
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO14443_4 = 50
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO14443_4_MAXIM = 60
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO14443_4_MAXIM_MAX66000 = 61
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO14443_4_MAXIM_MAX66020 = 62
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO14443_4_MAXIM_MAX66040 = 63
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO14443_4_MIFARE_DESFIRE = 51
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO14443_4_MIFARE_PLUS_SL1 = 52
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO14443_4_MIFARE_PLUS_SL2 = 53
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO14443_4_MIFARE_PLUS_SL3 = 54
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO14443_INNOVATRON = 21
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693 = 0xE0000000
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_EM = 0xE0160000
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_EM_4034 = 0xE0160004
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_Fujitsu = 0xE0080000
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_Fujitsu_MB89R1xx = 0xE0080001
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_IDS_SL13A = 0xE036FFFF
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_Infineon = 0xE0050000
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_Infineon_my_d = 0xE005FFFF
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_KSW = 0xE0170000
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_MAXIM = 0xE02B0000
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_MAXIM_MAX66100 = 0xE02B0010
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_MAXIM_MAX66120 = 0xE02B0020
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_MAXIM_MAX66140 = 0xE02B0030
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_NXP = 0xE0040000
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_NXP_ICODE_SLI = 0xE0040100
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_NXP_ICODE_SLI_L = 0xE0040300
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_NXP_ICODE_SLI_S = 0xE0040200
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_NXP_ICODE_SLIX = 0xE0040110
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_NXP_ICODE_SLIX_L = 0xE0040310
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_NXP_ICODE_SLIX_S = 0xE0040210
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_STM = 0xE0020000
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_STM_LRI2K = 0xE0022000
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_STM_LRIS2K = 0xE0020280
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_STM_LRIS64K = 0xE0020440
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_STM_M24LR64R = 0xE00202C0
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_STM_M24LRxxER = 0xE00205C0
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_TI = 0xE0070000
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_TI_Tag_it_HFI_Plus = 0xE0078000
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO15693_TI_Tag_it_HFI_Pro = 0xE007E000
static _FEDM_ISC_CORE_EXT_CLASS const unsigned int	TYPE_ISO18000_3M3 = 100
Protected Member Functions
_FEDM_ISC_CORE_EXT_CLASS	FedmIscTagHandler (FEDM_ISCReader pReader, unsigned int uiTagHandlerType, FEDM_ISOTabItem pTabItem)
FEDM_ISOTabItem *	GetTabItem ()
virtual _FEDM_ISC_CORE_EXT_CLASS	~FedmIscTagHandler ()
Protected Attributes
bool	m_bNonAddressedMode
FEDM_ISCReader *	m_pReader
FEDM_ISOTabItem *	m_pTabItem
string	m_sTagName
string	m_sUid
unsigned char	m_ucISOErrorCode
unsigned int	m_uiErrorDBAddress
unsigned int	m_uiTagHandlerType
Friends
class	FEDM_ISCReader
class	FEDM_ISCReaderModule
class	FEDM_ISOTabItem

Detailed Description

Transponder class providing basic commands for all Transponders.

Description
High-level class for easy-to-use Transponder specific communication. See OBID::FEDM::Core::ITagGroup for additional information.
This class supports non-addressed, selected and addressed mode in Host-Mode.

Definition at line 71 of file FedmIscTagHandler.h.

Constructor & Destructor Documentation

_FEDM_ISC_CORE_EXT_CLASS FedmIscTagHandler::FedmIscTagHandler	(	FEDM_ISCReader *	pReader,
		unsigned int	uiTagHandlerType,
		FEDM_ISOTabItem *	pTabItem
	)		`[protected]`

Definition at line 118 of file FedmIscTagHandler.cpp.

_FEDM_ISC_CORE_EXT_CLASS FedmIscTagHandler::~FedmIscTagHandler ( ) [protected, virtual]

Definition at line 133 of file FedmIscTagHandler.cpp.

Member Function Documentation

_FEDM_ISC_CORE_EXT_CLASS void FedmIscTagHandler::EnableNonAddressedMode ( bool bEnable ) [inline]

Switch into non-addressed status (only for internal use)

Parameters:

bEnable If true, TagHandler will be prepared for non-addressed Transponder communication

Description
Do not use in applications! Use instead OBID::FEDM::Core::ITagGroup::CreateNonAddressedTagHandler

Definition at line 159 of file FedmIscTagHandler.h.

_FEDM_ISC_CORE_EXT_CLASS unsigned int FedmIscTagHandler::GetErrorDBAddress ( ) [inline]

Return of Transponder address after an error.

Returns:: Address number, where an error occured

Description

Definition at line 144 of file FedmIscTagHandler.h.

_FEDM_ISC_CORE_EXT_CLASS unsigned char FedmIscTagHandler::GetLastISOErrorCode ( ) [inline]

Return of additional, Transponder specific error code.

Returns:: Error code

Description

Reimplemented in FedmIscTagHandler_ISO14443_4.

Definition at line 151 of file FedmIscTagHandler.h.

_FEDM_ISC_CORE_EXT_CLASS int FedmIscTagHandler::GetRSSI	(	unsigned char *	ucNumber,
		unsigned char *	ucStatus,
		unsigned char *	ucRSSI
	)

Return of Received Signal Strength Indication (RSSI) value.

Parameters:

[out]	ucNumber	Array with antenna numbers
[out]	ucStatus	Array with status values
[out]	ucRSSI	Array with RSSI values

Returns:

> 0 Number of antennas
< 0 [error code](OBID::FEDM::Core::Error)

Description
Return arrays with additional antenna values. The array dimension is the return value of this method.

Note:: This additional antenna values are not available with all Readers. See Reader's System Manual for additional information.

Definition at line 195 of file FedmIscTagHandler.cpp.

FEDM_ISOTabItem* FedmIscTagHandler::GetTabItem ( ) [inline, protected]

Definition at line 525 of file FedmIscTagHandler.h.

_FEDM_ISC_CORE_EXT_CLASS unsigned int FedmIscTagHandler::GetTagDriverType ( )

Return of Transponder Driver Type Number.

Returns:: Driver Type Number

Description
Return of Transponder Driver Type Number. See Reader's System Manual for the full list of all Transponder Driver Type Numbers.

Definition at line 151 of file FedmIscTagHandler.cpp.

_FEDM_ISC_CORE_EXT_CLASS unsigned int FedmIscTagHandler::GetTagHandlerType ( )

Return of TagHandler Type Number.

Returns:: Type Number

Description
Return of TagHandler Type Number

Definition at line 146 of file FedmIscTagHandler.cpp.

_FEDM_ISC_CORE_EXT_CLASS const char * FedmIscTagHandler::GetTagName ( )

Return of TagHandler Type Number.

Returns:: Transponder Name

Description
Return of TagHandler Type Number

Definition at line 159 of file FedmIscTagHandler.cpp.

_FEDM_ISC_CORE_EXT_CLASS const char * FedmIscTagHandler::GetUID ( )

Return of Unified Identified (UID)

Returns:: Array with UID

Description
Return of Unified Identifier (UID). Sometimes also called as Serial Number. For EPC Class 1 Gen 2 or ISO 18000-3M3 standards, the Electronic Product Code (EPC) is returned. If the Reader is configured to return the EPC with additional TID, then both is returned.

Definition at line 168 of file FedmIscTagHandler.cpp.

_FEDM_ISC_CORE_EXT_CLASS void FedmIscTagHandler::Init ( ) [virtual]

Initialization method.

Description
Clears all data members

Reimplemented in FedmIscTagHandler_EPC_Class1_Gen2_IDS_SL900A, FedmIscTagHandler_ISO15693_IDS_SL13A, FedmIscTagHandler_ISO14443_4_MIFARE_DESFire, FedmIscTagHandler_ISO14443_4, FedmIscTagHandler_ISO14443_4_MIFARE_Plus, FedmIscTagHandler_ISO15693, and FedmIscTagHandler_ISO14443_3_MIFARE_Plus.

Definition at line 137 of file FedmIscTagHandler.cpp.

_FEDM_ISC_CORE_EXT_CLASS bool FedmIscTagHandler::IsNonAddressedModeEnabled ( ) [inline]

Request of non-addressed status.

Returns:: non-addressed status

Description

Definition at line 166 of file FedmIscTagHandler.h.

_FEDM_ISC_CORE_EXT_CLASS int FedmIscTagHandler::ReadMultipleBlocks	(	unsigned int	uiFirstDataBlock,
		unsigned int	uiNoOfDataBlocks,
		unsigned int &	uiBlockSize,
		unsigned char *	pucData
	)		`[virtual]`

Basic [0xB0][0x23] Read Multiple Blocks command.

Parameters:

[in]	uiFirstDataBlock	First data block address
[in]	uiNoOfDataBlocks	Number of requested data blocks
[out]	uiBlockSize	Number of bytes in each data block
[out]	pucData	Pointer to array for received data blocks. The array must have the dimension of uiNoOfDataBlocks x Expected Block Size

Returns:

0 if OK
< 0 [error code](OBID::FEDM::Core::Error)
> 0 status byte of the responded protocol, if the Reader signals a problem. See Reader's System Manual for the full list with all status bytes.

Description
Basic [0xB0][0x23] Read Multiple Blocks command

Without support for extended address mode
Without request of security status

Definition at line 232 of file FedmIscTagHandler.cpp.

_FEDM_ISC_CORE_EXT_CLASS int FedmIscTagHandler::ReadMultipleBlocks	(	unsigned int	uiFirstDataBlock,
		unsigned int	uiNoOfDataBlocks,
		unsigned int &	uiBlockSize,
		unsigned char *	pucSecurityStatus,
		unsigned char *	pucData
	)		`[virtual]`

Basic [0xB0][0x23] Read Multiple Blocks command with additional security status.

Parameters:

[in]	uiFirstDataBlock	First data block address
[in]	uiNoOfDataBlocks	Number of requested data blocks
[out]	uiBlockSize	Number of bytes in each data block
[out]	pucSecurityStatus	Array with received status information, one byte for each data block. The array must have the dimension of uiNoOfDataBlocks
[out]	pucData	Pointer to array for received data blocks. The array must have the dimension of uiNoOfDataBlocks x Expected Block Size

Returns:

0 if OK
< 0 [error code](OBID::FEDM::Core::Error)
> 0 status byte of the responded protocol, if the Reader signals a problem. See Reader's System Manual for the full list with all status bytes.

Description
Basic [0xB0][0x23] Read Multiple Blocks command with additional security status

Without support for extended address mode

Reimplemented in FedmIscTagHandler_ISO15693_STM_M24LR64R.

Definition at line 301 of file FedmIscTagHandler.cpp.

_FEDM_ISC_CORE_EXT_CLASS int FedmIscTagHandler::WriteMultipleBlocks	(	unsigned int	uiFirstDataBlock,
		unsigned int	uiNoOfDataBlocks,
		unsigned int	uiBlockSize,
		unsigned char *	pucData
	)		`[virtual]`

Basic [0xB0][0x24] Write Multiple Blocks command.

Parameters:

[in]	uiFirstDataBlock	First data block address
[in]	uiNoOfDataBlocks	Number of data blocks to transmit to
[in]	uiBlockSize	Number of bytes in each data block
[in]	pucData	Pointer to array with data blocks to transmit to

Returns:

0 if OK
< 0 [error code](OBID::FEDM::Core::Error)
> 0 status byte of the responded protocol, if the Reader signals a problem. See Reader's System Manual for the full list with all status bytes.

Description
Basic [0xB0][0x24] Write Multiple Blocks command

Without support for extended address mode

Reimplemented in FedmIscTagHandler_ISO15693_STM_M24LR64R.

Definition at line 372 of file FedmIscTagHandler.cpp.

Friends And Related Function Documentation

friend class FEDM_ISCReader [friend]

Definition at line 77 of file FedmIscTagHandler.h.

friend class FEDM_ISCReaderModule [friend]

Definition at line 76 of file FedmIscTagHandler.h.

friend class FEDM_ISOTabItem [friend]

Definition at line 78 of file FedmIscTagHandler.h.

Member Data Documentation

bool FedmIscTagHandler::m_bNonAddressedMode [protected]

Definition at line 538 of file FedmIscTagHandler.h.

FEDM_ISCReader* FedmIscTagHandler::m_pReader [protected]

Definition at line 524 of file FedmIscTagHandler.h.

FEDM_ISOTabItem* FedmIscTagHandler::m_pTabItem [protected]

Definition at line 533 of file FedmIscTagHandler.h.

string FedmIscTagHandler::m_sTagName [protected]

Definition at line 536 of file FedmIscTagHandler.h.

string FedmIscTagHandler::m_sUid [protected]

Definition at line 535 of file FedmIscTagHandler.h.

unsigned char FedmIscTagHandler::m_ucISOErrorCode [protected]

Definition at line 531 of file FedmIscTagHandler.h.

unsigned int FedmIscTagHandler::m_uiErrorDBAddress [protected]

Definition at line 530 of file FedmIscTagHandler.h.

unsigned int FedmIscTagHandler::m_uiTagHandlerType [protected]

Definition at line 529 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_BASIC = 1 [static]

Definition at line 458 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_EPC_CLASS1_GEN2 = 10 [static]

Definition at line 459 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_EPC_CLASS1_GEN2_IDS_SL900A = 11 [static]

Definition at line 460 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO14443 = 20 [static]

Definition at line 461 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO14443_2 = 30 [static]

Definition at line 463 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO14443_2_INNOVISION_JEWEL = 31 [static]

Definition at line 464 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO14443_2_STM_SR176 = 32 [static]

Definition at line 465 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO14443_2_STM_SRIxxx = 33 [static]

Definition at line 466 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO14443_3 = 40 [static]

Definition at line 467 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO14443_3_ASK_CTX = 47 [static]

Definition at line 474 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO14443_3_INFINEON_MY_D = 41 [static]

Definition at line 468 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO14443_3_INFINEON_MY_D_MOVE = 42 [static]

Definition at line 469 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO14443_3_MIFARE_CLASSIC = 43 [static]

Definition at line 470 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO14443_3_MIFARE_PLUS_SL1 = 45 [static]

Definition at line 472 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO14443_3_MIFARE_PLUS_SL2 = 46 [static]

Definition at line 473 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO14443_3_MIFARE_ULTRALIGHT = 44 [static]

Definition at line 471 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO14443_4 = 50 [static]

Definition at line 475 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO14443_4_MAXIM = 60 [static]

Definition at line 480 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO14443_4_MAXIM_MAX66000 = 61 [static]

Definition at line 481 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO14443_4_MAXIM_MAX66020 = 62 [static]

Definition at line 482 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO14443_4_MAXIM_MAX66040 = 63 [static]

Definition at line 483 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO14443_4_MIFARE_DESFIRE = 51 [static]

Definition at line 476 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO14443_4_MIFARE_PLUS_SL1 = 52 [static]

Definition at line 477 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO14443_4_MIFARE_PLUS_SL2 = 53 [static]

Definition at line 478 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO14443_4_MIFARE_PLUS_SL3 = 54 [static]

Definition at line 479 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO14443_INNOVATRON = 21 [static]

Definition at line 462 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693 = 0xE0000000 [static]

Definition at line 485 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_EM = 0xE0160000 [static]

Definition at line 506 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_EM_4034 = 0xE0160004 [static]

Definition at line 507 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_Fujitsu = 0xE0080000 [static]

Definition at line 504 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_Fujitsu_MB89R1xx = 0xE0080001 [static]

Definition at line 505 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_IDS_SL13A = 0xE036FFFF [static]

Definition at line 513 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_Infineon = 0xE0050000 [static]

Definition at line 499 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_Infineon_my_d = 0xE005FFFF [static]

Definition at line 500 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_KSW = 0xE0170000 [static]

Definition at line 508 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_MAXIM = 0xE02B0000 [static]

Definition at line 509 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_MAXIM_MAX66100 = 0xE02B0010 [static]

Definition at line 510 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_MAXIM_MAX66120 = 0xE02B0020 [static]

Definition at line 511 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_MAXIM_MAX66140 = 0xE02B0030 [static]

Definition at line 512 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_NXP = 0xE0040000 [static]

Definition at line 492 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_NXP_ICODE_SLI = 0xE0040100 [static]

Definition at line 493 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_NXP_ICODE_SLI_L = 0xE0040300 [static]

Definition at line 495 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_NXP_ICODE_SLI_S = 0xE0040200 [static]

Definition at line 497 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_NXP_ICODE_SLIX = 0xE0040110 [static]

Definition at line 494 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_NXP_ICODE_SLIX_L = 0xE0040310 [static]

Definition at line 496 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_NXP_ICODE_SLIX_S = 0xE0040210 [static]

Definition at line 498 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_STM = 0xE0020000 [static]

Definition at line 486 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_STM_LRI2K = 0xE0022000 [static]

Definition at line 487 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_STM_LRIS2K = 0xE0020280 [static]

Definition at line 488 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_STM_LRIS64K = 0xE0020440 [static]

Definition at line 490 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_STM_M24LR64R = 0xE00202C0 [static]

Definition at line 489 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_STM_M24LRxxER = 0xE00205C0 [static]

Definition at line 491 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_TI = 0xE0070000 [static]

Definition at line 501 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_TI_Tag_it_HFI_Plus = 0xE0078000 [static]

Definition at line 503 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO15693_TI_Tag_it_HFI_Pro = 0xE007E000 [static]

Definition at line 502 of file FedmIscTagHandler.h.

const unsigned int FedmIscTagHandler::TYPE_ISO18000_3M3 = 100 [static]

Definition at line 484 of file FedmIscTagHandler.h.

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
