pcl::visualization::PointCloudColorHandlerRandom< PointT > Class Template Reference

Handler for random PointCloud colors (i.e., R, G, B will be randomly chosen) More...

#include <point_cloud_color_handlers.h>

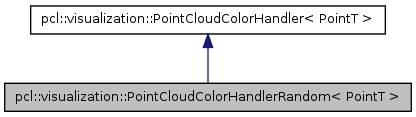

Inheritance diagram for pcl::visualization::PointCloudColorHandlerRandom< PointT >:

List of all members.

Public Types
typedef boost::shared_ptr < const PointCloudColorHandlerRandom < PointT > >	ConstPtr
typedef boost::shared_ptr < PointCloudColorHandlerRandom < PointT > >	Ptr
Public Member Functions
virtual bool	getColor (vtkSmartPointer< vtkDataArray > &scalars) const
	Obtain the actual color for the input dataset as vtk scalars.
virtual std::string	getFieldName () const
	Get the name of the field used.
virtual std::string	getName () const
	Abstract getName method.
	PointCloudColorHandlerRandom ()
	Constructor.
	PointCloudColorHandlerRandom (const PointCloudConstPtr &cloud)
	Constructor.
Private Types
typedef PointCloudColorHandler < PointT >::PointCloud	PointCloud
typedef PointCloud::ConstPtr	PointCloudConstPtr
typedef PointCloud::Ptr	PointCloudPtr

---

Detailed Description

template<typename PointT>
class pcl::visualization::PointCloudColorHandlerRandom< PointT >

Handler for random PointCloud colors (i.e., R, G, B will be randomly chosen)

Author:

Radu B. Rusu

Definition at line 138 of file point_cloud_color_handlers.h.

---

Member Typedef Documentation

template<typename PointT>

typedef boost::shared_ptr<const PointCloudColorHandlerRandom<PointT> > pcl::visualization::PointCloudColorHandlerRandom< PointT >::ConstPtr

Reimplemented from pcl::visualization::PointCloudColorHandler< PointT >.

Definition at line 146 of file point_cloud_color_handlers.h.

template<typename PointT>

typedef PointCloudColorHandler<PointT>::PointCloud pcl::visualization::PointCloudColorHandlerRandom< PointT >::PointCloud [private]

Reimplemented from pcl::visualization::PointCloudColorHandler< PointT >.

Definition at line 140 of file point_cloud_color_handlers.h.

template<typename PointT>

typedef PointCloud::ConstPtr pcl::visualization::PointCloudColorHandlerRandom< PointT >::PointCloudConstPtr [private]

Reimplemented from pcl::visualization::PointCloudColorHandler< PointT >.

Definition at line 142 of file point_cloud_color_handlers.h.

template<typename PointT>

typedef PointCloud::Ptr pcl::visualization::PointCloudColorHandlerRandom< PointT >::PointCloudPtr [private]

Reimplemented from pcl::visualization::PointCloudColorHandler< PointT >.

Definition at line 141 of file point_cloud_color_handlers.h.

template<typename PointT>

typedef boost::shared_ptr<PointCloudColorHandlerRandom<PointT> > pcl::visualization::PointCloudColorHandlerRandom< PointT >::Ptr

Reimplemented from pcl::visualization::PointCloudColorHandler< PointT >.

Definition at line 145 of file point_cloud_color_handlers.h.

---

Constructor & Destructor Documentation

template<typename PointT>

pcl::visualization::PointCloudColorHandlerRandom< PointT >::PointCloudColorHandlerRandom

(

)

[inline]

Constructor.

Definition at line 149 of file point_cloud_color_handlers.h.

template<typename PointT>

pcl::visualization::PointCloudColorHandlerRandom< PointT >::PointCloudColorHandlerRandom

(

const PointCloudConstPtr &

cloud

)

[inline]

Constructor.

Definition at line 156 of file point_cloud_color_handlers.h.

---

Member Function Documentation

template<typename PointT >

bool pcl::visualization::PointCloudColorHandlerRandom< PointT >::getColor

(

vtkSmartPointer< vtkDataArray > &

scalars

)

const [virtual]

Obtain the actual color for the input dataset as vtk scalars.

Parameters:

[out]

scalars

the output scalars containing the color for the dataset

Returns:

true if the operation was successful (the handler is capable and the input cloud was given as a valid pointer), false otherwise

Implements pcl::visualization::PointCloudColorHandler< PointT >.

Definition at line 73 of file point_cloud_color_handlers.hpp.

template<typename PointT>

virtual std::string pcl::visualization::PointCloudColorHandlerRandom< PointT >::getFieldName

(

)

const [inline, virtual]

Get the name of the field used.

Implements pcl::visualization::PointCloudColorHandler< PointT >.

Definition at line 168 of file point_cloud_color_handlers.h.

template<typename PointT>

virtual std::string pcl::visualization::PointCloudColorHandlerRandom< PointT >::getName

(

)

const [inline, virtual]

Abstract getName method.

Implements pcl::visualization::PointCloudColorHandler< PointT >.

Definition at line 164 of file point_cloud_color_handlers.h.

---

The documentation for this class was generated from the following files:

• point_cloud_color_handlers.h
• point_cloud_color_handlers.hpp
