USBInterface.h File Reference
#include <libusb.h>
#include <list>
#include <string>
#include <cmath>
#include <cstdint>
#include <unistd.h>

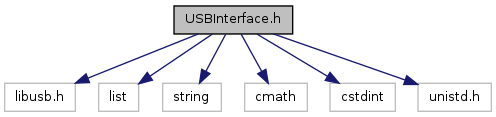

Include dependency graph for USBInterface.h:
This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  channelSetting
 An object that represents the settings for one servo, e.g. the information in the Settings tab. One of these objects corresponds to one ServoSettingsControl. More...
struct  maestroStatus
struct  servoStatus
class  USBPololuInterface
struct  uscSettings

Enumerations

enum  ChannelMode { Servo = 0, ServoMultiplied = 1, Output = 2, Input = 3 }
enum  HomeMode { Off = 0, Ignore = 1, Goto = 2 }
enum  uscParameter {
  PARAMETER_INITIALIZED = 0, PARAMETER_SERVOS_AVAILABLE = 1, PARAMETER_SERVO_PERIOD = 2, PARAMETER_SERIAL_MODE = 3,
  PARAMETER_SERIAL_FIXED_BAUD_RATE = 4, PARAMETER_SERIAL_TIMEOUT = 6, PARAMETER_SERIAL_ENABLE_CRC = 8, PARAMETER_SERIAL_NEVER_SUSPEND = 9,
  PARAMETER_SERIAL_DEVICE_NUMBER = 10, PARAMETER_SERIAL_BAUD_DETECT_TYPE = 11, PARAMETER_IO_MASK_C = 16, PARAMETER_OUTPUT_MASK_C = 17,
  PARAMETER_CHANNEL_MODES_0_3 = 12, PARAMETER_CHANNEL_MODES_4_7 = 13, PARAMETER_CHANNEL_MODES_8_11 = 14, PARAMETER_CHANNEL_MODES_12_15 = 15,
  PARAMETER_CHANNEL_MODES_16_19 = 16, PARAMETER_CHANNEL_MODES_20_23 = 17, PARAMETER_MINI_MAESTRO_SERVO_PERIOD_L = 18, PARAMETER_MINI_MAESTRO_SERVO_PERIOD_HU = 19,
  PARAMETER_ENABLE_PULLUPS = 21, PARAMETER_SCRIPT_CRC = 22, PARAMETER_SCRIPT_DONE = 24, PARAMETER_SERIAL_MINI_SSC_OFFSET = 25,
  PARAMETER_SERVO_MULTIPLIER = 26, PARAMETER_SERVO0_HOME = 30, PARAMETER_SERVO0_MIN = 32, PARAMETER_SERVO0_MAX = 33,
  PARAMETER_SERVO0_NEUTRAL = 34, PARAMETER_SERVO0_RANGE = 36, PARAMETER_SERVO0_SPEED = 37, PARAMETER_SERVO0_ACCELERATION = 38,
  PARAMETER_SERVO1_HOME = 39, PARAMETER_SERVO1_MIN = 41, PARAMETER_SERVO1_MAX = 42, PARAMETER_SERVO1_NEUTRAL = 43,
  PARAMETER_SERVO1_RANGE = 45, PARAMETER_SERVO1_SPEED = 46, PARAMETER_SERVO1_ACCELERATION = 47, PARAMETER_SERVO2_HOME = 48,
  PARAMETER_SERVO2_MIN = 50, PARAMETER_SERVO2_MAX = 51, PARAMETER_SERVO2_NEUTRAL = 52, PARAMETER_SERVO2_RANGE = 54,
  PARAMETER_SERVO2_SPEED = 55, PARAMETER_SERVO2_ACCELERATION = 56, PARAMETER_SERVO3_HOME = 57, PARAMETER_SERVO3_MIN = 59,
  PARAMETER_SERVO3_MAX = 60, PARAMETER_SERVO3_NEUTRAL = 61, PARAMETER_SERVO3_RANGE = 63, PARAMETER_SERVO3_SPEED = 64,
  PARAMETER_SERVO3_ACCELERATION = 65, PARAMETER_SERVO4_HOME = 66, PARAMETER_SERVO4_MIN = 68, PARAMETER_SERVO4_MAX = 69,
  PARAMETER_SERVO4_NEUTRAL = 70, PARAMETER_SERVO4_RANGE = 72, PARAMETER_SERVO4_SPEED = 73, PARAMETER_SERVO4_ACCELERATION = 74,
  PARAMETER_SERVO5_HOME = 75, PARAMETER_SERVO5_MIN = 77, PARAMETER_SERVO5_MAX = 78, PARAMETER_SERVO5_NEUTRAL = 79,
  PARAMETER_SERVO5_RANGE = 81, PARAMETER_SERVO5_SPEED = 82, PARAMETER_SERVO5_ACCELERATION = 83
}
 The different parameters that can be read or written with REQUEST_GET_PARAMETER and REQUEST_SET_PARAMETER. These values should only be used by the Usc class. More...
enum  uscRequest {
  REQUEST_GET_PARAMETER = 0x81, REQUEST_SET_PARAMETER = 0x82, REQUEST_GET_VARIABLES = 0x83, REQUEST_SET_SERVO_VARIABLE = 0x84,
  REQUEST_SET_TARGET = 0x85, REQUEST_CLEAR_ERRORS = 0x86, REQUEST_GET_SERVO_SETTINGS = 0x87, REQUEST_GET_STACK = 0x88,
  REQUEST_GET_CALL_STACK = 0x89, REQUEST_SET_PWM = 0x8A, REQUEST_REINITIALIZE = 0x90, REQUEST_ERASE_SCRIPT = 0xA0,
  REQUEST_WRITE_SCRIPT = 0xA1, REQUEST_SET_SCRIPT_DONE = 0xA2, REQUEST_RESTART_SCRIPT_AT_SUBROUTINE = 0xA3, REQUEST_RESTART_SCRIPT_AT_SUBROUTINE_WITH_PARAMETER = 0xA4,
  REQUEST_RESTART_SCRIPT = 0xA5, REQUEST_START_BOOTLOADER = 0xFF
}
enum  uscSerialMode { SERIAL_MODE_USB_DUAL_PORT = 0, SERIAL_MODE_USB_CHAINED = 1, SERIAL_MODE_UART_DETECT_BAUD_RATE = 2, SERIAL_MODE_UART_FIXED_BAUD_RATE = 3 }
 The different serial modes the Maestro can be in. The serial mode determines how the Command Port, TTL Port, the TTL-level UART, and the command processor are connected. More...

Variables

const uint8_t servoParameterBytes = 9

Enumeration Type Documentation

enum ChannelMode
Enumerator:
Servo
ServoMultiplied
Output
Input

Definition at line 50 of file USBInterface.h.

enum HomeMode
Enumerator:
Off
Ignore
Goto

Definition at line 58 of file USBInterface.h.

enum uscParameter

The different parameters that can be read or written with REQUEST_GET_PARAMETER and REQUEST_SET_PARAMETER. These values should only be used by the Usc class.

Enumerator:
PARAMETER_INITIALIZED
PARAMETER_SERVOS_AVAILABLE
PARAMETER_SERVO_PERIOD
PARAMETER_SERIAL_MODE
PARAMETER_SERIAL_FIXED_BAUD_RATE
PARAMETER_SERIAL_TIMEOUT
PARAMETER_SERIAL_ENABLE_CRC
PARAMETER_SERIAL_NEVER_SUSPEND
PARAMETER_SERIAL_DEVICE_NUMBER
PARAMETER_SERIAL_BAUD_DETECT_TYPE
PARAMETER_IO_MASK_C
PARAMETER_OUTPUT_MASK_C
PARAMETER_CHANNEL_MODES_0_3
PARAMETER_CHANNEL_MODES_4_7
PARAMETER_CHANNEL_MODES_8_11
PARAMETER_CHANNEL_MODES_12_15
PARAMETER_CHANNEL_MODES_16_19
PARAMETER_CHANNEL_MODES_20_23
PARAMETER_MINI_MAESTRO_SERVO_PERIOD_L
PARAMETER_MINI_MAESTRO_SERVO_PERIOD_HU
PARAMETER_ENABLE_PULLUPS
PARAMETER_SCRIPT_CRC
PARAMETER_SCRIPT_DONE
PARAMETER_SERIAL_MINI_SSC_OFFSET
PARAMETER_SERVO_MULTIPLIER
PARAMETER_SERVO0_HOME
PARAMETER_SERVO0_MIN
PARAMETER_SERVO0_MAX
PARAMETER_SERVO0_NEUTRAL
PARAMETER_SERVO0_RANGE
PARAMETER_SERVO0_SPEED
PARAMETER_SERVO0_ACCELERATION
PARAMETER_SERVO1_HOME
PARAMETER_SERVO1_MIN
PARAMETER_SERVO1_MAX
PARAMETER_SERVO1_NEUTRAL
PARAMETER_SERVO1_RANGE
PARAMETER_SERVO1_SPEED
PARAMETER_SERVO1_ACCELERATION
PARAMETER_SERVO2_HOME
PARAMETER_SERVO2_MIN
PARAMETER_SERVO2_MAX
PARAMETER_SERVO2_NEUTRAL
PARAMETER_SERVO2_RANGE
PARAMETER_SERVO2_SPEED
PARAMETER_SERVO2_ACCELERATION
PARAMETER_SERVO3_HOME
PARAMETER_SERVO3_MIN
PARAMETER_SERVO3_MAX
PARAMETER_SERVO3_NEUTRAL
PARAMETER_SERVO3_RANGE
PARAMETER_SERVO3_SPEED
PARAMETER_SERVO3_ACCELERATION
PARAMETER_SERVO4_HOME
PARAMETER_SERVO4_MIN
PARAMETER_SERVO4_MAX
PARAMETER_SERVO4_NEUTRAL
PARAMETER_SERVO4_RANGE
PARAMETER_SERVO4_SPEED
PARAMETER_SERVO4_ACCELERATION
PARAMETER_SERVO5_HOME
PARAMETER_SERVO5_MIN
PARAMETER_SERVO5_MAX
PARAMETER_SERVO5_NEUTRAL
PARAMETER_SERVO5_RANGE
PARAMETER_SERVO5_SPEED
PARAMETER_SERVO5_ACCELERATION

Definition at line 437 of file USBInterface.h.

enum uscRequest
Enumerator:
REQUEST_GET_PARAMETER
REQUEST_SET_PARAMETER
REQUEST_GET_VARIABLES
REQUEST_SET_SERVO_VARIABLE
REQUEST_SET_TARGET
REQUEST_CLEAR_ERRORS
REQUEST_GET_SERVO_SETTINGS
REQUEST_GET_STACK
REQUEST_GET_CALL_STACK
REQUEST_SET_PWM
REQUEST_REINITIALIZE
REQUEST_ERASE_SCRIPT
REQUEST_WRITE_SCRIPT
REQUEST_SET_SCRIPT_DONE
REQUEST_RESTART_SCRIPT_AT_SUBROUTINE
REQUEST_RESTART_SCRIPT_AT_SUBROUTINE_WITH_PARAMETER
REQUEST_RESTART_SCRIPT
REQUEST_START_BOOTLOADER

Definition at line 101 of file USBInterface.h.

enum uscSerialMode

The different serial modes the Maestro can be in. The serial mode determines how the Command Port, TTL Port, the TTL-level UART, and the command processor are connected.

Enumerator:
SERIAL_MODE_USB_DUAL_PORT

summary>On the Command Port, user can send commands and receive responses. TTL port/UART are connected to make a USB-to-serial adapter. summary>On the Command Port, user can send commands to Maestro and simultaneously transmit bytes on the UART TX line, and user can receive bytes from the Maestro and the UART RX line. TTL port does not do anything.

SERIAL_MODE_USB_CHAINED
SERIAL_MODE_UART_DETECT_BAUD_RATE

On the UART, user can send commands and receive reponses after sending a 0xAA byte to indicate the baud rate. Command Port receives bytes from the RX line. TTL Port does not do anything.

SERIAL_MODE_UART_FIXED_BAUD_RATE

On the UART, user can send commands and receive reponses at a predetermined, fixed baud rate. Command Port receives bytes from the RX line. TTL Port does not do anything.

Definition at line 71 of file USBInterface.h.

Variable Documentation

const uint8_t servoParameterBytes = 9

Definition at line 513 of file USBInterface.h.
