isam::Slam Class Reference

#include <Slam.h>

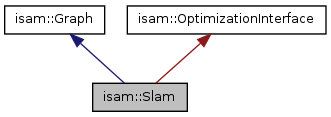

Inheritance diagram for isam::Slam:
Inheritance graph
[legend]

List of all members.

Public Member Functions

void add_factor (Factor *factor)
void add_node (Node *node)
virtual int batch_optimization ()
double chi2 (Selector s=ESTIMATE)
const Covariancescovariances ()
virtual const SparseSystemget_R () const
virtual SparseSystem jacobian ()
virtual SparseSystem jacobian_numerical_columnwise ()
virtual SparseSystem jacobian_partial (int last_n)
double local_chi2 (int last_n)
double normalized_chi2 ()
virtual void print_stats ()
Properties properties ()
void remove_factor (Factor *factor)
void remove_node (Node *node)
void save (const std::string fname) const
void set_cost_function (cost_func_t cost_func)
void set_properties (Properties prop)
 Slam ()
virtual UpdateStats update ()
Eigen::VectorXd weighted_errors (Selector s=ESTIMATE)
virtual ~Slam ()

Protected Attributes

int _dim_measure
int _dim_nodes
int _num_new_measurements
int _num_new_rows
Optimizer _opt

Private Member Functions

void apply_exmap (const Eigen::VectorXd &x)
virtual void batch_optimization_step ()
void estimate_to_linpoint ()
virtual void incremental_update ()
void linpoint_to_estimate ()
void self_exmap (const Eigen::VectorXd &x)
void swap_estimates ()
void update_starts ()

Private Attributes

cost_func_t _cost_func
Covariances _covariances
Properties _prop
bool _require_batch
int _step

Friends

class Covariances

Detailed Description

The actual SLAM interface.

Definition at line 66 of file Slam.h.


Constructor & Destructor Documentation

Default constructor.

Definition at line 69 of file Slam.cpp.

isam::Slam::~Slam ( ) [virtual]

Destructor.

Definition at line 80 of file Slam.cpp.


Member Function Documentation

void isam::Slam::add_factor ( Factor factor) [virtual]

Adds a factor (measurement) to the graph.

Parameters:
factorPointer to new factor.

Reimplemented from isam::Graph.

Definition at line 96 of file Slam.cpp.

void isam::Slam::add_node ( Node node) [virtual]

Adds a node (variable) to the graph.

Parameters:
nodePointer to new node.

Reimplemented from isam::Graph.

Definition at line 91 of file Slam.cpp.

void isam::Slam::apply_exmap ( const Eigen::VectorXd &  x) [private, virtual]

Apply a delta vector to the linearization point and store result as new estimate.

Implements isam::OptimizationInterface.

Definition at line 216 of file Slam.cpp.

int isam::Slam::batch_optimization ( ) [virtual]

Fully solve the system, iterating until convergence.

Returns:
Number of iterations performed.

Definition at line 198 of file Slam.cpp.

void isam::Slam::batch_optimization_step ( ) [private, virtual]

Resolve the system with linearization based on current estimate; perform variable reordering for efficiency.

Definition at line 147 of file Slam.cpp.

Weighted sum of squared errors, by default at the current estimate.

Definition at line 266 of file Slam.cpp.

Returns the Covariances object associated with this Slam object.

Returns:
Covariances object for access to estimation covariances.

Definition at line 391 of file Slam.cpp.

void isam::Slam::estimate_to_linpoint ( ) [private, virtual]

Set linearization point to current estimate.

Implements isam::OptimizationInterface.

Definition at line 242 of file Slam.cpp.

const SparseSystem & isam::Slam::get_R ( ) const [virtual]

Returns the current factor matrix.

Definition at line 291 of file Slam.cpp.

void isam::Slam::incremental_update ( ) [private, virtual]

Update the system with any newly added measurements. The measurements will be appended to the existing factor matrix, and the factor is transformed into triangular form again using Givens rotations. Very efficient for exploration O(1), but can be more expensive otherwise >O(n).

Definition at line 128 of file Slam.cpp.

Returns the measurement Jacobian of the SLAM system.

Returns:
Measurement Jacobian.

Implements isam::OptimizationInterface.

Definition at line 379 of file Slam.cpp.

Calculate the full Jacobian numerical (fast column-wise procedure).

Definition at line 297 of file Slam.cpp.

SparseSystem isam::Slam::jacobian_partial ( int  last_n) [virtual]

Returns the last n rows of the measurement Jacobian of the SLAM system.

Parameters:
last_nOnly return Jacobians of last n measurements (-1 returns all)
Returns:
Measurement Jacobian.

Definition at line 395 of file Slam.cpp.

void isam::Slam::linpoint_to_estimate ( ) [private, virtual]

Set current estimate to the linearization point (needed in dog leg).

Implements isam::OptimizationInterface.

Definition at line 236 of file Slam.cpp.

double isam::Slam::local_chi2 ( int  last_n)

Calculates the chi2 error of the last_n constraints.

Definition at line 270 of file Slam.cpp.

Calculates the normalized chi-square value (weighted sum of squared errors divided by degrees of freedom [# measurements - # variables]) for the estimate x.

Definition at line 287 of file Slam.cpp.

void isam::Slam::print_stats ( ) [virtual]

Print statistics for debugging.

Definition at line 434 of file Slam.cpp.

Returns a copy of the current properties.

Definition at line 92 of file Slam.h.

void isam::Slam::remove_factor ( Factor factor) [virtual]

Removes an factor (measurement) from the graph. Note that the factor itself is not deallocated. Be careful not to leave unconnected nodes behind.

Parameters:
factorPointer to factor.

Reimplemented from isam::Graph.

Definition at line 118 of file Slam.cpp.

void isam::Slam::remove_node ( Node node) [virtual]

Removes a node (variable) and all adjacent factors from the graph. Note that the node itself is not deallocated.

Parameters:
nodePointer to node.

Reimplemented from isam::Graph.

Definition at line 107 of file Slam.cpp.

void isam::Slam::save ( const std::string  fname) const

Saves the graph (nodes and factors).

Parameters:
fnameFilename with optional path to save graph to.

Definition at line 84 of file Slam.cpp.

void isam::Slam::self_exmap ( const Eigen::VectorXd &  x) [private, virtual]

Apply a delta vector directly to the linearization point.

Implements isam::OptimizationInterface.

Definition at line 226 of file Slam.cpp.

Sets a cost function different from the default (quadratic).

Parameters:
cost_funcPointer to cost function, see util.h for a list of robust cost functions. Instead of cost_squared, use NULL, which avoids calculating square roots.

Definition at line 212 of file Slam.cpp.

void isam::Slam::set_properties ( Properties  prop) [inline]

Sets new properties.

Definition at line 99 of file Slam.h.

void isam::Slam::swap_estimates ( ) [private, virtual]

Exchange linearization point and current estimate (needed in dog leg).

Implements isam::OptimizationInterface.

Definition at line 248 of file Slam.cpp.

Update the graph by finding new solution; depending on properties this might simply be a Givens update, could include a solve step, or be a full batch step with reordering.

Returns:
Update statistics.

Definition at line 157 of file Slam.cpp.

void isam::Slam::update_starts ( ) [private]

Definition at line 59 of file Slam.cpp.

VectorXd isam::Slam::weighted_errors ( Selector  s = ESTIMATE) [virtual]

Weighted non-squared error vector, by default at current estimate.

Implements isam::OptimizationInterface.

Definition at line 254 of file Slam.cpp.


Friends And Related Function Documentation

friend class Covariances [friend]

Definition at line 275 of file Slam.h.


Member Data Documentation

Definition at line 263 of file Slam.h.

Definition at line 73 of file Slam.h.

int isam::Slam::_dim_measure [protected]

Definition at line 269 of file Slam.h.

int isam::Slam::_dim_nodes [protected]

Definition at line 268 of file Slam.h.

Definition at line 270 of file Slam.h.

int isam::Slam::_num_new_rows [protected]

Definition at line 271 of file Slam.h.

Definition at line 273 of file Slam.h.

Definition at line 71 of file Slam.h.

Definition at line 261 of file Slam.h.

int isam::Slam::_step [private]

Definition at line 69 of file Slam.h.


The documentation for this class was generated from the following files:
