youbot::ActualCommutationOffset Class Reference

#include <YouBotJointParameterPasswordProtected.hpp>

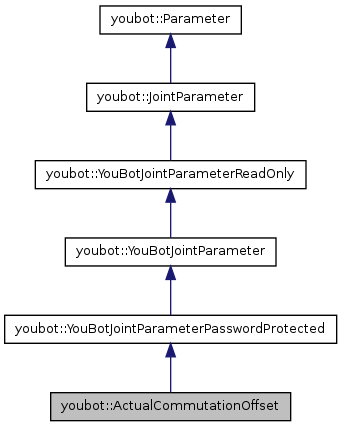

Inheritance diagram for youbot::ActualCommutationOffset:

List of all members.

Public Member Functions
	ActualCommutationOffset ()
void	getParameter (int &parameter) const
void	setParameter (const int parameter)
void	toString (std::string &value)
virtual	~ActualCommutationOffset ()
Private Member Functions
std::string	getName () const
ParameterType	getType () const
void	getYouBotMailboxMsg (YouBotSlaveMailboxMsg &message, TMCLCommandNumber msgType, const YouBotJointStorage &storage) const
void	setYouBotMailboxMsg (const YouBotSlaveMailboxMsg &message, const YouBotJointStorage &storage)
Private Attributes
int	lowerLimit
std::string	name
ParameterType	parameterType
int	upperLimit
int	value
Friends
class	YouBotJoint

---

Detailed Description

This value represents the internal commutation offset. (0 ... max. Encoder steps per rotation)

Definition at line 144 of file YouBotJointParameterPasswordProtected.hpp.

---

Constructor & Destructor Documentation

youbot::ActualCommutationOffset::ActualCommutationOffset

(

)

Definition at line 125 of file YouBotJointParameterPasswordProtected.cpp.

youbot::ActualCommutationOffset::~ActualCommutationOffset

(

)

[virtual]

Definition at line 135 of file YouBotJointParameterPasswordProtected.cpp.

---

Member Function Documentation

std::string youbot::ActualCommutationOffset::getName

(

)

const [inline, private, virtual]

Implements youbot::YouBotJointParameterPasswordProtected.

Definition at line 164 of file YouBotJointParameterPasswordProtected.hpp.

void youbot::ActualCommutationOffset::getParameter

(

int &

parameter

)

const

Definition at line 141 of file YouBotJointParameterPasswordProtected.cpp.

ParameterType youbot::ActualCommutationOffset::getType

(

)

const [inline, private, virtual]

Implements youbot::YouBotJointParameterPasswordProtected.

Definition at line 170 of file YouBotJointParameterPasswordProtected.hpp.

void youbot::ActualCommutationOffset::getYouBotMailboxMsg	(	YouBotSlaveMailboxMsg &	message,
		TMCLCommandNumber	msgType,
		const YouBotJointStorage &	storage
	)		const [private, virtual]

Implements youbot::YouBotJointParameterPasswordProtected.

Definition at line 173 of file YouBotJointParameterPasswordProtected.cpp.

void youbot::ActualCommutationOffset::setParameter

(

const int

parameter

)

Definition at line 148 of file YouBotJointParameterPasswordProtected.cpp.

void youbot::ActualCommutationOffset::setYouBotMailboxMsg	(	const YouBotSlaveMailboxMsg &	message,
		const YouBotJointStorage &	storage
	)		[private, virtual]

Implements youbot::YouBotJointParameterPasswordProtected.

Definition at line 186 of file YouBotJointParameterPasswordProtected.cpp.

void youbot::ActualCommutationOffset::toString

(

std::string &

value

)

[virtual]

Implements youbot::YouBotJointParameterPasswordProtected.

Definition at line 164 of file YouBotJointParameterPasswordProtected.cpp.

---

Friends And Related Function Documentation

friend class YouBotJoint [friend]

Reimplemented from youbot::YouBotJointParameterPasswordProtected.

Definition at line 146 of file YouBotJointParameterPasswordProtected.hpp.

---

Member Data Documentation

int youbot::ActualCommutationOffset::lowerLimit [private]

Definition at line 178 of file YouBotJointParameterPasswordProtected.hpp.

std::string youbot::ActualCommutationOffset::name [private]

Reimplemented from youbot::YouBotJointParameterPasswordProtected.

Definition at line 182 of file YouBotJointParameterPasswordProtected.hpp.

ParameterType youbot::ActualCommutationOffset::parameterType [private]

Reimplemented from youbot::YouBotJointParameterPasswordProtected.

Definition at line 184 of file YouBotJointParameterPasswordProtected.hpp.

int youbot::ActualCommutationOffset::upperLimit [private]

Definition at line 174 of file YouBotJointParameterPasswordProtected.hpp.

int youbot::ActualCommutationOffset::value [private]

Definition at line 180 of file YouBotJointParameterPasswordProtected.hpp.

---

The documentation for this class was generated from the following files:

• YouBotJointParameterPasswordProtected.hpp
• YouBotJointParameterPasswordProtected.cpp
