#include "utils/list.h"

Include dependency graph for wpa_i.h:

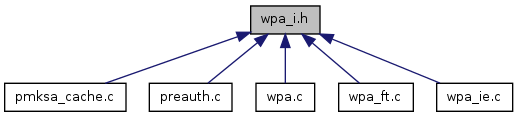

This graph shows which files directly or indirectly include this file:

Classes
struct	wpa_sm
Functions
int	wpa_derive_ptk_ft (struct wpa_sm sm, const unsigned char src_addr, const struct wpa_eapol_key key, struct wpa_ptk ptk, size_t ptk_len)
void	wpa_eapol_key_send (struct wpa_sm sm, const u8 kck, int ver, const u8 dest, u16 proto, u8 msg, size_t msg_len, u8 *key_mic)
static int	wpa_sm_add_pmkid (struct wpa_sm sm, const u8 bssid, const u8 *pmkid)
static u8 *	wpa_sm_alloc_eapol (struct wpa_sm sm, u8 type, const void data, u16 data_len, size_t msg_len, void *data_pos)
static void	wpa_sm_cancel_auth_timeout (struct wpa_sm *sm)
static void	wpa_sm_deauthenticate (struct wpa_sm *sm, int reason_code)
static void	wpa_sm_disassociate (struct wpa_sm *sm, int reason_code)
static int	wpa_sm_ether_send (struct wpa_sm sm, const u8 dest, u16 proto, const u8 *buf, size_t len)
static int	wpa_sm_get_beacon_ie (struct wpa_sm *sm)
static int	wpa_sm_get_bssid (struct wpa_sm sm, u8 bssid)
static void *	wpa_sm_get_network_ctx (struct wpa_sm *sm)
static enum wpa_states	wpa_sm_get_state (struct wpa_sm *sm)
static int	wpa_sm_mark_authenticated (struct wpa_sm sm, const u8 target_ap)
static int	wpa_sm_mlme_setprotection (struct wpa_sm sm, const u8 addr, int protect_type, int key_type)
static int	wpa_sm_remove_pmkid (struct wpa_sm sm, const u8 bssid, const u8 *pmkid)
static int	wpa_sm_send_ft_action (struct wpa_sm sm, u8 action, const u8 target_ap, const u8 *ies, size_t ies_len)
static int	wpa_sm_set_key (struct wpa_sm sm, enum wpa_alg alg, const u8 addr, int key_idx, int set_tx, const u8 seq, size_t seq_len, const u8 key, size_t key_len)
static void	wpa_sm_set_state (struct wpa_sm *sm, enum wpa_states state)
static int	wpa_sm_update_ft_ies (struct wpa_sm sm, const u8 md, const u8 *ies, size_t ies_len)
int	wpa_supplicant_send_2_of_4 (struct wpa_sm sm, const unsigned char dst, const struct wpa_eapol_key key, int ver, const u8 nonce, const u8 wpa_ie, size_t wpa_ie_len, struct wpa_ptk ptk)
int	wpa_supplicant_send_4_of_4 (struct wpa_sm sm, const unsigned char dst, const struct wpa_eapol_key key, u16 ver, u16 key_info, const u8 kde, size_t kde_len, struct wpa_ptk *ptk)

Function Documentation

int wpa_derive_ptk_ft	(	struct wpa_sm *	sm,
		const unsigned char *	src_addr,
		const struct wpa_eapol_key *	key,
		struct wpa_ptk *	ptk,
		size_t	ptk_len
	)

void wpa_eapol_key_send	(	struct wpa_sm *	sm,
		const u8 *	kck,
		int	ver,
		const u8 *	dest,
		u16	proto,
		u8 *	msg,
		size_t	msg_len,
		u8 *	key_mic
	)

wpa_eapol_key_send - Send WPA/RSN EAPOL-Key message : Pointer to WPA state machine data from wpa_sm_init() : Key Confirmation Key (KCK, part of PTK) : Version field from Key Info : Destination address for the frame : Ethertype (usually ETH_P_EAPOL) : EAPOL-Key message : Length of message : Pointer to the buffer to which the EAPOL-Key MIC is written

Definition at line 42 of file wpa.c.

static int wpa_sm_add_pmkid	(	struct wpa_sm *	sm,
		const u8 *	bssid,
		const u8 *	pmkid
	)		`[inline, static]`

Definition at line 192 of file wpa_i.h.

static u8* wpa_sm_alloc_eapol	(	struct wpa_sm *	sm,
		u8	type,
		const void *	data,
		u16	data_len,
		size_t *	msg_len,
		void **	data_pos
	)		`[inline, static]`

Definition at line 183 of file wpa_i.h.

static void wpa_sm_cancel_auth_timeout ( struct wpa_sm * sm ) [inline, static]

Definition at line 177 of file wpa_i.h.

static void wpa_sm_deauthenticate	(	struct wpa_sm *	sm,
		int	reason_code
	)		`[inline, static]`

Definition at line 130 of file wpa_i.h.

static void wpa_sm_disassociate	(	struct wpa_sm *	sm,
		int	reason_code
	)		`[inline, static]`

Definition at line 136 of file wpa_i.h.

static int wpa_sm_ether_send	(	struct wpa_sm *	sm,
		const u8 *	dest,
		u16	proto,
		const u8 *	buf,
		size_t	len
	)		`[inline, static]`

Definition at line 164 of file wpa_i.h.

static int wpa_sm_get_beacon_ie ( struct wpa_sm * sm ) [inline, static]

Definition at line 171 of file wpa_i.h.

static int wpa_sm_get_bssid	(	struct wpa_sm *	sm,
		u8 *	bssid
	)		`[inline, static]`

Definition at line 158 of file wpa_i.h.

static void* wpa_sm_get_network_ctx ( struct wpa_sm * sm ) [inline, static]

Definition at line 152 of file wpa_i.h.

static enum wpa_states wpa_sm_get_state ( struct wpa_sm * sm ) [inline, static]

Definition at line 124 of file wpa_i.h.

static int wpa_sm_mark_authenticated	(	struct wpa_sm *	sm,
		const u8 *	target_ap
	)		`[inline, static]`

Definition at line 232 of file wpa_i.h.

static int wpa_sm_mlme_setprotection	(	struct wpa_sm *	sm,
		const u8 *	addr,
		int	protect_type,
		int	key_type
	)		`[inline, static]`

Definition at line 206 of file wpa_i.h.

static int wpa_sm_remove_pmkid	(	struct wpa_sm *	sm,
		const u8 *	bssid,
		const u8 *	pmkid
	)		`[inline, static]`

Definition at line 199 of file wpa_i.h.

static int wpa_sm_send_ft_action	(	struct wpa_sm *	sm,
		u8	action,
		const u8 *	target_ap,
		const u8 *	ies,
		size_t	ies_len
	)		`[inline, static]`

Definition at line 222 of file wpa_i.h.

static int wpa_sm_set_key	(	struct wpa_sm *	sm,
		enum wpa_alg	alg,
		const u8 *	addr,
		int	key_idx,
		int	set_tx,
		const u8 *	seq,
		size_t	seq_len,
		const u8 *	key,
		size_t	key_len
	)		`[inline, static]`

Definition at line 142 of file wpa_i.h.

static void wpa_sm_set_state	(	struct wpa_sm *	sm,
		enum wpa_states	state
	)		`[inline, static]`

Definition at line 118 of file wpa_i.h.

static int wpa_sm_update_ft_ies	(	struct wpa_sm *	sm,
		const u8 *	md,
		const u8 *	ies,
		size_t	ies_len
	)		`[inline, static]`

Definition at line 214 of file wpa_i.h.

int wpa_supplicant_send_2_of_4	(	struct wpa_sm *	sm,
		const unsigned char *	dst,
		const struct wpa_eapol_key *	key,
		int	ver,
		const u8 *	nonce,
		const u8 *	wpa_ie,
		size_t	wpa_ie_len,
		struct wpa_ptk *	ptk
	)

wpa_supplicant_send_2_of_4 - Send message 2 of WPA/RSN 4-Way Handshake : Pointer to WPA state machine data from wpa_sm_init() : Destination address for the frame : Pointer to the EAPOL-Key frame header : Version bits from EAPOL-Key Key Info : Nonce value for the EAPOL-Key frame : WPA/RSN IE : Length of the WPA/RSN IE : PTK to use for keyed hash and encryption Returns: 0 on success, -1 on failure

Definition at line 255 of file wpa.c.

int wpa_supplicant_send_4_of_4	(	struct wpa_sm *	sm,
		const unsigned char *	dst,
		const struct wpa_eapol_key *	key,
		u16	ver,
		u16	key_info,
		const u8 *	kde,
		size_t	kde_len,
		struct wpa_ptk *	ptk
	)

wpa_supplicant_send_4_of_4 - Send message 4 of WPA/RSN 4-Way Handshake : Pointer to WPA state machine data from wpa_sm_init() : Destination address for the frame : Pointer to the EAPOL-Key frame header : Version bits from EAPOL-Key Key Info : Key Info : KDEs to include the EAPOL-Key frame : Length of KDEs : PTK to use for keyed hash and encryption Returns: 0 on success, -1 on failure

Definition at line 994 of file wpa.c.
