ieee802_11_defs.h File Reference

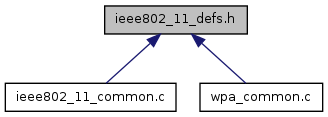

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  ieee80211_hdr
struct  ieee80211_ht_capabilities
struct  ieee80211_ht_operation
struct  ieee80211_mgmt
struct  wmm_ac_parameter
struct  wmm_information_element
struct  wmm_parameter_element
struct  wmm_tspec_element

Defines

#define ASEL_CAPABILITY_ANT_INDICES_FEEDBACK_BASED_TX_AS_CAP   ((u8) BIT(2))
#define ASEL_CAPABILITY_ANT_INDICES_FEEDBACK_CAP   ((u8) BIT(4))
#define ASEL_CAPABILITY_ASEL_CAPABLE   ((u8) BIT(0))
#define ASEL_CAPABILITY_EXPLICIT_CSI_FEEDBACK_BASED_TX_AS_CAP   ((u8) BIT(1))
#define ASEL_CAPABILITY_EXPLICIT_CSI_FEEDBACK_CAP   ((u8) BIT(3))
#define ASEL_CAPABILITY_RX_AS_CAP   ((u8) BIT(5))
#define ASEL_CAPABILITY_TX_SOUND_PPDUS_CAP   ((u8) BIT(6))
#define ERP_INFO_BARKER_PREAMBLE_MODE   BIT(2)
#define ERP_INFO_NON_ERP_PRESENT   BIT(0)
#define ERP_INFO_USE_PROTECTION   BIT(1)
#define EXT_HT_CAP_INFO_HTC_SUPPORTED   ((u16) BIT(10))
#define EXT_HT_CAP_INFO_MCS_FEEDBACK_OFFSET   8
#define EXT_HT_CAP_INFO_PCO   ((u16) BIT(0))
#define EXT_HT_CAP_INFO_RD_RESPONDER   ((u16) BIT(11))
#define EXT_HT_CAP_INFO_TRANS_TIME_OFFSET   1
#define HT_CAP_INFO_40MHZ_INTOLERANT   ((u16) BIT(14))
#define HT_CAP_INFO_DELAYED_BA   ((u16) BIT(10))
#define HT_CAP_INFO_DSSS_CCK40MHZ   ((u16) BIT(12))
#define HT_CAP_INFO_GREEN_FIELD   ((u16) BIT(4))
#define HT_CAP_INFO_LDPC_CODING_CAP   ((u16) BIT(0))
#define HT_CAP_INFO_LSIG_TXOP_PROTECT_SUPPORT   ((u16) BIT(15))
#define HT_CAP_INFO_MAX_AMSDU_SIZE   ((u16) BIT(11))
#define HT_CAP_INFO_PSMP_SUPP   ((u16) BIT(13))
#define HT_CAP_INFO_RX_STBC_1   ((u16) BIT(8))
#define HT_CAP_INFO_RX_STBC_12   ((u16) BIT(9))
#define HT_CAP_INFO_RX_STBC_123   ((u16) (BIT(8) | BIT(9)))
#define HT_CAP_INFO_RX_STBC_MASK   ((u16) (BIT(8) | BIT(9)))
#define HT_CAP_INFO_SHORT_GI20MHZ   ((u16) BIT(5))
#define HT_CAP_INFO_SHORT_GI40MHZ   ((u16) BIT(6))
#define HT_CAP_INFO_SMPS_DISABLED   ((u16) (BIT(2) | BIT(3)))
#define HT_CAP_INFO_SMPS_DYNAMIC   ((u16) BIT(2))
#define HT_CAP_INFO_SMPS_MASK   ((u16) (BIT(2) | BIT(3)))
#define HT_CAP_INFO_SMPS_STATIC   ((u16) 0)
#define HT_CAP_INFO_SUPP_CHANNEL_WIDTH_SET   ((u16) BIT(1))
#define HT_CAP_INFO_TX_STBC   ((u16) BIT(7))
#define HT_INFO_HT_PARAM_CTRL_ACCESS_ONLY   ((u8) BIT(4))
#define HT_INFO_HT_PARAM_REC_TRANS_CHNL_WIDTH   ((u8) BIT(2))
#define HT_INFO_HT_PARAM_RIFS_MODE   ((u8) BIT(3))
#define HT_INFO_HT_PARAM_SECONDARY_CHNL_ABOVE   ((u8) BIT(0))
#define HT_INFO_HT_PARAM_SECONDARY_CHNL_BELOW   ((u8) BIT(0) | BIT(1))
#define HT_INFO_HT_PARAM_SECONDARY_CHNL_OFF_MASK   ((u8) BIT(0) | BIT(1))
#define HT_INFO_HT_PARAM_SRV_INTERVAL_GRANULARITY   ((u8) BIT(5))
#define HT_INFO_OPERATION_MODE_NON_GF_DEVS_PRESENT   ((u8) BIT(2))
#define HT_INFO_OPERATION_MODE_NON_HT_STA_PRESENT   ((u8) BIT(4))
#define HT_INFO_OPERATION_MODE_OP_MODE_MASK   ((le16) (0x0001 | 0x0002))
#define HT_INFO_OPERATION_MODE_OP_MODE_OFFSET   0
#define HT_INFO_OPERATION_MODE_TRANSMIT_BURST_LIMIT   ((u8) BIT(3))
#define HT_INFO_STBC_PARAM_DUAL_BEACON   ((u16) BIT(6))
#define HT_INFO_STBC_PARAM_DUAL_STBC_PROTECT   ((u16) BIT(7))
#define HT_INFO_STBC_PARAM_LSIG_TXOP_PROTECT_ALLOWED   ((u16) BIT(9))
#define HT_INFO_STBC_PARAM_PCO_ACTIVE   ((u16) BIT(10))
#define HT_INFO_STBC_PARAM_PCO_PHASE   ((u16) BIT(11))
#define HT_INFO_STBC_PARAM_SECONDARY_BCN   ((u16) BIT(8))
#define IEEE80211_BSSID_FROMDS   addr2
#define IEEE80211_DA_FROMDS   addr1
#define IEEE80211_FC(type, stype)   host_to_le16((type << 2) | (stype << 4))
#define IEEE80211_HDRLEN   (sizeof(struct ieee80211_hdr))
#define IEEE80211_SA_FROMDS   addr3
#define OP_MODE_20MHZ_HT_STA_ASSOCED   2
#define OP_MODE_MAY_BE_LEGACY_STAS   1
#define OP_MODE_MIXED   3
#define OP_MODE_PURE   0
#define OUI_BROADCOM   0x00904c /* Broadcom (Epigram) */
#define OUI_MICROSOFT
#define TX_BEAMFORM_CAP_CALIB_OFFSET   6
#define TX_BEAMFORM_CAP_COMPRESSED_STEERING_MATRIX_BEAMFORMER_ANT_OFFSET   23
#define TX_BEAMFORM_CAP_CSI_NUM_BEAMFORMER_ANT_OFFSET   19
#define TX_BEAMFORM_CAP_EXPLICIT_BF_CSI_FEEDBACK_CAP   ((u32) BIT(10))
#define TX_BEAMFORM_CAP_EXPLICIT_BF_CSI_FEEDBACK_OFFSET   11
#define TX_BEAMFORM_CAP_EXPLICIT_COMPRESSED_STEERING_MATRIX_FEEDBACK_OFFSET   15
#define TX_BEAMFORM_CAP_EXPLICIT_CSI_TXBF_CAP   ((u32) BIT(8))
#define TX_BEAMFORM_CAP_EXPLICIT_UNCOMPR_STEERING_MATRIX_CAP   ((u32) BIT(9))
#define TX_BEAMFORM_CAP_EXPLICIT_UNCOMPR_STEERING_MATRIX_FEEDBACK_OFFSET   13
#define TX_BEAMFORM_CAP_IMPLICIT_ZLF_CAP   ((u32) BIT(5))
#define TX_BEAMFORM_CAP_MINIMAL_GROUPING_OFFSET   17
#define TX_BEAMFORM_CAP_RX_STAGGERED_SOUNDING_CAP   ((u32) BIT(1))
#define TX_BEAMFORM_CAP_RX_ZLF_CAP   ((u32) BIT(3))
#define TX_BEAMFORM_CAP_SCI_MAX_OF_ROWS_BEANFORMER_SUPPORTED_OFFSET   25
#define TX_BEAMFORM_CAP_TX_STAGGERED_SOUNDING_CAP   ((u32) BIT(2))
#define TX_BEAMFORM_CAP_TX_ZLF_CAP   ((u32) BIT(4))
#define TX_BEAMFORM_CAP_TXBF_CAP   ((u32) BIT(0))
#define TX_BEAMFORM_CAP_UNCOMPRESSED_STEERING_MATRIX_BEAMFORMER_ANT_OFFSET   21
#define VENDOR_HT_CAPAB_OUI_TYPE   0x33 /* 00-90-4c:0x33 */
#define WLAN_ACTION_BLOCK_ACK   3
#define WLAN_ACTION_DLS   2
#define WLAN_ACTION_FT   6
#define WLAN_ACTION_HT   7
#define WLAN_ACTION_PUBLIC   4
#define WLAN_ACTION_QOS   1
#define WLAN_ACTION_RADIO_MEASUREMENT   5
#define WLAN_ACTION_SA_QUERY   8
#define WLAN_ACTION_SPECTRUM_MGMT   0
#define WLAN_ACTION_WMM   17 /* WMM Specification 1.1 */
#define WLAN_AKM_SUITE_8021X   0x000FAC01
#define WLAN_AKM_SUITE_PSK   0x000FAC02
#define WLAN_AUTH_CHALLENGE_LEN   128
#define WLAN_AUTH_FT   2
#define WLAN_AUTH_LEAP   128
#define WLAN_AUTH_OPEN   0
#define WLAN_AUTH_SHARED_KEY   1
#define WLAN_CAPABILITY_CF_POLL_REQUEST   BIT(3)
#define WLAN_CAPABILITY_CF_POLLABLE   BIT(2)
#define WLAN_CAPABILITY_CHANNEL_AGILITY   BIT(7)
#define WLAN_CAPABILITY_DSSS_OFDM   BIT(13)
#define WLAN_CAPABILITY_ESS   BIT(0)
#define WLAN_CAPABILITY_IBSS   BIT(1)
#define WLAN_CAPABILITY_PBCC   BIT(6)
#define WLAN_CAPABILITY_PRIVACY   BIT(4)
#define WLAN_CAPABILITY_SHORT_PREAMBLE   BIT(5)
#define WLAN_CAPABILITY_SHORT_SLOT_TIME   BIT(10)
#define WLAN_CAPABILITY_SPECTRUM_MGMT   BIT(8)
#define WLAN_CIPHER_SUITE_AES_CMAC   0x000FAC06
#define WLAN_CIPHER_SUITE_CCMP   0x000FAC04
#define WLAN_CIPHER_SUITE_TKIP   0x000FAC02
#define WLAN_CIPHER_SUITE_USE_GROUP   0x000FAC00
#define WLAN_CIPHER_SUITE_WEP104   0x000FAC05
#define WLAN_CIPHER_SUITE_WEP40   0x000FAC01
#define WLAN_EID_20_40_BSS_COEXISTENCE   72
#define WLAN_EID_20_40_BSS_INTOLERANT   73
#define WLAN_EID_CF_PARAMS   4
#define WLAN_EID_CHALLENGE   16
#define WLAN_EID_CHANNEL_SWITCH   37
#define WLAN_EID_COUNTRY   7
#define WLAN_EID_DS_PARAMS   3
#define WLAN_EID_ERP_INFO   42
#define WLAN_EID_EXT_SUPP_RATES   50
#define WLAN_EID_FAST_BSS_TRANSITION   55
#define WLAN_EID_FH_PARAMS   2
#define WLAN_EID_HT_CAP   45
#define WLAN_EID_HT_OPERATION   61
#define WLAN_EID_IBSS_DFS   41
#define WLAN_EID_IBSS_PARAMS   6
#define WLAN_EID_MEASURE_REPORT   39
#define WLAN_EID_MEASURE_REQUEST   38
#define WLAN_EID_MMIE   76
#define WLAN_EID_MOBILITY_DOMAIN   54
#define WLAN_EID_OVERLAPPING_BSS_SCAN_PARAMS   74
#define WLAN_EID_PWR_CAPABILITY   33
#define WLAN_EID_PWR_CONSTRAINT   32
#define WLAN_EID_QUITE   40
#define WLAN_EID_RIC_DATA   57
#define WLAN_EID_RSN   48
#define WLAN_EID_SECONDARY_CHANNEL_OFFSET   62
#define WLAN_EID_SSID   0
#define WLAN_EID_SUPP_RATES   1
#define WLAN_EID_SUPPORTED_CHANNELS   36
#define WLAN_EID_TIM   5
#define WLAN_EID_TIMEOUT_INTERVAL   56
#define WLAN_EID_TPC_REPORT   35
#define WLAN_EID_TPC_REQUEST   34
#define WLAN_EID_VENDOR_SPECIFIC   221
#define WLAN_FC_FROMDS   0x0200
#define WLAN_FC_GET_STYPE(fc)   (((fc) & 0x00f0) >> 4)
#define WLAN_FC_GET_TYPE(fc)   (((fc) & 0x000c) >> 2)
#define WLAN_FC_ISWEP   0x4000
#define WLAN_FC_MOREDATA   0x2000
#define WLAN_FC_MOREFRAG   0x0400
#define WLAN_FC_ORDER   0x8000
#define WLAN_FC_PVER   0x0003
#define WLAN_FC_PWRMGT   0x1000
#define WLAN_FC_RETRY   0x0800
#define WLAN_FC_STYPE_ACK   13
#define WLAN_FC_STYPE_ACTION   13
#define WLAN_FC_STYPE_ASSOC_REQ   0
#define WLAN_FC_STYPE_ASSOC_RESP   1
#define WLAN_FC_STYPE_ATIM   9
#define WLAN_FC_STYPE_AUTH   11
#define WLAN_FC_STYPE_BEACON   8
#define WLAN_FC_STYPE_CFACK   5
#define WLAN_FC_STYPE_CFACKPOLL   7
#define WLAN_FC_STYPE_CFEND   14
#define WLAN_FC_STYPE_CFENDACK   15
#define WLAN_FC_STYPE_CFPOLL   6
#define WLAN_FC_STYPE_CTS   12
#define WLAN_FC_STYPE_DATA   0
#define WLAN_FC_STYPE_DATA_CFACK   1
#define WLAN_FC_STYPE_DATA_CFACKPOLL   3
#define WLAN_FC_STYPE_DATA_CFPOLL   2
#define WLAN_FC_STYPE_DEAUTH   12
#define WLAN_FC_STYPE_DISASSOC   10
#define WLAN_FC_STYPE_NULLFUNC   4
#define WLAN_FC_STYPE_PROBE_REQ   4
#define WLAN_FC_STYPE_PROBE_RESP   5
#define WLAN_FC_STYPE_PSPOLL   10
#define WLAN_FC_STYPE_QOS_DATA   8
#define WLAN_FC_STYPE_REASSOC_REQ   2
#define WLAN_FC_STYPE_REASSOC_RESP   3
#define WLAN_FC_STYPE_RTS   11
#define WLAN_FC_TODS   0x0100
#define WLAN_FC_TYPE_CTRL   1
#define WLAN_FC_TYPE_DATA   2
#define WLAN_FC_TYPE_MGMT   0
#define WLAN_GET_SEQ_FRAG(seq)   ((seq) & (BIT(3) | BIT(2) | BIT(1) | BIT(0)))
#define WLAN_GET_SEQ_SEQ(seq)   (((seq) & (~(BIT(3) | BIT(2) | BIT(1) | BIT(0)))) >> 4)
#define WLAN_REASON_4WAY_HANDSHAKE_TIMEOUT   15
#define WLAN_REASON_AKMP_NOT_VALID   20
#define WLAN_REASON_CIPHER_SUITE_REJECTED   24
#define WLAN_REASON_CLASS2_FRAME_FROM_NONAUTH_STA   6
#define WLAN_REASON_CLASS3_FRAME_FROM_NONASSOC_STA   7
#define WLAN_REASON_DEAUTH_LEAVING   3
#define WLAN_REASON_DISASSOC_AP_BUSY   5
#define WLAN_REASON_DISASSOC_DUE_TO_INACTIVITY   4
#define WLAN_REASON_DISASSOC_STA_HAS_LEFT   8
#define WLAN_REASON_GROUP_CIPHER_NOT_VALID   18
#define WLAN_REASON_GROUP_KEY_UPDATE_TIMEOUT   16
#define WLAN_REASON_IE_IN_4WAY_DIFFERS   17
#define WLAN_REASON_IEEE_802_1X_AUTH_FAILED   23
#define WLAN_REASON_INVALID_IE   13
#define WLAN_REASON_INVALID_RSN_IE_CAPAB   22
#define WLAN_REASON_MICHAEL_MIC_FAILURE   14
#define WLAN_REASON_PAIRWISE_CIPHER_NOT_VALID   19
#define WLAN_REASON_PREV_AUTH_NOT_VALID   2
#define WLAN_REASON_PWR_CAPABILITY_NOT_VALID   10
#define WLAN_REASON_STA_REQ_ASSOC_WITHOUT_AUTH   9
#define WLAN_REASON_SUPPORTED_CHANNEL_NOT_VALID   11
#define WLAN_REASON_UNSPECIFIED   1
#define WLAN_REASON_UNSUPPORTED_RSN_IE_VERSION   21
#define WLAN_SA_QUERY_REQUEST   0
#define WLAN_SA_QUERY_RESPONSE   1
#define WLAN_SA_QUERY_TR_ID_LEN   2
#define WLAN_STATUS_AKMP_NOT_VALID   43
#define WLAN_STATUS_AP_UNABLE_TO_HANDLE_NEW_STA   17
#define WLAN_STATUS_ASSOC_DENIED_LISTEN_INT_TOO_LARGE   51
#define WLAN_STATUS_ASSOC_DENIED_NO_DSSS_OFDM   27
#define WLAN_STATUS_ASSOC_DENIED_NO_ER_PBCC   26
#define WLAN_STATUS_ASSOC_DENIED_NO_SHORT_SLOT_TIME   25
#define WLAN_STATUS_ASSOC_DENIED_NOAGILITY   21
#define WLAN_STATUS_ASSOC_DENIED_NOPBCC   20
#define WLAN_STATUS_ASSOC_DENIED_NOSHORT   19
#define WLAN_STATUS_ASSOC_DENIED_RATES   18
#define WLAN_STATUS_ASSOC_DENIED_UNSPEC   12
#define WLAN_STATUS_ASSOC_REJECTED_TEMPORARILY   30
#define WLAN_STATUS_AUTH_TIMEOUT   16
#define WLAN_STATUS_CAPS_UNSUPPORTED   10
#define WLAN_STATUS_CHALLENGE_FAIL   15
#define WLAN_STATUS_CIPHER_REJECTED_PER_POLICY   46
#define WLAN_STATUS_DEST_STA_NOT_PRESENT   49
#define WLAN_STATUS_DEST_STA_NOT_QOS_STA   50
#define WLAN_STATUS_DIRECT_LINK_NOT_ALLOWED   48
#define WLAN_STATUS_GROUP_CIPHER_NOT_VALID   41
#define WLAN_STATUS_INVALID_FT_ACTION_FRAME_COUNT   52
#define WLAN_STATUS_INVALID_FTIE   55
#define WLAN_STATUS_INVALID_IE   40
#define WLAN_STATUS_INVALID_MDIE   54
#define WLAN_STATUS_INVALID_PARAMETERS   38
#define WLAN_STATUS_INVALID_PMKID   53
#define WLAN_STATUS_INVALID_RSN_IE_CAPAB   45
#define WLAN_STATUS_NOT_SUPPORTED_AUTH_ALG   13
#define WLAN_STATUS_PAIRWISE_CIPHER_NOT_VALID   42
#define WLAN_STATUS_PWR_CAPABILITY_NOT_VALID   23
#define WLAN_STATUS_R0KH_UNREACHABLE   28
#define WLAN_STATUS_REASSOC_NO_ASSOC   11
#define WLAN_STATUS_REQUEST_DECLINED   37
#define WLAN_STATUS_ROBUST_MGMT_FRAME_POLICY_VIOLATION   31
#define WLAN_STATUS_SPEC_MGMT_REQUIRED   22
#define WLAN_STATUS_SUCCESS   0
#define WLAN_STATUS_SUPPORTED_CHANNEL_NOT_VALID   24
#define WLAN_STATUS_TS_NOT_CREATED   47
#define WLAN_STATUS_UNKNOWN_AUTH_TRANSACTION   14
#define WLAN_STATUS_UNSPECIFIED_FAILURE   1
#define WLAN_STATUS_UNSPECIFIED_QOS_FAILURE   32
#define WLAN_STATUS_UNSUPPORTED_RSN_IE_VERSION   44
#define WLAN_TIMEOUT_ASSOC_COMEBACK   3
#define WLAN_TIMEOUT_KEY_LIFETIME   2
#define WLAN_TIMEOUT_REASSOC_DEADLINE   1
#define WMM_AC_ACI_MASK   0x60
#define WMM_AC_ACI_SHIFT   5
#define WMM_AC_ACM   0x10
#define WMM_AC_AIFNS_SHIFT   0
#define WMM_AC_AIFSN_MASK   0x0f
#define WMM_AC_ECWMAX_MASK   0xf0
#define WMM_AC_ECWMAX_SHIFT   4
#define WMM_AC_ECWMIN_MASK   0x0f
#define WMM_AC_ECWMIN_SHIFT   0
#define WMM_ACTION_CODE_ADDTS_REQ   0
#define WMM_ACTION_CODE_ADDTS_RESP   1
#define WMM_ACTION_CODE_DELTS   2
#define WMM_ADDTS_STATUS_ADMISSION_ACCEPTED   0
#define WMM_ADDTS_STATUS_INVALID_PARAMETERS   1
#define WMM_ADDTS_STATUS_REFUSED   3
#define WMM_OUI_SUBTYPE_INFORMATION_ELEMENT   0
#define WMM_OUI_SUBTYPE_PARAMETER_ELEMENT   1
#define WMM_OUI_SUBTYPE_TSPEC_ELEMENT   2
#define WMM_OUI_TYPE   2
#define WMM_TSPEC_DIRECTION_BI_DIRECTIONAL   3
#define WMM_TSPEC_DIRECTION_DOWNLINK   1
#define WMM_TSPEC_DIRECTION_UPLINK   0
#define WMM_VERSION   1
#define WPA_IE_VENDOR_TYPE   0x0050f201
#define WPS_IE_VENDOR_TYPE   0x0050f204

Enumerations

enum  { WMM_AC_BE = 0, WMM_AC_BK = 1, WMM_AC_VI = 2, WMM_AC_VO = 3 }

Variables

struct ieee80211_hdr STRUCT_PACKED

Define Documentation

Definition at line 442 of file ieee802_11_defs.h.

#define ASEL_CAPABILITY_ANT_INDICES_FEEDBACK_CAP   ((u8) BIT(4))

Definition at line 444 of file ieee802_11_defs.h.

#define ASEL_CAPABILITY_ASEL_CAPABLE   ((u8) BIT(0))

Definition at line 440 of file ieee802_11_defs.h.

Definition at line 441 of file ieee802_11_defs.h.

#define ASEL_CAPABILITY_EXPLICIT_CSI_FEEDBACK_CAP   ((u8) BIT(3))

Definition at line 443 of file ieee802_11_defs.h.

#define ASEL_CAPABILITY_RX_AS_CAP   ((u8) BIT(5))

Definition at line 445 of file ieee802_11_defs.h.

#define ASEL_CAPABILITY_TX_SOUND_PPDUS_CAP   ((u8) BIT(6))

Definition at line 446 of file ieee802_11_defs.h.

#define ERP_INFO_BARKER_PREAMBLE_MODE   BIT(2)

Definition at line 388 of file ieee802_11_defs.h.

#define ERP_INFO_NON_ERP_PRESENT   BIT(0)

Definition at line 386 of file ieee802_11_defs.h.

#define ERP_INFO_USE_PROTECTION   BIT(1)

Definition at line 387 of file ieee802_11_defs.h.

#define EXT_HT_CAP_INFO_HTC_SUPPORTED   ((u16) BIT(10))

Definition at line 416 of file ieee802_11_defs.h.

Definition at line 415 of file ieee802_11_defs.h.

#define EXT_HT_CAP_INFO_PCO   ((u16) BIT(0))

Definition at line 413 of file ieee802_11_defs.h.

#define EXT_HT_CAP_INFO_RD_RESPONDER   ((u16) BIT(11))

Definition at line 417 of file ieee802_11_defs.h.

Definition at line 414 of file ieee802_11_defs.h.

#define HT_CAP_INFO_40MHZ_INTOLERANT   ((u16) BIT(14))

Definition at line 409 of file ieee802_11_defs.h.

#define HT_CAP_INFO_DELAYED_BA   ((u16) BIT(10))

Definition at line 405 of file ieee802_11_defs.h.

#define HT_CAP_INFO_DSSS_CCK40MHZ   ((u16) BIT(12))

Definition at line 407 of file ieee802_11_defs.h.

#define HT_CAP_INFO_GREEN_FIELD   ((u16) BIT(4))

Definition at line 397 of file ieee802_11_defs.h.

#define HT_CAP_INFO_LDPC_CODING_CAP   ((u16) BIT(0))

Definition at line 391 of file ieee802_11_defs.h.

#define HT_CAP_INFO_LSIG_TXOP_PROTECT_SUPPORT   ((u16) BIT(15))

Definition at line 410 of file ieee802_11_defs.h.

#define HT_CAP_INFO_MAX_AMSDU_SIZE   ((u16) BIT(11))

Definition at line 406 of file ieee802_11_defs.h.

#define HT_CAP_INFO_PSMP_SUPP   ((u16) BIT(13))

Definition at line 408 of file ieee802_11_defs.h.

#define HT_CAP_INFO_RX_STBC_1   ((u16) BIT(8))

Definition at line 402 of file ieee802_11_defs.h.

#define HT_CAP_INFO_RX_STBC_12   ((u16) BIT(9))

Definition at line 403 of file ieee802_11_defs.h.

#define HT_CAP_INFO_RX_STBC_123   ((u16) (BIT(8) | BIT(9)))

Definition at line 404 of file ieee802_11_defs.h.

#define HT_CAP_INFO_RX_STBC_MASK   ((u16) (BIT(8) | BIT(9)))

Definition at line 401 of file ieee802_11_defs.h.

#define HT_CAP_INFO_SHORT_GI20MHZ   ((u16) BIT(5))

Definition at line 398 of file ieee802_11_defs.h.

#define HT_CAP_INFO_SHORT_GI40MHZ   ((u16) BIT(6))

Definition at line 399 of file ieee802_11_defs.h.

#define HT_CAP_INFO_SMPS_DISABLED   ((u16) (BIT(2) | BIT(3)))

Definition at line 396 of file ieee802_11_defs.h.

#define HT_CAP_INFO_SMPS_DYNAMIC   ((u16) BIT(2))

Definition at line 395 of file ieee802_11_defs.h.

#define HT_CAP_INFO_SMPS_MASK   ((u16) (BIT(2) | BIT(3)))

Definition at line 393 of file ieee802_11_defs.h.

#define HT_CAP_INFO_SMPS_STATIC   ((u16) 0)

Definition at line 394 of file ieee802_11_defs.h.

#define HT_CAP_INFO_SUPP_CHANNEL_WIDTH_SET   ((u16) BIT(1))

Definition at line 392 of file ieee802_11_defs.h.

#define HT_CAP_INFO_TX_STBC   ((u16) BIT(7))

Definition at line 400 of file ieee802_11_defs.h.

#define HT_INFO_HT_PARAM_CTRL_ACCESS_ONLY   ((u8) BIT(4))

Definition at line 453 of file ieee802_11_defs.h.

#define HT_INFO_HT_PARAM_REC_TRANS_CHNL_WIDTH   ((u8) BIT(2))

Definition at line 451 of file ieee802_11_defs.h.

#define HT_INFO_HT_PARAM_RIFS_MODE   ((u8) BIT(3))

Definition at line 452 of file ieee802_11_defs.h.

#define HT_INFO_HT_PARAM_SECONDARY_CHNL_ABOVE   ((u8) BIT(0))

Definition at line 449 of file ieee802_11_defs.h.

#define HT_INFO_HT_PARAM_SECONDARY_CHNL_BELOW   ((u8) BIT(0) | BIT(1))

Definition at line 450 of file ieee802_11_defs.h.

#define HT_INFO_HT_PARAM_SECONDARY_CHNL_OFF_MASK   ((u8) BIT(0) | BIT(1))

Definition at line 448 of file ieee802_11_defs.h.

#define HT_INFO_HT_PARAM_SRV_INTERVAL_GRANULARITY   ((u8) BIT(5))

Definition at line 454 of file ieee802_11_defs.h.

#define HT_INFO_OPERATION_MODE_NON_GF_DEVS_PRESENT   ((u8) BIT(2))

Definition at line 465 of file ieee802_11_defs.h.

#define HT_INFO_OPERATION_MODE_NON_HT_STA_PRESENT   ((u8) BIT(4))

Definition at line 467 of file ieee802_11_defs.h.

#define HT_INFO_OPERATION_MODE_OP_MODE_MASK   ((le16) (0x0001 | 0x0002))

Definition at line 462 of file ieee802_11_defs.h.

Definition at line 464 of file ieee802_11_defs.h.

#define HT_INFO_OPERATION_MODE_TRANSMIT_BURST_LIMIT   ((u8) BIT(3))

Definition at line 466 of file ieee802_11_defs.h.

#define HT_INFO_STBC_PARAM_DUAL_BEACON   ((u16) BIT(6))

Definition at line 469 of file ieee802_11_defs.h.

#define HT_INFO_STBC_PARAM_DUAL_STBC_PROTECT   ((u16) BIT(7))

Definition at line 470 of file ieee802_11_defs.h.

#define HT_INFO_STBC_PARAM_LSIG_TXOP_PROTECT_ALLOWED   ((u16) BIT(9))

Definition at line 472 of file ieee802_11_defs.h.

#define HT_INFO_STBC_PARAM_PCO_ACTIVE   ((u16) BIT(10))

Definition at line 473 of file ieee802_11_defs.h.

#define HT_INFO_STBC_PARAM_PCO_PHASE   ((u16) BIT(11))

Definition at line 474 of file ieee802_11_defs.h.

#define HT_INFO_STBC_PARAM_SECONDARY_BCN   ((u16) BIT(8))

Definition at line 471 of file ieee802_11_defs.h.

#define IEEE80211_BSSID_FROMDS   addr2

Definition at line 252 of file ieee802_11_defs.h.

#define IEEE80211_DA_FROMDS   addr1

Definition at line 251 of file ieee802_11_defs.h.

#define IEEE80211_FC (   type,
  stype
)    host_to_le16((type << 2) | (stype << 4))

Definition at line 257 of file ieee802_11_defs.h.

#define IEEE80211_HDRLEN   (sizeof(struct ieee80211_hdr))

Definition at line 255 of file ieee802_11_defs.h.

#define IEEE80211_SA_FROMDS   addr3

Definition at line 253 of file ieee802_11_defs.h.

Definition at line 459 of file ieee802_11_defs.h.

Definition at line 458 of file ieee802_11_defs.h.

#define OP_MODE_MIXED   3

Definition at line 460 of file ieee802_11_defs.h.

#define OP_MODE_PURE   0

Definition at line 457 of file ieee802_11_defs.h.

#define OUI_BROADCOM   0x00904c /* Broadcom (Epigram) */

Definition at line 589 of file ieee802_11_defs.h.

#define OUI_MICROSOFT
Value:
0x0050f2 /* Microsoft (also used in Wi-Fi specs)
                                * 00:50:F2 */

Definition at line 477 of file ieee802_11_defs.h.

Definition at line 426 of file ieee802_11_defs.h.

Definition at line 436 of file ieee802_11_defs.h.

Definition at line 434 of file ieee802_11_defs.h.

#define TX_BEAMFORM_CAP_EXPLICIT_BF_CSI_FEEDBACK_CAP   ((u32) BIT(10))

Definition at line 429 of file ieee802_11_defs.h.

Definition at line 430 of file ieee802_11_defs.h.

Definition at line 432 of file ieee802_11_defs.h.

#define TX_BEAMFORM_CAP_EXPLICIT_CSI_TXBF_CAP   ((u32) BIT(8))

Definition at line 427 of file ieee802_11_defs.h.

Definition at line 428 of file ieee802_11_defs.h.

Definition at line 431 of file ieee802_11_defs.h.

#define TX_BEAMFORM_CAP_IMPLICIT_ZLF_CAP   ((u32) BIT(5))

Definition at line 425 of file ieee802_11_defs.h.

Definition at line 433 of file ieee802_11_defs.h.

#define TX_BEAMFORM_CAP_RX_STAGGERED_SOUNDING_CAP   ((u32) BIT(1))

Definition at line 421 of file ieee802_11_defs.h.

#define TX_BEAMFORM_CAP_RX_ZLF_CAP   ((u32) BIT(3))

Definition at line 423 of file ieee802_11_defs.h.

Definition at line 437 of file ieee802_11_defs.h.

#define TX_BEAMFORM_CAP_TX_STAGGERED_SOUNDING_CAP   ((u32) BIT(2))

Definition at line 422 of file ieee802_11_defs.h.

#define TX_BEAMFORM_CAP_TX_ZLF_CAP   ((u32) BIT(4))

Definition at line 424 of file ieee802_11_defs.h.

#define TX_BEAMFORM_CAP_TXBF_CAP   ((u32) BIT(0))

Definition at line 420 of file ieee802_11_defs.h.

Definition at line 435 of file ieee802_11_defs.h.

#define VENDOR_HT_CAPAB_OUI_TYPE   0x33 /* 00-90-4c:0x33 */

Definition at line 591 of file ieee802_11_defs.h.

#define WLAN_ACTION_BLOCK_ACK   3

Definition at line 216 of file ieee802_11_defs.h.

#define WLAN_ACTION_DLS   2

Definition at line 215 of file ieee802_11_defs.h.

#define WLAN_ACTION_FT   6

Definition at line 219 of file ieee802_11_defs.h.

#define WLAN_ACTION_HT   7

Definition at line 220 of file ieee802_11_defs.h.

#define WLAN_ACTION_PUBLIC   4

Definition at line 217 of file ieee802_11_defs.h.

#define WLAN_ACTION_QOS   1

Definition at line 214 of file ieee802_11_defs.h.

Definition at line 218 of file ieee802_11_defs.h.

#define WLAN_ACTION_SA_QUERY   8

Definition at line 221 of file ieee802_11_defs.h.

#define WLAN_ACTION_SPECTRUM_MGMT   0

Definition at line 213 of file ieee802_11_defs.h.

#define WLAN_ACTION_WMM   17 /* WMM Specification 1.1 */

Definition at line 222 of file ieee802_11_defs.h.

#define WLAN_AKM_SUITE_8021X   0x000FAC01

Definition at line 603 of file ieee802_11_defs.h.

#define WLAN_AKM_SUITE_PSK   0x000FAC02

Definition at line 604 of file ieee802_11_defs.h.

#define WLAN_AUTH_CHALLENGE_LEN   128

Definition at line 81 of file ieee802_11_defs.h.

#define WLAN_AUTH_FT   2

Definition at line 78 of file ieee802_11_defs.h.

#define WLAN_AUTH_LEAP   128

Definition at line 79 of file ieee802_11_defs.h.

#define WLAN_AUTH_OPEN   0

Definition at line 76 of file ieee802_11_defs.h.

#define WLAN_AUTH_SHARED_KEY   1

Definition at line 77 of file ieee802_11_defs.h.

#define WLAN_CAPABILITY_CF_POLL_REQUEST   BIT(3)

Definition at line 86 of file ieee802_11_defs.h.

#define WLAN_CAPABILITY_CF_POLLABLE   BIT(2)

Definition at line 85 of file ieee802_11_defs.h.

#define WLAN_CAPABILITY_CHANNEL_AGILITY   BIT(7)

Definition at line 90 of file ieee802_11_defs.h.

#define WLAN_CAPABILITY_DSSS_OFDM   BIT(13)

Definition at line 93 of file ieee802_11_defs.h.

#define WLAN_CAPABILITY_ESS   BIT(0)

Definition at line 83 of file ieee802_11_defs.h.

#define WLAN_CAPABILITY_IBSS   BIT(1)

Definition at line 84 of file ieee802_11_defs.h.

#define WLAN_CAPABILITY_PBCC   BIT(6)

Definition at line 89 of file ieee802_11_defs.h.

#define WLAN_CAPABILITY_PRIVACY   BIT(4)

Definition at line 87 of file ieee802_11_defs.h.

#define WLAN_CAPABILITY_SHORT_PREAMBLE   BIT(5)

Definition at line 88 of file ieee802_11_defs.h.

#define WLAN_CAPABILITY_SHORT_SLOT_TIME   BIT(10)

Definition at line 92 of file ieee802_11_defs.h.

#define WLAN_CAPABILITY_SPECTRUM_MGMT   BIT(8)

Definition at line 91 of file ieee802_11_defs.h.

#define WLAN_CIPHER_SUITE_AES_CMAC   0x000FAC06

Definition at line 600 of file ieee802_11_defs.h.

#define WLAN_CIPHER_SUITE_CCMP   0x000FAC04

Definition at line 598 of file ieee802_11_defs.h.

#define WLAN_CIPHER_SUITE_TKIP   0x000FAC02

Definition at line 596 of file ieee802_11_defs.h.

#define WLAN_CIPHER_SUITE_USE_GROUP   0x000FAC00

Definition at line 594 of file ieee802_11_defs.h.

#define WLAN_CIPHER_SUITE_WEP104   0x000FAC05

Definition at line 599 of file ieee802_11_defs.h.

#define WLAN_CIPHER_SUITE_WEP40   0x000FAC01

Definition at line 595 of file ieee802_11_defs.h.

Definition at line 205 of file ieee802_11_defs.h.

Definition at line 206 of file ieee802_11_defs.h.

#define WLAN_EID_CF_PARAMS   4

Definition at line 178 of file ieee802_11_defs.h.

#define WLAN_EID_CHALLENGE   16

Definition at line 182 of file ieee802_11_defs.h.

#define WLAN_EID_CHANNEL_SWITCH   37

Definition at line 189 of file ieee802_11_defs.h.

#define WLAN_EID_COUNTRY   7

Definition at line 181 of file ieee802_11_defs.h.

#define WLAN_EID_DS_PARAMS   3

Definition at line 177 of file ieee802_11_defs.h.

#define WLAN_EID_ERP_INFO   42

Definition at line 195 of file ieee802_11_defs.h.

#define WLAN_EID_EXT_SUPP_RATES   50

Definition at line 198 of file ieee802_11_defs.h.

Definition at line 200 of file ieee802_11_defs.h.

#define WLAN_EID_FH_PARAMS   2

Definition at line 176 of file ieee802_11_defs.h.

#define WLAN_EID_HT_CAP   45

Definition at line 196 of file ieee802_11_defs.h.

#define WLAN_EID_HT_OPERATION   61

Definition at line 203 of file ieee802_11_defs.h.

#define WLAN_EID_IBSS_DFS   41

Definition at line 193 of file ieee802_11_defs.h.

#define WLAN_EID_IBSS_PARAMS   6

Definition at line 180 of file ieee802_11_defs.h.

#define WLAN_EID_MEASURE_REPORT   39

Definition at line 191 of file ieee802_11_defs.h.

#define WLAN_EID_MEASURE_REQUEST   38

Definition at line 190 of file ieee802_11_defs.h.

#define WLAN_EID_MMIE   76

Definition at line 208 of file ieee802_11_defs.h.

#define WLAN_EID_MOBILITY_DOMAIN   54

Definition at line 199 of file ieee802_11_defs.h.

Definition at line 207 of file ieee802_11_defs.h.

#define WLAN_EID_PWR_CAPABILITY   33

Definition at line 185 of file ieee802_11_defs.h.

#define WLAN_EID_PWR_CONSTRAINT   32

Definition at line 184 of file ieee802_11_defs.h.

#define WLAN_EID_QUITE   40

Definition at line 192 of file ieee802_11_defs.h.

#define WLAN_EID_RIC_DATA   57

Definition at line 202 of file ieee802_11_defs.h.

#define WLAN_EID_RSN   48

Definition at line 197 of file ieee802_11_defs.h.

Definition at line 204 of file ieee802_11_defs.h.

#define WLAN_EID_SSID   0

Definition at line 174 of file ieee802_11_defs.h.

#define WLAN_EID_SUPP_RATES   1

Definition at line 175 of file ieee802_11_defs.h.

#define WLAN_EID_SUPPORTED_CHANNELS   36

Definition at line 188 of file ieee802_11_defs.h.

#define WLAN_EID_TIM   5

Definition at line 179 of file ieee802_11_defs.h.

#define WLAN_EID_TIMEOUT_INTERVAL   56

Definition at line 201 of file ieee802_11_defs.h.

#define WLAN_EID_TPC_REPORT   35

Definition at line 187 of file ieee802_11_defs.h.

#define WLAN_EID_TPC_REQUEST   34

Definition at line 186 of file ieee802_11_defs.h.

#define WLAN_EID_VENDOR_SPECIFIC   221

Definition at line 209 of file ieee802_11_defs.h.

#define WLAN_FC_FROMDS   0x0200

Definition at line 23 of file ieee802_11_defs.h.

#define WLAN_FC_GET_STYPE (   fc)    (((fc) & 0x00f0) >> 4)

Definition at line 32 of file ieee802_11_defs.h.

#define WLAN_FC_GET_TYPE (   fc)    (((fc) & 0x000c) >> 2)

Definition at line 31 of file ieee802_11_defs.h.

#define WLAN_FC_ISWEP   0x4000

Definition at line 28 of file ieee802_11_defs.h.

#define WLAN_FC_MOREDATA   0x2000

Definition at line 27 of file ieee802_11_defs.h.

#define WLAN_FC_MOREFRAG   0x0400

Definition at line 24 of file ieee802_11_defs.h.

#define WLAN_FC_ORDER   0x8000

Definition at line 29 of file ieee802_11_defs.h.

#define WLAN_FC_PVER   0x0003

Definition at line 21 of file ieee802_11_defs.h.

#define WLAN_FC_PWRMGT   0x1000

Definition at line 26 of file ieee802_11_defs.h.

#define WLAN_FC_RETRY   0x0800

Definition at line 25 of file ieee802_11_defs.h.

#define WLAN_FC_STYPE_ACK   13

Definition at line 60 of file ieee802_11_defs.h.

#define WLAN_FC_STYPE_ACTION   13

Definition at line 54 of file ieee802_11_defs.h.

#define WLAN_FC_STYPE_ASSOC_REQ   0

Definition at line 43 of file ieee802_11_defs.h.

#define WLAN_FC_STYPE_ASSOC_RESP   1

Definition at line 44 of file ieee802_11_defs.h.

#define WLAN_FC_STYPE_ATIM   9

Definition at line 50 of file ieee802_11_defs.h.

#define WLAN_FC_STYPE_AUTH   11

Definition at line 52 of file ieee802_11_defs.h.

#define WLAN_FC_STYPE_BEACON   8

Definition at line 49 of file ieee802_11_defs.h.

#define WLAN_FC_STYPE_CFACK   5

Definition at line 70 of file ieee802_11_defs.h.

#define WLAN_FC_STYPE_CFACKPOLL   7

Definition at line 72 of file ieee802_11_defs.h.

#define WLAN_FC_STYPE_CFEND   14

Definition at line 61 of file ieee802_11_defs.h.

#define WLAN_FC_STYPE_CFENDACK   15

Definition at line 62 of file ieee802_11_defs.h.

#define WLAN_FC_STYPE_CFPOLL   6

Definition at line 71 of file ieee802_11_defs.h.

#define WLAN_FC_STYPE_CTS   12

Definition at line 59 of file ieee802_11_defs.h.

#define WLAN_FC_STYPE_DATA   0

Definition at line 65 of file ieee802_11_defs.h.

#define WLAN_FC_STYPE_DATA_CFACK   1

Definition at line 66 of file ieee802_11_defs.h.

Definition at line 68 of file ieee802_11_defs.h.

#define WLAN_FC_STYPE_DATA_CFPOLL   2

Definition at line 67 of file ieee802_11_defs.h.

#define WLAN_FC_STYPE_DEAUTH   12

Definition at line 53 of file ieee802_11_defs.h.

#define WLAN_FC_STYPE_DISASSOC   10

Definition at line 51 of file ieee802_11_defs.h.

#define WLAN_FC_STYPE_NULLFUNC   4

Definition at line 69 of file ieee802_11_defs.h.

#define WLAN_FC_STYPE_PROBE_REQ   4

Definition at line 47 of file ieee802_11_defs.h.

#define WLAN_FC_STYPE_PROBE_RESP   5

Definition at line 48 of file ieee802_11_defs.h.

#define WLAN_FC_STYPE_PSPOLL   10

Definition at line 57 of file ieee802_11_defs.h.

#define WLAN_FC_STYPE_QOS_DATA   8

Definition at line 73 of file ieee802_11_defs.h.

#define WLAN_FC_STYPE_REASSOC_REQ   2

Definition at line 45 of file ieee802_11_defs.h.

Definition at line 46 of file ieee802_11_defs.h.

#define WLAN_FC_STYPE_RTS   11

Definition at line 58 of file ieee802_11_defs.h.

#define WLAN_FC_TODS   0x0100

Definition at line 22 of file ieee802_11_defs.h.

#define WLAN_FC_TYPE_CTRL   1

Definition at line 39 of file ieee802_11_defs.h.

#define WLAN_FC_TYPE_DATA   2

Definition at line 40 of file ieee802_11_defs.h.

#define WLAN_FC_TYPE_MGMT   0

Definition at line 38 of file ieee802_11_defs.h.

#define WLAN_GET_SEQ_FRAG (   seq)    ((seq) & (BIT(3) | BIT(2) | BIT(1) | BIT(0)))

Definition at line 34 of file ieee802_11_defs.h.

#define WLAN_GET_SEQ_SEQ (   seq)    (((seq) & (~(BIT(3) | BIT(2) | BIT(1) | BIT(0)))) >> 4)

Definition at line 35 of file ieee802_11_defs.h.

Definition at line 161 of file ieee802_11_defs.h.

#define WLAN_REASON_AKMP_NOT_VALID   20

Definition at line 166 of file ieee802_11_defs.h.

Definition at line 170 of file ieee802_11_defs.h.

Definition at line 151 of file ieee802_11_defs.h.

Definition at line 152 of file ieee802_11_defs.h.

Definition at line 148 of file ieee802_11_defs.h.

Definition at line 150 of file ieee802_11_defs.h.

Definition at line 149 of file ieee802_11_defs.h.

Definition at line 153 of file ieee802_11_defs.h.

Definition at line 164 of file ieee802_11_defs.h.

Definition at line 162 of file ieee802_11_defs.h.

Definition at line 163 of file ieee802_11_defs.h.

Definition at line 169 of file ieee802_11_defs.h.

#define WLAN_REASON_INVALID_IE   13

Definition at line 159 of file ieee802_11_defs.h.

Definition at line 168 of file ieee802_11_defs.h.

Definition at line 160 of file ieee802_11_defs.h.

Definition at line 165 of file ieee802_11_defs.h.

Definition at line 147 of file ieee802_11_defs.h.

Definition at line 156 of file ieee802_11_defs.h.

Definition at line 154 of file ieee802_11_defs.h.

Definition at line 157 of file ieee802_11_defs.h.

#define WLAN_REASON_UNSPECIFIED   1

Definition at line 146 of file ieee802_11_defs.h.

Definition at line 167 of file ieee802_11_defs.h.

#define WLAN_SA_QUERY_REQUEST   0

Definition at line 225 of file ieee802_11_defs.h.

#define WLAN_SA_QUERY_RESPONSE   1

Definition at line 226 of file ieee802_11_defs.h.

#define WLAN_SA_QUERY_TR_ID_LEN   2

Definition at line 228 of file ieee802_11_defs.h.

#define WLAN_STATUS_AKMP_NOT_VALID   43

Definition at line 130 of file ieee802_11_defs.h.

Definition at line 105 of file ieee802_11_defs.h.

Definition at line 138 of file ieee802_11_defs.h.

Definition at line 118 of file ieee802_11_defs.h.

Definition at line 117 of file ieee802_11_defs.h.

Definition at line 116 of file ieee802_11_defs.h.

Definition at line 110 of file ieee802_11_defs.h.

Definition at line 109 of file ieee802_11_defs.h.

Definition at line 108 of file ieee802_11_defs.h.

Definition at line 106 of file ieee802_11_defs.h.

Definition at line 100 of file ieee802_11_defs.h.

Definition at line 121 of file ieee802_11_defs.h.

#define WLAN_STATUS_AUTH_TIMEOUT   16

Definition at line 104 of file ieee802_11_defs.h.

Definition at line 98 of file ieee802_11_defs.h.

#define WLAN_STATUS_CHALLENGE_FAIL   15

Definition at line 103 of file ieee802_11_defs.h.

Definition at line 133 of file ieee802_11_defs.h.

Definition at line 136 of file ieee802_11_defs.h.

Definition at line 137 of file ieee802_11_defs.h.

Definition at line 135 of file ieee802_11_defs.h.

Definition at line 128 of file ieee802_11_defs.h.

Definition at line 140 of file ieee802_11_defs.h.

#define WLAN_STATUS_INVALID_FTIE   55

Definition at line 143 of file ieee802_11_defs.h.

#define WLAN_STATUS_INVALID_IE   40

Definition at line 127 of file ieee802_11_defs.h.

#define WLAN_STATUS_INVALID_MDIE   54

Definition at line 142 of file ieee802_11_defs.h.

Definition at line 125 of file ieee802_11_defs.h.

#define WLAN_STATUS_INVALID_PMKID   53

Definition at line 141 of file ieee802_11_defs.h.

Definition at line 132 of file ieee802_11_defs.h.

Definition at line 101 of file ieee802_11_defs.h.

Definition at line 129 of file ieee802_11_defs.h.

Definition at line 113 of file ieee802_11_defs.h.

Definition at line 119 of file ieee802_11_defs.h.

Definition at line 99 of file ieee802_11_defs.h.

Definition at line 124 of file ieee802_11_defs.h.

Definition at line 122 of file ieee802_11_defs.h.

Definition at line 112 of file ieee802_11_defs.h.

#define WLAN_STATUS_SUCCESS   0

Definition at line 96 of file ieee802_11_defs.h.

Definition at line 114 of file ieee802_11_defs.h.

#define WLAN_STATUS_TS_NOT_CREATED   47

Definition at line 134 of file ieee802_11_defs.h.

Definition at line 102 of file ieee802_11_defs.h.

Definition at line 97 of file ieee802_11_defs.h.

Definition at line 123 of file ieee802_11_defs.h.

Definition at line 131 of file ieee802_11_defs.h.

Definition at line 233 of file ieee802_11_defs.h.

#define WLAN_TIMEOUT_KEY_LIFETIME   2

Definition at line 232 of file ieee802_11_defs.h.

Definition at line 231 of file ieee802_11_defs.h.

#define WMM_AC_ACI_MASK   0x60

Definition at line 521 of file ieee802_11_defs.h.

#define WMM_AC_ACI_SHIFT   5

Definition at line 522 of file ieee802_11_defs.h.

#define WMM_AC_ACM   0x10

Definition at line 520 of file ieee802_11_defs.h.

#define WMM_AC_AIFNS_SHIFT   0

Definition at line 519 of file ieee802_11_defs.h.

#define WMM_AC_AIFSN_MASK   0x0f

Definition at line 518 of file ieee802_11_defs.h.

#define WMM_AC_ECWMAX_MASK   0xf0

Definition at line 526 of file ieee802_11_defs.h.

#define WMM_AC_ECWMAX_SHIFT   4

Definition at line 527 of file ieee802_11_defs.h.

#define WMM_AC_ECWMIN_MASK   0x0f

Definition at line 524 of file ieee802_11_defs.h.

#define WMM_AC_ECWMIN_SHIFT   0

Definition at line 525 of file ieee802_11_defs.h.

#define WMM_ACTION_CODE_ADDTS_REQ   0

Definition at line 487 of file ieee802_11_defs.h.

Definition at line 488 of file ieee802_11_defs.h.

#define WMM_ACTION_CODE_DELTS   2

Definition at line 489 of file ieee802_11_defs.h.

Definition at line 491 of file ieee802_11_defs.h.

Definition at line 492 of file ieee802_11_defs.h.

#define WMM_ADDTS_STATUS_REFUSED   3

Definition at line 494 of file ieee802_11_defs.h.

Definition at line 482 of file ieee802_11_defs.h.

Definition at line 483 of file ieee802_11_defs.h.

Definition at line 484 of file ieee802_11_defs.h.

#define WMM_OUI_TYPE   2

Definition at line 481 of file ieee802_11_defs.h.

Definition at line 501 of file ieee802_11_defs.h.

Definition at line 499 of file ieee802_11_defs.h.

Definition at line 498 of file ieee802_11_defs.h.

#define WMM_VERSION   1

Definition at line 485 of file ieee802_11_defs.h.

#define WPA_IE_VENDOR_TYPE   0x0050f201

Definition at line 478 of file ieee802_11_defs.h.

#define WPS_IE_VENDOR_TYPE   0x0050f204

Definition at line 479 of file ieee802_11_defs.h.


Enumeration Type Documentation

anonymous enum
Enumerator:
WMM_AC_BE
WMM_AC_BK
WMM_AC_VI
WMM_AC_VO

Definition at line 581 of file ieee802_11_defs.h.


Variable Documentation



wpa_supplicant
Author(s): Package maintained by Blaise Gassend
autogenerated on Thu Jan 2 2014 11:26:42
