plumesim::PSSource Class Reference

Base class for all the plume source algorithms. More...

#include <PSSources.h>

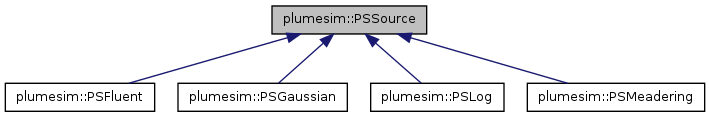

Inheritance diagram for plumesim::PSSource:

List of all members.

Public Member Functions
bool	ChangesOverTime ()
	If the class is time invariant or not.
virtual int	cleanup ()
	Virtual function for cleaning up the class.
virtual int	generatePoints ()
	Virtual function for generating plume points.
virtual int	getChemicalReading (PSPoint3d *point, PSOdorData *odor_data)
	Virtual function for reading a single chemical point based on the robot current position.
bool	IsPlaying ()
	If the class is still processing data.
	PSSource ()
	PSSource constructor.
virtual int	setup ()
	Virtual function for setting up the class.
	~PSSource ()
	PSSource destructor.
Public Attributes
std::vector< PSPoint3d >	plumePoints
Protected Member Functions
int	countPoints (PSPoint3d *center, double radius)
	Counts the plume points inside a sphere.
float	drand ()
	Uniform distribution, [0 ... 1].
double	randomNormal ()
	Normal distribution, centered on 0, std dev 1.
Protected Attributes
bool	changesOverTime
bool	isPlaying

---

Detailed Description

Base class for all the plume source algorithms.

Definition at line 123 of file PSSources.h.

---

Constructor & Destructor Documentation

plumesim::PSSource::PSSource

(

)

PSSource constructor.

This is the class constructor.

Definition at line 46 of file PSSource.cpp.

plumesim::PSSource::~PSSource

(

)

PSSource destructor.

This is the class destructor.

Definition at line 53 of file PSSource.cpp.

---

Member Function Documentation

bool plumesim::PSSource::ChangesOverTime

(

)

If the class is time invariant or not.

Parameters:

none.

Returns:

true - if the plume changes over time

false - otherwise

Definition at line 88 of file PSSource.cpp.

int plumesim::PSSource::cleanup

(

)

[virtual]

Virtual function for cleaning up the class.

Parameters:

none.

Returns:

none.

Reimplemented in plumesim::PSFluent, plumesim::PSLog, plumesim::PSGaussian, and plumesim::PSMeadering.

Definition at line 67 of file PSSource.cpp.

int plumesim::PSSource::countPoints	(	PSPoint3d *	center,
		double	radius
	)		[protected]

Counts the plume points inside a sphere.

Parameters:

center	The center of the sphere.
radius	The radius of the sphere.

Returns:

The number of points found.

Definition at line 116 of file PSSource.cpp.

float plumesim::PSSource::drand

(

)

[protected]

Uniform distribution, [0 ... 1].

Parameters:

none.

Returns:

Random generated value.

Definition at line 102 of file PSSource.cpp.

int plumesim::PSSource::generatePoints

(

)

[virtual]

Virtual function for generating plume points.

Parameters:

none.

Returns:

0 - if successful

-1 - otherwise

Reimplemented in plumesim::PSFluent, plumesim::PSLog, plumesim::PSGaussian, and plumesim::PSMeadering.

Definition at line 74 of file PSSource.cpp.

int plumesim::PSSource::getChemicalReading	(	PSPoint3d *	point,
		PSOdorData *	odor_data
	)		[virtual]

Virtual function for reading a single chemical point based on the robot current position.

Parameters:

point	A 3D point containning the current position of the robot.
odor_data	The odor data structure where the result is written.

Returns:

0 - if successful

-1 - otherwise

Reimplemented in plumesim::PSFluent, plumesim::PSLog, plumesim::PSGaussian, and plumesim::PSMeadering.

Definition at line 81 of file PSSource.cpp.

bool plumesim::PSSource::IsPlaying

(

)

If the class is still processing data.

Parameters:

none.

Returns:

true - if the plume is still playing

false - otherwise

Definition at line 95 of file PSSource.cpp.

double plumesim::PSSource::randomNormal

(

)

[protected]

Normal distribution, centered on 0, std dev 1.

Parameters:

none.

Returns:

Random generated value.

Definition at line 109 of file PSSource.cpp.

int plumesim::PSSource::setup

(

)

[virtual]

Virtual function for setting up the class.

Parameters:

none.

Returns:

none.

Reimplemented in plumesim::PSFluent, plumesim::PSLog, plumesim::PSGaussian, and plumesim::PSMeadering.

Definition at line 60 of file PSSource.cpp.

---

Member Data Documentation

bool plumesim::PSSource::changesOverTime [protected]

Stores if the plume changes over time or not.

Definition at line 232 of file PSSources.h.

bool plumesim::PSSource::isPlaying [protected]

Stores if the plume is playing ot not.

Definition at line 233 of file PSSources.h.

std::vector<PSPoint3d> plumesim::PSSource::plumePoints

Linked list of plume points to draw.

Definition at line 157 of file PSSources.h.

---

The documentation for this class was generated from the following files:

• PSSources.h
• PSSource.cpp
