An abstract IO interface. More...

#include <iointerface.h>

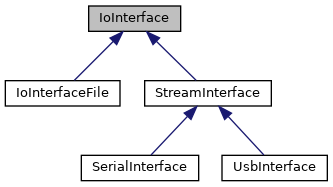

Inheritance diagram for IoInterface:

[legend]

Public Types
enum	PortOptions { PO_NoFlowControl = 0, PO_RtsCtsFlowControl = (1 << 0), PO_DtrDsrFlowControl = (1 << 1), PO_XonXoffFlowControl = (1 << 2), PO_OneStopBit = 0, PO_TwoStopBits = (1 << 3), PO_XsensDefaults = (PO_NoFlowControl \| PO_TwoStopBits) }
	Options for flow control and stopbits which must be used when opening a port. More...

Public Member Functions
virtual XsResultValue	appendData (const XsByteArray &bdata)
	Write data to the end of the file. More...

virtual void	cancelIo (void) const
	Cancel any pending io requests. More...

virtual XsResultValue	close (void)=0
	Close the connection to the device. More...

virtual XsResultValue	closeAndDelete (void)
	Close the file and delete it. More...

virtual XsResultValue	create (const XsString &filename)
	Create an empty file. More...

virtual XsResultValue	deleteData (XsFilePos start, XsFilePos length)
	Delete the given data from the file. More...

virtual XsResultValue	find (const XsByteArray &needleV, XsFilePos &pos)
	Find a string of bytes in the file. More...

virtual XsResultValue	flushData (void)=0
	Flush all data in the buffers to and from the device. More...

virtual XsFilePos	getFileSize (void) const
	Return the size of the file. More...

virtual XsResultValue	getLastResult (void) const =0
	Returns the last result value produced by this interface. More...

virtual XsResultValue	getName (XsString &filename) const
	Retrieve the filename that was last successfully opened. More...

virtual XsFilePos	getReadPosition (void) const
	Return the current read position. More...

virtual XsFilePos	getWritePosition (void) const
	Return the current write position. More...

virtual XsResultValue	insertData (XsFilePos start, const XsByteArray &data)
	Insert the given data into the file. More...

virtual bool	isOpen (void) const =0
	Returns true if the object has a connection to a device. More...

virtual bool	isReadOnly (void) const
	Return whether the file is read-only or not. More...

virtual XsResultValue	open (const XsPortInfo &portInfo, XsFilePos readBufSize=XS_DEFAULT_READ_BUFFER_SIZE, XsFilePos writeBufSize=XS_DEFAULT_WRITE_BUFFER_SIZE, PortOptions options=PO_XsensDefaults)
	Open a communication channel to the given port info. More...

virtual XsResultValue	open (const XsString &filename, bool createNew, bool readOnly)
	Open a file. More...

virtual XsResultValue	readData (XsFilePos maxLength, XsByteArray &data)=0
	Read at most maxLength bytes from the device into data. More...

virtual XsResultValue	setReadPosition (XsFilePos pos)
	Set the new absolute read position. More...

virtual XsResultValue	setTimeout (uint32_t ms)
	Set the default timeout value to use in blocking operations. More...

virtual XsResultValue	setWritePosition (XsFilePos pos=-1)
	Set the new absolute write position. More...

virtual XsResultValue	waitForData (XsFilePos maxLength, XsByteArray &data)
	Wait for data to arrive or a timeout to occur. More...

virtual XsResultValue	writeData (const XsByteArray &data, XsFilePos *written=nullptr)=0
	Write the data contained in data to the device. More...

virtual	~IoInterface ()
	Destructor. More...

Protected Member Functions
	IoInterface ()
	Constructor. More...

	XSENS_DISABLE_COPY (IoInterface)

Detailed Description

An abstract IO interface.

An IoInterface provides a generic interface for dealing with an interface device such as a file, a com port or a USB port.

Note: The class is not thread safe.

Definition at line 86 of file iointerface.h.

Member Enumeration Documentation

◆ PortOptions

enum IoInterface::PortOptions

Options for flow control and stopbits which must be used when opening a port.

Enumerator
PO_NoFlowControl
PO_RtsCtsFlowControl
PO_DtrDsrFlowControl
PO_XonXoffFlowControl
PO_OneStopBit
PO_TwoStopBits
PO_XsensDefaults

Definition at line 130 of file iointerface.h.

Constructor & Destructor Documentation

◆ ~IoInterface()

virtual IoInterface::~IoInterface ( )

inlinevirtual

Destructor.

Definition at line 90 of file iointerface.h.

◆ IoInterface()

IoInterface::IoInterface ( )

inlineprotected

Constructor.

Definition at line 164 of file iointerface.h.

Member Function Documentation

◆ appendData()

XsResultValue IoInterface::appendData ( const XsByteArray & bdata )

virtual

Write data to the end of the file.

The function writes the given data to the file at the end. The current write position is also moved to the end of the file.

Parameters

bdata The byte data to append to the file

Returns: XRV_OK if the write was successful

Reimplemented in IoInterfaceFile.

Definition at line 121 of file iointerface.cpp.

◆ cancelIo()

void IoInterface::cancelIo ( void ) const

virtual

Cancel any pending io requests.

Reimplemented in SerialInterface.

Definition at line 114 of file iointerface.cpp.

◆ close()

virtual XsResultValue IoInterface::close ( void )

pure virtual

Close the connection to the device.

Returns: XRV_OK if the connection was closed successfully

Implemented in SerialInterface, UsbInterface, and IoInterfaceFile.

◆ closeAndDelete()

XsResultValue IoInterface::closeAndDelete ( void )

virtual

Close the file and delete it.

Returns: XRV_OK if the file was closed and deleted successfully

Reimplemented in IoInterfaceFile.

Definition at line 127 of file iointerface.cpp.

◆ create()

XsResultValue IoInterface::create ( const XsString & filename )

virtual

Create an empty file.

Parameters

filename The desired (path+)name of the file

Returns: XRV_OK if the file was created successfully

Reimplemented in IoInterfaceFile.

Definition at line 132 of file iointerface.cpp.

◆ deleteData()

XsResultValue IoInterface::deleteData	(	XsFilePos	start,
		XsFilePos	length
	)

virtual

Delete the given data from the file.

The function erases the given data from the file at the given write position. This operation may take a while to complete, but is faster than insertData.

The write position is not changed and the read position is checked for validity upon function exit.

Parameters

start	The offset of the first byte to delete
length	The total number of bytes to delete

Returns: XRV_OK if the data was deleted successfully

Reimplemented in IoInterfaceFile.

Definition at line 138 of file iointerface.cpp.

◆ find()

XsResultValue IoInterface::find	(	const XsByteArray &	needleV,
		XsFilePos &	pos
	)

virtual

Find a string of bytes in the file.

The function searches from the current read position until the given needle is found. If the needle is not found, XsResultValue::NOT_FOUND is returned. The function will update the seek position to the first character of the found needle.

Parameters

needleV	The byte string to find.
pos	The position where needleV was found. This will point to the first character of the found needleV.

Returns: XRV_OK if the data was found, XRV_ENDOFFILE if it wasn't found

Reimplemented in IoInterfaceFile.

Definition at line 145 of file iointerface.cpp.

◆ flushData()

virtual XsResultValue IoInterface::flushData ( void )

pure virtual

Flush all data in the buffers to and from the device.

Returns: XRV_OK if the data was flushed successfully

Implemented in SerialInterface, UsbInterface, and IoInterfaceFile.

◆ getFileSize()

XsFilePos IoInterface::getFileSize ( void ) const

virtual

Return the size of the file.

Returns: The size of the file.

Reimplemented in IoInterfaceFile.

Definition at line 152 of file iointerface.cpp.

◆ getLastResult()

virtual XsResultValue IoInterface::getLastResult ( void ) const

pure virtual

Returns the last result value produced by this interface.

Returns: The last result value produced by this interface.

Implemented in SerialInterface, UsbInterface, and IoInterfaceFile.

◆ getName()

XsResultValue IoInterface::getName ( XsString & filename ) const

virtual

Retrieve the filename that was last successfully opened.

\param filename     The XsString which will contain the filename.
\returns XRV_OK

Reimplemented in IoInterfaceFile.

Definition at line 157 of file iointerface.cpp.

◆ getReadPosition()

XsFilePos IoInterface::getReadPosition ( void ) const

virtual

Return the current read position.

Returns: The current read position.

Reimplemented in IoInterfaceFile.

Definition at line 163 of file iointerface.cpp.

◆ getWritePosition()

XsFilePos IoInterface::getWritePosition ( void ) const

virtual

Return the current write position.

Returns: The current write position.

Reimplemented in IoInterfaceFile.

Definition at line 168 of file iointerface.cpp.

◆ insertData()

XsResultValue IoInterface::insertData	(	XsFilePos	start,
		const XsByteArray &	data
	)

virtual

Insert the given data into the file.

The function writes the given data to the file at the current write position. This operation may take a while to complete.

The write position is placed at the end of the inserted data.

Parameters

start	The offset in the file to write the first byte
data	The data to insert in the file

Returns: XRV_OK if the data was inserted successfully

Reimplemented in IoInterfaceFile.

Definition at line 173 of file iointerface.cpp.

◆ isOpen()

virtual bool IoInterface::isOpen ( void ) const

pure virtual

Returns true if the object has a connection to a device.

Returns: true if the object has a connection to a device

Implemented in SerialInterface, UsbInterface, and IoInterfaceFile.

◆ isReadOnly()

bool IoInterface::isReadOnly ( void ) const

virtual

Return whether the file is read-only or not.

Returns: true if the file is read-only

Reimplemented in IoInterfaceFile.

Definition at line 180 of file iointerface.cpp.

◆ open() [1/2]

XsResultValue IoInterface::open	(	const XsPortInfo &	portInfo,
		XsFilePos	readBufSize = `XS_DEFAULT_READ_BUFFER_SIZE`,
		XsFilePos	writeBufSize = `XS_DEFAULT_WRITE_BUFFER_SIZE`,
		PortOptions	options = `PO_XsensDefaults`
	)

virtual

Open a communication channel to the given port info.

If the baudrate in portInfo is set to XBR_Invalid, the baud rate is automatically detected if possible.

Parameters

portInfo	The details of the port that should be opened. Depending on the type of interface, parts of this parameter may be ignored.
readBufSize	The size of the read buffer in bytes (if appliccable to the device)
writeBufSize	The size of the write buffer in bytes (if appliccable to the device)
options	The options to enable (flow control, stop bits)

Returns: XRV_OK if the device was opened successfully

Reimplemented in SerialInterface, and UsbInterface.

Definition at line 96 of file iointerface.cpp.

◆ open() [2/2]

XsResultValue IoInterface::open	(	const XsString &	filename,
		bool	createNew,
		bool	readOnly
	)

virtual

Open a file.

Parameters

filename	The name of the file to open
createNew	When true, the file will be created if it doesn't exist yet
readOnly	When true, the file will be marked as read only for IoInterfaceFile, preventing accidental writes to the file.

Returns: XRV_OK if the file was opened successfully

See also: createFile

Reimplemented in IoInterfaceFile.

Definition at line 185 of file iointerface.cpp.

◆ readData()

virtual XsResultValue IoInterface::readData	(	XsFilePos	maxLength,
		XsByteArray &	data
	)

pure virtual

Read at most maxLength bytes from the device into data.

Parameters

maxLength	The maximum number of bytes to read. Depending on the device type and timeout settings, the function may return with less than this number of bytes read.
data	A buffer that will contain the read data.

Returns: XRV_OK if all data was read successfully, XRV_TIMEOUT if some data was read, but not maxLength, XRV_TIMEOUTNODATA if no data was read at all.

Implemented in SerialInterface, UsbInterface, and IoInterfaceFile.

◆ setReadPosition()

XsResultValue IoInterface::setReadPosition ( XsFilePos pos )

virtual

Set the new absolute read position.

The read position is checked against the file size first.

Parameters

pos	The new read position

Returns: XRV_OK if the read position was updated successfully

Reimplemented in IoInterfaceFile.

Definition at line 193 of file iointerface.cpp.

◆ setTimeout()

XsResultValue IoInterface::setTimeout ( uint32_t ms )

virtual

Set the default timeout value to use in blocking operations.

This function sets the value of m_timeout. There is no infinity value. The value 0 means that all blocking operations now become polling (non-blocking) operations. If the value is set to or from 0, the low-level serial port settings may be changed in addition to the m_timeout value.

Parameters

ms	The new timeout in milliseconds

Returns: XRV_OK if the function succeeded

Reimplemented in StreamInterface, SerialInterface, and UsbInterface.

Definition at line 101 of file iointerface.cpp.

◆ setWritePosition()

XsResultValue IoInterface::setWritePosition ( XsFilePos pos = -1 )

virtual

Set the new absolute write position.

The write position is checked against the file size first.

Parameters

pos	The new write position

Returns: XRV_OK if the write position was updated successfully

Reimplemented in IoInterfaceFile.

Definition at line 199 of file iointerface.cpp.

◆ waitForData()

XsResultValue IoInterface::waitForData	(	XsFilePos	maxLength,
		XsByteArray &	data
	)

virtual

Wait for data to arrive or a timeout to occur.

The function waits until maxLength data is available or until a timeout occurs. The function returns success if data is available or XsResultValue::TIMEOUT if a timeout occurred. A timeout value of 0 indicates that the default timeout stored in the class should be used.

Parameters

maxLength	The maximum number of bytes to read before returning
data	The buffer to put the read data in.

Returns: XRV_OK if maxLength bytes were read, XRV_TIMEOUT if less was read, XRV_TIMEOUTNODATA if nothing was read

Reimplemented in SerialInterface.

Definition at line 107 of file iointerface.cpp.

◆ writeData()

virtual XsResultValue IoInterface::writeData	(	const XsByteArray &	data,
		XsFilePos *	written = `nullptr`
	)

pure virtual

Write the data contained in data to the device.

Parameters

data	The data to write to the device.
written	An optional XsFilePos value that will receive the number of bytes that were actually written.

Returns: XRV_OK if the data was written successfully

Implemented in IoInterfaceFile, UsbInterface, and SerialInterface.

◆ XSENS_DISABLE_COPY()

IoInterface::XSENS_DISABLE_COPY ( IoInterface )

protected

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Protected Member Functions

Detailed Description

Member Enumeration Documentation

◆ PortOptions

Constructor & Destructor Documentation

◆ ~IoInterface()

◆ IoInterface()

Member Function Documentation

◆ appendData()

◆ cancelIo()

◆ close()

◆ closeAndDelete()

◆ create()

◆ deleteData()

◆ find()

◆ flushData()

◆ getFileSize()

◆ getLastResult()

◆ getName()

◆ getReadPosition()

◆ getWritePosition()

◆ insertData()

◆ isOpen()

◆ isReadOnly()

◆ open() [1/2]

◆ open() [2/2]

◆ readData()

◆ setReadPosition()

◆ setTimeout()

◆ setWritePosition()

◆ waitForData()

◆ writeData()

◆ XSENS_DISABLE_COPY()
