xsens::StandardThread Class Reference

A class for a standard thread that has to perform the same action repeatedly. More...

#include <threading.h>

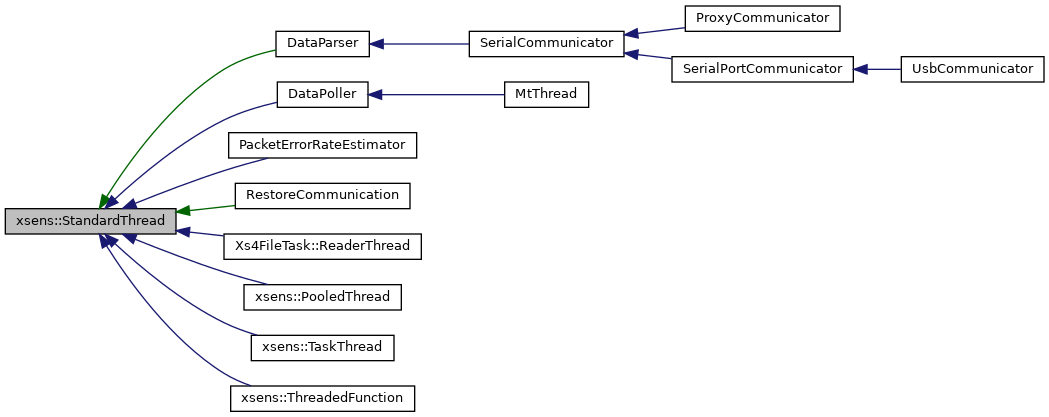

Inheritance diagram for xsens::StandardThread:

Public Member Functions
XsThreadId	getThreadId (void) const
bool	isAlive (void) volatile const noexcept
bool	isRunning (void) volatile const noexcept
	Returns whether the thread is currently running. More...
bool	isTerminating () volatile const noexcept
	Returns whether the thread should (have) terminate(d) More...
bool	setPriority (XsThreadPriority pri)
	Sets the priority of the thread. More...
virtual void	signalStopThread (void)
	Tells the thread to stop but does not wait for it to end. More...
	StandardThread ()
bool	startThread (const char *name=NULL)
	Starts the thread. More...
void	stopThread (void) noexcept
	Tells the thread to stop and waits for it to end. More...
virtual	~StandardThread ()

Protected Member Functions
virtual void	exitFunction (void)
	Virtual exit function. More...
virtual void	initFunction (void)
	Virtual initialization function. More...
virtual int32_t	innerFunction (void)
	Virtual inner function. More...
XsThread	threadHandle () const
	Return the thread handle. More...

Protected Attributes
pthread_attr_t	m_attr
	Duplicates m_stop functionality for external dependent classes such as Semaphore. More...
bool	m_running
	Indicates that the thread is running. More...
volatile std::atomic_bool	m_stop
	Indicates that the thread should stop. Derived classes should check isTerminating() instead of directly polling this value when checking if the thread should stop. However, there are some cases (tests, SignallingThread) where direct access from within the class is desired, which is why the vlaue is protected instead of private. More...
volatile std::atomic_bool	m_yieldOnZeroSleep
	When true, a sleep value of 0 returned by innerFunction will trigger a thread yield operation. When false, the next cycle is started immediately. More...

Private Member Functions
void	threadMain (void)
	The inner loop of the thread, calls innerFunction repeatedly and sleeps when necessary. More...

Static Private Member Functions
static void	threadCleanup (void *obj)
	Cleanup the thread by calling the exit function. More...
static XSENS_THREAD_RETURN	threadInit (void *obj)

Private Attributes
char *	m_name
XsThreadPriority	m_priority
XsThread	m_thread

Detailed Description

A class for a standard thread that has to perform the same action repeatedly.

The class has three virtual functions, of which the innerFunction is the most important. innerFunction gets called repeatedly and is expected to return so that StandardThread can check for thread termination.

Definition at line 83 of file threading.h.

Constructor & Destructor Documentation

StandardThread()

xsens::StandardThread::StandardThread

(

)

Constructor, creates the necessary signals. Does NOT start the thread.

Definition at line 89 of file threading.cpp.

~StandardThread()

xsens::StandardThread::~StandardThread ( )

virtual

Destructor, stops the thread if it was running and cleans up afterwards.

Definition at line 110 of file threading.cpp.

Member Function Documentation

exitFunction()

virtual void xsens::StandardThread::exitFunction ( void  )

inlineprotectedvirtual

Virtual exit function.

Definition at line 116 of file threading.h.

getThreadId()

XsThreadId xsens::StandardThread::getThreadId ( void  ) const

inline

Returns

The thread ID

Definition at line 142 of file threading.h.

initFunction()

virtual void xsens::StandardThread::initFunction ( void  )

inlineprotectedvirtual

Virtual initialization function.

Reimplemented in PacketErrorRateEstimator, DataParser, and DataPoller.

Definition at line 113 of file threading.h.

innerFunction()

virtual int32_t xsens::StandardThread::innerFunction ( void  )

inlineprotectedvirtual

Virtual inner function.

Reimplemented in xsens::ThreadedFunction, Xs4FileTask::ReaderThread, xsens::PooledThread, RestoreCommunication, xsens::TaskThread, MtThread, PacketErrorRateEstimator, DataParser, and DataPoller.

Definition at line 119 of file threading.h.

isAlive()

bool xsens::StandardThread::isAlive ( void  ) const volatile

noexcept

Returns

True if the thread is alive

Definition at line 140 of file threading.cpp.

isRunning()

bool xsens::StandardThread::isRunning ( void  ) const volatile

noexcept

Returns whether the thread is currently running.

Definition at line 160 of file threading.cpp.

isTerminating()

bool xsens::StandardThread::isTerminating ( ) const volatile

noexcept

Returns whether the thread should (have) terminate(d)

Definition at line 182 of file threading.cpp.

setPriority()

bool xsens::StandardThread::setPriority

(

XsThreadPriority

pri

)

Sets the priority of the thread.

Parameters

pri	The thread priority to set

Returns

True if successful

Definition at line 191 of file threading.cpp.

signalStopThread()

void xsens::StandardThread::signalStopThread ( void  )

virtual

Tells the thread to stop but does not wait for it to end.

Reimplemented in DataParser.

Definition at line 320 of file threading.cpp.

startThread()

bool xsens::StandardThread::startThread

(

const char *

name = NULL

)

Starts the thread.

Parameters

name	The name of the thread as shown in the debugger, may be NULL in which case the system determines the name.

Returns

True if successful

Definition at line 281 of file threading.cpp.

stopThread()

void xsens::StandardThread::stopThread ( void  )

noexcept

Tells the thread to stop and waits for it to end.

Definition at line 334 of file threading.cpp.

threadCleanup()

void xsens::StandardThread::threadCleanup ( void *  obj )

staticprivate

Cleanup the thread by calling the exit function.

Definition at line 421 of file threading.cpp.

threadHandle()

XsThread xsens::StandardThread::threadHandle ( ) const

inlineprotected

Return the thread handle.

Definition at line 125 of file threading.h.

threadInit()

XSENS_THREAD_RETURN xsens::StandardThread::threadInit ( void *  obj )

staticprivate

Definition at line 409 of file threading.cpp.

threadMain()

void xsens::StandardThread::threadMain ( void  )

private

The inner loop of the thread, calls innerFunction repeatedly and sleeps when necessary.

Definition at line 429 of file threading.cpp.

Member Data Documentation

m_attr

pthread_attr_t xsens::StandardThread::m_attr

protected

Duplicates m_stop functionality for external dependent classes such as Semaphore.

Definition at line 101 of file threading.h.

m_name

char* xsens::StandardThread::m_name

private

Definition at line 105 of file threading.h.

m_priority

XsThreadPriority xsens::StandardThread::m_priority

private

Definition at line 87 of file threading.h.

m_running

bool xsens::StandardThread::m_running

protected

Indicates that the thread is running.

Definition at line 102 of file threading.h.

m_stop

volatile std::atomic_bool xsens::StandardThread::m_stop

protected

Indicates that the thread should stop. Derived classes should check isTerminating() instead of directly polling this value when checking if the thread should stop. However, there are some cases (tests, SignallingThread) where direct access from within the class is desired, which is why the vlaue is protected instead of private.

Definition at line 93 of file threading.h.

m_thread

XsThread xsens::StandardThread::m_thread

private

Definition at line 86 of file threading.h.

m_yieldOnZeroSleep

volatile std::atomic_bool xsens::StandardThread::m_yieldOnZeroSleep

protected

When true, a sleep value of 0 returned by innerFunction will trigger a thread yield operation. When false, the next cycle is started immediately.

Definition at line 94 of file threading.h.

---

The documentation for this class was generated from the following files:

• threading.h
• threading.cpp
