DataParser Class Reference

A class for the data parsing on a separete thread. More...

#include <dataparser.h>

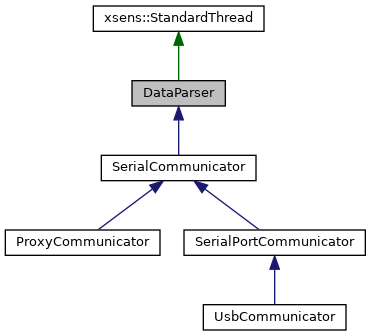

Inheritance diagram for DataParser:

Public Member Functions
void	addRawData (const XsByteArray &arr)
	Adds the raw data to an array. More...
void	clear ()
	Clears the data queue. More...
	DataParser ()
	Default constructor. More...
virtual void	handleMessage (const XsMessage &message)=0
	Handles a message. More...
virtual const char *	parserType () const
virtual XsResultValue	processBufferedData (const XsByteArray &rawIn, std::deque< XsMessage > &messages)=0
	Read all messages from the buffered read data after adding new data supplied in rawIn. More...
virtual XsResultValue	readDataToBuffer (XsByteArray &raw)=0
	Read available data from the open IO device. More...
void	terminate ()
	Terminates the thread. More...
	~DataParser () override

Protected Member Functions
void	initFunction () override
	Initializes the thread. More...
int32_t	innerFunction () override
	The inner thread function. More...
void	signalStopThread (void) override
	Tells the thread to stop but does not wait for it to end. More...
Protected Member Functions inherited from xsens::StandardThread
virtual void	exitFunction (void)
	Virtual exit function. More...
XsThread	threadHandle () const
	Return the thread handle. More...
XsThreadId	getThreadId (void) const
bool	isAlive (void) volatile const noexcept
bool	isRunning (void) volatile const noexcept
	Returns whether the thread is currently running. More...
bool	isTerminating () volatile const noexcept
	Returns whether the thread should (have) terminate(d) More...
bool	setPriority (XsThreadPriority pri)
	Sets the priority of the thread. More...
	StandardThread ()
bool	startThread (const char *name=NULL)
	Starts the thread. More...
void	stopThread (void) noexcept
	Tells the thread to stop and waits for it to end. More...
virtual	~StandardThread ()

Private Attributes
std::queue< XsByteArray >	m_incoming
xsens::Mutex	m_incomingMutex
xsens::WaitEvent	m_newDataEvent
char	m_parserType [128]

Additional Inherited Members
Protected Attributes inherited from xsens::StandardThread
pthread_attr_t	m_attr
	Duplicates m_stop functionality for external dependent classes such as Semaphore. More...
bool	m_running
	Indicates that the thread is running. More...
volatile std::atomic_bool	m_stop
	Indicates that the thread should stop. Derived classes should check isTerminating() instead of directly polling this value when checking if the thread should stop. However, there are some cases (tests, SignallingThread) where direct access from within the class is desired, which is why the vlaue is protected instead of private. More...
volatile std::atomic_bool	m_yieldOnZeroSleep
	When true, a sleep value of 0 returned by innerFunction will trigger a thread yield operation. When false, the next cycle is started immediately. More...

Detailed Description

A class for the data parsing on a separete thread.

Definition at line 76 of file dataparser.h.

Constructor & Destructor Documentation

DataParser()

DataParser::DataParser

(

)

Default constructor.

Definition at line 76 of file dataparser.cpp.

~DataParser()

DataParser::~DataParser ( )

override

Definition at line 81 of file dataparser.cpp.

Member Function Documentation

addRawData()

void DataParser::addRawData

(

const XsByteArray &

arr

)

Adds the raw data to an array.

Parameters

arr	The reference to a byte array to which the data will be added

Definition at line 95 of file dataparser.cpp.

clear()

void DataParser::clear

(

)

Clears the data queue.

Definition at line 160 of file dataparser.cpp.

handleMessage()

virtual void DataParser::handleMessage ( const XsMessage &  message )

pure virtual

Handles a message.

Implemented in SerialCommunicator, and ProxyCommunicator.

initFunction()

void DataParser::initFunction ( )

overrideprotectedvirtual

Initializes the thread.

Reimplemented from xsens::StandardThread.

Definition at line 150 of file dataparser.cpp.

innerFunction()

int32_t DataParser::innerFunction ( )

overrideprotectedvirtual

The inner thread function.

Reimplemented from xsens::StandardThread.

Definition at line 105 of file dataparser.cpp.

parserType()

virtual const char* DataParser::parserType ( ) const

inlinevirtual

Returns

The parser type

Definition at line 103 of file dataparser.h.

processBufferedData()

virtual XsResultValue DataParser::processBufferedData ( const XsByteArray &  rawIn, std::deque< XsMessage > &  messages  )

pure virtual

Read all messages from the buffered read data after adding new data supplied in rawIn.

Parameters

rawIn	The byte array with all data
messages	The message to process

Returns

The messages that were read.

Implemented in SerialCommunicator, and ProxyCommunicator.

readDataToBuffer()

virtual XsResultValue DataParser::readDataToBuffer ( XsByteArray &  raw )

pure virtual

Read available data from the open IO device.

Parameters

raw	A buffer that will receive the read data.

Returns

XRV_OK if successful

Implemented in SerialCommunicator, and ProxyCommunicator.

signalStopThread()

void DataParser::signalStopThread ( void  )

overrideprotectedvirtual

Tells the thread to stop but does not wait for it to end.

Reimplemented from xsens::StandardThread.

Definition at line 168 of file dataparser.cpp.

terminate()

void DataParser::terminate

(

)

Terminates the thread.

Definition at line 176 of file dataparser.cpp.

Member Data Documentation

m_incoming

std::queue<XsByteArray> DataParser::m_incoming

private

Definition at line 115 of file dataparser.h.

m_incomingMutex

xsens::Mutex DataParser::m_incomingMutex

private

Definition at line 114 of file dataparser.h.

m_newDataEvent

xsens::WaitEvent DataParser::m_newDataEvent

private

Definition at line 116 of file dataparser.h.

m_parserType

char DataParser::m_parserType[128]

private

Definition at line 117 of file dataparser.h.

---

The documentation for this class was generated from the following files:

• dataparser.h
• dataparser.cpp
