EwokPlus25 low level silicon LL Driver function definition. More...
#include "vl53l1_ll_def.h"#include "vl53l1_platform.h"#include "vl53l1_register_map.h"#include "vl53l1_core.h"#include "vl53l1_silicon_core.h"

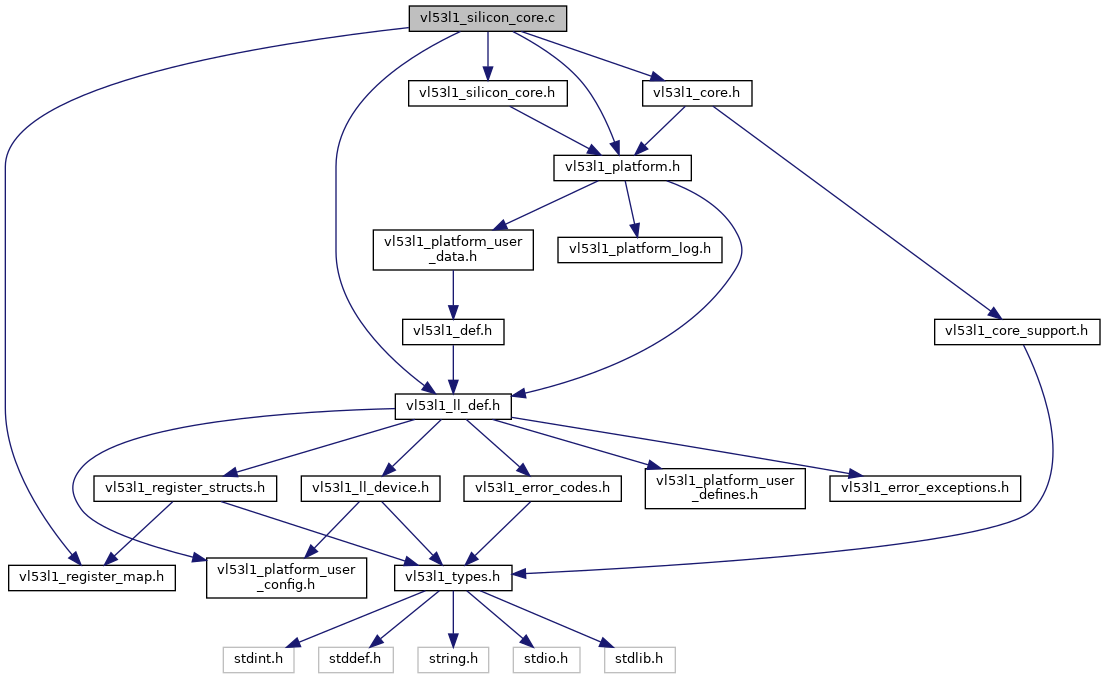

Include dependency graph for vl53l1_silicon_core.c:
Go to the source code of this file.
Macros | |
| #define | LOG_FUNCTION_END(status, ...) _LOG_FUNCTION_END(VL53L1_TRACE_MODULE_CORE, status, ##__VA_ARGS__) |
| #define | LOG_FUNCTION_END_FMT(status, fmt, ...) _LOG_FUNCTION_END_FMT(VL53L1_TRACE_MODULE_CORE, status, fmt, ##__VA_ARGS__) |
| #define | LOG_FUNCTION_START(fmt, ...) _LOG_FUNCTION_START(VL53L1_TRACE_MODULE_CORE, fmt, ##__VA_ARGS__) |
Functions | |
| VL53L1_Error | VL53L1_is_firmware_ready_silicon (VL53L1_DEV Dev, uint8_t *pready) |
| Checks if the firmware is ready for ranging (Silicon variant) More... | |
Detailed Description
EwokPlus25 low level silicon LL Driver function definition.
Definition in file vl53l1_silicon_core.c.
Macro Definition Documentation
◆ LOG_FUNCTION_END
| #define LOG_FUNCTION_END | ( | status, | |
| ... | |||
| ) | _LOG_FUNCTION_END(VL53L1_TRACE_MODULE_CORE, status, ##__VA_ARGS__) |
Definition at line 79 of file vl53l1_silicon_core.c.
◆ LOG_FUNCTION_END_FMT
| #define LOG_FUNCTION_END_FMT | ( | status, | |
| fmt, | |||
| ... | |||
| ) | _LOG_FUNCTION_END_FMT(VL53L1_TRACE_MODULE_CORE, status, fmt, ##__VA_ARGS__) |
Definition at line 81 of file vl53l1_silicon_core.c.
◆ LOG_FUNCTION_START
| #define LOG_FUNCTION_START | ( | fmt, | |
| ... | |||
| ) | _LOG_FUNCTION_START(VL53L1_TRACE_MODULE_CORE, fmt, ##__VA_ARGS__) |
Definition at line 77 of file vl53l1_silicon_core.c.
Function Documentation
◆ VL53L1_is_firmware_ready_silicon()
| VL53L1_Error VL53L1_is_firmware_ready_silicon | ( | VL53L1_DEV | Dev, |
| uint8_t * | pready | ||
| ) |
Checks if the firmware is ready for ranging (Silicon variant)
- Parameters
-
[in] Dev : Device Handle [out] pready : pointer to data ready flag
0 = firmware not ready
1 = firmware ready
- Returns
- VL53L1_ERROR_NONE Success
- "Other error code" See VL53L1_Error
Determines if the firmware is ready to range
There are 2 different behaviors depending on whether power force is enabled or not
Definition at line 85 of file vl53l1_silicon_core.c.
