#include "vl53l1_api.h"
#include "vl53l1_api_strings.h"
#include "vl53l1_register_settings.h"
#include "vl53l1_register_funcs.h"
#include "vl53l1_core.h"
#include "vl53l1_api_calibration.h"
#include "vl53l1_wait.h"
#include "vl53l1_preset_setup.h"
#include "vl53l1_api_debug.h"
#include "vl53l1_api_core.h"

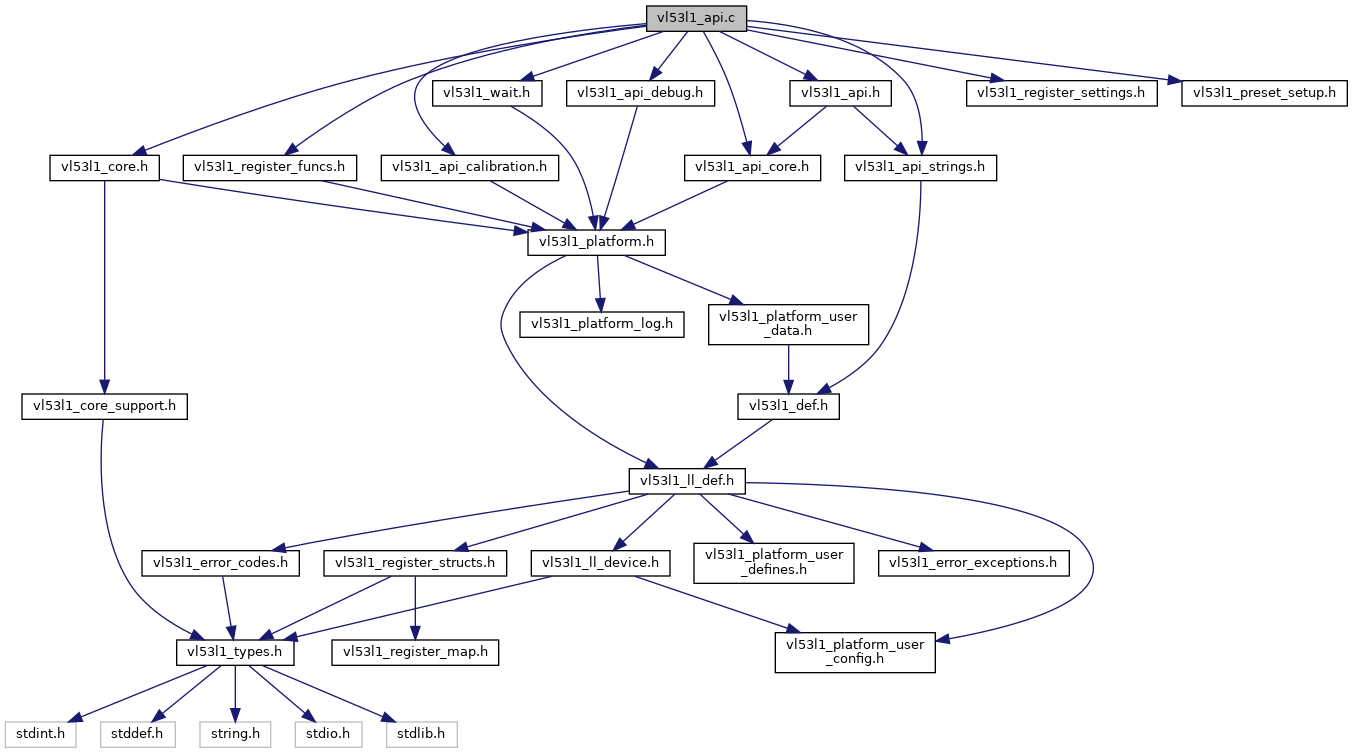

Include dependency graph for vl53l1_api.c:

Macros
#define	BADTHRESBOUNDS(T)

#define	DMAX_REFLECTANCE_IDX 2

#define	FDA_MAX_TIMING_BUDGET_US 550000

#define	LOG_FUNCTION_END(status, ...) _LOG_FUNCTION_END(VL53L1_TRACE_MODULE_API, status, ##__VA_ARGS__)

#define	LOG_FUNCTION_END_FMT(status, fmt, ...)

#define	LOG_FUNCTION_START(fmt, ...) _LOG_FUNCTION_START(VL53L1_TRACE_MODULE_API, fmt, ##__VA_ARGS__)

#define	LOWPOWER_AUTO_OVERHEAD_BEFORE_A_RANGING 1448

#define	LOWPOWER_AUTO_OVERHEAD_BETWEEN_A_B_RANGING 2100

#define	LOWPOWER_AUTO_VHV_LOOP_DURATION_US 245

#define	MAX(v1, v2) ((v1) < (v2) ? (v2) : (v1))

#define	MIN(v1, v2) ((v1) < (v2) ? (v1) : (v2))

#define	OFFSET_CALIB

#define	TIMED_MODE_TIMING_GUARD_MILLISECONDS 4

#define	VL53L1_NVM_POWER_UP_DELAY_US 50

#define	VL53L1_NVM_READ_TRIGGER_DELAY_US 5

#define	ZONE_CHECK 5

Functions
static VL53L1_Error	ChangePresetMode (VL53L1_DEV Dev)

static VL53L1_Error	CheckValidRectRoi (VL53L1_UserRoi_t ROI)

static VL53L1_Error	ComputeDevicePresetMode (VL53L1_PresetModes PresetMode, VL53L1_DistanceModes DistanceMode, VL53L1_DevicePresetModes *pDevicePresetMode)

static uint8_t	ComputeRQL (uint8_t active_results, uint8_t FilteredRangeStatus, VL53L1_range_data_t *presults_data)

static VL53L1_ThresholdMode	ConvertModeFromLLD (VL53L1_Error *pStatus, VL53L1_GPIO_Interrupt_Mode CrossMode)

static VL53L1_GPIO_Interrupt_Mode	ConvertModeToLLD (VL53L1_Error *pStatus, VL53L1_ThresholdMode CrossMode)

static uint8_t	ConvertStatusLite (uint8_t FilteredRangeStatus)

static VL53L1_Error	SetLimitValue (VL53L1_DEV Dev, uint16_t LimitCheckId, FixPoint1616_t value)

static VL53L1_Error	SetPresetMode (VL53L1_DEV Dev, VL53L1_PresetModes PresetMode, VL53L1_DistanceModes DistanceMode, uint32_t inter_measurement_period_ms)

static VL53L1_Error	SetSimpleData (VL53L1_DEV Dev, uint8_t active_results, uint8_t device_status, VL53L1_range_data_t presults_data, VL53L1_RangingMeasurementData_t pRangeData)

static VL53L1_Error	SingleTargetXTalkCalibration (VL53L1_DEV Dev)

VL53L1_Error	VL53L1_ClearInterruptAndStartMeasurement (VL53L1_DEV Dev)
	Clear the Interrupt flag and start new measurement *. More...

VL53L1_Error	VL53L1_DataInit (VL53L1_DEV Dev)
	One time device initialization. More...

VL53L1_Error	VL53L1_GetCalibrationData (VL53L1_DEV Dev, VL53L1_CalibrationData_t *pCalibrationData)
	Gets the Calibration Data. More...

VL53L1_Error	VL53L1_GetDeviceInfo (VL53L1_DEV Dev, VL53L1_DeviceInfo_t *pVL53L1_DeviceInfo)
	Reads the Device information for given Device. More...

VL53L1_Error	VL53L1_GetDistanceMode (VL53L1_DEV Dev, VL53L1_DistanceModes *pDistanceMode)
	Get the distance mode. More...

VL53L1_Error	VL53L1_GetInterMeasurementPeriodMilliSeconds (VL53L1_DEV Dev, uint32_t *pInterMeasurementPeriodMilliSeconds)

VL53L1_Error	VL53L1_GetLimitCheckCurrent (VL53L1_DEV Dev, uint16_t LimitCheckId, FixPoint1616_t *pLimitCheckCurrent)
	Get the current value of the signal used for the limit check. More...

VL53L1_Error	VL53L1_GetLimitCheckEnable (VL53L1_DEV Dev, uint16_t LimitCheckId, uint8_t *pLimitCheckEnable)
	Get specific limit check enable state. More...

VL53L1_Error	VL53L1_GetLimitCheckInfo (uint16_t LimitCheckId, char *pLimitCheckString)
	Return a description string for a given limit check number. More...

VL53L1_Error	VL53L1_GetLimitCheckStatus (VL53L1_DEV Dev, uint16_t LimitCheckId, uint8_t *pLimitCheckStatus)
	Return a the Status of the specified check limit. More...

VL53L1_Error	VL53L1_GetLimitCheckValue (VL53L1_DEV Dev, uint16_t LimitCheckId, FixPoint1616_t *pLimitCheckValue)
	Get a specific limit check value. More...

VL53L1_Error	VL53L1_GetMeasurementDataReady (VL53L1_DEV Dev, uint8_t *pMeasurementDataReady)
	Return Measurement Data Ready. More...

VL53L1_Error	VL53L1_GetMeasurementTimingBudgetMicroSeconds (VL53L1_DEV Dev, uint32_t *pMeasurementTimingBudgetMicroSeconds)
	Get Ranging Timing Budget in microseconds. More...

VL53L1_Error	VL53L1_GetNumberOfLimitCheck (uint16_t *pNumberOfLimitCheck)
	Get the number of the check limit managed by a given Device. More...

VL53L1_Error	VL53L1_GetNumberOfSequenceSteps (VL53L1_DEV Dev, uint8_t *pNumberOfSequenceSteps)
	Gets number of sequence steps managed by the API. More...

VL53L1_Error	VL53L1_GetOpticalCenter (VL53L1_DEV Dev, FixPoint1616_t pOpticalCenterX, FixPoint1616_t pOpticalCenterY)
	Gets the optical center. More...

VL53L1_Error	VL53L1_GetPalErrorString (VL53L1_Error PalErrorCode, char *pPalErrorString)
	Human readable error string for driver error status. More...

VL53L1_Error	VL53L1_GetPalState (VL53L1_DEV Dev, VL53L1_State *pPalState)
	Reads the internal state of the driver for a given Device. More...

VL53L1_Error	VL53L1_GetPalStateString (VL53L1_State PalStateCode, char *pPalStateString)
	Human readable driver State string. More...

VL53L1_Error	VL53L1_GetPresetMode (VL53L1_DEV Dev, VL53L1_PresetModes *pPresetMode)
	Get current Preset Mode. More...

VL53L1_Error	VL53L1_GetProductRevision (VL53L1_DEV Dev, uint8_t pProductRevisionMajor, uint8_t pProductRevisionMinor)
	Reads the Product Revision for a for given Device This function can be used to distinguish cut1.0 from cut1.1. More...

VL53L1_Error	VL53L1_GetRangeStatusString (uint8_t RangeStatus, char *pRangeStatusString)
	Human readable Range Status string for a given RangeStatus. More...

VL53L1_Error	VL53L1_GetRangingMeasurementData (VL53L1_DEV Dev, VL53L1_RangingMeasurementData_t *pRangingMeasurementData)
	Retrieve the measurements from device for a given setup. More...

VL53L1_Error	VL53L1_GetSequenceStepEnable (VL53L1_DEV Dev, VL53L1_SequenceStepId SequenceStepId, uint8_t *pSequenceStepEnabled)
	Gets the (on/off) state of a requested sequence step. More...

VL53L1_Error	VL53L1_GetSequenceStepsInfo (VL53L1_SequenceStepId SequenceStepId, char *pSequenceStepsString)
	Gets the name of a given sequence step. More...

VL53L1_Error	VL53L1_GetThresholdConfig (VL53L1_DEV Dev, VL53L1_DetectionConfig_t *pConfig)
	Retrieves the interrupt config structure currently programmed into the API. More...

VL53L1_Error	VL53L1_GetTuningParameter (VL53L1_DEV Dev, uint16_t TuningParameterId, int32_t *pTuningParameterValue)
	Get Tuning Parameter value for a given parameter ID. More...

VL53L1_Error	VL53L1_GetUserROI (VL53L1_DEV Dev, VL53L1_UserRoi_t *pRoi)
	Get the ROI managed by the Device. More...

VL53L1_Error	VL53L1_GetVersion (VL53L1_Version_t *pVersion)
	Return the VL53L1 driver Version. More...

VL53L1_Error	VL53L1_GetXTalkCompensationEnable (VL53L1_DEV Dev, uint8_t *pXTalkCompensationEnable)
	Get Cross talk compensation rate enable. More...

static VL53L1_Error	VL53L1_nvm_disable (VL53L1_DEV Dev)

static VL53L1_Error	VL53L1_nvm_enable (VL53L1_DEV Dev, uint16_t nvm_ctrl_pulse_width, int32_t nvm_power_up_delay_us)

static VL53L1_Error	VL53L1_nvm_read (VL53L1_DEV Dev, uint8_t start_address, uint8_t count, uint8_t *pdata)

VL53L1_Error	VL53L1_PerformOffsetCalibration (VL53L1_DEV Dev, int32_t CalDistanceMilliMeter)
	Perform Offset Calibration. More...

VL53L1_Error	VL53L1_PerformOffsetSimpleCalibration (VL53L1_DEV Dev, int32_t CalDistanceMilliMeter)
	Perform Offset simple Calibration. More...

VL53L1_Error	VL53L1_PerformRefSpadManagement (VL53L1_DEV Dev)
	Performs Reference Spad Management. More...

VL53L1_Error	VL53L1_PerformSingleTargetXTalkCalibration (VL53L1_DEV Dev, int32_t CalDistanceMilliMeter)
	Perform XTalk Calibration. More...

static VL53L1_Error	VL53L1_read_nvm_raw_data (VL53L1_DEV Dev, uint8_t start_address, uint8_t count, uint8_t *pnvm_raw_data)

VL53L1_Error	VL53L1_SetCalibrationData (VL53L1_DEV Dev, VL53L1_CalibrationData_t *pCalibrationData)
	Sets the Calibration Data. More...

VL53L1_Error	VL53L1_SetDeviceAddress (VL53L1_DEV Dev, uint8_t DeviceAddress)
	Set new device address. More...

VL53L1_Error	VL53L1_SetDistanceMode (VL53L1_DEV Dev, VL53L1_DistanceModes DistanceMode)
	Set the distance mode. More...

VL53L1_Error	VL53L1_SetInterMeasurementPeriodMilliSeconds (VL53L1_DEV Dev, uint32_t InterMeasurementPeriodMilliSeconds)

VL53L1_Error	VL53L1_SetLimitCheckEnable (VL53L1_DEV Dev, uint16_t LimitCheckId, uint8_t LimitCheckEnable)
	Enable/Disable a specific limit check. More...

VL53L1_Error	VL53L1_SetLimitCheckValue (VL53L1_DEV Dev, uint16_t LimitCheckId, FixPoint1616_t LimitCheckValue)
	Set a specific limit check value. More...

VL53L1_Error	VL53L1_SetMeasurementTimingBudgetMicroSeconds (VL53L1_DEV Dev, uint32_t MeasurementTimingBudgetMicroSeconds)
	Set Ranging Timing Budget in microseconds. More...

VL53L1_Error	VL53L1_SetOffsetCalibrationMode (VL53L1_DEV Dev, VL53L1_OffsetCalibrationModes OffsetCalibrationMode)
	Define the mode to be used for the offset calibration. More...

VL53L1_Error	VL53L1_SetPresetMode (VL53L1_DEV Dev, VL53L1_PresetModes PresetMode)
	Set a new Preset Mode. More...

VL53L1_Error	VL53L1_SetSequenceStepEnable (VL53L1_DEV Dev, VL53L1_SequenceStepId SequenceStepId, uint8_t SequenceStepEnabled)
	Sets the (on/off) state of a requested sequence step. More...

VL53L1_Error	VL53L1_SetThresholdConfig (VL53L1_DEV Dev, VL53L1_DetectionConfig_t *pConfig)
	Configure the interrupt config, from the given structure. More...

VL53L1_Error	VL53L1_SetTuningParameter (VL53L1_DEV Dev, uint16_t TuningParameterId, int32_t TuningParameterValue)
	Set Tuning Parameter value for a given parameter ID. More...

VL53L1_Error	VL53L1_SetUserROI (VL53L1_DEV Dev, VL53L1_UserRoi_t *pRoi)
	Set the ROI to be used for ranging. More...

VL53L1_Error	VL53L1_SetXTalkCompensationEnable (VL53L1_DEV Dev, uint8_t XTalkCompensationEnable)
	Enable/Disable Cross talk compensation feature. More...

VL53L1_Error	VL53L1_StartMeasurement (VL53L1_DEV Dev)
	Start device measurement. More...

VL53L1_Error	VL53L1_StaticInit (VL53L1_DEV Dev)
	Do basic device init (and eventually patch loading) This function will change the VL53L1_State from VL53L1_STATE_WAIT_STATICINIT to VL53L1_STATE_IDLE. In this stage all default setting will be applied. More...

VL53L1_Error	VL53L1_StopMeasurement (VL53L1_DEV Dev)
	Stop device measurement. More...

VL53L1_Error	VL53L1_WaitDeviceBooted (VL53L1_DEV Dev)
	Wait for device booted after chip enable (hardware standby) This function can be run only when VL53L1_State is VL53L1_STATE_POWERDOWN. More...

VL53L1_Error	VL53L1_WaitMeasurementDataReady (VL53L1_DEV Dev)
	Wait for measurement data ready. Blocking function. Note that the timeout is given by: VL53L1_RANGE_COMPLETION_POLLING_TIMEOUT_MS defined in def.h. More...

Variables
static int32_t	BDTable [VL53L1_TUNING_MAX_TUNABLE_KEY]

Macro Definition Documentation

◆ BADTHRESBOUNDS

#define BADTHRESBOUNDS ( T )

Value:

(((T.CrossMode == VL53L1_THRESHOLD_OUT_OF_WINDOW) || \

(T.CrossMode == VL53L1_THRESHOLD_IN_WINDOW)) && (T.Low > T.High))

◆ DMAX_REFLECTANCE_IDX

#define DMAX_REFLECTANCE_IDX 2

Definition at line 112 of file vl53l1_api.c.

◆ FDA_MAX_TIMING_BUDGET_US

#define FDA_MAX_TIMING_BUDGET_US 550000

Definition at line 122 of file vl53l1_api.c.

◆ LOG_FUNCTION_END

#define LOG_FUNCTION_END	(	status,
		...
	)	_LOG_FUNCTION_END(VL53L1_TRACE_MODULE_API, status, ##__VA_ARGS__)

Definition at line 93 of file vl53l1_api.c.

◆ LOG_FUNCTION_END_FMT

#define LOG_FUNCTION_END_FMT	(	status,
		fmt,
		...
	)

Value:

_LOG_FUNCTION_END_FMT(VL53L1_TRACE_MODULE_API, status, \

fmt, ##__VA_ARGS__)

Definition at line 95 of file vl53l1_api.c.

◆ LOG_FUNCTION_START

#define LOG_FUNCTION_START	(	fmt,
		...
	)	_LOG_FUNCTION_START(VL53L1_TRACE_MODULE_API, fmt, ##__VA_ARGS__)

Definition at line 91 of file vl53l1_api.c.

◆ LOWPOWER_AUTO_OVERHEAD_BEFORE_A_RANGING

#define LOWPOWER_AUTO_OVERHEAD_BEFORE_A_RANGING 1448

Definition at line 119 of file vl53l1_api.c.

◆ LOWPOWER_AUTO_OVERHEAD_BETWEEN_A_B_RANGING

#define LOWPOWER_AUTO_OVERHEAD_BETWEEN_A_B_RANGING 2100

Definition at line 120 of file vl53l1_api.c.

◆ LOWPOWER_AUTO_VHV_LOOP_DURATION_US

#define LOWPOWER_AUTO_VHV_LOOP_DURATION_US 245

Definition at line 118 of file vl53l1_api.c.

◆ MAX

#define MAX	(	v1,
		v2
	)	((v1) < (v2) ? (v2) : (v1))

Definition at line 109 of file vl53l1_api.c.

◆ MIN

#define MIN	(	v1,
		v2
	)	((v1) < (v2) ? (v1) : (v2))

Definition at line 106 of file vl53l1_api.c.

◆ OFFSET_CALIB

#define OFFSET_CALIB

Definition at line 88 of file vl53l1_api.c.

◆ TIMED_MODE_TIMING_GUARD_MILLISECONDS

#define TIMED_MODE_TIMING_GUARD_MILLISECONDS 4

◆ VL53L1_NVM_POWER_UP_DELAY_US

#define VL53L1_NVM_POWER_UP_DELAY_US 50

Definition at line 141 of file vl53l1_api.c.

◆ VL53L1_NVM_READ_TRIGGER_DELAY_US

#define VL53L1_NVM_READ_TRIGGER_DELAY_US 5

Definition at line 142 of file vl53l1_api.c.

◆ ZONE_CHECK

#define ZONE_CHECK 5

Definition at line 76 of file vl53l1_api.c.

Function Documentation

◆ ChangePresetMode()

static VL53L1_Error ChangePresetMode ( VL53L1_DEV Dev )

static

Definition at line 1810 of file vl53l1_api.c.

◆ CheckValidRectRoi()

static VL53L1_Error CheckValidRectRoi ( VL53L1_UserRoi_t ROI )

static

Definition at line 541 of file vl53l1_api.c.

◆ ComputeDevicePresetMode()

static VL53L1_Error ComputeDevicePresetMode	(	VL53L1_PresetModes	PresetMode,
		VL53L1_DistanceModes	DistanceMode,
		VL53L1_DevicePresetModes *	pDevicePresetMode
	)

static

Definition at line 856 of file vl53l1_api.c.

◆ ComputeRQL()

static uint8_t ComputeRQL	(	uint8_t	active_results,
		uint8_t	FilteredRangeStatus,
		VL53L1_range_data_t *	presults_data
	)

static

Definition at line 1942 of file vl53l1_api.c.

◆ ConvertModeFromLLD()

static VL53L1_ThresholdMode ConvertModeFromLLD	(	VL53L1_Error *	pStatus,
		VL53L1_GPIO_Interrupt_Mode	CrossMode
	)

static

Definition at line 585 of file vl53l1_api.c.

◆ ConvertModeToLLD()

static VL53L1_GPIO_Interrupt_Mode ConvertModeToLLD	(	VL53L1_Error *	pStatus,
		VL53L1_ThresholdMode	CrossMode
	)

static

Definition at line 559 of file vl53l1_api.c.

◆ ConvertStatusLite()

static uint8_t ConvertStatusLite ( uint8_t FilteredRangeStatus )

static

Definition at line 1988 of file vl53l1_api.c.

◆ SetLimitValue()

static VL53L1_Error SetLimitValue	(	VL53L1_DEV	Dev,
		uint16_t	LimitCheckId,
		FixPoint1616_t	value
	)

static

Definition at line 1404 of file vl53l1_api.c.

◆ SetPresetMode()

static VL53L1_Error SetPresetMode	(	VL53L1_DEV	Dev,
		VL53L1_PresetModes	PresetMode,
		VL53L1_DistanceModes	DistanceMode,
		uint32_t	inter_measurement_period_ms
	)

static

Definition at line 915 of file vl53l1_api.c.

◆ SetSimpleData()

static VL53L1_Error SetSimpleData	(	VL53L1_DEV	Dev,
		uint8_t	active_results,
		uint8_t	device_status,
		VL53L1_range_data_t *	presults_data,
		VL53L1_RangingMeasurementData_t *	pRangeData
	)

static

Definition at line 2029 of file vl53l1_api.c.

◆ SingleTargetXTalkCalibration()

static VL53L1_Error SingleTargetXTalkCalibration ( VL53L1_DEV Dev )

static

Definition at line 390 of file vl53l1_api.c.

◆ VL53L1_nvm_disable()

static VL53L1_Error VL53L1_nvm_disable ( VL53L1_DEV Dev )

static

Definition at line 299 of file vl53l1_api.c.

◆ VL53L1_nvm_enable()

static VL53L1_Error VL53L1_nvm_enable	(	VL53L1_DEV	Dev,
		uint16_t	nvm_ctrl_pulse_width,
		int32_t	nvm_power_up_delay_us
	)

static

Definition at line 144 of file vl53l1_api.c.

◆ VL53L1_nvm_read()

static VL53L1_Error VL53L1_nvm_read	(	VL53L1_DEV	Dev,
		uint8_t	start_address,
		uint8_t	count,
		uint8_t *	pdata
	)

static

Definition at line 228 of file vl53l1_api.c.

◆ VL53L1_read_nvm_raw_data()

static VL53L1_Error VL53L1_read_nvm_raw_data	(	VL53L1_DEV	Dev,
		uint8_t	start_address,
		uint8_t	count,
		uint8_t *	pnvm_raw_data
	)

static

Definition at line 340 of file vl53l1_api.c.

Variable Documentation

◆ BDTable

int32_t BDTable[VL53L1_TUNING_MAX_TUNABLE_KEY]

static

Initial value:

= {
                TUNING_VERSION,
                TUNING_PROXY_MIN,
                TUNING_SINGLE_TARGET_XTALK_TARGET_DISTANCE_MM,
                TUNING_SINGLE_TARGET_XTALK_SAMPLE_NUMBER,
                TUNING_MIN_AMBIENT_DMAX_VALID,
                TUNING_MAX_SIMPLE_OFFSET_CALIBRATION_SAMPLE_NUMBER,
                TUNING_XTALK_FULL_ROI_TARGET_DISTANCE_MM,
                TUNING_SIMPLE_OFFSET_CALIBRATION_REPEAT
}

Definition at line 129 of file vl53l1_api.c.

Macros

Functions

Variables

Macro Definition Documentation

◆ BADTHRESBOUNDS

◆ DMAX_REFLECTANCE_IDX

◆ FDA_MAX_TIMING_BUDGET_US

◆ LOG_FUNCTION_END

◆ LOG_FUNCTION_END_FMT

◆ LOG_FUNCTION_START

◆ LOWPOWER_AUTO_OVERHEAD_BEFORE_A_RANGING

◆ LOWPOWER_AUTO_OVERHEAD_BETWEEN_A_B_RANGING

◆ LOWPOWER_AUTO_VHV_LOOP_DURATION_US

◆ MAX

◆ MIN

◆ OFFSET_CALIB

◆ TIMED_MODE_TIMING_GUARD_MILLISECONDS

◆ VL53L1_NVM_POWER_UP_DELAY_US

◆ VL53L1_NVM_READ_TRIGGER_DELAY_US

◆ ZONE_CHECK

Function Documentation

◆ ChangePresetMode()

◆ CheckValidRectRoi()

◆ ComputeDevicePresetMode()

◆ ComputeRQL()

◆ ConvertModeFromLLD()

◆ ConvertModeToLLD()

◆ ConvertStatusLite()

◆ SetLimitValue()

◆ SetPresetMode()

◆ SetSimpleData()

◆ SingleTargetXTalkCalibration()

◆ VL53L1_nvm_disable()

◆ VL53L1_nvm_enable()

◆ VL53L1_nvm_read()

◆ VL53L1_read_nvm_raw_data()

Variable Documentation

◆ BDTable
