global_planner::Expander Class Reference

#include <expander.h>

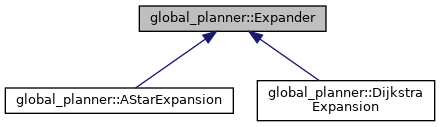

Inheritance diagram for global_planner::Expander:

Public Member Functions
virtual bool	calculatePotentials (unsigned char *costs, double start_x, double start_y, double end_x, double end_y, int cycles, float *potential)=0
void	clearEndpoint (unsigned char *costs, float *potential, int gx, int gy, int s)
	Expander (PotentialCalculator *p_calc, int nx, int ny)
void	setFactor (float factor)
void	setHasUnknown (bool unknown)
void	setLethalCost (unsigned char lethal_cost)
void	setNeutralCost (unsigned char neutral_cost)
virtual	~Expander ()

Protected Member Functions
int	toIndex (int x, int y)

Protected Attributes
int	cells_visited_
float	factor_
unsigned char	lethal_cost_
unsigned char	neutral_cost_
int	ns_
int	nx_
int	ny_
PotentialCalculator *	p_calc_
bool	unknown_

Detailed Description

Definition at line 81 of file expander.h.

Constructor & Destructor Documentation

Expander()

global_planner::Expander::Expander ( PotentialCalculator *  p_calc, int  nx, int  ny  )

inline

Definition at line 119 of file expander.h.

~Expander()

virtual global_planner::Expander::~Expander ( )

inlinevirtual

Definition at line 123 of file expander.h.

Member Function Documentation

calculatePotentials()

virtual bool global_planner::Expander::calculatePotentials ( unsigned char *  costs, double  start_x, double  start_y, double  end_x, double  end_y, int  cycles, float *  potential  )

pure virtual

Implemented in global_planner::AStarExpansion, and global_planner::DijkstraExpansion.

clearEndpoint()

void global_planner::Expander::clearEndpoint ( unsigned char *  costs, float *  potential, int  gx, int  gy, int  s  )

inline

Definition at line 150 of file expander.h.

setFactor()

void global_planner::Expander::setFactor ( float  factor )

inline

Definition at line 143 of file expander.h.

setHasUnknown()

void global_planner::Expander::setHasUnknown ( bool  unknown )

inline

Definition at line 146 of file expander.h.

setLethalCost()

void global_planner::Expander::setLethalCost ( unsigned char  lethal_cost )

inline

Definition at line 137 of file expander.h.

setNeutralCost()

void global_planner::Expander::setNeutralCost ( unsigned char  neutral_cost )

inline

Definition at line 140 of file expander.h.

toIndex()

int global_planner::Expander::toIndex ( int  x, int  y  )

inlineprotected

Definition at line 165 of file expander.h.

Member Data Documentation

cells_visited_

int global_planner::Expander::cells_visited_

protected

Definition at line 172 of file expander.h.

factor_

float global_planner::Expander::factor_

protected

Definition at line 173 of file expander.h.

lethal_cost_

unsigned char global_planner::Expander::lethal_cost_

protected

Definition at line 171 of file expander.h.

neutral_cost_

unsigned char global_planner::Expander::neutral_cost_

protected

Definition at line 171 of file expander.h.

ns_

int global_planner::Expander::ns_

protected

size of grid, in pixels

Definition at line 169 of file expander.h.

nx_

int global_planner::Expander::nx_

protected

Definition at line 169 of file expander.h.

ny_

int global_planner::Expander::ny_

protected

Definition at line 169 of file expander.h.

p_calc_

PotentialCalculator* global_planner::Expander::p_calc_

protected

Definition at line 174 of file expander.h.

unknown_

bool global_planner::Expander::unknown_

protected

Definition at line 170 of file expander.h.

---

The documentation for this class was generated from the following file:

• expander.h
