#include <b2_joint.h>

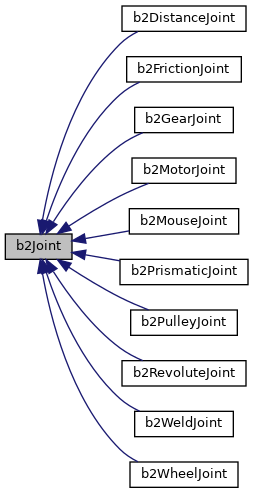

Inheritance diagram for b2Joint:

[legend]

Public Member Functions
virtual void	Draw (b2Draw *draw) const
	Debug draw this joint. More...

virtual void	Dump ()
	Dump this joint to the log file. More...

virtual b2Vec2	GetAnchorA () const =0
	Get the anchor point on bodyA in world coordinates. More...

virtual b2Vec2	GetAnchorB () const =0
	Get the anchor point on bodyB in world coordinates. More...

b2Body *	GetBodyA ()
	Get the first body attached to this joint. More...

b2Body *	GetBodyB ()
	Get the second body attached to this joint. More...

bool	GetCollideConnected () const

b2Joint *	GetNext ()
	Get the next joint the world joint list. More...

const b2Joint *	GetNext () const

virtual b2Vec2	GetReactionForce (float inv_dt) const =0
	Get the reaction force on bodyB at the joint anchor in Newtons. More...

virtual float	GetReactionTorque (float inv_dt) const =0
	Get the reaction torque on bodyB in N*m. More...

b2JointType	GetType () const
	Get the type of the concrete joint. More...

b2JointUserData &	GetUserData ()
	Get the user data pointer. More...

bool	IsEnabled () const
	Short-cut function to determine if either body is enabled. More...

virtual void	ShiftOrigin (const b2Vec2 &newOrigin)
	Shift the origin for any points stored in world coordinates. More...

Protected Member Functions
	b2Joint (const b2JointDef *def)

virtual void	InitVelocityConstraints (const b2SolverData &data)=0

virtual bool	SolvePositionConstraints (const b2SolverData &data)=0

virtual void	SolveVelocityConstraints (const b2SolverData &data)=0

virtual	~b2Joint ()

Static Protected Member Functions
static b2Joint *	Create (const b2JointDef def, b2BlockAllocator allocator)

static void	Destroy (b2Joint joint, b2BlockAllocator allocator)

Protected Attributes
b2Body *	m_bodyA

b2Body *	m_bodyB

bool	m_collideConnected

b2JointEdge	m_edgeA

b2JointEdge	m_edgeB

int32	m_index

bool	m_islandFlag

b2Joint *	m_next

b2Joint *	m_prev

b2JointType	m_type

b2JointUserData	m_userData

Friends
class	b2Body

class	b2GearJoint

class	b2Island

class	b2World

Detailed Description

The base joint class. Joints are used to constraint two bodies together in various fashions. Some joints also feature limits and motors.

Definition at line 110 of file b2_joint.h.

Constructor & Destructor Documentation

◆ b2Joint()

b2Joint::b2Joint ( const b2JointDef * def )

protected

Definition at line 225 of file b2_joint.cpp.

◆ ~b2Joint()

virtual b2Joint::~b2Joint ( )

inlineprotectedvirtual

Definition at line 169 of file b2_joint.h.

Member Function Documentation

◆ Create()

b2Joint * b2Joint::Create	(	const b2JointDef *	def,
		b2BlockAllocator *	allocator
	)

staticprotected

Definition at line 90 of file b2_joint.cpp.

◆ Destroy()

void b2Joint::Destroy	(	b2Joint *	joint,
		b2BlockAllocator *	allocator
	)

staticprotected

Definition at line 174 of file b2_joint.cpp.

◆ Draw()

void b2Joint::Draw ( b2Draw * draw ) const

virtual

Debug draw this joint.

Reimplemented in b2WheelJoint, b2RevoluteJoint, b2PrismaticJoint, and b2DistanceJoint.

Definition at line 255 of file b2_joint.cpp.

◆ Dump()

virtual void b2Joint::Dump ( )

inlinevirtual

Dump this joint to the log file.

Reimplemented in b2WheelJoint, b2RevoluteJoint, b2PrismaticJoint, b2DistanceJoint, b2PulleyJoint, b2MotorJoint, b2MouseJoint, b2WeldJoint, b2FrictionJoint, and b2GearJoint.

Definition at line 151 of file b2_joint.h.

◆ GetAnchorA()

virtual b2Vec2 b2Joint::GetAnchorA ( ) const

pure virtual

Get the anchor point on bodyA in world coordinates.

Implemented in b2WheelJoint, b2RevoluteJoint, b2PrismaticJoint, b2PulleyJoint, b2DistanceJoint, b2WeldJoint, b2MouseJoint, b2MotorJoint, b2GearJoint, and b2FrictionJoint.

◆ GetAnchorB()

virtual b2Vec2 b2Joint::GetAnchorB ( ) const

pure virtual

Get the anchor point on bodyB in world coordinates.

Implemented in b2WheelJoint, b2RevoluteJoint, b2PrismaticJoint, b2PulleyJoint, b2DistanceJoint, b2MouseJoint, b2WeldJoint, b2MotorJoint, b2GearJoint, and b2FrictionJoint.

◆ GetBodyA()

b2Body * b2Joint::GetBodyA ( )

inline

Get the first body attached to this joint.

Definition at line 198 of file b2_joint.h.

◆ GetBodyB()

b2Body * b2Joint::GetBodyB ( )

inline

Get the second body attached to this joint.

Definition at line 203 of file b2_joint.h.

◆ GetCollideConnected()

bool b2Joint::GetCollideConnected ( ) const

inline

Get collide connected. Note: modifying the collide connect flag won't work correctly because the flag is only checked when fixture AABBs begin to overlap.

Definition at line 223 of file b2_joint.h.

◆ GetNext() [1/2]

b2Joint * b2Joint::GetNext ( )

inline

Get the next joint the world joint list.

Definition at line 208 of file b2_joint.h.

◆ GetNext() [2/2]

const b2Joint * b2Joint::GetNext ( ) const

inline

Definition at line 213 of file b2_joint.h.

◆ GetReactionForce()

virtual b2Vec2 b2Joint::GetReactionForce ( float inv_dt ) const

pure virtual

Get the reaction force on bodyB at the joint anchor in Newtons.

Implemented in b2RevoluteJoint, b2WheelJoint, b2PrismaticJoint, b2PulleyJoint, b2DistanceJoint, b2MouseJoint, b2WeldJoint, b2MotorJoint, b2GearJoint, and b2FrictionJoint.

◆ GetReactionTorque()

virtual float b2Joint::GetReactionTorque ( float inv_dt ) const

pure virtual

Get the reaction torque on bodyB in N*m.

Implemented in b2RevoluteJoint, b2WheelJoint, b2PrismaticJoint, b2PulleyJoint, b2DistanceJoint, b2MouseJoint, b2WeldJoint, b2MotorJoint, b2GearJoint, and b2FrictionJoint.

◆ GetType()

b2JointType b2Joint::GetType ( ) const

inline

Get the type of the concrete joint.

Definition at line 193 of file b2_joint.h.

◆ GetUserData()

b2JointUserData & b2Joint::GetUserData ( )

inline

Get the user data pointer.

Definition at line 218 of file b2_joint.h.

◆ InitVelocityConstraints()

virtual void b2Joint::InitVelocityConstraints ( const b2SolverData & data )

protectedpure virtual

Implemented in b2WheelJoint, b2RevoluteJoint, b2PrismaticJoint, b2DistanceJoint, b2PulleyJoint, b2MotorJoint, b2MouseJoint, b2WeldJoint, b2FrictionJoint, and b2GearJoint.

◆ IsEnabled()

bool b2Joint::IsEnabled ( ) const

Short-cut function to determine if either body is enabled.

Definition at line 250 of file b2_joint.cpp.

◆ ShiftOrigin()

virtual void b2Joint::ShiftOrigin ( const b2Vec2 & newOrigin )

inlinevirtual

Shift the origin for any points stored in world coordinates.

Reimplemented in b2PulleyJoint, and b2MouseJoint.

Definition at line 154 of file b2_joint.h.

◆ SolvePositionConstraints()

virtual bool b2Joint::SolvePositionConstraints ( const b2SolverData & data )

protectedpure virtual

Implemented in b2WheelJoint, b2RevoluteJoint, b2PrismaticJoint, b2DistanceJoint, b2PulleyJoint, b2MotorJoint, b2MouseJoint, b2WeldJoint, b2FrictionJoint, and b2GearJoint.

◆ SolveVelocityConstraints()

virtual void b2Joint::SolveVelocityConstraints ( const b2SolverData & data )

protectedpure virtual

Implemented in b2WheelJoint, b2RevoluteJoint, b2PrismaticJoint, b2DistanceJoint, b2PulleyJoint, b2MotorJoint, b2MouseJoint, b2WeldJoint, b2FrictionJoint, and b2GearJoint.

Friends And Related Function Documentation

◆ b2Body

friend class b2Body

friend

Definition at line 161 of file b2_joint.h.

◆ b2GearJoint

friend class b2GearJoint

friend

Definition at line 163 of file b2_joint.h.

◆ b2Island

friend class b2Island

friend

Definition at line 162 of file b2_joint.h.

◆ b2World

friend class b2World

friend

Definition at line 160 of file b2_joint.h.

Member Data Documentation

◆ m_bodyA

b2Body* b2Joint::m_bodyA

protected

Definition at line 182 of file b2_joint.h.

◆ m_bodyB

b2Body* b2Joint::m_bodyB

protected

Definition at line 183 of file b2_joint.h.

◆ m_collideConnected

bool b2Joint::m_collideConnected

protected

Definition at line 188 of file b2_joint.h.

◆ m_edgeA

b2JointEdge b2Joint::m_edgeA

protected

Definition at line 180 of file b2_joint.h.

◆ m_edgeB

b2JointEdge b2Joint::m_edgeB

protected

Definition at line 181 of file b2_joint.h.

◆ m_index

int32 b2Joint::m_index

protected

Definition at line 185 of file b2_joint.h.

◆ m_islandFlag

bool b2Joint::m_islandFlag

protected

Definition at line 187 of file b2_joint.h.

◆ m_next

b2Joint* b2Joint::m_next

protected

Definition at line 179 of file b2_joint.h.

◆ m_prev

b2Joint* b2Joint::m_prev

protected

Definition at line 178 of file b2_joint.h.

◆ m_type

b2JointType b2Joint::m_type

protected

Definition at line 177 of file b2_joint.h.

◆ m_userData

b2JointUserData b2Joint::m_userData

protected

Definition at line 190 of file b2_joint.h.

The documentation for this class was generated from the following files:
