A layout that places child elements aligned to the border or arbitrarily positioned. More...

#include <qcustomplot.h>

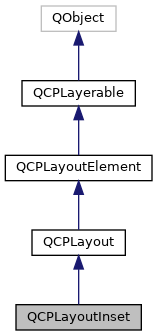

Inheritance diagram for QCPLayoutInset:

Public Types
enum	InsetPlacement { ipFree, ipBorderAligned }

Public Types inherited from QCPLayoutElement
enum	SizeConstraintRect { scrInnerRect, scrOuterRect }

enum	UpdatePhase { upPreparation, upMargins, upLayout }

Public Member Functions
void	addElement (QCPLayoutElement *element, Qt::Alignment alignment)

void	addElement (QCPLayoutElement *element, const QRectF &rect)

virtual QCPLayoutElement *	elementAt (int index) const Q_DECL_OVERRIDE

virtual int	elementCount () const Q_DECL_OVERRIDE

Qt::Alignment	insetAlignment (int index) const

InsetPlacement	insetPlacement (int index) const

QRectF	insetRect (int index) const

	QCPLayoutInset ()

virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const Q_DECL_OVERRIDE

void	setInsetAlignment (int index, Qt::Alignment alignment)

void	setInsetPlacement (int index, InsetPlacement placement)

void	setInsetRect (int index, const QRectF &rect)

virtual void	simplify () Q_DECL_OVERRIDE

virtual bool	take (QCPLayoutElement *element) Q_DECL_OVERRIDE

virtual QCPLayoutElement *	takeAt (int index) Q_DECL_OVERRIDE

virtual void	updateLayout () Q_DECL_OVERRIDE

virtual	~QCPLayoutInset ()

Public Member Functions inherited from QCPLayout
void	clear ()

virtual QList< QCPLayoutElement * >	elements (bool recursive) const Q_DECL_OVERRIDE

	QCPLayout ()

bool	remove (QCPLayoutElement *element)

bool	removeAt (int index)

virtual void	update (UpdatePhase phase) Q_DECL_OVERRIDE

Public Member Functions inherited from QCPLayoutElement
QCP::MarginSides	autoMargins () const

QCPLayout *	layout () const

QCPMarginGroup *	marginGroup (QCP::MarginSide side) const

QHash< QCP::MarginSide, QCPMarginGroup * >	marginGroups () const

QMargins	margins () const

virtual QSize	maximumOuterSizeHint () const

QSize	maximumSize () const

QMargins	minimumMargins () const

virtual QSize	minimumOuterSizeHint () const

QSize	minimumSize () const

QRect	outerRect () const

	QCPLayoutElement (QCustomPlot *parentPlot=0)

QRect	rect () const

void	setAutoMargins (QCP::MarginSides sides)

void	setMarginGroup (QCP::MarginSides sides, QCPMarginGroup *group)

void	setMargins (const QMargins &margins)

void	setMaximumSize (const QSize &size)

void	setMaximumSize (int width, int height)

void	setMinimumMargins (const QMargins &margins)

void	setMinimumSize (const QSize &size)

void	setMinimumSize (int width, int height)

void	setOuterRect (const QRect &rect)

void	setSizeConstraintRect (SizeConstraintRect constraintRect)

SizeConstraintRect	sizeConstraintRect () const

virtual	~QCPLayoutElement ()

Public Member Functions inherited from QCPLayerable
bool	antialiased () const

QCPLayer *	layer () const

QCPLayerable *	parentLayerable () const

QCustomPlot *	parentPlot () const

	QCPLayerable (QCustomPlot plot, QString targetLayer=QString(), QCPLayerable parentLayerable=0)

bool	realVisibility () const

void	setAntialiased (bool enabled)

Q_SLOT bool	setLayer (QCPLayer *layer)

bool	setLayer (const QString &layerName)

void	setVisible (bool on)

bool	visible () const

virtual	~QCPLayerable ()

Protected Attributes
QList< QCPLayoutElement * >	mElements

QList< Qt::Alignment >	mInsetAlignment

QList< InsetPlacement >	mInsetPlacement

QList< QRectF >	mInsetRect

Protected Attributes inherited from QCPLayoutElement
QCP::MarginSides	mAutoMargins

QHash< QCP::MarginSide, QCPMarginGroup * >	mMarginGroups

QMargins	mMargins

QSize	mMaximumSize

QMargins	mMinimumMargins

QSize	mMinimumSize

QRect	mOuterRect

QCPLayout *	mParentLayout

QRect	mRect

SizeConstraintRect	mSizeConstraintRect

Protected Attributes inherited from QCPLayerable
bool	mAntialiased

QCPLayer *	mLayer

QPointer< QCPLayerable >	mParentLayerable

QCustomPlot *	mParentPlot

bool	mVisible

Additional Inherited Members
Signals inherited from QCPLayerable
void	layerChanged (QCPLayer *newLayer)

Protected Member Functions inherited from QCPLayout
void	adoptElement (QCPLayoutElement *el)

QVector< int >	getSectionSizes (QVector< int > maxSizes, QVector< int > minSizes, QVector< double > stretchFactors, int totalSize) const

void	releaseElement (QCPLayoutElement *el)

void	sizeConstraintsChanged () const

Protected Member Functions inherited from QCPLayoutElement
virtual void	applyDefaultAntialiasingHint (QCPPainter *painter) const Q_DECL_OVERRIDE

virtual int	calculateAutoMargin (QCP::MarginSide side)

virtual void	draw (QCPPainter *painter) Q_DECL_OVERRIDE

virtual void	layoutChanged ()

virtual void	parentPlotInitialized (QCustomPlot *parentPlot) Q_DECL_OVERRIDE

Protected Member Functions inherited from QCPLayerable
void	applyAntialiasingHint (QCPPainter *painter, bool localAntialiased, QCP::AntialiasedElement overrideElement) const

virtual QRect	clipRect () const

virtual void	deselectEvent (bool *selectionStateChanged)

void	initializeParentPlot (QCustomPlot *parentPlot)

virtual void	mouseDoubleClickEvent (QMouseEvent *event, const QVariant &details)

virtual void	mouseMoveEvent (QMouseEvent *event, const QPointF &startPos)

virtual void	mousePressEvent (QMouseEvent *event, const QVariant &details)

virtual void	mouseReleaseEvent (QMouseEvent *event, const QPointF &startPos)

bool	moveToLayer (QCPLayer *layer, bool prepend)

virtual void	selectEvent (QMouseEvent event, bool additive, const QVariant &details, bool selectionStateChanged)

virtual QCP::Interaction	selectionCategory () const

void	setParentLayerable (QCPLayerable *parentLayerable)

virtual void	wheelEvent (QWheelEvent *event)

Static Protected Member Functions inherited from QCPLayout
static QSize	getFinalMaximumOuterSize (const QCPLayoutElement *el)

static QSize	getFinalMinimumOuterSize (const QCPLayoutElement *el)

Detailed Description

A layout that places child elements aligned to the border or arbitrarily positioned.

Elements are placed either aligned to the border or at arbitrary position in the area of the layout. Which placement applies is controlled with the InsetPlacement (setInsetPlacement).

Elements are added via addElement(QCPLayoutElement *element, Qt::Alignment alignment) or addElement(QCPLayoutElement *element, const QRectF &rect). If the first method is used, the inset placement will default to ipBorderAligned and the element will be aligned according to the alignment parameter. The second method defaults to ipFree and allows placing elements at arbitrary position and size, defined by rect.

The alignment or rect can be set via setInsetAlignment or setInsetRect, respectively.

This is the layout that every QCPAxisRect has as QCPAxisRect::insetLayout.

Definition at line 1418 of file qcustomplot.h.

Member Enumeration Documentation

◆ InsetPlacement

enum QCPLayoutInset::InsetPlacement

Defines how the placement and sizing is handled for a certain element in a QCPLayoutInset.

Enumerator
ipFree	The element may be positioned/sized arbitrarily, see setInsetRect.
ipBorderAligned	The element is aligned to one of the layout sides, see setInsetAlignment.

Definition at line 1425 of file qcustomplot.h.

Constructor & Destructor Documentation

◆ QCPLayoutInset()

QCPLayoutInset::QCPLayoutInset ( )

explicit

Creates an instance of QCPLayoutInset and sets default values.

Definition at line 4862 of file qcustomplot.cpp.

◆ ~QCPLayoutInset()

QCPLayoutInset::~QCPLayoutInset ( )

virtual

Definition at line 4866 of file qcustomplot.cpp.

Member Function Documentation

◆ addElement() [1/2]

void QCPLayoutInset::addElement	(	QCPLayoutElement *	element,
		Qt::Alignment	alignment
	)

Adds the specified element to the layout as an inset aligned at the border (setInsetAlignment is initialized with ipBorderAligned). The alignment is set to alignment.

alignment is an or combination of the following alignment flags: Qt::AlignLeft, Qt::AlignHCenter, Qt::AlighRight, Qt::AlignTop, Qt::AlignVCenter, Qt::AlignBottom. Any other alignment flags will be ignored.

See also: addElement(QCPLayoutElement *element, const QRectF &rect)

Definition at line 5091 of file qcustomplot.cpp.

◆ addElement() [2/2]

void QCPLayoutInset::addElement	(	QCPLayoutElement *	element,
		const QRectF &	rect
	)

Adds the specified element to the layout as an inset with free positioning/sizing (setInsetAlignment is initialized with ipFree). The position and size is set to rect.

rect is given in fractions of the whole inset layout rect. So an inset with rect (0, 0, 1, 1) will span the entire layout. An inset with rect (0.6, 0.1, 0.35, 0.35) will be in the top right corner of the layout, with 35% width and height of the parent layout.

See also: addElement(QCPLayoutElement *element, Qt::Alignment alignment)

Definition at line 5117 of file qcustomplot.cpp.

◆ elementAt()

QCPLayoutElement * QCPLayoutInset::elementAt ( int index ) const

virtual

Returns the element in the cell with the given index. If index is invalid, returns 0.

Note that even if index is valid, the respective cell may be empty in some layouts (e.g. QCPLayoutGrid), so this function may return 0 in those cases. You may use this function to check whether a cell is empty or not.

See also: elements, elementCount, takeAt

Implements QCPLayout.

Definition at line 5010 of file qcustomplot.cpp.

◆ elementCount()

int QCPLayoutInset::elementCount ( ) const

virtual

Returns the number of elements/cells in the layout.

See also: elements, elementAt

Implements QCPLayout.

Definition at line 5004 of file qcustomplot.cpp.

◆ insetAlignment()

Qt::Alignment QCPLayoutInset::insetAlignment ( int index ) const

Returns the alignment of the element with the specified index. The alignment only has a meaning, if the inset placement (setInsetPlacement) is ipBorderAligned.

Definition at line 4891 of file qcustomplot.cpp.

◆ insetPlacement()

QCPLayoutInset::InsetPlacement QCPLayoutInset::insetPlacement ( int index ) const

Returns the placement type of the element with the specified index.

Definition at line 4876 of file qcustomplot.cpp.

◆ insetRect()

QRectF QCPLayoutInset::insetRect ( int index ) const

Returns the rect of the element with the specified index. The rect only has a meaning, if the inset placement (setInsetPlacement) is ipFree.

Definition at line 4906 of file qcustomplot.cpp.

◆ selectTest()

double QCPLayoutInset::selectTest	(	const QPointF &	pos,
		bool	onlySelectable,
		QVariant *	details = `0`
	)		const

virtual

The inset layout is sensitive to events only at areas where its (visible) child elements are sensitive. If the selectTest method of any of the child elements returns a positive number for pos, this method returns a value corresponding to 0.99 times the parent plot's selection tolerance. The inset layout is not selectable itself by default. So if onlySelectable is true, -1.0 is returned.

See QCPLayerable::selectTest for a general explanation of this virtual method.

Reimplemented from QCPLayoutElement.

Definition at line 5064 of file qcustomplot.cpp.

◆ setInsetAlignment()

void QCPLayoutInset::setInsetAlignment	(	int	index,
		Qt::Alignment	alignment
	)

If the inset placement (setInsetPlacement) is ipBorderAligned, this function is used to set the alignment of the element with the specified index to alignment.

alignment is an or combination of the following alignment flags: Qt::AlignLeft, Qt::AlignHCenter, Qt::AlighRight, Qt::AlignTop, Qt::AlignVCenter, Qt::AlignBottom. Any other alignment flags will be ignored.

Definition at line 4938 of file qcustomplot.cpp.

◆ setInsetPlacement()

void QCPLayoutInset::setInsetPlacement	(	int	index,
		QCPLayoutInset::InsetPlacement	placement
	)

Sets the inset placement type of the element with the specified index to placement.

See also: InsetPlacement

Definition at line 4922 of file qcustomplot.cpp.

◆ setInsetRect()

void QCPLayoutInset::setInsetRect	(	int	index,
		const QRectF &	rect
	)

If the inset placement (setInsetPlacement) is ipFree, this function is used to set the position and size of the element with the specified index to rect.

rect is given in fractions of the whole inset layout rect. So an inset with rect (0, 0, 1, 1) will span the entire layout. An inset with rect (0.6, 0.1, 0.35, 0.35) will be in the top right corner of the layout, with 35% width and height of the parent layout.

Note that the minimum and maximum sizes of the embedded element (QCPLayoutElement::setMinimumSize, QCPLayoutElement::setMaximumSize) are enforced.

Definition at line 4957 of file qcustomplot.cpp.

◆ simplify()

void QCPLayoutInset::simplify ( )

inlinevirtual

The QCPInsetLayout does not need simplification since it can never have empty cells due to its linear index structure. This method does nothing.

Reimplemented from QCPLayout.

Definition at line 1449 of file qcustomplot.h.

◆ take()

bool QCPLayoutInset::take ( QCPLayoutElement * element )

virtual

Removes the specified element from the layout and returns true on success.

If the element isn't in this layout, returns false.

Note that some layouts don't remove the respective cell right away but leave an empty cell after successful removal of the layout element. To collapse empty cells, use simplify.

See also: takeAt

Implements QCPLayout.

Definition at line 5037 of file qcustomplot.cpp.

◆ takeAt()

QCPLayoutElement * QCPLayoutInset::takeAt ( int index )

virtual

Removes the element with the given index from the layout and returns it.

If the index is invalid or the cell with that index is empty, returns 0.

Note that some layouts don't remove the respective cell right away but leave an empty cell after successful removal of the layout element. To collapse empty cells, use simplify.

See also: elementAt, take

Implements QCPLayout.

Definition at line 5019 of file qcustomplot.cpp.

◆ updateLayout()

void QCPLayoutInset::updateLayout ( )

virtual

Reimplemented from QCPLayout.

Definition at line 4966 of file qcustomplot.cpp.

Member Data Documentation

◆ mElements

QList<QCPLayoutElement*> QCPLayoutInset::mElements

protected

Definition at line 1458 of file qcustomplot.h.

◆ mInsetAlignment

QList<Qt::Alignment> QCPLayoutInset::mInsetAlignment

protected

Definition at line 1460 of file qcustomplot.h.

◆ mInsetPlacement

QList<InsetPlacement> QCPLayoutInset::mInsetPlacement

protected

Definition at line 1459 of file qcustomplot.h.

◆ mInsetRect

QList<QRectF> QCPLayoutInset::mInsetRect

protected

Definition at line 1461 of file qcustomplot.h.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ InsetPlacement

Constructor & Destructor Documentation

◆ QCPLayoutInset()

◆ ~QCPLayoutInset()

Member Function Documentation

◆ addElement() [1/2]

◆ addElement() [2/2]

◆ elementAt()

◆ elementCount()

◆ insetAlignment()

◆ insetPlacement()

◆ insetRect()

◆ selectTest()

◆ setInsetAlignment()

◆ setInsetPlacement()

◆ setInsetRect()

◆ simplify()

◆ take()

◆ takeAt()

◆ updateLayout()

Member Data Documentation

◆ mElements

◆ mInsetAlignment

◆ mInsetPlacement

◆ mInsetRect
