A layout that arranges child elements in a grid. More...

#include <qcustomplot.h>

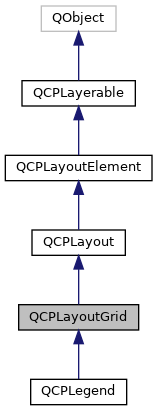

Inheritance diagram for QCPLayoutGrid:

[legend]

Public Types
enum	FillOrder { foRowsFirst, foColumnsFirst }

Public Types inherited from QCPLayoutElement
enum	SizeConstraintRect { scrInnerRect, scrOuterRect }

enum	UpdatePhase { upPreparation, upMargins, upLayout }

Public Member Functions
bool	addElement (int row, int column, QCPLayoutElement *element)

bool	addElement (QCPLayoutElement *element)

int	columnCount () const

int	columnSpacing () const

QList< double >	columnStretchFactors () const

QCPLayoutElement *	element (int row, int column) const

virtual QCPLayoutElement *	elementAt (int index) const Q_DECL_OVERRIDE

virtual int	elementCount () const Q_DECL_OVERRIDE

virtual QList< QCPLayoutElement * >	elements (bool recursive) const Q_DECL_OVERRIDE

void	expandTo (int newRowCount, int newColumnCount)

FillOrder	fillOrder () const

bool	hasElement (int row, int column)

void	indexToRowCol (int index, int &row, int &column) const

void	insertColumn (int newIndex)

void	insertRow (int newIndex)

virtual QSize	maximumOuterSizeHint () const Q_DECL_OVERRIDE

virtual QSize	minimumOuterSizeHint () const Q_DECL_OVERRIDE

	QCPLayoutGrid ()

int	rowColToIndex (int row, int column) const

int	rowCount () const

int	rowSpacing () const

QList< double >	rowStretchFactors () const

void	setColumnSpacing (int pixels)

void	setColumnStretchFactor (int column, double factor)

void	setColumnStretchFactors (const QList< double > &factors)

void	setFillOrder (FillOrder order, bool rearrange=true)

void	setRowSpacing (int pixels)

void	setRowStretchFactor (int row, double factor)

void	setRowStretchFactors (const QList< double > &factors)

void	setWrap (int count)

virtual void	simplify () Q_DECL_OVERRIDE

virtual bool	take (QCPLayoutElement *element) Q_DECL_OVERRIDE

virtual QCPLayoutElement *	takeAt (int index) Q_DECL_OVERRIDE

virtual void	updateLayout () Q_DECL_OVERRIDE

int	wrap () const

virtual	~QCPLayoutGrid ()

Public Member Functions inherited from QCPLayout
void	clear ()

	QCPLayout ()

bool	remove (QCPLayoutElement *element)

bool	removeAt (int index)

virtual void	update (UpdatePhase phase) Q_DECL_OVERRIDE

Public Member Functions inherited from QCPLayoutElement
QCP::MarginSides	autoMargins () const

QCPLayout *	layout () const

QCPMarginGroup *	marginGroup (QCP::MarginSide side) const

QHash< QCP::MarginSide, QCPMarginGroup * >	marginGroups () const

QMargins	margins () const

QSize	maximumSize () const

QMargins	minimumMargins () const

QSize	minimumSize () const

QRect	outerRect () const

	QCPLayoutElement (QCustomPlot *parentPlot=0)

QRect	rect () const

virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const Q_DECL_OVERRIDE

void	setAutoMargins (QCP::MarginSides sides)

void	setMarginGroup (QCP::MarginSides sides, QCPMarginGroup *group)

void	setMargins (const QMargins &margins)

void	setMaximumSize (const QSize &size)

void	setMaximumSize (int width, int height)

void	setMinimumMargins (const QMargins &margins)

void	setMinimumSize (const QSize &size)

void	setMinimumSize (int width, int height)

void	setOuterRect (const QRect &rect)

void	setSizeConstraintRect (SizeConstraintRect constraintRect)

SizeConstraintRect	sizeConstraintRect () const

virtual	~QCPLayoutElement ()

Public Member Functions inherited from QCPLayerable
bool	antialiased () const

QCPLayer *	layer () const

QCPLayerable *	parentLayerable () const

QCustomPlot *	parentPlot () const

	QCPLayerable (QCustomPlot plot, QString targetLayer=QString(), QCPLayerable parentLayerable=0)

bool	realVisibility () const

void	setAntialiased (bool enabled)

Q_SLOT bool	setLayer (QCPLayer *layer)

bool	setLayer (const QString &layerName)

void	setVisible (bool on)

bool	visible () const

virtual	~QCPLayerable ()

Protected Member Functions
void	getMaximumRowColSizes (QVector< int > maxColWidths, QVector< int > maxRowHeights) const

void	getMinimumRowColSizes (QVector< int > minColWidths, QVector< int > minRowHeights) const

Protected Member Functions inherited from QCPLayout
void	adoptElement (QCPLayoutElement *el)

QVector< int >	getSectionSizes (QVector< int > maxSizes, QVector< int > minSizes, QVector< double > stretchFactors, int totalSize) const

void	releaseElement (QCPLayoutElement *el)

void	sizeConstraintsChanged () const

Protected Member Functions inherited from QCPLayoutElement
virtual void	applyDefaultAntialiasingHint (QCPPainter *painter) const Q_DECL_OVERRIDE

virtual int	calculateAutoMargin (QCP::MarginSide side)

virtual void	draw (QCPPainter *painter) Q_DECL_OVERRIDE

virtual void	layoutChanged ()

virtual void	parentPlotInitialized (QCustomPlot *parentPlot) Q_DECL_OVERRIDE

Protected Member Functions inherited from QCPLayerable
void	applyAntialiasingHint (QCPPainter *painter, bool localAntialiased, QCP::AntialiasedElement overrideElement) const

virtual QRect	clipRect () const

virtual void	deselectEvent (bool *selectionStateChanged)

void	initializeParentPlot (QCustomPlot *parentPlot)

virtual void	mouseDoubleClickEvent (QMouseEvent *event, const QVariant &details)

virtual void	mouseMoveEvent (QMouseEvent *event, const QPointF &startPos)

virtual void	mousePressEvent (QMouseEvent *event, const QVariant &details)

virtual void	mouseReleaseEvent (QMouseEvent *event, const QPointF &startPos)

bool	moveToLayer (QCPLayer *layer, bool prepend)

virtual void	selectEvent (QMouseEvent event, bool additive, const QVariant &details, bool selectionStateChanged)

virtual QCP::Interaction	selectionCategory () const

void	setParentLayerable (QCPLayerable *parentLayerable)

virtual void	wheelEvent (QWheelEvent *event)

Protected Attributes
int	mColumnSpacing

QList< double >	mColumnStretchFactors

QList< QList< QCPLayoutElement * > >	mElements

FillOrder	mFillOrder

int	mRowSpacing

QList< double >	mRowStretchFactors

int	mWrap

Protected Attributes inherited from QCPLayoutElement
QCP::MarginSides	mAutoMargins

QHash< QCP::MarginSide, QCPMarginGroup * >	mMarginGroups

QMargins	mMargins

QSize	mMaximumSize

QMargins	mMinimumMargins

QSize	mMinimumSize

QRect	mOuterRect

QCPLayout *	mParentLayout

QRect	mRect

SizeConstraintRect	mSizeConstraintRect

Protected Attributes inherited from QCPLayerable
bool	mAntialiased

QCPLayer *	mLayer

QPointer< QCPLayerable >	mParentLayerable

QCustomPlot *	mParentPlot

bool	mVisible

Additional Inherited Members
Signals inherited from QCPLayerable
void	layerChanged (QCPLayer *newLayer)

Static Protected Member Functions inherited from QCPLayout
static QSize	getFinalMaximumOuterSize (const QCPLayoutElement *el)

static QSize	getFinalMinimumOuterSize (const QCPLayoutElement *el)

Detailed Description

A layout that arranges child elements in a grid.

Elements are laid out in a grid with configurable stretch factors (setColumnStretchFactor, setRowStretchFactor) and spacing (setColumnSpacing, setRowSpacing).

Elements can be added to cells via addElement. The grid is expanded if the specified row or column doesn't exist yet. Whether a cell contains a valid layout element can be checked with hasElement, that element can be retrieved with element. If rows and columns that only have empty cells shall be removed, call simplify. Removal of elements is either done by just adding the element to a different layout or by using the QCPLayout interface take or remove.

If you use addElement(QCPLayoutElement*) without explicit parameters for row and column, the grid layout will choose the position according to the current setFillOrder and the wrapping (setWrap).

Row and column insertion can be performed with insertRow and insertColumn.

Definition at line 1327 of file qcustomplot.h.

Member Enumeration Documentation

◆ FillOrder

enum QCPLayoutGrid::FillOrder

Defines in which direction the grid is filled when using addElement(QCPLayoutElement*). The column/row at which wrapping into the next row/column occurs can be specified with setWrap.

See also: setFillOrder

Enumerator
foRowsFirst	Rows are filled first, and a new element is wrapped to the next column if the row count would exceed setWrap.
foColumnsFirst	Columns are filled first, and a new element is wrapped to the next row if the column count would exceed setWrap.

Definition at line 1349 of file qcustomplot.h.

Constructor & Destructor Documentation

◆ QCPLayoutGrid()

QCPLayoutGrid::QCPLayoutGrid ( )

explicit

Creates an instance of QCPLayoutGrid and sets default values.

Definition at line 4079 of file qcustomplot.cpp.

◆ ~QCPLayoutGrid()

QCPLayoutGrid::~QCPLayoutGrid ( )

virtual

Definition at line 4087 of file qcustomplot.cpp.

Member Function Documentation

◆ addElement() [1/2]

bool QCPLayoutGrid::addElement	(	int	row,
		int	column,
		QCPLayoutElement *	element
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Adds the element to cell with row and column. If element is already in a layout, it is first removed from there. If row or column don't exist yet, the layout is expanded accordingly.

Returns true if the element was added successfully, i.e. if the cell at row and column didn't already have an element.

Use the overload of this method without explicit row/column index to place the element according to the configured fill order and wrapping settings.

See also: element, hasElement, take, remove

Definition at line 4134 of file qcustomplot.cpp.

◆ addElement() [2/2]

bool QCPLayoutGrid::addElement ( QCPLayoutElement * element )

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Adds the element to the next empty cell according to the current fill order (setFillOrder) and wrapping (setWrap). If element is already in a layout, it is first removed from there. If necessary, the layout is expanded to hold the new element.

Returns true if the element was added successfully.

See also: setFillOrder, setWrap, element, hasElement, take, remove

Definition at line 4160 of file qcustomplot.cpp.

◆ columnCount()

int QCPLayoutGrid::columnCount ( ) const

inline

Returns the number of columns in the layout.

See also: rowCount

Definition at line 1359 of file qcustomplot.h.

◆ columnSpacing()

int QCPLayoutGrid::columnSpacing ( ) const

inline

Definition at line 1362 of file qcustomplot.h.

◆ columnStretchFactors()

QList<double> QCPLayoutGrid::columnStretchFactors ( ) const

inline

Definition at line 1360 of file qcustomplot.h.

◆ element()

QCPLayoutElement * QCPLayoutGrid::element	(	int	row,
		int	column
	)		const

Returns the element in the cell in row and column.

Returns 0 if either the row/column is invalid or if the cell is empty. In those cases, a qDebug message is printed. To check whether a cell exists and isn't empty, use hasElement.

See also: addElement, hasElement

Definition at line 4102 of file qcustomplot.cpp.

◆ elementAt()

QCPLayoutElement * QCPLayoutGrid::elementAt ( int index ) const

virtual

Note that the association of the linear index to the row/column based cells depends on the current setting of setFillOrder.

See also: rowColToIndex

Implements QCPLayout.

Definition at line 4600 of file qcustomplot.cpp.

◆ elementCount()

virtual int QCPLayoutGrid::elementCount ( ) const

inlinevirtual

Returns the number of elements/cells in the layout.

See also: elements, elementAt

Implements QCPLayout.

Definition at line 1379 of file qcustomplot.h.

◆ elements()

QList< QCPLayoutElement * > QCPLayoutGrid::elements ( bool recursive ) const

virtual

Returns a list of all child elements in this layout element. If recursive is true, all sub-child elements are included in the list, too.

Warning: There may be entries with value 0 in the returned list. (For example, QCPLayoutGrid may have empty cells which yield 0 at the respective index.)

Reimplemented from QCPLayout.

Definition at line 4655 of file qcustomplot.cpp.

◆ expandTo()

void QCPLayoutGrid::expandTo	(	int	newRowCount,
		int	newColumnCount
	)

Expands the layout to have newRowCount rows and newColumnCount columns. So the last valid row index will be newRowCount-1, the last valid column index will be newColumnCount-1.

If the current column/row count is already larger or equal to newColumnCount/newRowCount, this function does nothing in that dimension.

Newly created cells are empty, new rows and columns have the stretch factor 1.

Note that upon a call to addElement, the layout is expanded automatically to contain the specified row and column, using this function.

See also: simplify

Definition at line 4416 of file qcustomplot.cpp.

◆ fillOrder()

FillOrder QCPLayoutGrid::fillOrder ( ) const

inline

Definition at line 1365 of file qcustomplot.h.

◆ getMaximumRowColSizes()

void QCPLayoutGrid::getMaximumRowColSizes	(	QVector< int > *	maxColWidths,
		QVector< int > *	maxRowHeights
	)		const

protected

Definition at line 4807 of file qcustomplot.cpp.

◆ getMinimumRowColSizes()

void QCPLayoutGrid::getMinimumRowColSizes	(	QVector< int > *	minColWidths,
		QVector< int > *	minRowHeights
	)		const

protected

Definition at line 4774 of file qcustomplot.cpp.

◆ hasElement()

bool QCPLayoutGrid::hasElement	(	int	row,
		int	column
	)

Returns whether the cell at row and column exists and contains a valid element, i.e. isn't empty.

See also: element

Definition at line 4196 of file qcustomplot.cpp.

◆ indexToRowCol()

void QCPLayoutGrid::indexToRowCol	(	int	index,
		int &	row,
		int &	column
	)		const

Converts the linear index to row and column indices and writes the result to row and column.

The way the cells are indexed depends on setFillOrder. If it is foRowsFirst, the indices increase left to right and then top to bottom. If it is foColumnsFirst, the indices increase top to bottom and then left to right.

If there are no cells (i.e. column or row count is zero), sets row and column to -1.

For the retrieved row and column to be valid, the passed index must be valid itself, i.e. greater or equal to zero and smaller than the current elementCount.

See also: rowColToIndex

Definition at line 4532 of file qcustomplot.cpp.

◆ insertColumn()

void QCPLayoutGrid::insertColumn ( int newIndex )

Inserts a new column with empty cells at the column index newIndex. Valid values for newIndex range from 0 (inserts a column at the left) to columnCount (appends a column at the right).

See also: insertRow

Definition at line 4468 of file qcustomplot.cpp.

◆ insertRow()

void QCPLayoutGrid::insertRow ( int newIndex )

Inserts a new row with empty cells at the row index newIndex. Valid values for newIndex range from 0 (inserts a row at the top) to rowCount (appends a row at the bottom).

See also: insertColumn

Definition at line 4441 of file qcustomplot.cpp.

◆ maximumOuterSizeHint()

QSize QCPLayoutGrid::maximumOuterSizeHint ( ) const

virtual

Returns the suggested maximum size this layout element (the outerRect) may be expanded to, if no manual maximum size is set.

if a maximum size (setMaximumSize) was not set manually, parent layouts use the returned size (usually indirectly through QCPLayout::getFinalMaximumOuterSize) to determine the maximum allowed size of this layout element.

A manual maximum size is considered set if it is smaller than Qt's QWIDGETSIZE_MAX.

The default implementation simply returns QWIDGETSIZE_MAX for both width and height, implying no suggested maximum size. Reimplementations may use their detailed knowledge about the layout element's content to provide size hints.

Reimplemented from QCPLayoutElement.

Definition at line 4740 of file qcustomplot.cpp.

◆ minimumOuterSizeHint()

QSize QCPLayoutGrid::minimumOuterSizeHint ( ) const

virtual

Returns the suggested minimum size this layout element (the outerRect) may be compressed to, if no manual minimum size is set.

if a minimum size (setMinimumSize) was not set manually, parent layouts use the returned size (usually indirectly through QCPLayout::getFinalMinimumOuterSize) to determine the minimum allowed size of this layout element.

A manual minimum size is considered set if it is non-zero.

The default implementation simply returns the sum of the horizontal margins for the width and the sum of the vertical margins for the height. Reimplementations may use their detailed knowledge about the layout element's content to provide size hints.

Reimplemented from QCPLayoutElement.

Definition at line 4723 of file qcustomplot.cpp.

◆ rowColToIndex()

int QCPLayoutGrid::rowColToIndex	(	int	row,
		int	column
	)		const

Converts the given row and column to the linear index used by some methods of QCPLayoutGrid and QCPLayout.

The way the cells are indexed depends on setFillOrder. If it is foRowsFirst, the indices increase left to right and then top to bottom. If it is foColumnsFirst, the indices increase top to bottom and then left to right.

For the returned index to be valid, row and column must be valid indices themselves, i.e. greater or equal to zero and smaller than the current rowCount/columnCount.

See also: indexToRowCol

Definition at line 4499 of file qcustomplot.cpp.

◆ rowCount()

int QCPLayoutGrid::rowCount ( ) const

inline

Returns the number of rows in the layout.

See also: columnCount

Definition at line 1358 of file qcustomplot.h.

◆ rowSpacing()

int QCPLayoutGrid::rowSpacing ( ) const

inline

Definition at line 1363 of file qcustomplot.h.

◆ rowStretchFactors()

QList<double> QCPLayoutGrid::rowStretchFactors ( ) const

inline

Definition at line 1361 of file qcustomplot.h.

◆ setColumnSpacing()

void QCPLayoutGrid::setColumnSpacing ( int pixels )

Sets the gap that is left blank between columns to pixels.

See also: setRowSpacing

Definition at line 4315 of file qcustomplot.cpp.

◆ setColumnStretchFactor()

void QCPLayoutGrid::setColumnStretchFactor	(	int	column,
		double	factor
	)

Sets the stretch factor of column.

Stretch factors control the relative sizes of rows and columns. Cells will not be resized beyond their minimum and maximum widths/heights, regardless of the stretch factor. (see QCPLayoutElement::setMinimumSize, QCPLayoutElement::setMaximumSize, QCPLayoutElement::setSizeConstraintRect.)

The default stretch factor of newly created rows/columns is 1.

See also: setColumnStretchFactors, setRowStretchFactor

Definition at line 4216 of file qcustomplot.cpp.

◆ setColumnStretchFactors()

void QCPLayoutGrid::setColumnStretchFactors ( const QList< double > & factors )

Sets the stretch factors of all columns. factors must have the size columnCount.

Stretch factors control the relative sizes of rows and columns. Cells will not be resized beyond their minimum and maximum widths/heights, regardless of the stretch factor. (see QCPLayoutElement::setMinimumSize, QCPLayoutElement::setMaximumSize, QCPLayoutElement::setSizeConstraintRect.)

The default stretch factor of newly created rows/columns is 1.

See also: setColumnStretchFactor, setRowStretchFactors

Definition at line 4240 of file qcustomplot.cpp.

◆ setFillOrder()

void QCPLayoutGrid::setFillOrder	(	FillOrder	order,
		bool	rearrange = `true`
	)

Sets the filling order and wrapping behaviour that is used when adding new elements with the method addElement(QCPLayoutElement*).

The specified order defines whether rows or columns are filled first. Using setWrap, you can control at which row/column count wrapping into the next column/row will occur. If you set it to zero, no wrapping will ever occur. Changing the fill order also changes the meaning of the linear index used e.g. in elementAt and takeAt. The default fill order for QCPLayoutGrid is foColumnsFirst.

If you want to have all current elements arranged in the new order, set rearrange to true. The elements will be rearranged in a way that tries to preserve their linear index. However, empty cells are skipped during build-up of the new cell order, which shifts the succeeding element's index. The rearranging is performed even if the specified order is already the current fill order. Thus this method can be used to re-wrap the current elements.

If rearrange is false, the current element arrangement is not changed, which means the linear indexes change (because the linear index is dependent on the fill order).

Note that the method addElement(int row, int column, QCPLayoutElement *element) with explicitly stated row and column is not subject to wrapping and can place elements even beyond the specified wrapping point.

See also: setWrap, addElement(QCPLayoutElement*)

Definition at line 4377 of file qcustomplot.cpp.

◆ setRowSpacing()

void QCPLayoutGrid::setRowSpacing ( int pixels )

Sets the gap that is left blank between rows to pixels.

See also: setColumnSpacing

Definition at line 4325 of file qcustomplot.cpp.

◆ setRowStretchFactor()

void QCPLayoutGrid::setRowStretchFactor	(	int	row,
		double	factor
	)

Sets the stretch factor of row.

Stretch factors control the relative sizes of rows and columns. Cells will not be resized beyond their minimum and maximum widths/heights, regardless of the stretch factor. (see QCPLayoutElement::setMinimumSize, QCPLayoutElement::setMaximumSize, QCPLayoutElement::setSizeConstraintRect.)

The default stretch factor of newly created rows/columns is 1.

See also: setColumnStretchFactors, setRowStretchFactor

Definition at line 4269 of file qcustomplot.cpp.

◆ setRowStretchFactors()

void QCPLayoutGrid::setRowStretchFactors ( const QList< double > & factors )

Sets the stretch factors of all rows. factors must have the size rowCount.

Stretch factors control the relative sizes of rows and columns. Cells will not be resized beyond their minimum and maximum widths/heights, regardless of the stretch factor. (see QCPLayoutElement::setMinimumSize, QCPLayoutElement::setMaximumSize, QCPLayoutElement::setSizeConstraintRect.)

The default stretch factor of newly created rows/columns is 1.

See also: setRowStretchFactor, setColumnStretchFactors

Definition at line 4293 of file qcustomplot.cpp.

◆ setWrap()

void QCPLayoutGrid::setWrap ( int count )

Sets the maximum number of columns or rows that are used, before new elements added with addElement(QCPLayoutElement*) will start to fill the next row or column, respectively. It depends on setFillOrder, whether rows or columns are wrapped.

If count is set to zero, no wrapping will ever occur.

If you wish to re-wrap the elements currently in the layout, call setFillOrder with rearrange set to true (the actual fill order doesn't need to be changed for the rearranging to be done).

Note that the method addElement(int row, int column, QCPLayoutElement *element) with explicitly stated row and column is not subject to wrapping and can place elements even beyond the specified wrapping point.

See also: setFillOrder

Definition at line 4347 of file qcustomplot.cpp.

◆ simplify()

void QCPLayoutGrid::simplify ( )

virtual

Simplifies the layout by collapsing rows and columns which only contain empty cells.

Reimplemented from QCPLayout.

Definition at line 4678 of file qcustomplot.cpp.

◆ take()

bool QCPLayoutGrid::take ( QCPLayoutElement * element )

virtual

Removes the specified element from the layout and returns true on success.

If the element isn't in this layout, returns false.

Note that some layouts don't remove the respective cell right away but leave an empty cell after successful removal of the layout element. To collapse empty cells, use simplify.

See also: takeAt

Implements QCPLayout.

Definition at line 4636 of file qcustomplot.cpp.

◆ takeAt()

QCPLayoutElement * QCPLayoutGrid::takeAt ( int index )

virtual

Note that the association of the linear index to the row/column based cells depends on the current setting of setFillOrder.

See also: rowColToIndex

Implements QCPLayout.

Definition at line 4619 of file qcustomplot.cpp.

◆ updateLayout()

void QCPLayoutGrid::updateLayout ( )

virtual

Reimplemented from QCPLayout.

Definition at line 4564 of file qcustomplot.cpp.

◆ wrap()

int QCPLayoutGrid::wrap ( ) const

inline

Definition at line 1364 of file qcustomplot.h.

Member Data Documentation

◆ mColumnSpacing

int QCPLayoutGrid::mColumnSpacing

protected

Definition at line 1404 of file qcustomplot.h.

◆ mColumnStretchFactors

QList<double> QCPLayoutGrid::mColumnStretchFactors

protected

Definition at line 1402 of file qcustomplot.h.

◆ mElements

QList<QList<QCPLayoutElement*> > QCPLayoutGrid::mElements

protected

Definition at line 1401 of file qcustomplot.h.

◆ mFillOrder

FillOrder QCPLayoutGrid::mFillOrder

protected

Definition at line 1406 of file qcustomplot.h.

◆ mRowSpacing

int QCPLayoutGrid::mRowSpacing

protected

Definition at line 1404 of file qcustomplot.h.

◆ mRowStretchFactors

QList<double> QCPLayoutGrid::mRowStretchFactors

protected

Definition at line 1403 of file qcustomplot.h.

◆ mWrap

int QCPLayoutGrid::mWrap

protected

Definition at line 1405 of file qcustomplot.h.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ FillOrder

Constructor & Destructor Documentation

◆ QCPLayoutGrid()

◆ ~QCPLayoutGrid()

Member Function Documentation

◆ addElement() [1/2]

◆ addElement() [2/2]

◆ columnCount()

◆ columnSpacing()

◆ columnStretchFactors()

◆ element()

◆ elementAt()

◆ elementCount()

◆ elements()

◆ expandTo()

◆ fillOrder()

◆ getMaximumRowColSizes()

◆ getMinimumRowColSizes()

◆ hasElement()

◆ indexToRowCol()

◆ insertColumn()

◆ insertRow()

◆ maximumOuterSizeHint()

◆ minimumOuterSizeHint()

◆ rowColToIndex()

◆ rowCount()

◆ rowSpacing()

◆ rowStretchFactors()

◆ setColumnSpacing()

◆ setColumnStretchFactor()

◆ setColumnStretchFactors()

◆ setFillOrder()

◆ setRowSpacing()

◆ setRowStretchFactor()

◆ setRowStretchFactors()

◆ setWrap()

◆ simplify()

◆ take()

◆ takeAt()

◆ updateLayout()

◆ wrap()

Member Data Documentation

◆ mColumnSpacing

◆ mColumnStretchFactors

◆ mElements

◆ mFillOrder

◆ mRowSpacing

◆ mRowStretchFactors

◆ mWrap
