aruco.hpp File Reference

#include <opencv2/core.hpp>
#include <vector>
#include "opencv2/aruco/dictionary.hpp"

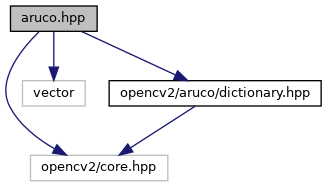

Include dependency graph for aruco.hpp:

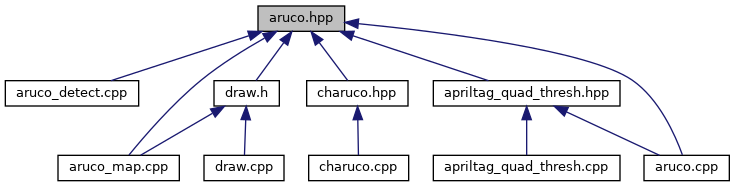

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	cv::aruco::Board
	Board of markers. More...
struct	cv::aruco::DetectorParameters
	Parameters for the detectMarker process: More...
class	cv::aruco::GridBoard
	Planar board with grid arrangement of markers More common type of board. All markers are placed in the same plane in a grid arrangement. The board can be drawn using drawPlanarBoard() function (. More...

Namespaces
	cv
	cv::aruco

Enumerations
enum	cv::aruco::CornerRefineMethod { cv::aruco::CORNER_REFINE_NONE, cv::aruco::CORNER_REFINE_SUBPIX, cv::aruco::CORNER_REFINE_CONTOUR, cv::aruco::CORNER_REFINE_APRILTAG }

Functions
void	cv::aruco::_drawPlanarBoardImpl (Board *board, Size outSize, OutputArray img, int marginSize=0, int borderBits=1)
	Implementation of drawPlanarBoard that accepts a raw Board pointer. More...
CV_EXPORTS_W double	cv::aruco::calibrateCameraAruco (InputArrayOfArrays corners, InputArray ids, InputArray counter, const Ptr< Board > &board, Size imageSize, InputOutputArray cameraMatrix, InputOutputArray distCoeffs, OutputArrayOfArrays rvecs=noArray(), OutputArrayOfArrays tvecs=noArray(), int flags=0, TermCriteria criteria=TermCriteria(TermCriteria::COUNT+TermCriteria::EPS, 30, DBL_EPSILON))
	It's the same function as calibrateCameraAruco but without calibration error estimation. More...
	cv::aruco::CV_EXPORTS_AS (calibrateCameraArucoExtended) double calibrateCameraAruco(InputArrayOfArrays corners
	Calibrate a camera using aruco markers. More...
CV_EXPORTS_W void	cv::aruco::detectMarkers (InputArray image, const Ptr< Dictionary > &dictionary, OutputArrayOfArrays corners, OutputArray ids, const Ptr< DetectorParameters > &parameters=DetectorParameters::create(), OutputArrayOfArrays rejectedImgPoints=noArray(), InputArray cameraMatrix=noArray(), InputArray distCoeff=noArray())
	Basic marker detection. More...
CV_EXPORTS_W void	cv::aruco::drawAxis (InputOutputArray image, InputArray cameraMatrix, InputArray distCoeffs, InputArray rvec, InputArray tvec, float length)
	Draw coordinate system axis from pose estimation. More...
CV_EXPORTS_W void	cv::aruco::drawDetectedMarkers (InputOutputArray image, InputArrayOfArrays corners, InputArray ids=noArray(), Scalar borderColor=Scalar(0, 255, 0))
	Draw detected markers in image. More...
CV_EXPORTS_W void	cv::aruco::drawMarker (const Ptr< Dictionary > &dictionary, int id, int sidePixels, OutputArray img, int borderBits=1)
	Draw a canonical marker image. More...
CV_EXPORTS_W void	cv::aruco::drawPlanarBoard (const Ptr< Board > &board, Size outSize, OutputArray img, int marginSize=0, int borderBits=1)
	Draw a planar board. More...
CV_EXPORTS_W int	cv::aruco::estimatePoseBoard (InputArrayOfArrays corners, InputArray ids, const Ptr< Board > &board, InputArray cameraMatrix, InputArray distCoeffs, OutputArray rvec, OutputArray tvec, bool useExtrinsicGuess=false)
	Pose estimation for a board of markers. More...
CV_EXPORTS_W void	cv::aruco::estimatePoseSingleMarkers (InputArrayOfArrays corners, float markerLength, InputArray cameraMatrix, InputArray distCoeffs, OutputArray rvecs, OutputArray tvecs, OutputArray _objPoints=noArray())
	Pose estimation for single markers. More...
CV_EXPORTS_W void	cv::aruco::getBoardObjectAndImagePoints (const Ptr< Board > &board, InputArrayOfArrays detectedCorners, InputArray detectedIds, OutputArray objPoints, OutputArray imgPoints)
	Given a board configuration and a set of detected markers, returns the corresponding image points and object points to call solvePnP. More...
CV_EXPORTS_W void	cv::aruco::refineDetectedMarkers (InputArray image, const Ptr< Board > &board, InputOutputArrayOfArrays detectedCorners, InputOutputArray detectedIds, InputOutputArrayOfArrays rejectedCorners, InputArray cameraMatrix=noArray(), InputArray distCoeffs=noArray(), float minRepDistance=10.f, float errorCorrectionRate=3.f, bool checkAllOrders=true, OutputArray recoveredIdxs=noArray(), const Ptr< DetectorParameters > &parameters=DetectorParameters::create())
	Refind not detected markers based on the already detected and the board layout. More...

Variables
InputArray InputArray	cv::aruco::counter
InputArray	cv::aruco::ids
