Iterates over the valid indexes that lie on the outline of a circle. More...

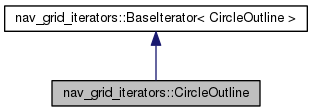

Inheritance diagram for nav_grid_iterators::CircleOutline:

Public Member Functions
	CircleOutline (const nav_grid::NavGridInfo *info, double center_x, double center_y, double radius)
	Public Constructor.
	CircleOutline (const nav_grid::NavGridInfo *info, double center_x, double center_y, unsigned int radius)
	Public Constructor with integer radius.
Standard BaseIterator Interface
CircleOutline	begin () const override
	Helper function for range-style iteration Equivalent to the above constructor.
CircleOutline	end () const override
	Helper function for range-style iteration.
void	increment () override
	Increase the iterator to the next element.
bool	fieldsEqual (const CircleOutline &other) override
	Additional check for whether fields of derived iterators are equal.
Protected Member Functions
	CircleOutline (const nav_grid::NavGridInfo *info, const nav_grid::Index &index, int center_index_x, int center_index_y, unsigned int distance, bool init, const nav_grid::Index &start_index)
	Protected constructor that takes in an arbitrary index and other internal parameters.
bool	isOnOutline (int dx, int dy) const
	Check if a cell with the given distance from the center of the circle is on the outline of the circle.
bool	isValidIndex (int x, int y) const
	Check if arbitrary coordinates are within the grid.
Protected Attributes
int	center_index_x_
int	center_index_y_
unsigned int	distance_
bool	init_
int	point_x_
int	point_y_
int	signed_height_
int	signed_width_
nav_grid::Index	start_index_

Detailed Description

Iterates over the valid indexes that lie on the outline of a circle.

Definition at line 57 of file circle_outline.h.

Constructor & Destructor Documentation

nav_grid_iterators::CircleOutline::CircleOutline	(	const nav_grid::NavGridInfo *	info,
		double	center_x,
		double	center_y,
		double	radius
	)

Public Constructor.

Parameters:

info	NavGridInfo for the grid to iterate over
center_x	Center of the circle (x coordinate)
center_y	Center of the circle (y coordinate)
radius	Size of the circle

Definition at line 40 of file circle_outline.cpp.

nav_grid_iterators::CircleOutline::CircleOutline	(	const nav_grid::NavGridInfo *	info,
		double	center_x,
		double	center_y,
		unsigned int	radius
	)

Public Constructor with integer radius.

Parameters:

info	NavGridInfo for the grid to iterate over
center_x	Center of the circle (x coordinate)
center_y	Center of the circle (y coordinate)
radius	Size of the circle

Definition at line 45 of file circle_outline.cpp.

nav_grid_iterators::CircleOutline::CircleOutline	(	const nav_grid::NavGridInfo *	info,
		const nav_grid::Index &	index,
		int	center_index_x,
		int	center_index_y,
		unsigned int	distance,
		bool	init,
		const nav_grid::Index &	start_index
	)		`[protected]`

Protected constructor that takes in an arbitrary index and other internal parameters.

Parameters:

info	NavGridInfo for the grid to iterate over
index	Initial index
center_index_x	Index of the center of the circle (x coordinate)
center_index_y	Index of the center of the circle (y coordinate)
distance	The number of cells in the radius of the circle
init	Whether the first cell has been visited or not
start_index	The first valid index in the minimum row
