object_manipulator::GraspExecutorWithApproach Class Reference

Uses an interpolated IK approach from pregrasp to final grasp. More...

#include <grasp_executor_with_approach.h>

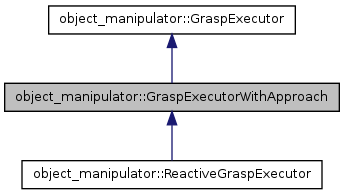

Inheritance diagram for object_manipulator::GraspExecutorWithApproach:
Inheritance graph
[legend]

List of all members.

Public Member Functions

 GraspExecutorWithApproach (GraspMarkerPublisher *pub)
 Also adds a grasp marker at the pre-grasp location.
virtual
object_manipulation_msgs::GraspResult
retreat (const object_manipulation_msgs::PickupGoal &pickup_goal)
 Retreats along the gripper approach direction.

Protected Member Functions

virtual
motion_planning_msgs::OrderedCollisionOperations
collisionOperationsForGrasp (const object_manipulation_msgs::PickupGoal &pickup_goal)
 Collision operations to be used when planning the grasp motion.
virtual
object_manipulation_msgs::GraspResult
executeGrasp (const object_manipulation_msgs::PickupGoal &pickup_goal, const object_manipulation_msgs::Grasp &grasp)
 Uses move_arm to get to pre-grasp, then executes the interpolated IK grasp path and lift path.
object_manipulation_msgs::GraspResult getInterpolatedIKForGrasp (const object_manipulation_msgs::PickupGoal &pickup_goal, const object_manipulation_msgs::Grasp &grasp, trajectory_msgs::JointTrajectory &grasp_trajectory)
 Computes an interpolated IK trajectory between pre_grasp and grasp and checks if it has enough points.
virtual std::vector
< motion_planning_msgs::LinkPadding
linkPaddingForGrasp (const object_manipulation_msgs::PickupGoal &pickup_goal)
 Dynamic link padding to be used for grasp operation.
virtual
object_manipulation_msgs::GraspResult
prepareGrasp (const object_manipulation_msgs::PickupGoal &pickup_goal, const object_manipulation_msgs::Grasp &grasp)
 Computes IK for the pre-grasp and interpolated IK from pre-grasp to grasp and from grasp to lift.

Protected Attributes

trajectory_msgs::JointTrajectory interpolated_grasp_trajectory_
 The result of interpolated IK from pre-grasp to grasp.

Detailed Description

Uses an interpolated IK approach from pregrasp to final grasp.

Initial check consists of IK for the pre-grasp, followed by generation of an interpolated IK path from pre-grasp to grasp. This is then followed by computation of an interpolated IK path from grasp to lift.

Execution consists of using move arm to go to the pre-grasp, then execution of the interpolated IK paths for grasp. Lift is executed separately, called from the higher level executor.

Note that we do not use the pre-grasp from the database directly; rather, the pre-grasp is obtained by backing up the grasp by a pre-defined amount. This allows us more flexibility in choosing the pre-grasp. However, we can no longer always assume the pre-grasp is collision free, which we could if we used the pre-grasp from the database directly.

In the most recent database version, the pre-grasp was obtained by backing up 10 cm, so we know at least that that is not colliding with the object.

Definition at line 61 of file grasp_executor_with_approach.h.


Constructor & Destructor Documentation

Also adds a grasp marker at the pre-grasp location.

Definition at line 93 of file grasp_executor_with_approach.h.


Member Function Documentation

motion_planning_msgs::OrderedCollisionOperations object_manipulator::GraspExecutorWithApproach::collisionOperationsForGrasp ( const object_manipulation_msgs::PickupGoal &  pickup_goal) [protected, virtual]

Collision operations to be used when planning the grasp motion.

Disable collisions between end-effector and target

Definition at line 50 of file grasp_executor_with_approach.cpp.

GraspResult object_manipulator::GraspExecutorWithApproach::executeGrasp ( const object_manipulation_msgs::PickupGoal &  pickup_goal,
const object_manipulation_msgs::Grasp &  grasp
) [protected, virtual]

Uses move_arm to get to pre-grasp, then executes the interpolated IK grasp path and lift path.

Implements object_manipulator::GraspExecutor.

Reimplemented in object_manipulator::ReactiveGraspExecutor.

Definition at line 192 of file grasp_executor_with_approach.cpp.

GraspResult object_manipulator::GraspExecutorWithApproach::getInterpolatedIKForGrasp ( const object_manipulation_msgs::PickupGoal &  pickup_goal,
const object_manipulation_msgs::Grasp &  grasp,
trajectory_msgs::JointTrajectory &  grasp_trajectory
) [protected]

Computes an interpolated IK trajectory between pre_grasp and grasp and checks if it has enough points.

Definition at line 87 of file grasp_executor_with_approach.cpp.

std::vector< motion_planning_msgs::LinkPadding > object_manipulator::GraspExecutorWithApproach::linkPaddingForGrasp ( const object_manipulation_msgs::PickupGoal &  pickup_goal) [protected, virtual]

Dynamic link padding to be used for grasp operation.

Zero padding on fingertip links

Definition at line 80 of file grasp_executor_with_approach.cpp.

GraspResult object_manipulator::GraspExecutorWithApproach::prepareGrasp ( const object_manipulation_msgs::PickupGoal &  pickup_goal,
const object_manipulation_msgs::Grasp &  grasp
) [protected, virtual]

Computes IK for the pre-grasp and interpolated IK from pre-grasp to grasp and from grasp to lift.

Implements object_manipulator::GraspExecutor.

Definition at line 160 of file grasp_executor_with_approach.cpp.

GraspResult object_manipulator::GraspExecutorWithApproach::retreat ( const object_manipulation_msgs::PickupGoal &  pickup_goal) [virtual]

Retreats along the gripper approach direction.

Retreats by the actual length of the pre-grasp to grasp trajectory (if any), or by the desired length of that path, if no path exists. Disables collision between gripper and object as well as table.

Reimplemented from object_manipulator::GraspExecutor.

Definition at line 231 of file grasp_executor_with_approach.cpp.


Member Data Documentation

The result of interpolated IK from pre-grasp to grasp.

Definition at line 65 of file grasp_executor_with_approach.h.


The documentation for this class was generated from the following files:
