#include <OpenMesh/Core/Utils/PropertyT.hh>
Public Member Functions | |
| BaseProperty (const BaseProperty &_rhs) | |
| Copy constructor. | |
| BaseProperty (const std::string &_name="<unknown>") | |
| Default constructor. | |
| virtual void | clear ()=0 |
| Clear all elements and free memory. | |
| virtual BaseProperty * | clone () const =0 |
| Return a deep copy of self. | |
| virtual size_t | element_size () const =0 |
| Size of one element in bytes or UnknownSize if not known. | |
| virtual size_t | n_elements () const =0 |
| Number of elements in property. | |
| const std::string & | name () const |
| Return the name of the property. | |
| bool | persistent (void) const |
| Returns true if the persistent flag is enabled else false. | |
| virtual void | push_back ()=0 |
| Extend the number of elements by one. | |
| virtual void | reserve (size_t _n)=0 |
| Reserve memory for n elements. | |
| virtual void | resize (size_t _n)=0 |
| Resize storage to hold n elements. | |
| virtual size_t | restore (std::istream &_istr, bool _swap)=0 |
| virtual void | set_persistent (bool _yn)=0 |
| virtual size_t | size_of (size_t _n_elem) const |
| virtual size_t | size_of () const |
| Return size of property in bytes. | |
| virtual void | stats (std::ostream &_ostr) const |
| virtual size_t | store (std::ostream &_ostr, bool _swap) const =0 |
| Store self as one binary block. | |
| virtual void | swap (size_t _i0, size_t _i1)=0 |
| Let two elements swap their storage place. | |
| virtual | ~BaseProperty () |
| Destructor. | |
Static Public Attributes | |
| static const size_t | UnknownSize = size_t(-1) |
| Indicates an error when a size is returned by a member. | |
Protected Member Functions | |
| template<typename T > | |
| void | check_and_set_persistent (bool _yn) |
Private Attributes | |
| std::string | name_ |
| bool | persistent_ |
Abstract class defining the basic interface of a dynamic property.
Definition at line 58 of file BaseProperty.hh.
| OpenMesh::BaseProperty::BaseProperty | ( | const std::string & | _name = "<unknown>" |
) | [inline] |
Default constructor.
In OpenMesh all mesh data is stored in so-called properties. We distinuish between standard properties, which can be defined at compile time using the Attributes in the traits definition and at runtime using the request property functions defined in one of the kernels.
If the property should be stored along with the default properties in the OM-format one must name the property and enable the persistant flag with set_persistent().
| _name | Optional textual name for the property. |
Definition at line 81 of file BaseProperty.hh.
| OpenMesh::BaseProperty::BaseProperty | ( | const BaseProperty & | _rhs | ) | [inline] |
Copy constructor.
Definition at line 86 of file BaseProperty.hh.
| virtual OpenMesh::BaseProperty::~BaseProperty | ( | ) | [inline, virtual] |
Destructor.
Definition at line 90 of file BaseProperty.hh.
| void OpenMesh::BaseProperty::check_and_set_persistent | ( | bool | _yn | ) | [inline, protected] |
Definition at line 161 of file BaseProperty.hh.
| virtual void OpenMesh::BaseProperty::clear | ( | ) | [pure virtual] |
Clear all elements and free memory.

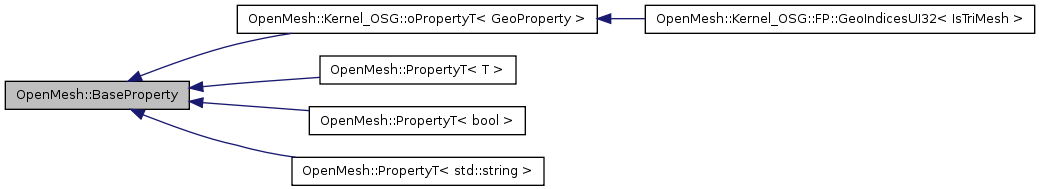

Implemented in OpenMesh::PropertyT< T >, OpenMesh::PropertyT< bool >, OpenMesh::PropertyT< std::string >, and OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >.
| virtual BaseProperty* OpenMesh::BaseProperty::clone | ( | ) | const [pure virtual] |
Return a deep copy of self.
Implemented in OpenMesh::PropertyT< T >, OpenMesh::PropertyT< bool >, OpenMesh::PropertyT< std::string >, and OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >.
| virtual size_t OpenMesh::BaseProperty::element_size | ( | ) | const [pure virtual] |
Size of one element in bytes or UnknownSize if not known.
Implemented in OpenMesh::PropertyT< T >, OpenMesh::PropertyT< bool >, OpenMesh::PropertyT< std::string >, and OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >.
| virtual size_t OpenMesh::BaseProperty::n_elements | ( | ) | const [pure virtual] |
Number of elements in property.
Implemented in OpenMesh::PropertyT< T >, OpenMesh::PropertyT< bool >, OpenMesh::PropertyT< std::string >, and OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >.
| const std::string& OpenMesh::BaseProperty::name | ( | ) | const [inline] |
Return the name of the property.
Definition at line 115 of file BaseProperty.hh.
| bool OpenMesh::BaseProperty::persistent | ( | void | ) | const [inline] |
Returns true if the persistent flag is enabled else false.
Definition at line 122 of file BaseProperty.hh.
| virtual void OpenMesh::BaseProperty::push_back | ( | ) | [pure virtual] |
Extend the number of elements by one.
Implemented in OpenMesh::PropertyT< T >, OpenMesh::PropertyT< bool >, OpenMesh::PropertyT< std::string >, and OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >.
| virtual void OpenMesh::BaseProperty::reserve | ( | size_t | _n | ) | [pure virtual] |
Reserve memory for n elements.
Implemented in OpenMesh::PropertyT< T >, OpenMesh::PropertyT< bool >, OpenMesh::PropertyT< std::string >, OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >, and OpenMesh::Kernel_OSG::FP::GeoIndicesUI32< IsTriMesh >.
| virtual void OpenMesh::BaseProperty::resize | ( | size_t | _n | ) | [pure virtual] |
Resize storage to hold n elements.
Implemented in OpenMesh::PropertyT< T >, OpenMesh::PropertyT< bool >, OpenMesh::PropertyT< std::string >, OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >, and OpenMesh::Kernel_OSG::FP::GeoIndicesUI32< IsTriMesh >.
| virtual size_t OpenMesh::BaseProperty::restore | ( | std::istream & | _istr, | |
| bool | _swap | |||
| ) | [pure virtual] |
Restore self from a binary block. Uses reserve() to set the size of self before restoring.
Implemented in OpenMesh::PropertyT< T >, OpenMesh::PropertyT< bool >, OpenMesh::PropertyT< std::string >, and OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >.
| virtual void OpenMesh::BaseProperty::set_persistent | ( | bool | _yn | ) | [pure virtual] |
Enable or disable persistency. Self must be a named property to enable persistency.
Implemented in OpenMesh::PropertyT< T >, OpenMesh::PropertyT< bool >, OpenMesh::PropertyT< std::string >, and OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >.
| virtual size_t OpenMesh::BaseProperty::size_of | ( | size_t | _n_elem | ) | const [inline, virtual] |
Estimated size of property if it has _n_elem elements. The member returns UnknownSize if the size cannot be estimated.
Reimplemented in OpenMesh::PropertyT< T >, OpenMesh::PropertyT< bool >, and OpenMesh::PropertyT< std::string >.
Definition at line 142 of file BaseProperty.hh.
| virtual size_t OpenMesh::BaseProperty::size_of | ( | void | ) | const [inline, virtual] |
Return size of property in bytes.
Reimplemented in OpenMesh::PropertyT< T >, OpenMesh::PropertyT< bool >, and OpenMesh::PropertyT< std::string >.
Definition at line 135 of file BaseProperty.hh.
| virtual void OpenMesh::BaseProperty::stats | ( | std::ostream & | _ostr | ) | const [virtual] |
| virtual size_t OpenMesh::BaseProperty::store | ( | std::ostream & | _ostr, | |
| bool | _swap | |||
| ) | const [pure virtual] |
Store self as one binary block.
Implemented in OpenMesh::PropertyT< T >, OpenMesh::PropertyT< bool >, OpenMesh::PropertyT< std::string >, and OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >.
| virtual void OpenMesh::BaseProperty::swap | ( | size_t | _i0, | |
| size_t | _i1 | |||
| ) | [pure virtual] |
Let two elements swap their storage place.
Implemented in OpenMesh::PropertyT< T >, OpenMesh::PropertyT< bool >, OpenMesh::PropertyT< std::string >, OpenMesh::Kernel_OSG::oPropertyT< GeoProperty >, and OpenMesh::Kernel_OSG::FP::GeoIndicesUI32< IsTriMesh >.
std::string OpenMesh::BaseProperty::name_ [private] |
Definition at line 170 of file BaseProperty.hh.
bool OpenMesh::BaseProperty::persistent_ [private] |
Definition at line 171 of file BaseProperty.hh.
const size_t OpenMesh::BaseProperty::UnknownSize = size_t(-1) [static] |
Indicates an error when a size is returned by a member.
Definition at line 63 of file BaseProperty.hh.
