vcg::tri::io::ImporterDAE< OpenMeshType > Class Template Reference

#include <import_dae.h>

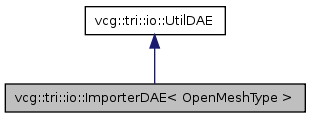

Inheritance diagram for vcg::tri::io::ImporterDAE< OpenMeshType >:

Inheritance graph

List of all members.

Classes
class	ColladaFace
class	ColladaMesh
class	ColladaTypes
class	ColladaVertex
Static Public Member Functions
static bool	LoadMask (const char *filename, InfoDAE &info)
static int	Open (OpenMeshType &m, const char filename, InfoDAE &info, CallBackPos cb=0)
Static Private Member Functions
static void	AddNodeToMesh (QDomElement node, ColladaMesh &m, Matrix44f curTr, InfoDAE &info)
static DAEError	AddPolygonToMesh (MyPolygon< typename ColladaMesh::VertexType > &polyTemp, ColladaMesh &m)
static void	FindStandardWedgeAttributes (WedgeAttribute &wed, const QDomNode nd, const QDomDocument doc)
static bool	GenerateMaterialBinding (QDomNode instanceGeomNode, QMap< QString, QString > &binding)
static void	GetTexCoord (const QDomDocument &doc, QStringList &texturefile)
static Matrix44f	getTransfMatrixFromNode (const QDomElement parentNode)
static int	LoadControllerMesh (ColladaMesh &m, InfoDAE &info, const QDomElement &geo, QMap< QString, QString > materialBindingMap, CallBackPos *cb=0)
static int	LoadGeometry (ColladaMesh &m, InfoDAE &info, const QDomElement &geo, QMap< QString, QString > &materialBinding, CallBackPos *cb=0)
static DAEError	LoadPolygonalListMesh (QDomNodeList &polylist, ColladaMesh &m, const size_t offset, InfoDAE &info, QMap< QString, QString > &materialBinding)
static DAEError	LoadPolygonalMesh (QDomNodeList &polypatch, ColladaMesh &m, const size_t offset, InfoDAE &info)
static DAEError	LoadTriangularMesh (QDomNodeList &triNodeList, ColladaMesh &m, const size_t offset, InfoDAE &info, QMap< QString, QString > &materialBinding)
static DAEError	OldLoadPolygonalListMesh (QDomNodeList &polylist, ColladaMesh &m, const size_t offset, InfoDAE &info)
static int	WedgeColorAttribute (ColladaMesh &m, const QStringList face, const QStringList wc, const QDomNode wcsrc, const int meshfaceind, const int faceind, const int component)
static int	WedgeNormalAttribute (ColladaMesh &m, const QStringList face, const QStringList wn, const QDomNode wnsrc, const int meshfaceind, const int faceind, const int component)
static int	WedgeTextureAttribute (typename ColladaMesh::FaceType::TexCoordType &WT, const QStringList faceIndexList, int ind_txt, const QStringList wt, const QDomNode wtsrc, const int faceind, const int stride=2)
static int	WedgeTextureAttribute (ColladaMesh &m, const QStringList face, int ind_txt, const QStringList wt, const QDomNode wtsrc, const int meshfaceind, const int faceind, const int component, const int stride=2)

Detailed Description

template<typename OpenMeshType>
class vcg::tri::io::ImporterDAE< OpenMeshType >

Definition at line 39 of file import_dae.h.

Member Function Documentation

template<typename OpenMeshType >

static void vcg::tri::io::ImporterDAE< OpenMeshType >::AddNodeToMesh	(	QDomElement	node,
		ColladaMesh &	m,
		Matrix44f	curTr,
		InfoDAE &	info
	)			`[inline, static, private]`

Definition at line 577 of file import_dae.h.

template<typename OpenMeshType >

static DAEError vcg::tri::io::ImporterDAE< OpenMeshType >::AddPolygonToMesh	(	MyPolygon< typename ColladaMesh::VertexType > &	polyTemp,
		ColladaMesh &	m
	)			`[inline, static, private]`

Definition at line 257 of file import_dae.h.

template<typename OpenMeshType >

static void vcg::tri::io::ImporterDAE< OpenMeshType >::FindStandardWedgeAttributes	(	WedgeAttribute &	wed,
		const QDomNode	nd,
		const QDomDocument	doc
	)			`[inline, static, private]`

Definition at line 137 of file import_dae.h.

template<typename OpenMeshType >

static bool vcg::tri::io::ImporterDAE< OpenMeshType >::GenerateMaterialBinding	(	QDomNode	instanceGeomNode,
		QMap< QString, QString > &	binding
	)			`[inline, static, private]`

Definition at line 446 of file import_dae.h.

template<typename OpenMeshType >

static void vcg::tri::io::ImporterDAE< OpenMeshType >::GetTexCoord	(	const QDomDocument &	doc,
		QStringList &	texturefile
	)			`[inline, static, private]`

Definition at line 560 of file import_dae.h.

template<typename OpenMeshType >

static Matrix44f vcg::tri::io::ImporterDAE< OpenMeshType >::getTransfMatrixFromNode ( const QDomElement parentNode ) [inline, static, private]

Definition at line 667 of file import_dae.h.

template<typename OpenMeshType >

static int vcg::tri::io::ImporterDAE< OpenMeshType >::LoadControllerMesh	(	ColladaMesh &	m,
		InfoDAE &	info,
		const QDomElement &	geo,
		QMap< QString, QString >	materialBindingMap,
		CallBackPos *	cb = `0`
	)			`[inline, static, private]`

Definition at line 421 of file import_dae.h.

template<typename OpenMeshType >

static int vcg::tri::io::ImporterDAE< OpenMeshType >::LoadGeometry	(	ColladaMesh &	m,
		InfoDAE &	info,
		const QDomElement &	geo,
		QMap< QString, QString > &	materialBinding,
		CallBackPos *	cb = `0`
	)			`[inline, static, private]`

Definition at line 468 of file import_dae.h.

template<typename OpenMeshType >

static bool vcg::tri::io::ImporterDAE< OpenMeshType >::LoadMask	(	const char *	filename,
		InfoDAE &	info
	)			`[inline, static]`

!!!!!!!!!!!!!!!!here will be the code for geometry transformations!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!here will be the code for geometry transformations!!!!!!!!!!!!!!!!!!!!!!

Definition at line 805 of file import_dae.h.

template<typename OpenMeshType >

static DAEError vcg::tri::io::ImporterDAE< OpenMeshType >::LoadPolygonalListMesh	(	QDomNodeList &	polylist,
		ColladaMesh &	m,
		const size_t	offset,
		InfoDAE &	info,
		QMap< QString, QString > &	materialBinding
	)			`[inline, static, private]`

Definition at line 168 of file import_dae.h.

template<typename OpenMeshType >

static DAEError vcg::tri::io::ImporterDAE< OpenMeshType >::LoadPolygonalMesh	(	QDomNodeList &	polypatch,
		ColladaMesh &	m,
		const size_t	offset,
		InfoDAE &	info
	)			`[inline, static, private]`

Definition at line 163 of file import_dae.h.

template<typename OpenMeshType >

static DAEError vcg::tri::io::ImporterDAE< OpenMeshType >::LoadTriangularMesh	(	QDomNodeList &	triNodeList,
		ColladaMesh &	m,
		const size_t	offset,
		InfoDAE &	info,
		QMap< QString, QString > &	materialBinding
	)			`[inline, static, private]`

Definition at line 348 of file import_dae.h.

template<typename OpenMeshType >

static DAEError vcg::tri::io::ImporterDAE< OpenMeshType >::OldLoadPolygonalListMesh	(	QDomNodeList &	polylist,
		ColladaMesh &	m,
		const size_t	offset,
		InfoDAE &	info
	)			`[inline, static, private]`

Definition at line 281 of file import_dae.h.

template<typename OpenMeshType >

static int vcg::tri::io::ImporterDAE< OpenMeshType >::Open	(	OpenMeshType &	m,
		const char *	filename,
		InfoDAE &	info,
		CallBackPos *	cb = `0`
	)			`[inline, static]`

Definition at line 703 of file import_dae.h.

template<typename OpenMeshType >

static int vcg::tri::io::ImporterDAE< OpenMeshType >::WedgeColorAttribute	(	ColladaMesh &	m,
		const QStringList	face,
		const QStringList	wc,
		const QDomNode	wcsrc,
		const int	meshfaceind,
		const int	faceind,
		const int	component
	)			`[inline, static, private]`

Definition at line 122 of file import_dae.h.

template<typename OpenMeshType >

static int vcg::tri::io::ImporterDAE< OpenMeshType >::WedgeNormalAttribute	(	ColladaMesh &	m,
		const QStringList	face,
		const QStringList	wn,
		const QDomNode	wnsrc,
		const int	meshfaceind,
		const int	faceind,
		const int	component
	)			`[inline, static, private]`

Definition at line 75 of file import_dae.h.

template<typename OpenMeshType >

static int vcg::tri::io::ImporterDAE< OpenMeshType >::WedgeTextureAttribute	(	typename ColladaMesh::FaceType::TexCoordType &	WT,
		const QStringList	faceIndexList,
		int	ind_txt,
		const QStringList	wt,
		const QDomNode	wtsrc,
		const int	faceind,
		const int	stride = `2`
	)			`[inline, static, private]`

Definition at line 106 of file import_dae.h.

template<typename OpenMeshType >

static int vcg::tri::io::ImporterDAE< OpenMeshType >::WedgeTextureAttribute	(	ColladaMesh &	m,
		const QStringList	face,
		int	ind_txt,
		const QStringList	wt,
		const QDomNode	wtsrc,
		const int	meshfaceind,
		const int	faceind,
		const int	component,
		const int	stride = `2`
	)			`[inline, static, private]`

Definition at line 87 of file import_dae.h.

The documentation for this class was generated from the following file:

import_dae.h
