industrial::message_handler::MessageHandler Class Reference

Interface definition for message handlers. The interface defines the callback function that should execute when a message is received. More...

#include <message_handler.h>

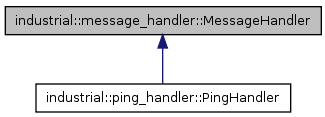

Inheritance diagram for industrial::message_handler::MessageHandler:

[legend]

List of all members.

Public Member Functions
bool	callback (industrial::simple_message::SimpleMessage &in)
	Callback function that should be executed when a message arrives DO NOT OVERRIDE THIS FUNCTION. It performs message validation before the internal callback (which should be overridden) is called. If one is required the callback sends a message reply.
int	getMsgType ()
	Gets message type that callback expects.
	MessageHandler ()
	Constructor.
	~MessageHandler ()
	Destructor.
Protected Member Functions
industrial::smpl_msg_connection::SmplMsgConnection *	getConnection ()
	Gets connectoin for message replies.
bool	init (int msg_type, industrial::smpl_msg_connection::SmplMsgConnection *connection)
	Class initializer.
Private Member Functions
virtual bool	internalCB (industrial::simple_message::SimpleMessage &in)=0
	Virtual callback function.
void	setConnection (industrial::smpl_msg_connection::SmplMsgConnection *connection)
	Sets connection for message replies.
void	setMsgType (int msg_type)
	Sets message type that callback expects.
bool	validateMsg (industrial::simple_message::SimpleMessage &in)
	Validates incoming message for processing by internal callback.
Private Attributes
industrial::smpl_msg_connection::SmplMsgConnection *	connection_
	Reference to reply connection (called if incoming message requires a reply).
int	msg_type_
	Message type expected by callback.

---

Detailed Description

Interface definition for message handlers. The interface defines the callback function that should execute when a message is received.

Defines the interface used for function callbacks when a message is received. When used in conjunction with a message_manager (link) generic message handling can be achieved.

THIS CLASS IS NOT THREAD-SAFE

Definition at line 68 of file message_handler.h.

---

Constructor & Destructor Documentation

industrial::message_handler::MessageHandler::MessageHandler

(

void

)

Constructor.

Definition at line 50 of file message_handler.cpp.

industrial::message_handler::MessageHandler::~MessageHandler

(

void

)

Destructor.

Definition at line 57 of file message_handler.cpp.

---

Member Function Documentation

bool industrial::message_handler::MessageHandler::callback

(

industrial::simple_message::SimpleMessage &

in

)

Callback function that should be executed when a message arrives DO NOT OVERRIDE THIS FUNCTION. It performs message validation before the internal callback (which should be overridden) is called. If one is required the callback sends a message reply.

Parameters:

in

incoming message

Returns:

true on success, false otherwise

Definition at line 91 of file message_handler.cpp.

industrial::smpl_msg_connection::SmplMsgConnection* industrial::message_handler::MessageHandler::getConnection

(

)

[inline, protected]

Gets connectoin for message replies.

Returns:

connection reference

Definition at line 112 of file message_handler.h.

int industrial::message_handler::MessageHandler::getMsgType

(

)

[inline]

Gets message type that callback expects.

Returns:

message type

Definition at line 100 of file message_handler.h.

bool industrial::message_handler::MessageHandler::init	(	int	msg_type,
		industrial::smpl_msg_connection::SmplMsgConnection *	connection
	)			[protected]

Class initializer.

Parameters:

	msg_type	type of message expected
	connection	simple message connection that will be used to send replies.

Returns:

true on success, false otherwise (an invalid message type)

Reimplemented in industrial::ping_handler::PingHandler.

Definition at line 62 of file message_handler.cpp.

virtual bool industrial::message_handler::MessageHandler::internalCB

(

industrial::simple_message::SimpleMessage &

in

)

[private, pure virtual]

Virtual callback function.

Parameters:

in

incoming message

Returns:

true on success, false otherwise

Implemented in industrial::ping_handler::PingHandler.

void industrial::message_handler::MessageHandler::setConnection

(

industrial::smpl_msg_connection::SmplMsgConnection *

connection

)

[inline, private]

Sets connection for message replies.

Parameters:

connection

connection reference

Definition at line 163 of file message_handler.h.

void industrial::message_handler::MessageHandler::setMsgType

(

int

msg_type

)

[inline, private]

Sets message type that callback expects.

Parameters:

msg_type

message type

Definition at line 174 of file message_handler.h.

bool industrial::message_handler::MessageHandler::validateMsg

(

industrial::simple_message::SimpleMessage &

in

)

[private]

Validates incoming message for processing by internal callback.

Parameters:

in

incoming message

Returns:

true on if valid, false otherwise

Definition at line 109 of file message_handler.cpp.

---

Member Data Documentation

industrial::smpl_msg_connection::SmplMsgConnection* industrial::message_handler::MessageHandler::connection_ [private]

Reference to reply connection (called if incoming message requires a reply).

Definition at line 133 of file message_handler.h.

int industrial::message_handler::MessageHandler::msg_type_ [private]

Message type expected by callback.

Definition at line 138 of file message_handler.h.

---

The documentation for this class was generated from the following files:

• message_handler.h
• message_handler.cpp
