OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType > Class Template Reference

#include <SubdividerT.hh>

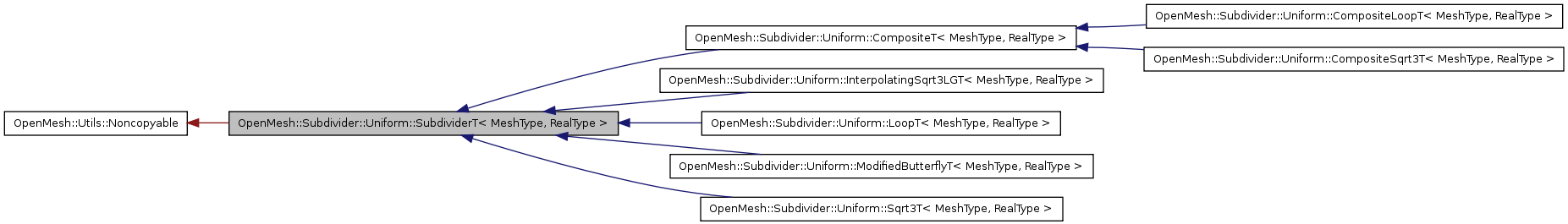

Inheritance diagram for OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >:

[legend]

List of all members.

Public Types
typedef MeshType	mesh_t
typedef RealType	real_t
Public Member Functions
virtual const char *	name (void) const =0
	Return name of subdivision algorithm.
virtual	~SubdividerT ()
	Descructor (calls detach()).
Interface 2
bool	attach (MeshType &_m)
void	detach (void)
bool	operator() (size_t _n)
Interface 1
bool	operator() (MeshType &_m, size_t _n)
Constructors
	SubdividerT (MeshType &_m)
	SubdividerT (void)
Protected Member Functions
Overload theses methods
virtual bool	cleanup (MeshType &_m)=0
	Cleanup mesh after usage, e.g. remove added properties.
virtual bool	prepare (MeshType &_m)=0
	Prepare mesh, e.g. add properties.
virtual bool	subdivide (MeshType &_m, size_t _n)=0
	Subdivide mesh _m _n times.
Private Attributes
MeshType *	attached_

---

Detailed Description

template<typename MeshType, typename RealType = float>
class OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >

Abstract base class for uniform subdivision algorithms.

A derived class must overload the following functions:

1. name()
2. prepare()
3. subdivide()
4. cleanup()

Definition at line 87 of file SubdividerT.hh.

---

Member Typedef Documentation

template<typename MeshType , typename RealType = float>

typedef MeshType OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >::mesh_t

Reimplemented in OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::LoopT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::ModifiedButterflyT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::InterpolatingSqrt3LGT< MeshType, RealType >, and OpenMesh::Subdivider::Uniform::Sqrt3T< MeshType, RealType >.

Definition at line 91 of file SubdividerT.hh.

template<typename MeshType , typename RealType = float>

typedef RealType OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >::real_t

Reimplemented in OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::LoopT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::ModifiedButterflyT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::InterpolatingSqrt3LGT< MeshType, RealType >, and OpenMesh::Subdivider::Uniform::Sqrt3T< MeshType, RealType >.

Definition at line 92 of file SubdividerT.hh.

---

Constructor & Destructor Documentation

template<typename MeshType , typename RealType = float>

OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >::SubdividerT

(

void

)

[inline]

Constructor to be used with interface 2

See also:

attach(), operator()(size_t), detach()

Definition at line 100 of file SubdividerT.hh.

template<typename MeshType , typename RealType = float>

OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >::SubdividerT

(

MeshType &

_m

)

[inline]

Constructor to be used with interface 1 (calls attach())

See also:

operator()( MeshType&, size_t )

Definition at line 104 of file SubdividerT.hh.

template<typename MeshType , typename RealType = float>

virtual OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >::~SubdividerT

(

)

[inline, virtual]

Descructor (calls detach()).

Definition at line 109 of file SubdividerT.hh.

---

Member Function Documentation

template<typename MeshType , typename RealType = float>

bool OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >::attach

(

MeshType &

_m

)

[inline]

Attach mesh _m to self

See also:

SubdividerT(), operator()(size_t), detach()

Definition at line 131 of file SubdividerT.hh.

template<typename MeshType , typename RealType = float>

virtual bool OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >::cleanup

(

MeshType &

_m

)

[protected, pure virtual]

Cleanup mesh after usage, e.g. remove added properties.

Implemented in OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::LoopT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::ModifiedButterflyT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::InterpolatingSqrt3LGT< MeshType, RealType >, and OpenMesh::Subdivider::Uniform::Sqrt3T< MeshType, RealType >.

template<typename MeshType , typename RealType = float>

void OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >::detach

(

void

)

[inline]

Detach an eventually attached mesh.

See also:

SubdividerT(), attach(), operator()(size_t)

Definition at line 154 of file SubdividerT.hh.

template<typename MeshType , typename RealType = float>

virtual const char* OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >::name

(

void

)

const [pure virtual]

Return name of subdivision algorithm.

Implemented in OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::CompositeLoopT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >, OpenMesh::Subdivider::Uniform::LoopT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::ModifiedButterflyT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::InterpolatingSqrt3LGT< MeshType, RealType >, and OpenMesh::Subdivider::Uniform::Sqrt3T< MeshType, RealType >.

template<typename MeshType , typename RealType = float>

bool OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >::operator()

(

size_t

_n

)

[inline]

Subdivide the attached _n times.

See also:

SubdividerT(), attach(), detach()

Definition at line 147 of file SubdividerT.hh.

template<typename MeshType , typename RealType = float>

bool OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >::operator()	(	MeshType &	_m,
		size_t	_n
	)			[inline]

Subdivide the mesh _m _n times.

See also:

SubdividerT(MeshType&)

Definition at line 121 of file SubdividerT.hh.

template<typename MeshType , typename RealType = float>

virtual bool OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >::prepare

(

MeshType &

_m

)

[protected, pure virtual]

Prepare mesh, e.g. add properties.

Implemented in OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::LoopT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::ModifiedButterflyT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::InterpolatingSqrt3LGT< MeshType, RealType >, and OpenMesh::Subdivider::Uniform::Sqrt3T< MeshType, RealType >.

template<typename MeshType , typename RealType = float>

virtual bool OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >::subdivide	(	MeshType &	_m,
		size_t	_n
	)			[protected, pure virtual]

Subdivide mesh _m _n times.

Implemented in OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::LoopT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::ModifiedButterflyT< MeshType, RealType >, OpenMesh::Subdivider::Uniform::InterpolatingSqrt3LGT< MeshType, RealType >, and OpenMesh::Subdivider::Uniform::Sqrt3T< MeshType, RealType >.

---

Member Data Documentation

template<typename MeshType , typename RealType = float>

MeshType* OpenMesh::Subdivider::Uniform::SubdividerT< MeshType, RealType >::attached_ [private]

Definition at line 180 of file SubdividerT.hh.

---

The documentation for this class was generated from the following file:

• SubdividerT.hh
