OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType > Class Template Reference

#include <CompositeSqrt3T.hh>

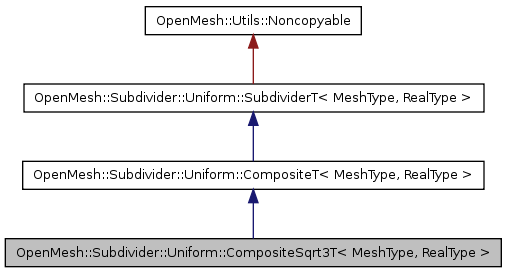

Inheritance diagram for OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >:

[legend]

List of all members.

Classes
struct	FVCoeff
Public Types
typedef CompositeT< MeshType, RealType >	Inherited
Public Member Functions
	CompositeSqrt3T (MeshType &_mesh)
	CompositeSqrt3T ()
const char *	name () const
	Return name of subdivision algorithm.
	~CompositeSqrt3T ()
Protected Types
typedef Inherited::Coeff	Coeff
Protected Member Functions
void	apply_rules (void)
Protected Attributes
OpenMesh::Subdivider::Uniform::CompositeSqrt3T::FVCoeff	coeffs_

---

Detailed Description

template<typename MeshType, typename RealType = float>
class OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >

Uniform composite sqrt(3) subdivision algorithm

Definition at line 74 of file CompositeSqrt3T.hh.

---

Member Typedef Documentation

template<typename MeshType , typename RealType = float>

typedef Inherited::Coeff OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >::Coeff [protected]

Definition at line 102 of file CompositeSqrt3T.hh.

template<typename MeshType , typename RealType = float>

typedef CompositeT<MeshType, RealType> OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >::Inherited

Definition at line 78 of file CompositeSqrt3T.hh.

---

Constructor & Destructor Documentation

template<typename MeshType , typename RealType = float>

OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >::CompositeSqrt3T

(

)

[inline]

Definition at line 82 of file CompositeSqrt3T.hh.

template<typename MeshType , typename RealType = float>

OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >::CompositeSqrt3T

(

MeshType &

_mesh

)

[inline]

Definition at line 83 of file CompositeSqrt3T.hh.

template<typename MeshType , typename RealType = float>

OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >::~CompositeSqrt3T

(

)

[inline]

Definition at line 84 of file CompositeSqrt3T.hh.

---

Member Function Documentation

template<typename MeshType , typename RealType = float>

void OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >::apply_rules

(

void

)

[inline, protected, virtual]

Assemble here the rule sequence, by calling the constructor of the wanted rules.

Implements OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >.

Definition at line 92 of file CompositeSqrt3T.hh.

template<typename MeshType , typename RealType = float>

const char* OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >::name

(

)

const [inline, virtual]

Return name of subdivision algorithm.

Implements OpenMesh::Subdivider::Uniform::CompositeT< MeshType, RealType >.

Definition at line 88 of file CompositeSqrt3T.hh.

---

Member Data Documentation

template<typename MeshType , typename RealType = float>

OpenMesh::Subdivider::Uniform::CompositeSqrt3T::FVCoeff OpenMesh::Subdivider::Uniform::CompositeSqrt3T< MeshType, RealType >::coeffs_ [protected]

Helper class

---

The documentation for this class was generated from the following file:

• CompositeSqrt3T.hh
