object_manipulator::SimpleGraspExecutor Class Reference

Simplest grasp executor, using only final grasp information. More...

#include <simple_grasp_executor.h>

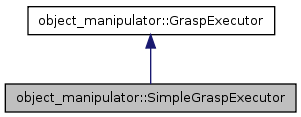

Inheritance diagram for object_manipulator::SimpleGraspExecutor:
Inheritance graph
[legend]

List of all members.

Public Member Functions

 SimpleGraspExecutor (GraspMarkerPublisher *pub)
 Also adds a marker at the final grasp.

Private Member Functions

virtual
object_manipulation_msgs::GraspResult
executeGrasp (const object_manipulation_msgs::PickupGoal &pickup_goal, const object_manipulation_msgs::Grasp &grasp)
 Sends the IK result of prepareGrasp() to move_arm, then executes lift trajectory.
virtual
object_manipulation_msgs::GraspResult
prepareGrasp (const object_manipulation_msgs::PickupGoal &pickup_goal, const object_manipulation_msgs::Grasp &grasp)
 Calls IK on the final grasp pose.

Private Attributes

kinematics_msgs::GetConstraintAwarePositionIK::Response ik_response_
 The inverse kinematics solution for the final grasp.

Detailed Description

Simplest grasp executor, using only final grasp information.

The initial check consists of calling IK on the final grasp to see if a valid IK solution exists, then cheking interpolated IK to see if the object can be lifted. Execution then consists of passing along the IK solution to move_arm, followed by the lift trajectory.

Definition at line 49 of file simple_grasp_executor.h.


Constructor & Destructor Documentation

object_manipulator::SimpleGraspExecutor::SimpleGraspExecutor ( GraspMarkerPublisher pub  )  [inline]

Also adds a marker at the final grasp.

Definition at line 66 of file simple_grasp_executor.h.


Member Function Documentation

GraspResult object_manipulator::SimpleGraspExecutor::executeGrasp ( const object_manipulation_msgs::PickupGoal pickup_goal,
const object_manipulation_msgs::Grasp grasp
) [private, virtual]

Sends the IK result of prepareGrasp() to move_arm, then executes lift trajectory.

Implements object_manipulator::GraspExecutor.

Definition at line 88 of file simple_grasp_executor.cpp.

GraspResult object_manipulator::SimpleGraspExecutor::prepareGrasp ( const object_manipulation_msgs::PickupGoal pickup_goal,
const object_manipulation_msgs::Grasp grasp
) [private, virtual]

Calls IK on the final grasp pose.

Implements object_manipulator::GraspExecutor.

Definition at line 44 of file simple_grasp_executor.cpp.


Member Data Documentation

The inverse kinematics solution for the final grasp.

Definition at line 53 of file simple_grasp_executor.h.


The documentation for this class was generated from the following files:
