#include <tesseract_common/macros.h>
#include <tesseract_kinematics/ikfast/external/ikfast.h>
#include <cmath>
#include <vector>
#include <limits>
#include <complex>
#include <stdexcept>
#include <iostream>
#include <cstddef>
#include <memory>

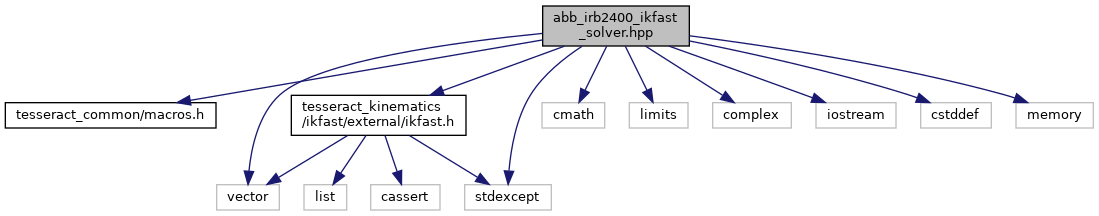

Include dependency graph for abb_irb2400_ikfast_solver.hpp:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	IKSolver

Macros
#define	__PRETTY_FUNCTION__ __func__

#define	IK2PI ((IkReal)6.28318530717959)

#define	IKFAST_ALIGNED16(x) x __attribute((aligned(16)))

#define	IKFAST_ASSERT(b)

#define	IKFAST_ATAN2_MAGTHRESH ((IkReal)2e-6)

#define	IKFAST_COMPILE_ASSERT(x) extern int __dummy[(int)(x)]

#define	IKFAST_NO_MAIN

#define	IKFAST_SINCOS_THRESH ((IkReal)0.000001)

#define	IKFAST_SOLUTION_THRESH ((IkReal)1e-6)

#define	IKFAST_STRINGIZE(s) IKFAST_STRINGIZE2(s)

#define	IKFAST_STRINGIZE2(s) #s

#define	IKPI ((IkReal)3.14159265358979)

#define	IKPI_2 ((IkReal)1.57079632679490)

Functions
IKFAST_API void	ComputeFk (const IkReal j, IkReal eetrans, IkReal *eerot)

IKFAST_API bool	ComputeIk (const IkReal eetrans, const IkReal eerot, const IkReal *pfree, IkSolutionListBase< IkReal > &solutions)

void	dgeev_ (const char jobvl, const char jobvr, const int n, double a, const int lda, double wr, double wi, double vl, const int ldvl, double vr, const int ldvr, double work, const int lwork, int info)

void	dgesv_ (const int n, const int nrhs, double a, const int lda, int ipiv, double b, const int ldb, int info)

void	dgetrf_ (const int m, const int n, double a, const int lda, int ipiv, int info)

void	dgetri_ (const int n, const double a, const int lda, int ipiv, double work, const int lwork, int *info)

void	dgetrs_ (const char trans, const int n, const int nrhs, double a, const int lda, int ipiv, double b, const int ldb, int *info)

IKFAST_API int *	GetFreeParameters ()

const IKFAST_API char *	GetIkFastVersion ()

IKFAST_API int	GetIkRealSize ()

IKFAST_API int	GetIkType ()

const IKFAST_API char *	GetKinematicsHash ()

IKFAST_API int	GetNumFreeParameters ()

IKFAST_API int	GetNumJoints ()

double	IKabs (double f)

float	IKabs (float f)

double	IKacos (double f)

float	IKacos (float f)

double	IKasin (double f)

float	IKasin (float f)

double	IKatan2 (double fy, double fx)

float	IKatan2 (float fy, float fx)

double	IKcos (double f)

float	IKcos (float f)

	IKFAST_COMPILE_ASSERT (IKFAST_VERSION==61)

double	IKfmod (double x, double y)

float	IKfmod (float x, float y)

double	IKlog (double f)

float	IKlog (float f)

double	IKsign (double f)

float	IKsign (float f)

double	IKsin (double f)

float	IKsin (float f)

double	IKsqr (double f)

float	IKsqr (float f)

double	IKsqrt (double f)

float	IKsqrt (float f)

double	IKtan (double f)

float	IKtan (float f)

void	zgetrf_ (const int m, const int n, std::complex< double > a, const int lda, int ipiv, int info)

Macro Definition Documentation

◆ __PRETTY_FUNCTION__

#define __PRETTY_FUNCTION__ __func__

Definition at line 55 of file abb_irb2400_ikfast_solver.hpp.

◆ IK2PI

#define IK2PI ((IkReal)6.28318530717959)

Definition at line 77 of file abb_irb2400_ikfast_solver.hpp.

◆ IKFAST_ALIGNED16

#define IKFAST_ALIGNED16 ( x ) x __attribute((aligned(16)))

Definition at line 74 of file abb_irb2400_ikfast_solver.hpp.

◆ IKFAST_ASSERT

#define IKFAST_ASSERT ( b )

Value:

  {                                                                                                                    \
    if (!(b))                                                                                                          \
    {                                                                                                                  \
      std::stringstream ss;                                                                                            \
      ss << "ikfast exception: " << __FILE__ << ":" << __LINE__ << ": " << __PRETTY_FUNCTION__ << ": Assertion '"      \
         << #b << "' failed";                                                                                          \
      throw std::runtime_error(ss.str());                                                                              \
    }                                                                                                                  \
  }

Definition at line 58 of file abb_irb2400_ikfast_solver.hpp.

◆ IKFAST_ATAN2_MAGTHRESH

#define IKFAST_ATAN2_MAGTHRESH ((IkReal)2e-6)

Definition at line 141 of file abb_irb2400_ikfast_solver.hpp.

◆ IKFAST_COMPILE_ASSERT

#define IKFAST_COMPILE_ASSERT ( x ) extern int __dummy[(int)(x)]

Definition at line 31 of file abb_irb2400_ikfast_solver.hpp.

◆ IKFAST_NO_MAIN

#define IKFAST_NO_MAIN

autogenerated analytical inverse kinematics code from ikfast program part of OpenRAVE

Author: Rosen Diankov

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

ikfast version 61 generated on 2015-05-22 14:09:58.982511 To compile with gcc: gcc -lstdc++ ik.cpp To compile without any main function as a shared object (might need -llapack): gcc -fPIC -lstdc++ -DIKFAST_NO_MAIN -DIKFAST_CLIBRARY -shared -Wl,-soname,libik.so -o libik.so ik.cpp

Definition at line 25 of file abb_irb2400_ikfast_solver.hpp.

◆ IKFAST_SINCOS_THRESH

#define IKFAST_SINCOS_THRESH ((IkReal)0.000001)

Definition at line 136 of file abb_irb2400_ikfast_solver.hpp.

◆ IKFAST_SOLUTION_THRESH

#define IKFAST_SOLUTION_THRESH ((IkReal)1e-6)

Definition at line 146 of file abb_irb2400_ikfast_solver.hpp.

◆ IKFAST_STRINGIZE

#define IKFAST_STRINGIZE ( s ) IKFAST_STRINGIZE2(s)

Definition at line 40 of file abb_irb2400_ikfast_solver.hpp.

◆ IKFAST_STRINGIZE2

#define IKFAST_STRINGIZE2 ( s ) #s

Definition at line 39 of file abb_irb2400_ikfast_solver.hpp.

◆ IKPI

#define IKPI ((IkReal)3.14159265358979)

Definition at line 78 of file abb_irb2400_ikfast_solver.hpp.

◆ IKPI_2

#define IKPI_2 ((IkReal)1.57079632679490)

Definition at line 79 of file abb_irb2400_ikfast_solver.hpp.

Function Documentation

◆ ComputeFk()

IKFAST_API void ComputeFk	(	const IkReal *	j,
		IkReal *	eetrans,
		IkReal *	eerot
	)

solves the forward kinematics equations.

Parameters

pfree is an array specifying the free joints of the chain.

Definition at line 283 of file abb_irb2400_ikfast_solver.hpp.

◆ ComputeIk()

IKFAST_API bool ComputeIk	(	const IkReal *	eetrans,
		const IkReal *	eerot,
		const IkReal *	pfree,
		IkSolutionListBase< IkReal > &	solutions
	)

solves the inverse kinematics equations.

Parameters

pfree is an array specifying the free joints of the chain.

Definition at line 3209 of file abb_irb2400_ikfast_solver.hpp.

◆ dgeev_()

void dgeev_	(	const char *	jobvl,
		const char *	jobvr,
		const int *	n,
		double *	a,
		const int *	lda,
		double *	wr,
		double *	wi,
		double *	vl,
		const int *	ldvl,
		double *	vr,
		const int *	ldvr,
		double *	work,
		const int *	lwork,
		int *	info
	)
