#include <netinet/in.h>
#include <stdint.h>
#include <cstring>
#include <string>
#include <iostream>

Include dependency graph for Messages.hh:

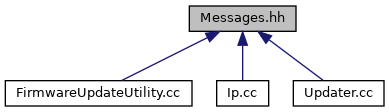

This graph shows which files directly or indirectly include this file:

Classes
struct	Messages::MessageBlockAck

struct	Messages::MessageFileBlock

struct	Messages::MessageSetup

struct	Messages::MessageUpdateStatus

Namespaces
	Messages

Macros
#define	CRL_CONSTEXPR const

#define	PACK __attribute__((packed,aligned(4)))

Typedefs
typedef uint32_t	Messages::MessageType

typedef uint32_t	Messages::StatusMessage

typedef uint32_t	Messages::UpdateStatusId

typedef int32_t	Messages::UpdateStatusMessage

Functions
void	Messages::PrintStatus (StatusMessage s)

std::string	Messages::StatusString (StatusMessage s)

Variables
static CRL_CONSTEXPR int	Messages::BLOCK_SIZE = 1024

static CRL_CONSTEXPR MessageType	Messages::Message_BlockAck = 1

static CRL_CONSTEXPR MessageType	Messages::Message_FileBlock = 3

static CRL_CONSTEXPR MessageType	Messages::Message_Reboot = 5

static CRL_CONSTEXPR MessageType	Messages::Message_Setup = 2

static CRL_CONSTEXPR MessageType	Messages::Message_Status = 4

static CRL_CONSTEXPR int	Messages::SERVER_PORT = 4321

static CRL_CONSTEXPR StatusMessage	Messages::Status_BackupComplete = (0x1u<<5)

static CRL_CONSTEXPR StatusMessage	Messages::Status_BackupFailed = (0x1u<<6)

static CRL_CONSTEXPR StatusMessage	Messages::Status_BootImageComplete = (0x1u<<7)

static CRL_CONSTEXPR StatusMessage	Messages::Status_BootImageFailed = (0x1u<<8)

static CRL_CONSTEXPR StatusMessage	Messages::Status_ClientConnected = (0x1u<<31)

static CRL_CONSTEXPR StatusMessage	Messages::Status_Error

static CRL_CONSTEXPR StatusMessage	Messages::Status_FileCheckComplete = (0x1u<<3)

static CRL_CONSTEXPR StatusMessage	Messages::Status_FileCheckFailed = (0x1u<<4)

static CRL_CONSTEXPR StatusMessage	Messages::Status_FileNotReceived = (0x1u<<1)

static CRL_CONSTEXPR StatusMessage	Messages::Status_FileReceived = (0x1u<<2)

static CRL_CONSTEXPR StatusMessage	Messages::Status_FSComplete = (0x1u<<11)

static CRL_CONSTEXPR StatusMessage	Messages::Status_FSFailed = (0x1u<<12)

static CRL_CONSTEXPR StatusMessage	Messages::Status_NotStarted = (0x1u<<0)

static CRL_CONSTEXPR StatusMessage	Messages::Status_OSImageComplete = (0x1u<<9)

static CRL_CONSTEXPR StatusMessage	Messages::Status_OSImageFailed = (0x1u<<10)

static CRL_CONSTEXPR StatusMessage	Messages::Status_UpdateComplete = (0x1u<<13)

static CRL_CONSTEXPR StatusMessage	Messages::Status_UpdateFailed = (0x1u<<14)

static CRL_CONSTEXPR UpdateStatusMessage	Messages::UpdateStatus_Done = 1

static CRL_CONSTEXPR UpdateStatusMessage	Messages::UpdateStatus_Error = -1

static CRL_CONSTEXPR UpdateStatusMessage	Messages::UpdateStatus_Ok = 0

static CRL_CONSTEXPR UpdateStatusId	Messages::UpdateStatusId_ACK = 1

static CRL_CONSTEXPR UpdateStatusId	Messages::UpdateStatusId_Message = 0

Detailed Description

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
Neither the name of the Carnegie Robotics, LLC nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL CARNEGIE ROBOTICS, LLC BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Significant history (date, user, job code, action): 2024-27-08, patri.nosp@m.ck.s.nosp@m.mith@.nosp@m.carn.nosp@m.egier.nosp@m.obot.nosp@m.ics.c.nosp@m.om, IRAD, Created file.

Definition in file Messages.hh.

Macro Definition Documentation

◆ CRL_CONSTEXPR

#define CRL_CONSTEXPR const

Definition at line 56 of file Messages.hh.

◆ PACK

#define PACK __attribute__((packed,aligned(4)))

Definition at line 145 of file Messages.hh.
