GPBMessage Class Reference

#import <GPBMessage.h>

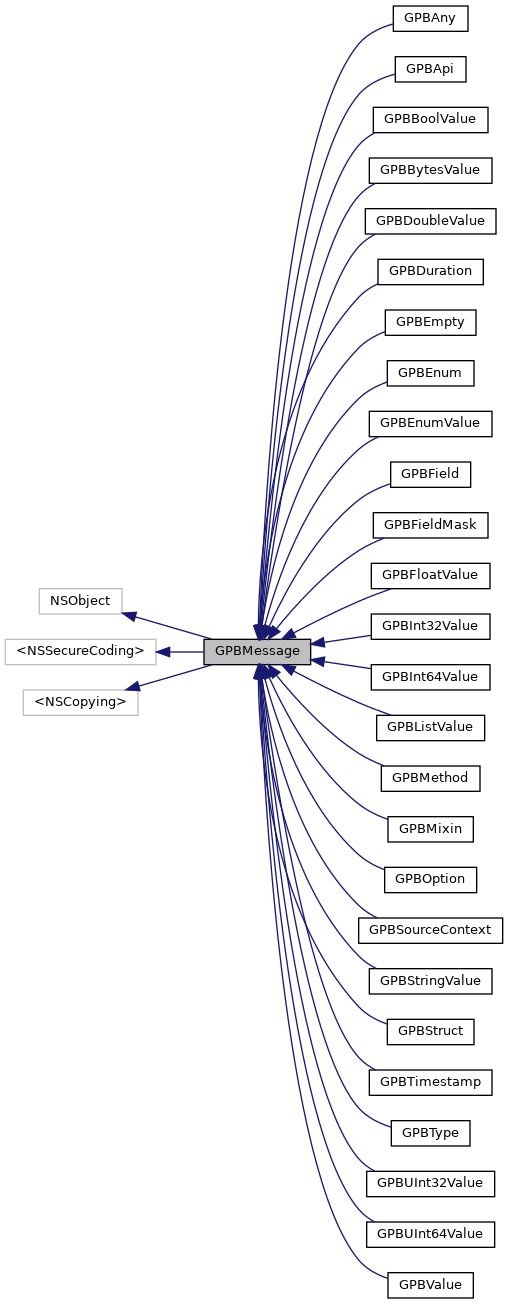

Inheritance diagram for GPBMessage:

Instance Methods
(void)	- addExtension:value:
(void)	- addUnknownMapEntry:value: [implementation]
(void)	- clear
(void)	- clearExtension:
(nullable NSData *)	- data
(NSData *)	- delimitedData
(GPBDescriptor *)	- descriptor
(NSArray *)	- extensionsCurrentlySet
(id)	- getExistingExtension: [implementation]
(nullable id)	- getExtension:
(BOOL)	- hasExtension:
(nullable instancetype)	- initWithCodedInputStream:extensionRegistry:error:
(nullable instancetype)	- initWithData:error:
(nullable instancetype)	- initWithData:extensionRegistry:error:
(void)	- mergeDelimitedFromCodedInputStream:extensionRegistry: [implementation]
(void)	- mergeFrom:
(void)	- mergeFromCodedInputStream:extensionRegistry: [implementation]
(void)	- mergeFromData:extensionRegistry:
(size_t)	- serializedSize
(void)	- setExtension:index:value:
(void)	- setExtension:value:
(void)	- writeDelimitedToCodedOutputStream:
(void)	- writeDelimitedToOutputStream:
(void)	- writeToCodedOutputStream:
(void)	- writeToOutputStream:

Class Methods
(GPBDescriptor *)	+ descriptor
(instancetype)	+ message
(nullable instancetype)	+ parseDelimitedFromCodedInputStream:extensionRegistry:error:
(nullable instancetype)	+ parseFromCodedInputStream:extensionRegistry:error:
(nullable instancetype)	+ parseFromData:error:
(nullable instancetype)	+ parseFromData:extensionRegistry:error:

Protected Attributes
package GPBMessage_StoragePtr	messageStorage_

Properties
BOOL	initialized
GPBUnknownFieldSet *	unknownFields

Detailed Description

Base class that each generated message subclasses from.

Note

NSCopying support is a "deep copy", in that all sub objects are copied. Just like you wouldn't want a UIView/NSView trying to exist in two places, you don't want a sub message to be a property property of two other messages.

While the class support NSSecureCoding, if the message has any extensions, they will end up reloaded in unknownFields as there is no way for the NSCoding plumbing to pass through a GPBExtensionRegistry. To support extensions, instead of passing the calls off to the Message, simple store the result of data, and then when loading, fetch the data and use +parseFromData:extensionRegistry:error: to provide an extension registry.

Definition at line 83 of file GPBMessage.h.

Method Documentation

addExtension:value:

- (void) addExtension:		(GPBExtensionDescriptor *)	extension
value:		(id)	value

Adds the given value to the extension for this message. This only applies to repeated field extensions. If the field is a repeated POD type, the value should be an NSNumber.

Parameters

extension	The extension descriptor under which to add the value.
value	The value to be added to the repeated extension.

addUnknownMapEntry:value:

- (void) addUnknownMapEntry: (int32_t)  fieldNum value: (NSData *)  data

implementation

clear

- (void) clear

Resets all of the fields of this message to their default values.

clearExtension:

- (void) clearExtension:

(GPBExtensionDescriptor *)

extension

Clears the given extension for this message.

Parameters

extension

The extension descriptor to be cleared from this message.

data

- (nullable NSData *) data

Serializes the message to an NSData.

If there is an error while generating the data, nil is returned.

Note

This value is not cached, so if you are using it repeatedly, cache it yourself.

In DEBUG ONLY, the message is also checked for all required field, if one is missing, nil will be returned.

Returns

The binary representation of the message.

delimitedData

- (NSData *) delimitedData

Serializes a varint with the message size followed by the message data, returning that as an NSData.

Note

This value is not cached, so if you are using it repeatedly, it is recommended to keep a local copy.

Returns

The binary representation of the size along with the message.

descriptor [1/2]

+ (GPBDescriptor *) descriptor

Returns

The descriptor for the message class.

descriptor [2/2]

- (GPBDescriptor *) descriptor

Return the descriptor for the message.

extensionsCurrentlySet

- (NSArray *) extensionsCurrentlySet

Returns

An array with the extension descriptors that are currently set on the message.

getExistingExtension:

- (id) getExistingExtension: (GPBExtensionDescriptor *)  extension

implementation

getExtension:

- (nullable id) getExtension:

(GPBExtensionDescriptor *)

extension

hasExtension:

- (BOOL) hasExtension:

(GPBExtensionDescriptor *)

extension

Checks whether there is an extension set on the message which matches the given extension descriptor.

Parameters

extension

Extension descriptor to check if it's set on the message.

Returns

Whether the extension is currently set on the message.

initWithCodedInputStream:extensionRegistry:error:

- (nullable instancetype) initWithCodedInputStream:		(GPBCodedInputStream *)	input
extensionRegistry:		(nullable GPBExtensionRegistry *)	extensionRegistry
error:		(NSError **)	errorPtr

Initializes an instance by parsing the data from the given input stream. This method should be sent to the generated message class that the data should be interpreted as. If there is an error the method returns nil and the error is returned in errorPtr (when provided).

Note

Unlike the parseFrom... methods, this never checks to see if all of the required fields are set. So this method can be used to reload messages that may not be complete.

The errors returned are likely coming from the domain and codes listed at the top of this file and GPBCodedInputStream.h.

Parameters

input	The stream to read data from.
extensionRegistry	The extension registry to use to look up extensions.
errorPtr	An optional error pointer to fill in with a failure reason if the data can not be parsed.

Returns

An initialized instance of the generated class.

initWithData:error:

- (nullable instancetype) initWithData:		(NSData *)	data
error:		(NSError **)	errorPtr

Initializes an instance by parsing the data. This method should be sent to the generated message class that the data should be interpreted as. If there is an error the method returns nil and the error is returned in errorPtr (when provided).

Note

In DEBUG builds, the parsed message is checked to be sure all required fields were provided, and the parse will fail if some are missing.

The errors returned are likely coming from the domain and codes listed at the top of this file and GPBCodedInputStream.h.

Parameters

data	The data to parse.
errorPtr	An optional error pointer to fill in with a failure reason if the data can not be parsed.

Returns

An initialized instance of the generated class.

initWithData:extensionRegistry:error:

- (nullable instancetype) initWithData:		(NSData *)	data
extensionRegistry:		(nullable GPBExtensionRegistry *)	extensionRegistry
error:		(NSError **)	errorPtr

Initializes an instance by parsing the data. This method should be sent to the generated message class that the data should be interpreted as. If there is an error the method returns nil and the error is returned in errorPtr (when provided).

Note

In DEBUG builds, the parsed message is checked to be sure all required fields were provided, and the parse will fail if some are missing.

The errors returned are likely coming from the domain and codes listed at the top of this file and GPBCodedInputStream.h.

Parameters

data	The data to parse.
extensionRegistry	The extension registry to use to look up extensions.
errorPtr	An optional error pointer to fill in with a failure reason if the data can not be parsed.

Returns

An initialized instance of the generated class.

mergeDelimitedFromCodedInputStream:extensionRegistry:

- (void) mergeDelimitedFromCodedInputStream: (GPBCodedInputStream *)  input extensionRegistry: (GPBExtensionRegistry *)  extensionRegistry

implementation

mergeFrom:

- (void) mergeFrom:

(GPBMessage *)

other

Merges the fields from another message (of the same type) into this message.

Parameters

other

Message to merge into this message.

mergeFromCodedInputStream:extensionRegistry:

- (void) mergeFromCodedInputStream: (GPBCodedInputStream *)  input extensionRegistry: (GPBExtensionRegistry *)  extensionRegistry

implementation

mergeFromData:extensionRegistry:

- (void) mergeFromData:		(NSData *)	data
extensionRegistry:		(nullable GPBExtensionRegistry *)	extensionRegistry

Parses the given data as this message's class, and merges those values into this message.

Parameters

data	The binary representation of the message to merge.
extensionRegistry	The extension registry to use to look up extensions.

Exceptions

GPBCodedInputStreamException

Exception thrown when parsing was unsuccessful.

message

+ (instancetype) message

Returns

An autoreleased message with the default values set.

parseDelimitedFromCodedInputStream:extensionRegistry:error:

+ (nullable instancetype) parseDelimitedFromCodedInputStream:		(GPBCodedInputStream *)	input
extensionRegistry:		(nullable GPBExtensionRegistry *)	extensionRegistry
error:		(NSError **)	errorPtr

Creates a new instance by parsing the data from the given input stream. This method should be sent to the generated message class that the data should be interpreted as. If there is an error the method returns nil and the error is returned in errorPtr (when provided).

Note

Unlike the parseFrom... methods, this never checks to see if all of the required fields are set. So this method can be used to reload messages that may not be complete.

The errors returned are likely coming from the domain and codes listed at the top of this file and GPBCodedInputStream.h.

Parameters

input	The stream to read data from.
extensionRegistry	The extension registry to use to look up extensions.
errorPtr	An optional error pointer to fill in with a failure reason if the data can not be parsed.

Returns

A new instance of the generated class.

parseFromCodedInputStream:extensionRegistry:error:

+ (nullable instancetype) parseFromCodedInputStream:		(GPBCodedInputStream *)	input
extensionRegistry:		(nullable GPBExtensionRegistry *)	extensionRegistry
error:		(NSError **)	errorPtr

Creates a new instance by parsing the data from the given input stream. This method should be sent to the generated message class that the data should be interpreted as. If there is an error the method returns nil and the error is returned in errorPtr (when provided).

Note

In DEBUG builds, the parsed message is checked to be sure all required fields were provided, and the parse will fail if some are missing.

The errors returned are likely coming from the domain and codes listed at the top of this file and GPBCodedInputStream.h.

Parameters

input	The stream to read data from.
extensionRegistry	The extension registry to use to look up extensions.
errorPtr	An optional error pointer to fill in with a failure reason if the data can not be parsed.

Returns

A new instance of the generated class.

parseFromData:error:

+ (nullable instancetype) parseFromData:		(NSData *)	data
error:		(NSError **)	errorPtr

Creates a new instance by parsing the provided data. This method should be sent to the generated message class that the data should be interpreted as. If there is an error the method returns nil and the error is returned in errorPtr (when provided).

Note

In DEBUG builds, the parsed message is checked to be sure all required fields were provided, and the parse will fail if some are missing.

The errors returned are likely coming from the domain and codes listed at the top of this file and GPBCodedInputStream.h.

Parameters

data	The data to parse.
errorPtr	An optional error pointer to fill in with a failure reason if the data can not be parsed.

Returns

A new instance of the generated class.

parseFromData:extensionRegistry:error:

+ (nullable instancetype) parseFromData:		(NSData *)	data
extensionRegistry:		(nullable GPBExtensionRegistry *)	extensionRegistry
error:		(NSError **)	errorPtr

Creates a new instance by parsing the data. This method should be sent to the generated message class that the data should be interpreted as. If there is an error the method returns nil and the error is returned in errorPtr (when provided).

Note

In DEBUG builds, the parsed message is checked to be sure all required fields were provided, and the parse will fail if some are missing.

The errors returned are likely coming from the domain and codes listed at the top of this file and GPBCodedInputStream.h.

Parameters

data	The data to parse.
extensionRegistry	The extension registry to use to look up extensions.
errorPtr	An optional error pointer to fill in with a failure reason if the data can not be parsed.

Returns

A new instance of the generated class.

serializedSize

- (size_t) serializedSize

Calculates the size of the object if it were serialized.

This is not a cached value. If you are following a pattern like this:

size_t size = [aMsg serializedSize];
NSMutableData *foo = [NSMutableData dataWithCapacity:size + sizeof(size)];
[foo writeSize:size];
[foo appendData:[aMsg data]];

you would be better doing:

NSData *data = [aMsg data];
NSUInteger size = [aMsg length];
NSMutableData *foo = [NSMutableData dataWithCapacity:size + sizeof(size)];
[foo writeSize:size];
[foo appendData:data];

Returns

The size of the message in it's binary representation.

setExtension:index:value:

- (void) setExtension:		(GPBExtensionDescriptor *)	extension
index:		(NSUInteger)	index
value:		(id)	value

Replaces the value at the given index with the given value for the extension on this message. This only applies to repeated field extensions. If the field is a repeated POD type, the value is should be an NSNumber.

Parameters

extension	The extension descriptor under which to replace the value.
index	The index of the extension to be replaced.
value	The value to be replaced in the repeated extension.

setExtension:value:

- (void) setExtension:		(GPBExtensionDescriptor *)	extension
value:		(nullable id)	value

Sets the given extension's value for this message. This only applies for single field extensions (i.e. - not repeated fields).

Extensions use boxed values (NSNumbers).

Parameters

extension	The extension descriptor under which to set the value.
value	The value to be set as the extension.

writeDelimitedToCodedOutputStream:

- (void) writeDelimitedToCodedOutputStream:

(GPBCodedOutputStream *)

output

Writes out a varint for the message size followed by the message to the given output stream.

Parameters

output

The coded output stream into which to write the message.

Note

This can raise the GPBCodedOutputStreamException_* exceptions.

writeDelimitedToOutputStream:

- (void) writeDelimitedToOutputStream:

(NSOutputStream *)

output

Writes out a varint for the message size followed by the message to the given output stream.

Parameters

output

The output stream into which to write the message.

Note

This can raise the GPBCodedOutputStreamException_* exceptions.

writeToCodedOutputStream:

- (void) writeToCodedOutputStream:

(GPBCodedOutputStream *)

output

Writes out the message to the given coded output stream.

Parameters

output

The coded output stream into which to write the message.

Note

This can raise the GPBCodedOutputStreamException_* exceptions.

writeToOutputStream:

- (void) writeToOutputStream:

(NSOutputStream *)

output

Writes out the message to the given output stream.

Parameters

output

The output stream into which to write the message.

Note

This can raise the GPBCodedOutputStreamException_* exceptions.

Member Data Documentation

messageStorage_

- (package GPBMessage_StoragePtr) messageStorage_

protected

Definition at line 63 of file GPBMessage_PackagePrivate.h.

Property Documentation

initialized

- (BOOL) initialized

readnonatomicassign

Whether the message, along with all submessages, have the required fields set. This is only applicable for files declared with "proto2" syntax, as there are no required fields for "proto3" syntax.

Definition at line 103 of file GPBMessage.h.

unknownFields

- (GPBUnknownFieldSet*) unknownFields

readwritenonatomiccopy

The set of unknown fields for this message.

Only messages from proto files declared with "proto2" syntax support unknown fields. For "proto3" syntax, any unknown fields found while parsing are dropped.

Definition at line 96 of file GPBMessage.h.

---

The documentation for this class was generated from the following file:

• GPBMessage.h
