Represents a traffic light restriction on the lanelet. More...

#include <BasicRegulatoryElements.h>

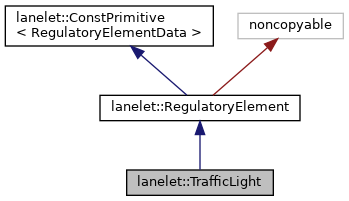

Inheritance diagram for lanelet::TrafficLight:

[legend]

Public Types
using	Ptr = std::shared_ptr< TrafficLight >

Public Types inherited from lanelet::RegulatoryElement
using	Category = traits::RegulatoryElementTag

using	const_iterator = RuleParameterMap::const_iterator

using	ConstType = RegulatoryElement

using	iterator = RuleParameterMap::iterator

using	MutableType = GenericRegulatoryElement

using	ThreeDType = RegulatoryElement

using	TwoDType = RegulatoryElement

Public Types inherited from lanelet::ConstPrimitive< RegulatoryElementData >
using	DataType = RegulatoryElementData

Public Member Functions
void	addTrafficLight (const LineStringOrPolygon3d &primitive)
	add a new traffic light More...

void	removeStopLine ()
	Deletes the stop line. More...

bool	removeTrafficLight (const LineStringOrPolygon3d &primitive)
	remove a traffic light More...

void	setStopLine (const LineString3d &stopLine)
	set a new stop line, overwrite the old one More...

Optional< LineString3d >	stopLine ()

Optional< ConstLineString3d >	stopLine () const
	get the stop line for the traffic light More...

LineStringsOrPolygons3d	trafficLights ()

ConstLineStringsOrPolygons3d	trafficLights () const
	get the relevant traffic lights More...

Public Member Functions inherited from lanelet::RegulatoryElement
void	applyVisitor (RuleParameterVisitor &visitor) const
	applies a visitor to every parameter in the regulatory element More...

bool	empty () const
	returns true if this object contains no parameters More...

template<typename T >
Optional< T >	find (Id id) const
	Finds a parameter by its id, independent of the role. More...

template<>
Optional< ConstRuleParameter >	find (Id id) const

template<>
boost::optional< ConstLanelet >	find (Id id) const

template<>
boost::optional< ConstArea >	find (Id id) const

ConstRuleParameterMap	getParameters () const
	Returns all parameters as const object (coversion overhead for const) More...

template<typename T >
std::vector< T >	getParameters (const std::string &role) const
	Returns a vector of all RuleParameters that could be converted to T. More...

template<>
std::vector< ConstLanelet >	getParameters (const std::string &role) const

template<typename T >
std::vector< T >	getParameters (RoleName role) const

template<>
std::vector< ConstLanelet >	getParameters (RoleName role) const

std::vector< std::string >	roles () const
	returns all the roles this regulatory element has More...

void	setId (Id id) noexcept

size_t	size () const
	get the number of roles in this regulatoryElement More...

virtual	~RegulatoryElement ()

Public Member Functions inherited from lanelet::ConstPrimitive< RegulatoryElementData >
const Attribute &	attribute (AttributeName name) const
	retrieve an attribute (enum version) More...

const Attribute &	attribute (const std::string &name) const
	retrieve an attribute More...

T	attributeOr (AttributeName name, T defaultVal) const
	retrieve an attribute (enum version) More...

T	attributeOr (const std::string &name, T defaultVal) const noexcept
	retrieve an attribute (string version) More...

const AttributeMap &	attributes () const
	get the attributes of this primitive More...

const std::shared_ptr< const RegulatoryElementData > &	constData () const
	get the internal data of this primitive More...

	ConstPrimitive (const std::shared_ptr< const RegulatoryElementData > &data)
	Construct from a pointer to the data. More...

bool	hasAttribute (AttributeName name) const noexcept
	check for an attribute (enum version) More...

bool	hasAttribute (const std::string &name) const noexcept
	check whether this primitive has a specific attribute More...

Id	id () const noexcept
	get the unique id of this primitive More...

bool	operator!= (const ConstPrimitive &rhs) const

bool	operator== (const ConstPrimitive &rhs) const

Static Public Member Functions
static Ptr	make (Id id, const AttributeMap &attributes, const LineStringsOrPolygons3d &trafficLights, const Optional< LineString3d > &stopLine={})

Static Public Attributes
static constexpr char	RuleName [] = "traffic_light"

Static Public Attributes inherited from lanelet::RegulatoryElement
static constexpr char	RuleName [] = "basic_regulatory_element"

Static Public Attributes inherited from lanelet::ConstPrimitive< RegulatoryElementData >
static constexpr bool	IsConst

Protected Member Functions
	TrafficLight (const RegulatoryElementDataPtr &data)

	TrafficLight (Id id, const AttributeMap &attributes, const LineStringsOrPolygons3d &trafficLights, const Optional< LineString3d > &stopLine)

Protected Member Functions inherited from lanelet::RegulatoryElement
void	applyVisitor (internal::MutableParameterVisitor &visitor) const

const_iterator	begin () const

RegulatoryElementDataPtr	data ()

const_iterator	end () const

template<typename T >
std::vector< T >	getParameters (RoleName role)

RuleParameterMap &	parameters ()

const RuleParameterMap &	parameters () const

	RegulatoryElement (const RegulatoryElementDataPtr &data)

	RegulatoryElement (Id id=InvalId, const RuleParameterMap &members=RuleParameterMap(), const AttributeMap &attributes=AttributeMap())

Protected Member Functions inherited from lanelet::ConstPrimitive< RegulatoryElementData >
	ConstPrimitive (const ConstPrimitive &rhs)=default

	ConstPrimitive (ConstPrimitive &&rhs) noexcept=default

ConstPrimitive &	operator= (const ConstPrimitive &rhs)=default

ConstPrimitive &	operator= (ConstPrimitive &&rhs) noexcept=default

	~ConstPrimitive () noexcept=default

Friends
class	RegisterRegulatoryElement< TrafficLight >

Detailed Description

Represents a traffic light restriction on the lanelet.

Definition at line 17 of file BasicRegulatoryElements.h.

Member Typedef Documentation

◆ Ptr

using lanelet::TrafficLight::Ptr = std::shared_ptr<TrafficLight>

Definition at line 19 of file BasicRegulatoryElements.h.

Constructor & Destructor Documentation

◆ TrafficLight() [1/2]

lanelet::TrafficLight::TrafficLight	(	Id	id,
		const AttributeMap &	attributes,
		const LineStringsOrPolygons3d &	trafficLights,
		const Optional< LineString3d > &	stopLine
	)

protected

Definition at line 177 of file BasicRegulatoryElements.cpp.

◆ TrafficLight() [2/2]

lanelet::TrafficLight::TrafficLight ( const RegulatoryElementDataPtr & data )

explicitprotected

Definition at line 168 of file BasicRegulatoryElements.cpp.

Member Function Documentation

◆ addTrafficLight()

void lanelet::TrafficLight::addTrafficLight ( const LineStringOrPolygon3d & primitive )

add a new traffic light

Parameters

primitive the traffic light to add

Traffic lights are represented as linestrings that start at the left edge of a traffic light and end at the right edge.

Definition at line 193 of file BasicRegulatoryElements.cpp.

◆ make()

static Ptr lanelet::TrafficLight::make	(	Id	id,
		const AttributeMap &	attributes,
		const LineStringsOrPolygons3d &	trafficLights,
		const Optional< LineString3d > &	stopLine = `{}`
	)

inlinestatic

Directly construct a stop line from its required rule parameters. Might modify the input data in oder to get correct tags.

Definition at line 23 of file BasicRegulatoryElements.h.

◆ removeStopLine()

void lanelet::TrafficLight::removeStopLine ( )

Deletes the stop line.

Definition at line 203 of file BasicRegulatoryElements.cpp.

◆ removeTrafficLight()

bool lanelet::TrafficLight::removeTrafficLight ( const LineStringOrPolygon3d & primitive )

remove a traffic light

Parameters

primitive the primitive

Returns: true if the traffic light existed and was removed

Definition at line 197 of file BasicRegulatoryElements.cpp.

◆ setStopLine()

void lanelet::TrafficLight::setStopLine ( const LineString3d & stopLine )

set a new stop line, overwrite the old one

Parameters

stopLine new stop line

Definition at line 201 of file BasicRegulatoryElements.cpp.

◆ stopLine() [1/2]

Optional<LineString3d> lanelet::TrafficLight::stopLine ( )

◆ stopLine() [2/2]

Optional< LineString3d > lanelet::TrafficLight::stopLine ( ) const

get the stop line for the traffic light

Returns: the stop line as LineString

Definition at line 181 of file BasicRegulatoryElements.cpp.

◆ trafficLights() [1/2]

LineStringsOrPolygons3d lanelet::TrafficLight::trafficLights ( )

◆ trafficLights() [2/2]

LineStringsOrPolygons3d lanelet::TrafficLight::trafficLights ( ) const

get the relevant traffic lights

Returns: the traffic lights

There might be multiple traffic lights but they are required to show the same signal.

Definition at line 187 of file BasicRegulatoryElements.cpp.

Friends And Related Function Documentation

◆ RegisterRegulatoryElement< TrafficLight >

friend class RegisterRegulatoryElement< TrafficLight >

friend

Definition at line 71 of file BasicRegulatoryElements.h.

Member Data Documentation

◆ RuleName

constexpr char lanelet::TrafficLight::RuleName = "traffic_light"

staticconstexpr

Definition at line 20 of file BasicRegulatoryElements.h.

The documentation for this class was generated from the following files:
