Defines right of way restrictions. More...

#include <BasicRegulatoryElements.h>

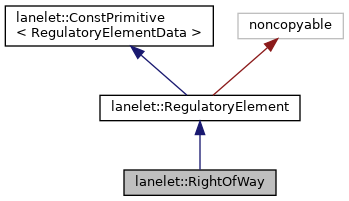

Inheritance diagram for lanelet::RightOfWay:

[legend]

Public Types
using	Ptr = std::shared_ptr< RightOfWay >

Public Types inherited from lanelet::RegulatoryElement
using	Category = traits::RegulatoryElementTag

using	const_iterator = RuleParameterMap::const_iterator

using	ConstType = RegulatoryElement

using	iterator = RuleParameterMap::iterator

using	MutableType = GenericRegulatoryElement

using	ThreeDType = RegulatoryElement

using	TwoDType = RegulatoryElement

Public Types inherited from lanelet::ConstPrimitive< RegulatoryElementData >
using	DataType = RegulatoryElementData

Public Member Functions
void	addRightOfWayLanelet (const Lanelet &lanelet)
	Adds a lanelet for RightOfWay. More...

void	addYieldLanelet (const Lanelet &lanelet)
	Add yielding lanelet. More...

ManeuverType	getManeuver (const ConstLanelet &lanelet) const
	returns whether a lanelet has to yield or has right of way More...

bool	removeRightOfWayLanelet (const Lanelet &lanelet)
	Removes a right of way lanelet and returns true on success. More...

void	removeStopLine ()
	Removes the stop line. More...

bool	removeYieldLanelet (const Lanelet &lanelet)
	Removes a yielding lanelet and returns true no success. More...

Lanelets	rightOfWayLanelets ()

ConstLanelets	rightOfWayLanelets () const
	get the lanelets have right of way More...

void	setStopLine (const LineString3d &stopLine)
	Overwrites the stop line. More...

Optional< LineString3d >	stopLine ()

Optional< ConstLineString3d >	stopLine () const
	get the stop line for the yield lanelets, if present More...

Lanelets	yieldLanelets ()

ConstLanelets	yieldLanelets () const
	get the lanelets that have to yield More...

Public Member Functions inherited from lanelet::RegulatoryElement
void	applyVisitor (RuleParameterVisitor &visitor) const
	applies a visitor to every parameter in the regulatory element More...

bool	empty () const
	returns true if this object contains no parameters More...

template<typename T >
Optional< T >	find (Id id) const
	Finds a parameter by its id, independent of the role. More...

template<>
Optional< ConstRuleParameter >	find (Id id) const

template<>
boost::optional< ConstLanelet >	find (Id id) const

template<>
boost::optional< ConstArea >	find (Id id) const

ConstRuleParameterMap	getParameters () const
	Returns all parameters as const object (coversion overhead for const) More...

template<typename T >
std::vector< T >	getParameters (const std::string &role) const
	Returns a vector of all RuleParameters that could be converted to T. More...

template<>
std::vector< ConstLanelet >	getParameters (const std::string &role) const

template<typename T >
std::vector< T >	getParameters (RoleName role) const

template<>
std::vector< ConstLanelet >	getParameters (RoleName role) const

std::vector< std::string >	roles () const
	returns all the roles this regulatory element has More...

void	setId (Id id) noexcept

size_t	size () const
	get the number of roles in this regulatoryElement More...

virtual	~RegulatoryElement ()

Public Member Functions inherited from lanelet::ConstPrimitive< RegulatoryElementData >
const Attribute &	attribute (AttributeName name) const
	retrieve an attribute (enum version) More...

const Attribute &	attribute (const std::string &name) const
	retrieve an attribute More...

T	attributeOr (AttributeName name, T defaultVal) const
	retrieve an attribute (enum version) More...

T	attributeOr (const std::string &name, T defaultVal) const noexcept
	retrieve an attribute (string version) More...

const AttributeMap &	attributes () const
	get the attributes of this primitive More...

const std::shared_ptr< const RegulatoryElementData > &	constData () const
	get the internal data of this primitive More...

	ConstPrimitive (const std::shared_ptr< const RegulatoryElementData > &data)
	Construct from a pointer to the data. More...

bool	hasAttribute (AttributeName name) const noexcept
	check for an attribute (enum version) More...

bool	hasAttribute (const std::string &name) const noexcept
	check whether this primitive has a specific attribute More...

Id	id () const noexcept
	get the unique id of this primitive More...

bool	operator!= (const ConstPrimitive &rhs) const

bool	operator== (const ConstPrimitive &rhs) const

Static Public Member Functions
static Ptr	make (Id id, const AttributeMap &attributes, const Lanelets &rightOfWay, const Lanelets &yield, const Optional< LineString3d > &stopLine={})
	Create a valid Right of Way object. More...

Static Public Attributes
static constexpr char	RuleName [] = "right_of_way"

Static Public Attributes inherited from lanelet::RegulatoryElement
static constexpr char	RuleName [] = "basic_regulatory_element"

Static Public Attributes inherited from lanelet::ConstPrimitive< RegulatoryElementData >
static constexpr bool	IsConst

Protected Member Functions
	RightOfWay (const RegulatoryElementDataPtr &data)

	RightOfWay (Id id, const AttributeMap &attributes, const Lanelets &rightOfWay, const Lanelets &yield, const Optional< LineString3d > &stopLine={})

Protected Member Functions inherited from lanelet::RegulatoryElement
void	applyVisitor (internal::MutableParameterVisitor &visitor) const

const_iterator	begin () const

RegulatoryElementDataPtr	data ()

const_iterator	end () const

template<typename T >
std::vector< T >	getParameters (RoleName role)

RuleParameterMap &	parameters ()

const RuleParameterMap &	parameters () const

	RegulatoryElement (const RegulatoryElementDataPtr &data)

	RegulatoryElement (Id id=InvalId, const RuleParameterMap &members=RuleParameterMap(), const AttributeMap &attributes=AttributeMap())

Protected Member Functions inherited from lanelet::ConstPrimitive< RegulatoryElementData >
	ConstPrimitive (const ConstPrimitive &rhs)=default

	ConstPrimitive (ConstPrimitive &&rhs) noexcept=default

ConstPrimitive &	operator= (const ConstPrimitive &rhs)=default

ConstPrimitive &	operator= (ConstPrimitive &&rhs) noexcept=default

	~ConstPrimitive () noexcept=default

Friends
class	RegisterRegulatoryElement< RightOfWay >

Detailed Description

Defines right of way restrictions.

Definition at line 87 of file BasicRegulatoryElements.h.

Member Typedef Documentation

◆ Ptr

using lanelet::RightOfWay::Ptr = std::shared_ptr<RightOfWay>

Definition at line 89 of file BasicRegulatoryElements.h.

Constructor & Destructor Documentation

◆ RightOfWay() [1/2]

lanelet::RightOfWay::RightOfWay	(	Id	id,
		const AttributeMap &	attributes,
		const Lanelets &	rightOfWay,
		const Lanelets &	yield,
		const Optional< LineString3d > &	stopLine = `{}`
	)

protected

Definition at line 214 of file BasicRegulatoryElements.cpp.

◆ RightOfWay() [2/2]

lanelet::RightOfWay::RightOfWay ( const RegulatoryElementDataPtr & data )

explicitprotected

Definition at line 205 of file BasicRegulatoryElements.cpp.

Member Function Documentation

◆ addRightOfWayLanelet()

void lanelet::RightOfWay::addRightOfWayLanelet ( const Lanelet & lanelet )

Adds a lanelet for RightOfWay.

Definition at line 254 of file BasicRegulatoryElements.cpp.

◆ addYieldLanelet()

void lanelet::RightOfWay::addYieldLanelet ( const Lanelet & lanelet )

Add yielding lanelet.

Definition at line 258 of file BasicRegulatoryElements.cpp.

◆ getManeuver()

ManeuverType lanelet::RightOfWay::getManeuver ( const ConstLanelet & lanelet ) const

returns whether a lanelet has to yield or has right of way

Definition at line 218 of file BasicRegulatoryElements.cpp.

◆ make()

static Ptr lanelet::RightOfWay::make	(	Id	id,
		const AttributeMap &	attributes,
		const Lanelets &	rightOfWay,
		const Lanelets &	yield,
		const Optional< LineString3d > &	stopLine = `{}`
	)

inlinestatic

Create a valid Right of Way object.

Parameters

id	id for this rule
attributes	for this rule. Might be extended if necessary
rightOfWay	the lanelets that have right of way
yield	the lanelets that have to yield
stopLine	line where to stop. If there is none, stop at the end of the lanelet.

Definition at line 101 of file BasicRegulatoryElements.h.

◆ removeRightOfWayLanelet()

bool lanelet::RightOfWay::removeRightOfWayLanelet ( const Lanelet & lanelet )

Removes a right of way lanelet and returns true on success.

Definition at line 260 of file BasicRegulatoryElements.cpp.

◆ removeStopLine()

void lanelet::RightOfWay::removeStopLine ( )

Removes the stop line.

Definition at line 268 of file BasicRegulatoryElements.cpp.

◆ removeYieldLanelet()

bool lanelet::RightOfWay::removeYieldLanelet ( const Lanelet & lanelet )

Removes a yielding lanelet and returns true no success.

Definition at line 264 of file BasicRegulatoryElements.cpp.

◆ rightOfWayLanelets() [1/2]

Lanelets lanelet::RightOfWay::rightOfWayLanelets ( )

◆ rightOfWayLanelets() [2/2]

Lanelets lanelet::RightOfWay::rightOfWayLanelets ( ) const

get the lanelets have right of way

Definition at line 228 of file BasicRegulatoryElements.cpp.

◆ setStopLine()

void lanelet::RightOfWay::setStopLine ( const LineString3d & stopLine )

Overwrites the stop line.

Definition at line 252 of file BasicRegulatoryElements.cpp.

◆ stopLine() [1/2]

Optional<LineString3d> lanelet::RightOfWay::stopLine ( )

◆ stopLine() [2/2]

Optional< LineString3d > lanelet::RightOfWay::stopLine ( ) const

get the stop line for the yield lanelets, if present

Definition at line 236 of file BasicRegulatoryElements.cpp.

◆ yieldLanelets() [1/2]

Lanelets lanelet::RightOfWay::yieldLanelets ( )

◆ yieldLanelets() [2/2]

Lanelets lanelet::RightOfWay::yieldLanelets ( ) const

get the lanelets that have to yield

Definition at line 232 of file BasicRegulatoryElements.cpp.

Friends And Related Function Documentation

◆ RegisterRegulatoryElement< RightOfWay >

friend class RegisterRegulatoryElement< RightOfWay >

friend

Definition at line 140 of file BasicRegulatoryElements.h.

Member Data Documentation

◆ RuleName

constexpr char lanelet::RightOfWay::RuleName = "right_of_way"

staticconstexpr

Definition at line 90 of file BasicRegulatoryElements.h.

The documentation for this class was generated from the following files:
