rsm::BaseState Class Reference

#include <BaseState.h>

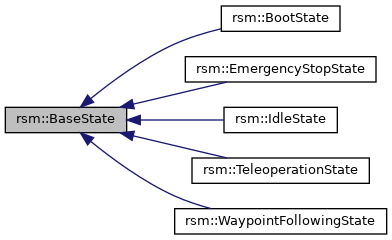

Inheritance diagram for rsm::BaseState:

Public Member Functions
	BaseState ()
std::string	getName ()
StateInterface *	getStateInterface ()
virtual void	onActive ()=0
virtual void	onEntry ()
virtual void	onExit ()
virtual void	onExplorationStart (bool &success, std::string &message)
virtual void	onExplorationStop (bool &success, std::string &message)
virtual void	onInterrupt (int interrupt)
	Called when an operation mode interrupt was received. More...
virtual void	onSetup ()
virtual void	onWaypointFollowingStart (bool &success, std::string &message)
virtual void	onWaypointFollowingStop (bool &success, std::string &message)
void	setStateInterface (StateInterface *stateinterface)
virtual	~BaseState ()

Protected Attributes
bool	_interrupt_occured
	Shows if an interupt occured. More...
std::string	_name
	Name of the state. More...
StateInterface *	_stateinterface
	Pointer to State Interface handling all state transitions. More...

Detailed Description

Definition at line 26 of file BaseState.h.

Constructor & Destructor Documentation

BaseState()

rsm::BaseState::BaseState

(

)

Constructor

Definition at line 5 of file BaseState.cpp.

~BaseState()

rsm::BaseState::~BaseState ( )

virtual

Default destructor

Definition at line 10 of file BaseState.cpp.

Member Function Documentation

getName()

std::string rsm::BaseState::getName

(

)

Getter for the state's name

Returns

Name of the state

Definition at line 22 of file BaseState.cpp.

getStateInterface()

StateInterface * rsm::BaseState::getStateInterface

(

)

Get state interface of state. Default is NULL, when no state interface is assigned.

Returns

pointer to StateInterface instance.

Definition at line 18 of file BaseState.cpp.

onActive()

virtual void rsm::BaseState::onActive ( )

pure virtual

Called while active

Implemented in rsm::WaypointFollowingState, rsm::BootState, rsm::IdleState, rsm::TeleoperationState, and rsm::EmergencyStopState.

onEntry()

virtual void rsm::BaseState::onEntry ( )

inlinevirtual

Called once when activated

Reimplemented in rsm::WaypointFollowingState, rsm::BootState, rsm::IdleState, rsm::TeleoperationState, and rsm::EmergencyStopState.

Definition at line 61 of file BaseState.h.

onExit()

virtual void rsm::BaseState::onExit ( )

inlinevirtual

Called once when left

Reimplemented in rsm::WaypointFollowingState, rsm::BootState, rsm::IdleState, rsm::TeleoperationState, and rsm::EmergencyStopState.

Definition at line 73 of file BaseState.h.

onExplorationStart()

virtual void rsm::BaseState::onExplorationStart ( bool &  success, std::string &  message  )

inlinevirtual

Called when exploration was started manually

Reimplemented in rsm::WaypointFollowingState, rsm::BootState, rsm::IdleState, rsm::TeleoperationState, and rsm::EmergencyStopState.

Definition at line 80 of file BaseState.h.

onExplorationStop()

virtual void rsm::BaseState::onExplorationStop ( bool &  success, std::string &  message  )

inlinevirtual

Called when exploration was stopped manually

Reimplemented in rsm::WaypointFollowingState, rsm::BootState, rsm::IdleState, rsm::TeleoperationState, and rsm::EmergencyStopState.

Definition at line 88 of file BaseState.h.

onInterrupt()

virtual void rsm::BaseState::onInterrupt ( int  interrupt )

inlinevirtual

Called when an operation mode interrupt was received.

Parameters

interrupt

Kind of interrupt (1=EmergencyStop, 2=TeleoperationInterupt)

Reimplemented in rsm::WaypointFollowingState, rsm::IdleState, rsm::TeleoperationState, rsm::EmergencyStopState, and rsm::BootState.

Definition at line 110 of file BaseState.h.

onSetup()

virtual void rsm::BaseState::onSetup ( )

inlinevirtual

Called once when registered at StateInterface

Reimplemented in rsm::WaypointFollowingState, rsm::BootState, rsm::IdleState, rsm::TeleoperationState, and rsm::EmergencyStopState.

Definition at line 54 of file BaseState.h.

onWaypointFollowingStart()

virtual void rsm::BaseState::onWaypointFollowingStart ( bool &  success, std::string &  message  )

inlinevirtual

Called when waypoint following was started/paused manually

Reimplemented in rsm::WaypointFollowingState, rsm::IdleState, rsm::TeleoperationState, and rsm::EmergencyStopState.

Definition at line 95 of file BaseState.h.

onWaypointFollowingStop()

virtual void rsm::BaseState::onWaypointFollowingStop ( bool &  success, std::string &  message  )

inlinevirtual

Called when waypoint following was stopped manually

Reimplemented in rsm::WaypointFollowingState, rsm::IdleState, rsm::TeleoperationState, and rsm::EmergencyStopState.

Definition at line 102 of file BaseState.h.

setStateInterface()

void rsm::BaseState::setStateInterface

(

StateInterface *

stateinterface

)

Set state interface of state. This is called by the state interface at state transitions.

Parameters

StateInterface

Instance

Definition at line 14 of file BaseState.cpp.

Member Data Documentation

_interrupt_occured

bool rsm::BaseState::_interrupt_occured

protected

Shows if an interupt occured.

Definition at line 129 of file BaseState.h.

_name

std::string rsm::BaseState::_name

protected

Name of the state.

Definition at line 133 of file BaseState.h.

_stateinterface

StateInterface* rsm::BaseState::_stateinterface

protected

Pointer to State Interface handling all state transitions.

Definition at line 125 of file BaseState.h.

---

The documentation for this class was generated from the following files:

• BaseState.h
• BaseState.cpp
