sl::IChannel Class Reference

#include <sl_lidar_driver.h>

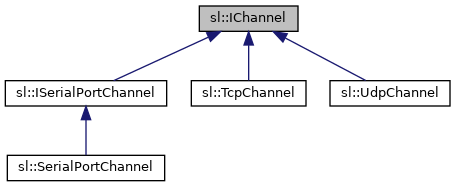

Inheritance diagram for sl::IChannel:

Public Member Functions
virtual void	clearReadCache ()=0
virtual void	close ()=0
virtual void	flush ()=0
virtual bool	open ()=0
virtual int	read (void *buffer, size_t size)=0
virtual bool	waitForData (size_t size, sl_u32 timeoutInMs=-1, size_t *actualReady=nullptr)=0
virtual int	write (const void *data, size_t size)=0
virtual	~IChannel ()

Detailed Description

Abstract interface of communication channel

Definition at line 132 of file sl_lidar_driver.h.

Constructor & Destructor Documentation

~IChannel()

virtual sl::IChannel::~IChannel ( )

inlinevirtual

Definition at line 135 of file sl_lidar_driver.h.

Member Function Documentation

clearReadCache()

virtual void sl::IChannel::clearReadCache ( )

pure virtual

Clear read cache

Implemented in sl::UdpChannel, sl::SerialPortChannel, and sl::TcpChannel.

close()

virtual void sl::IChannel::close ( )

pure virtual

Close communication channel

Implemented in sl::SerialPortChannel, sl::TcpChannel, and sl::UdpChannel.

flush()

virtual void sl::IChannel::flush ( )

pure virtual

Flush all written data to remote endpoint

Implemented in sl::SerialPortChannel, sl::TcpChannel, and sl::UdpChannel.

open()

virtual bool sl::IChannel::open ( )

pure virtual

Open communication channel (return true if succeed)

Implemented in sl::SerialPortChannel, sl::TcpChannel, and sl::UdpChannel.

read()

virtual int sl::IChannel::read ( void *  buffer, size_t  size  )

pure virtual

Read data from the chanel

Parameters

buffer	The buffer to receive data
size	The size of the read buffer

Returns

Bytes read (negative for read failure)

Implemented in sl::SerialPortChannel, sl::TcpChannel, and sl::UdpChannel.

waitForData()

virtual bool sl::IChannel::waitForData ( size_t  size, sl_u32  timeoutInMs = -1, size_t *  actualReady = nullptr  )

pure virtual

Wait for some data

Parameters

size	Bytes to wait
timeoutInMs	Wait timeout (in microseconds, -1 for forever)
actualReady	[out] actual ready bytes

Returns

true for data ready

Implemented in sl::SerialPortChannel, sl::TcpChannel, and sl::UdpChannel.

write()

virtual int sl::IChannel::write ( const void *  data, size_t  size  )

pure virtual

Send data to remote endpoint

Parameters

data	The data buffer
size	The size of data buffer (in bytes)

Returns

Bytes written (negative for write failure)

Implemented in sl::SerialPortChannel, sl::TcpChannel, and sl::UdpChannel.

---

The documentation for this class was generated from the following file:

• sl_lidar_driver.h
