psen_scan::ScannerCommunicationInterface Class Reference

Abstract base class for the communication interface with the PSENscan scanner. More...

#include <scanner_communication_interface.h>

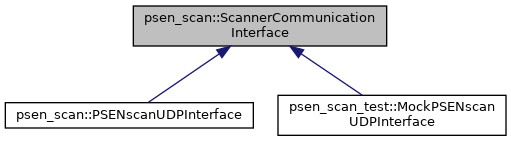

Inheritance diagram for psen_scan::ScannerCommunicationInterface:

Public Member Functions
virtual void	close ()=0
	Closes the connection to the scanner device. More...
virtual void	open ()=0
	Opens the connection to the scanner device. More...
virtual std::size_t	read (boost::asio::mutable_buffers_1 &buffer, const std::chrono::steady_clock::duration timeout)=0
	Receive data from the scanner. More...
virtual void	write (const boost::asio::mutable_buffers_1 &buffer)=0
	Sends data to the scanner device. More...
virtual	~ScannerCommunicationInterface ()=default

Detailed Description

Abstract base class for the communication interface with the PSENscan scanner.

Definition at line 70 of file scanner_communication_interface.h.

Constructor & Destructor Documentation

~ScannerCommunicationInterface()

virtual psen_scan::ScannerCommunicationInterface::~ScannerCommunicationInterface ( )

virtualdefault

Member Function Documentation

close()

virtual void psen_scan::ScannerCommunicationInterface::close ( )

pure virtual

Closes the connection to the scanner device.

Implemented in psen_scan::PSENscanUDPInterface.

open()

virtual void psen_scan::ScannerCommunicationInterface::open ( )

pure virtual

Opens the connection to the scanner device.

Implemented in psen_scan::PSENscanUDPInterface.

read()

virtual std::size_t psen_scan::ScannerCommunicationInterface::read ( boost::asio::mutable_buffers_1 &  buffer, const std::chrono::steady_clock::duration  timeout  )

pure virtual

Receive data from the scanner.

Parameters

buffer	Buffer which contains the data received from the scanner device after the function call is done.
timeout	Defines how long to wait for new messages from the scanner device.

Returns

the number of bytes received from the scanner device.

Exceptions

UDPReadTimeoutException

inidcating a timeout while reading data from the scanner device.

Implemented in psen_scan::PSENscanUDPInterface.

write()

virtual void psen_scan::ScannerCommunicationInterface::write ( const boost::asio::mutable_buffers_1 &  buffer )

pure virtual

Sends data to the scanner device.

Parameters

buffer

Data which have to be send to the scanner device.

Implemented in psen_scan::PSENscanUDPInterface.

---

The documentation for this class was generated from the following file:

• scanner_communication_interface.h
