novatel_oem7::Oem7RawMessageIf Class Reference

#include <oem7_raw_message_if.hpp>

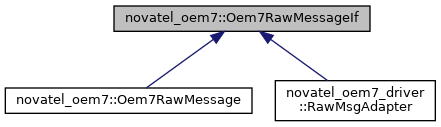

Inheritance diagram for novatel_oem7::Oem7RawMessageIf:

Public Types
typedef boost::shared_ptr< const Oem7RawMessageIf >	ConstPtr
enum	Oem7MessageFormat {   OEM7MSGFMT_UNKNOWN, OEM7MSGFMT_BINARY, OEM7MSGFMT_SHORTBINARY, OEM7MSGFMT_ASCII,   OEM7MSGFMT_ABASCII }
enum	Oem7MessageType { OEM7MSGTYPE_UNKNOWN, OEM7MSGTYPE_LOG, OEM7MSGTYPE_RSP, OOEM7MSGTYPE_CMD }

Public Member Functions
virtual const uint8_t *	getMessageData (size_t offset) const =0
virtual size_t	getMessageDataLength () const =0
virtual Oem7MessageFormat	getMessageFormat () const =0
virtual int	getMessageId () const =0
virtual Oem7MessageType	getMessageType () const =0
virtual	~Oem7RawMessageIf ()

Detailed Description

Definition at line 35 of file oem7_raw_message_if.hpp.

Member Typedef Documentation

ConstPtr

typedef boost::shared_ptr<const Oem7RawMessageIf> novatel_oem7::Oem7RawMessageIf::ConstPtr

Definition at line 39 of file oem7_raw_message_if.hpp.

Member Enumeration Documentation

Oem7MessageFormat

enum novatel_oem7::Oem7RawMessageIf::Oem7MessageFormat

Enumerator
OEM7MSGFMT_UNKNOWN
OEM7MSGFMT_BINARY
OEM7MSGFMT_SHORTBINARY
OEM7MSGFMT_ASCII
OEM7MSGFMT_ABASCII

Definition at line 49 of file oem7_raw_message_if.hpp.

Oem7MessageType

enum novatel_oem7::Oem7RawMessageIf::Oem7MessageType

Enumerator
OEM7MSGTYPE_UNKNOWN
OEM7MSGTYPE_LOG
OEM7MSGTYPE_RSP
OOEM7MSGTYPE_CMD

Definition at line 41 of file oem7_raw_message_if.hpp.

Constructor & Destructor Documentation

~Oem7RawMessageIf()

virtual novatel_oem7::Oem7RawMessageIf::~Oem7RawMessageIf ( )

inlinevirtual

Definition at line 58 of file oem7_raw_message_if.hpp.

Member Function Documentation

getMessageData()

virtual const uint8_t* novatel_oem7::Oem7RawMessageIf::getMessageData ( size_t  offset ) const

pure virtual

Implemented in novatel_oem7::Oem7RawMessage, and novatel_oem7_driver::RawMsgAdapter.

getMessageDataLength()

virtual size_t novatel_oem7::Oem7RawMessageIf::getMessageDataLength ( ) const

pure virtual

Implemented in novatel_oem7::Oem7RawMessage, and novatel_oem7_driver::RawMsgAdapter.

getMessageFormat()

virtual Oem7MessageFormat novatel_oem7::Oem7RawMessageIf::getMessageFormat ( ) const

pure virtual

Implemented in novatel_oem7::Oem7RawMessage, and novatel_oem7_driver::RawMsgAdapter.

getMessageId()

virtual int novatel_oem7::Oem7RawMessageIf::getMessageId ( ) const

pure virtual

Implemented in novatel_oem7::Oem7RawMessage, and novatel_oem7_driver::RawMsgAdapter.

getMessageType()

virtual Oem7MessageType novatel_oem7::Oem7RawMessageIf::getMessageType ( ) const

pure virtual

Implemented in novatel_oem7::Oem7RawMessage, and novatel_oem7_driver::RawMsgAdapter.

---

The documentation for this class was generated from the following file:

• oem7_raw_message_if.hpp
