utils/cmsis/same70/include/component/uart.h File Reference

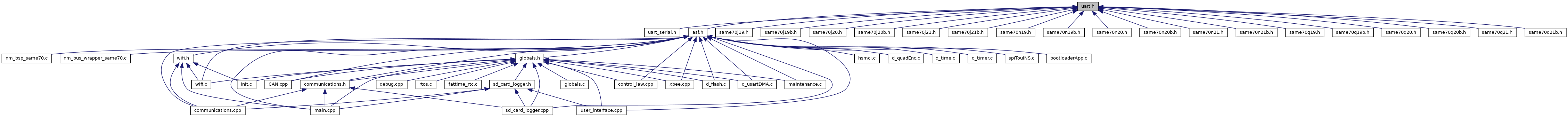

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  Uart
 Uart hardware registers. More...


Macros

#define UART_BRGR_CD(value)   ((UART_BRGR_CD_Msk & ((value) << UART_BRGR_CD_Pos)))

#define UART_BRGR_CD_Msk   (0xffffu << UART_BRGR_CD_Pos)
 (UART_BRGR) Clock Divisor More...

#define UART_BRGR_CD_Pos   0

#define UART_CMPR_CMPMODE   (0x1u << 12)
 (UART_CMPR) Comparison Mode More...

#define UART_CMPR_CMPMODE_FLAG_ONLY   (0x0u << 12)
 (UART_CMPR) Any character is received and comparison function drives CMP flag. More...

#define UART_CMPR_CMPMODE_START_CONDITION   (0x1u << 12)
 (UART_CMPR) Comparison condition must be met to start reception. More...

#define UART_CMPR_CMPPAR   (0x1u << 14)
 (UART_CMPR) Compare Parity More...

#define UART_CMPR_VAL1(value)   ((UART_CMPR_VAL1_Msk & ((value) << UART_CMPR_VAL1_Pos)))

#define UART_CMPR_VAL1_Msk   (0xffu << UART_CMPR_VAL1_Pos)
 (UART_CMPR) First Comparison Value for Received Character More...

#define UART_CMPR_VAL1_Pos   0

#define UART_CMPR_VAL2(value)   ((UART_CMPR_VAL2_Msk & ((value) << UART_CMPR_VAL2_Pos)))

#define UART_CMPR_VAL2_Msk   (0xffu << UART_CMPR_VAL2_Pos)
 (UART_CMPR) Second Comparison Value for Received Character More...

#define UART_CMPR_VAL2_Pos   16

#define UART_CR_DBGE   (0x1u << 15)
 (UART_CR) Debug Enable More...

#define UART_CR_REQCLR   (0x1u << 12)
 (UART_CR) Request Clear More...

#define UART_CR_RSTRX   (0x1u << 2)
 (UART_CR) Reset Receiver More...

#define UART_CR_RSTSTA   (0x1u << 8)
 (UART_CR) Reset Status More...

#define UART_CR_RSTTX   (0x1u << 3)
 (UART_CR) Reset Transmitter More...

#define UART_CR_RXDIS   (0x1u << 5)
 (UART_CR) Receiver Disable More...

#define UART_CR_RXEN   (0x1u << 4)
 (UART_CR) Receiver Enable More...

#define UART_CR_TXDIS   (0x1u << 7)
 (UART_CR) Transmitter Disable More...

#define UART_CR_TXEN   (0x1u << 6)
 (UART_CR) Transmitter Enable More...

#define UART_IDR_CMP   (0x1u << 15)
 (UART_IDR) Disable Comparison Interrupt More...

#define UART_IDR_FRAME   (0x1u << 6)
 (UART_IDR) Disable Framing Error Interrupt More...

#define UART_IDR_OVRE   (0x1u << 5)
 (UART_IDR) Disable Overrun Error Interrupt More...

#define UART_IDR_PARE   (0x1u << 7)
 (UART_IDR) Disable Parity Error Interrupt More...

#define UART_IDR_RXRDY   (0x1u << 0)
 (UART_IDR) Disable RXRDY Interrupt More...

#define UART_IDR_TXEMPTY   (0x1u << 9)
 (UART_IDR) Disable TXEMPTY Interrupt More...

#define UART_IDR_TXRDY   (0x1u << 1)
 (UART_IDR) Disable TXRDY Interrupt More...

#define UART_IER_CMP   (0x1u << 15)
 (UART_IER) Enable Comparison Interrupt More...

#define UART_IER_FRAME   (0x1u << 6)
 (UART_IER) Enable Framing Error Interrupt More...

#define UART_IER_OVRE   (0x1u << 5)
 (UART_IER) Enable Overrun Error Interrupt More...

#define UART_IER_PARE   (0x1u << 7)
 (UART_IER) Enable Parity Error Interrupt More...

#define UART_IER_RXRDY   (0x1u << 0)
 (UART_IER) Enable RXRDY Interrupt More...

#define UART_IER_TXEMPTY   (0x1u << 9)
 (UART_IER) Enable TXEMPTY Interrupt More...

#define UART_IER_TXRDY   (0x1u << 1)
 (UART_IER) Enable TXRDY Interrupt More...

#define UART_IMR_CMP   (0x1u << 15)
 (UART_IMR) Mask Comparison Interrupt More...

#define UART_IMR_FRAME   (0x1u << 6)
 (UART_IMR) Mask Framing Error Interrupt More...

#define UART_IMR_OVRE   (0x1u << 5)
 (UART_IMR) Mask Overrun Error Interrupt More...

#define UART_IMR_PARE   (0x1u << 7)
 (UART_IMR) Mask Parity Error Interrupt More...

#define UART_IMR_RXRDY   (0x1u << 0)
 (UART_IMR) Mask RXRDY Interrupt More...

#define UART_IMR_TXEMPTY   (0x1u << 9)
 (UART_IMR) Mask TXEMPTY Interrupt More...

#define UART_IMR_TXRDY   (0x1u << 1)
 (UART_IMR) Disable TXRDY Interrupt More...

#define UART_MR_BRSRCCK   (0x1u << 12)
 (UART_MR) Baud Rate Source Clock More...

#define UART_MR_BRSRCCK_PERIPH_CLK   (0x0u << 12)
 (UART_MR) The baud rate is driven by the peripheral clock More...

#define UART_MR_BRSRCCK_PMC_PCK   (0x1u << 12)
 (UART_MR) The baud rate is driven by a PMC programmable clock PCK (see section Power Management Controller (PMC)). More...

#define UART_MR_CHMODE(value)   ((UART_MR_CHMODE_Msk & ((value) << UART_MR_CHMODE_Pos)))

#define UART_MR_CHMODE_AUTOMATIC   (0x1u << 14)
 (UART_MR) Automatic echo More...

#define UART_MR_CHMODE_LOCAL_LOOPBACK   (0x2u << 14)
 (UART_MR) Local loopback More...

#define UART_MR_CHMODE_Msk   (0x3u << UART_MR_CHMODE_Pos)
 (UART_MR) Channel Mode More...

#define UART_MR_CHMODE_NORMAL   (0x0u << 14)
 (UART_MR) Normal mode More...

#define UART_MR_CHMODE_Pos   14

#define UART_MR_CHMODE_REMOTE_LOOPBACK   (0x3u << 14)
 (UART_MR) Remote loopback More...

#define UART_MR_FILTER   (0x1u << 4)
 (UART_MR) Receiver Digital Filter More...

#define UART_MR_FILTER_DISABLED   (0x0u << 4)
 (UART_MR) UART does not filter the receive line. More...

#define UART_MR_FILTER_ENABLED   (0x1u << 4)
 (UART_MR) UART filters the receive line using a three-sample filter (16x-bit clock) (2 over 3 majority). More...

#define UART_MR_PAR(value)   ((UART_MR_PAR_Msk & ((value) << UART_MR_PAR_Pos)))

#define UART_MR_PAR_EVEN   (0x0u << 9)
 (UART_MR) Even Parity More...

#define UART_MR_PAR_MARK   (0x3u << 9)
 (UART_MR) Mark: parity forced to 1 More...

#define UART_MR_PAR_Msk   (0x7u << UART_MR_PAR_Pos)
 (UART_MR) Parity Type More...

#define UART_MR_PAR_NO   (0x4u << 9)
 (UART_MR) No parity More...

#define UART_MR_PAR_ODD   (0x1u << 9)
 (UART_MR) Odd Parity More...

#define UART_MR_PAR_Pos   9

#define UART_MR_PAR_SPACE   (0x2u << 9)
 (UART_MR) Space: parity forced to 0 More...

#define UART_RHR_RXCHR_Msk   (0xffu << UART_RHR_RXCHR_Pos)
 (UART_RHR) Received Character More...

#define UART_RHR_RXCHR_Pos   0

#define UART_SR_CLKREQ   (0x1u << 22)
 (UART_SR) Clock Request More...

#define UART_SR_CMP   (0x1u << 15)
 (UART_SR) Comparison Match More...

#define UART_SR_FRAME   (0x1u << 6)
 (UART_SR) Framing Error More...

#define UART_SR_OVRE   (0x1u << 5)
 (UART_SR) Overrun Error More...

#define UART_SR_PARE   (0x1u << 7)
 (UART_SR) Parity Error More...

#define UART_SR_RXRDY   (0x1u << 0)
 (UART_SR) Receiver Ready More...

#define UART_SR_SWES   (0x1u << 21)
 (UART_SR) SleepWalking Enable Status More...

#define UART_SR_TXEMPTY   (0x1u << 9)
 (UART_SR) Transmitter Empty More...

#define UART_SR_TXRDY   (0x1u << 1)
 (UART_SR) Transmitter Ready More...

#define UART_SR_WKUPREQ   (0x1u << 23)
 (UART_SR) Wake-Up Request More...

#define UART_THR_TXCHR(value)   ((UART_THR_TXCHR_Msk & ((value) << UART_THR_TXCHR_Pos)))

#define UART_THR_TXCHR_Msk   (0xffu << UART_THR_TXCHR_Pos)
 (UART_THR) Character to be Transmitted More...

#define UART_THR_TXCHR_Pos   0

#define UART_VERSION_MFN_Msk   (0x7u << UART_VERSION_MFN_Pos)
 (UART_VERSION) Metal Fix Number More...

#define UART_VERSION_MFN_Pos   16

#define UART_VERSION_VERSION_Msk   (0xfffu << UART_VERSION_VERSION_Pos)
 (UART_VERSION) Hardware Module Version More...

#define UART_VERSION_VERSION_Pos   0

#define UART_WPMR_WPEN   (0x1u << 0)
 (UART_WPMR) Write Protection Enable More...

#define UART_WPMR_WPKEY(value)   ((UART_WPMR_WPKEY_Msk & ((value) << UART_WPMR_WPKEY_Pos)))

#define UART_WPMR_WPKEY_Msk   (0xffffffu << UART_WPMR_WPKEY_Pos)
 (UART_WPMR) Write Protection Key More...

#define UART_WPMR_WPKEY_PASSWD   (0x554152u << 8)
 (UART_WPMR) Writing any other value in this field aborts the write operation.Always reads as 0. More...

#define UART_WPMR_WPKEY_Pos   8


Detailed Description

Copyright (c) 2015-2018 Microchip Technology Inc. and its subsidiaries.

Definition in file utils/cmsis/same70/include/component/uart.h.
