transmission_interface::Transmission Class Reference

Abstract base class for representing mechanical transmissions. More...

#include <transmission.h>

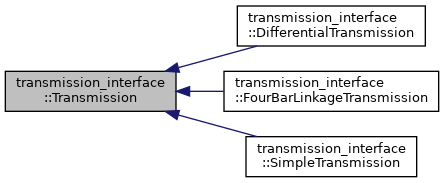

Inheritance diagram for transmission_interface::Transmission:

Public Member Functions
virtual void	actuatorToJointAbsolutePosition (const ActuatorData &, JointData &)
virtual void	actuatorToJointEffort (const ActuatorData &act_data, JointData &jnt_data)=0
	Transform effort variables from actuator to joint space. More...
virtual void	actuatorToJointPosition (const ActuatorData &act_data, JointData &jnt_data)=0
	Transform position variables from actuator to joint space. More...
virtual void	actuatorToJointTorqueSensor (const ActuatorData &, JointData &)
virtual void	actuatorToJointVelocity (const ActuatorData &act_data, JointData &jnt_data)=0
	Transform velocity variables from actuator to joint space. More...
virtual bool	hasActuatorToJointAbsolutePosition () const
virtual bool	hasActuatorToJointTorqueSensor () const
virtual void	jointToActuatorEffort (const JointData &jnt_data, ActuatorData &act_data)=0
	Transform effort variables from joint to actuator space. More...
virtual void	jointToActuatorPosition (const JointData &jnt_data, ActuatorData &act_data)=0
	Transform position variables from joint to actuator space. More...
virtual void	jointToActuatorVelocity (const JointData &jnt_data, ActuatorData &act_data)=0
	Transform velocity variables from joint to actuator space. More...
virtual std::size_t	numActuators () const =0
virtual std::size_t	numJoints () const =0
virtual	~Transmission ()=default

Detailed Description

Abstract base class for representing mechanical transmissions.

Mechanical transmissions transform effort/flow variables such that their product (power) remains constant. Effort variables for linear and rotational domains are force and torque; while the flow variables are respectively linear velocity and angular velocity.

In robotics it is customary to place transmissions between actuators and joints. This interface adheres to this naming to identify the input and output spaces of the transformation. The provided interfaces allow bidirectional mappings between actuator and joint spaces for effort, velocity and position. Position is not a power variable, but the mappings can be implemented using the velocity map plus an integration constant representing the offset between actuator and joint zeros.

Credit

This interface was inspired by similar existing implementations by PAL Robotics, S.L. and Willow Garage Inc.

Note

Implementations of this interface must take care of realtime-safety if the code is to be run in realtime contexts, as is often the case in robot control.

Definition at line 91 of file transmission.h.

Constructor & Destructor Documentation

~Transmission()

virtual transmission_interface::Transmission::~Transmission ( )

virtualdefault

Member Function Documentation

actuatorToJointAbsolutePosition()

virtual void transmission_interface::Transmission::actuatorToJointAbsolutePosition ( const ActuatorData &  , JointData &    )

inlinevirtual

Reimplemented in transmission_interface::DifferentialTransmission, transmission_interface::FourBarLinkageTransmission, and transmission_interface::SimpleTransmission.

Definition at line 129 of file transmission.h.

actuatorToJointEffort()

virtual void transmission_interface::Transmission::actuatorToJointEffort ( const ActuatorData &  act_data, JointData &  jnt_data  )

pure virtual

Transform effort variables from actuator to joint space.

Parameters

[in]	act_data	Actuator-space variables.
[out]	jnt_data	Joint-space variables.

Precondition

All non-empty vectors must contain valid data and their size should be consistent with the number of transmission actuators and joints. Data vectors not used in this map can remain empty.

Implemented in transmission_interface::DifferentialTransmission, transmission_interface::FourBarLinkageTransmission, and transmission_interface::SimpleTransmission.

actuatorToJointPosition()

virtual void transmission_interface::Transmission::actuatorToJointPosition ( const ActuatorData &  act_data, JointData &  jnt_data  )

pure virtual

Transform position variables from actuator to joint space.

Parameters

[in]	act_data	Actuator-space variables.
[out]	jnt_data	Joint-space variables.

Precondition

All non-empty vectors must contain valid data and their size should be consistent with the number of transmission actuators and joints. Data vectors not used in this map can remain empty.

Implemented in transmission_interface::DifferentialTransmission, transmission_interface::FourBarLinkageTransmission, and transmission_interface::SimpleTransmission.

actuatorToJointTorqueSensor()

virtual void transmission_interface::Transmission::actuatorToJointTorqueSensor ( const ActuatorData &  , JointData &    )

inlinevirtual

Reimplemented in transmission_interface::DifferentialTransmission, transmission_interface::FourBarLinkageTransmission, and transmission_interface::SimpleTransmission.

Definition at line 135 of file transmission.h.

actuatorToJointVelocity()

virtual void transmission_interface::Transmission::actuatorToJointVelocity ( const ActuatorData &  act_data, JointData &  jnt_data  )

pure virtual

Transform velocity variables from actuator to joint space.

Parameters

[in]	act_data	Actuator-space variables.
[out]	jnt_data	Joint-space variables.

Precondition

All non-empty vectors must contain valid data and their size should be consistent with the number of transmission actuators and joints. Data vectors not used in this map can remain empty.

Implemented in transmission_interface::DifferentialTransmission, transmission_interface::FourBarLinkageTransmission, and transmission_interface::SimpleTransmission.

hasActuatorToJointAbsolutePosition()

virtual bool transmission_interface::Transmission::hasActuatorToJointAbsolutePosition ( ) const

inlinevirtual

Reimplemented in transmission_interface::DifferentialTransmission, transmission_interface::FourBarLinkageTransmission, and transmission_interface::SimpleTransmission.

Definition at line 141 of file transmission.h.

hasActuatorToJointTorqueSensor()

virtual bool transmission_interface::Transmission::hasActuatorToJointTorqueSensor ( ) const

inlinevirtual

Reimplemented in transmission_interface::DifferentialTransmission, transmission_interface::FourBarLinkageTransmission, and transmission_interface::SimpleTransmission.

Definition at line 142 of file transmission.h.

jointToActuatorEffort()

virtual void transmission_interface::Transmission::jointToActuatorEffort ( const JointData &  jnt_data, ActuatorData &  act_data  )

pure virtual

Transform effort variables from joint to actuator space.

Parameters

[in]	jnt_data	Joint-space variables.
[out]	act_data	Actuator-space variables.

Precondition

All non-empty vectors must contain valid data and their size should be consistent with the number of transmission actuators and joints. Data vectors not used in this map can remain empty.

Implemented in transmission_interface::DifferentialTransmission, transmission_interface::FourBarLinkageTransmission, and transmission_interface::SimpleTransmission.

jointToActuatorPosition()

virtual void transmission_interface::Transmission::jointToActuatorPosition ( const JointData &  jnt_data, ActuatorData &  act_data  )

pure virtual

Transform position variables from joint to actuator space.

Parameters

[in]	jnt_data	Joint-space variables.
[out]	act_data	Actuator-space variables.

Precondition

All non-empty vectors must contain valid data and their size should be consistent with the number of transmission actuators and joints. Data vectors not used in this map can remain empty.

Implemented in transmission_interface::DifferentialTransmission, transmission_interface::FourBarLinkageTransmission, and transmission_interface::SimpleTransmission.

jointToActuatorVelocity()

virtual void transmission_interface::Transmission::jointToActuatorVelocity ( const JointData &  jnt_data, ActuatorData &  act_data  )

pure virtual

Transform velocity variables from joint to actuator space.

Parameters

[in]	jnt_data	Joint-space variables.
[out]	act_data	Actuator-space variables.

Precondition

All non-empty vectors must contain valid data and their size should be consistent with the number of transmission actuators and joints. Data vectors not used in this map can remain empty.

Implemented in transmission_interface::DifferentialTransmission, transmission_interface::FourBarLinkageTransmission, and transmission_interface::SimpleTransmission.

numActuators()

virtual std::size_t transmission_interface::Transmission::numActuators ( ) const

pure virtual

Returns

Number of actuators managed by transmission, ie. the dimension of the actuator space.

Implemented in transmission_interface::DifferentialTransmission, transmission_interface::FourBarLinkageTransmission, and transmission_interface::SimpleTransmission.

numJoints()

virtual std::size_t transmission_interface::Transmission::numJoints ( ) const

pure virtual

Returns

Number of joints managed by transmission, ie. the dimension of the joint space.

Implemented in transmission_interface::DifferentialTransmission, transmission_interface::FourBarLinkageTransmission, and transmission_interface::SimpleTransmission.

---

The documentation for this class was generated from the following file:

• transmission.h
